PCE Instruments is one of the leading weighing equipment manufacturers and suppliers in Europe. Spezialized in industrial, laboratory and process weighing equipment and loadcells, PCE serves
clients all over the world. Nearly two decades of experience in process equipment manufacturing are reflected in thousands of sold balances and scales and lots of industrial system installations.
PCE Instruments is one of the leading weighing equipment manufacturers and suppliers in Europe. Spezialized in industrial, laboratory and process weighing equipment and loadcells, PCE serves
clients all over the world. Nearly two decades of experience in process equipment manufacturing are reflected in thousands of sold balances and scales and lots of industrial system installations.

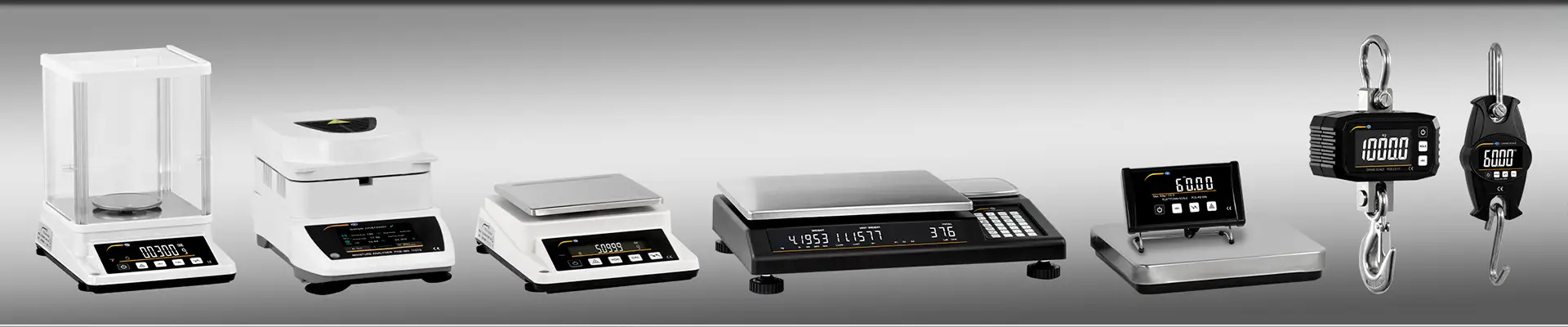

The equipment ranges from laboratory precision scales, crane scales, platform scales to tank, vessel or conveyor belt weighing equipment. Static as well as dynamic weighing solutions are done by PCEs
technicians and engineers in a cost effective way to reach excellent and efficient results.
The manufacturing and development division is certified to ISO9001:2008.
PCEs clients profit from german engineering, manufacturing and maintenance in nearly all kind of industrial weighing
application (industrial, construction, transportation, agriculture, farming, food, mining, waste, recycling, research and development, education). Your application requires only a single
loadcell? PCE provides it. You are in need of a complete weighing solution? PCE will deliver, install and mainatin it.
All weighing equipment is delivered manufacturer calibrated or cerified
(ISO, DKD, NIST) or OIML approved to Classe MI, MII, MIII (depending on the application). Re-Calibrations can be done at customer site. Weighing ranges start at 80 g and end up at 200 tons.
The data is stored in the weighing system itself or transferred via interfaces as USB, RS-232, RS-485, ethernet, 4-20 mA, 0-10 V (data protocols on customers demand). You can feed your plant
data / control system for complete overview and process control.
- PCE Instruments offers first class weighing equipment and solutions that perfectly solve your weighing tasks. -
The moisture analyzer PCE-MA 50X is an innovative solution for the fast and highly accurate determination of moisture in a wide variety of materials. The precision weighing scale uses weighing technology from the analytical balance range and is operated in combination with a drying chamber.
- Weighing range: 50 g / 0.11 lbs
- Readability: 0.1 mg = 0.0001 g / 0.0001%
- Especially for very dry samples such as ABS / PET etc.
- Drying temperature max. 160°C / 320°F
- Database with drying parameters for eg ABS, Crastin, Aramid...
- Stores the measurement data of the last 5,000 drying cycles
- Automatic chamber opens and closes without contact
- Non-contact control thanks to IR sensors
- Quickly import and export stored data using a USB flash drive
The counting scale is a balance with two integrated weighing platforms in one measuring device. These are two different weighing platforms with different specifications.
- Platform 1 measuring range: 25 kg / 55 lbs - Platform 2 measuring range: 1 kg / 2.2 lbs - Two integrated weighing surfaces - Piece counting function - Different interfaces - Connection of another load cell possible
PCE-CS 1000N is a digital, electronic, battery-powered crane scale that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.
- Maximum weighing capacity: 1000 kg / 2200 lbs ≈ 1 Ton - Resolution: 0.2 kg / 0.4 lb - Tare range: 100% full scale
PCE-CS 1000N is a digital, electronic, battery-powered Suspended Scale that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.
- Maximum weighing capacity: 1000 kg / 2200 lbs ≈ 1 Ton - Resolution: 0.2 kg / 0.4 lb - Tare range: 100% full scale
The laboratory balance scale is a scale for daily laboratory use. Another function besides the normal measuring function of the laboratory balance scale is the piece counting function. This function allows the laboratory balance scale to determine the number of screws, for example.
- Measuring range: 0 ... 5100 g
- Resolution: 0.1 g
- Piece counting function
- RS-232 interface
- External calibration
The laboratory balance scale is a scale for daily laboratory use. Another function besides the normal measurement function of the laboratory balance scale is the piece counting function. This function allows the laboratory balance scale to determine the number of screws, for example.
- Measuring range: 0 ... 310 g
- Resolution: 0.001 g
- Piece counting function
- RS-232 interface
- External calibration
The parcel scale with a maximum weighing range of up to 75 kg and a weighing surface of 350 x 390 mm / 13.7 x 15.3" is the ideal measuring device for determining the weight of parcels or the contents of propane gas bottles.
- Weighing range: 75 kg / 165 lb - Resolution: 0.02 kg / 0.7 oz - Accuracy: ± 0.06 kg / 2.1 oz - Weighing units kg, lb, oz / lb - Counting function
The tabletop scale PCE-BSW 3 is an ideal companion for mobile use. Thanks to this second indicator on the tabletop scale, several viewers can follow a weighing process and analyze it.
- Measuring range: 0 ... 3000 g / 0 ... 6.6 lbs
- Resolution: 0.1 g
- Large contact surface of 235 x 190 mm / 9.3 x 7.5 in
- Different measuring ranges
- Battery operation for mobile use
- Front and back display
The laboratory balance scale is a scale for daily laboratory use. Another function besides the normal measurement function of the laboratory balance scale is the piece counting function. This function allows the laboratory balance scale to determine the number of screws, for example.
- Measuring range: 0 ... 1100 g
- Resolution: 0.01 g
- Piece counting function
- RS-232 interface
- External calibration
These paper scales were specially designed for the measurement of basis weight. Thanks to this paper scale, basis weight measurements can be carried out and evaluated within a very short time.
- Measuring range: 0 ... 310 g / 0 ... 31,000 g / m²
- Resolution: 0.01 g / 1 g / m²
- RS-232 interface
- Piece counting function, weight per unit area
- Battery operation for mobile use
The benchtop scale has a 300 x 400 mm stainless steel platform that can be removed for cleaning. Benchtop scale for flexible use, independent of the power supply.
- Weighing range: 60 kg / 132 lb - Readability: 5 g / 0.17 oz - Taring range: over the full range - Piece counting - Settling time: adjustable - Weighing units: kg / lb - Platform size: 300 x 400 mm / 11.8 x 15.7" - Mains and battery operation
The benchtop scale has a 300 x 400 mm stainless steel platform that can be removed for cleaning. Benchtop scale for flexible use, independent of the power supply.
- Weighing range: 30 kg / 66 lb - Readability: 2 g / 0.07 oz - Taring range: over the full range - Piece counting - Settling time: adjustable - Weighing units: kg / lb - Platform size: 300 x 400 mm / 11.8 x 15.7" - Mains and battery operation
The benchtop scale has a 400 x 500 mm stainless steel platform that can be removed for cleaning. Benchtop scale for flexible use, independent of the power supply.
- Weighing range: 150 kg / 330 lb - Readability: 10 g / 0.35 oz - Taring range: over the full range - Piece counting - Settling time: adjustable - Weighing units: kg / lb - Platform size: 400 x 500 mm / 15.7 x 19.7" - Mains and battery operation
The inventory scale is a balance with two integrated weighing platforms in one measuring device. These are two different weighing platforms with different specifications.
- Platform 1 measuring range: 25 kg / 55 lbs - Platform 2 measuring range: 1 kg / 2.2 lbs - Two integrated weighing surfaces - Piece counting function - Different interfaces - Connection of another load cell possible - incl. ISO Calibration Certificate
PCE-SW 1500N is a portable battery-powered industrial floor scale or pallet scale featuring two heavy-duty parallel pallet beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 5 m / 16 ft away from the pallet beams, allowing for wall mounting.
- Weighing capacity: 1500 kg / 3306 lb (=1.65 T) - Weighing units: kilograms (kg) or pounds (lbs) - Resolution: 0.5 kg - Accuracy: ± 2 kg - Bi-directional RS-232 interface
Thanks to the infinitely variable height adjustment, the hydraulic industrial lift scale helps you work faster, more comfortably and with less strain on your back. This industrial scale consists of a robust scissor lift table with an individual working height of 350…. 1130 mm / 13.8 ... 44.5 possible. The hydraulic lift table scale can lift a load of up to 0.5t (500 kg / 1102.3 lbs) and weigh it with a resolution of 0.2 kg / 0.4 lbs.
- Stepless height adjustment from 350… 1130 mm / 13.8 ... 44.5 in
- Weighing range up to 500 kg/ 1102.3 lbs
- Resolution of the scale 0.2 kg / 0.4 lbs
- Target / actual check of the total weight
- Summing function
Thanks to the infinitely variable height adjustment, the hydraulic industrial lift scale helps you work faster, more comfortably and with less strain on your back. This industrial scale consists of a robust scissor lift table with an individual working height of 350…. 1130 mm / 13.8 ... 44.5 possible. The hydraulic lift table scale can lift a load of up to 0.5t (500 kg / 1102.3 lbs) and weigh it with a resolution of 0.2 kg / 0.4 lbs.
- Stepless height adjustment from 350… 1130 mm / 13.8 ... 44.5 in
- Weighing range up to 500 kg/ 1102.3 lbs
- Resolution of the scale 0.2 kg / 0.4 lbs
- Target / actual check of the total weight
- Summing function
- incl. ISO calibration certificate
Thanks to the infinitely variable height adjustment, the hydraulic industrial lift scale helps you work faster, more comfortably and with less strain on your back. This industrial scale consists of a robust scissor lift table with an individual working height of 350…. 1130 mm possible. The hydraulic lift table scale can lift a load of up to 2t and weigh it with a resolution of 0.5 kg.
- Stepless height adjustment from 350… 1130 mm
- Weighing range up to 2t
- Resolution of the scale 0.5 kg
- Target / actual check of the total weight
- Summing function
The industrial hydraulic scale is designed to measure loads on forklifts and front loaders, but also offers many other possible uses. The industrial hydraulic scale has a hydraulic pressure sensor of up to 250 bar and is therefore ideally equipped for all tasks and areas of application. The pressure sensor of the industrial hydraulic scale measures the pressure in the hydraulic circuit, the display converts this pressure into weight and displays it.
- Hydraulic pressure: up to 250 bar - Accuracy: ± 2% (overall system) - Resolution: 5 kg - for mounting on forklifts and front loaders
The USB Benchtop Scale PCE-PB 60N is a versatile
platform scale. The functions of the USB benchtop scale are very
extensive, but one function is particularly interesting for shipping. It
is the bidirectional USB interface of the benchtop scale that enables
control by the PC.
- Weighing range: 60 kg / 132 lb - Readability: 20 g - Calibratable - Bidirectional USB interface - Piece counting function with reference number of pieces - Multiple tare - Stainless steel platform
