Weighbridge

With our class III weighbridge you will be able to weigh loads directly from the loading ramp. By using a weighbridge you will save time, shorten the path with full weight, and also reduce the number of employees who work with weight. We have two models of weighbridge: scales to cross over the loads and scales that are brought into the load (U size). Official calibrations can be required for some types of weighbridge, for example, for scales for euro weight.

Terminals for usage can be positioned in many different places: on the table, installed on the wall or on a tripod. Installation plans are necessary for some models of weighbridge. Therefore it is recommended to read installation plans and make the necessary arrangements to prepare the area where the weighbridge is going to operate, prior to delivery. Upon request we can send you installation plans.

If you have any questions, please contact us at or +44 ( 0 ) 161 464902 0.

Weighbridge

Weighbridge PCE-MS AC1,5T-1-100x200-M

£ 1,203.00

Price excl. VAT &. delivery
2 year Warranty

The weighbridge with the dimensions 1 x 2 m are provided with an additional cage structure for animal weighing. Because the cage can be opened on both sides, the weighbridge can also be used as a passage scale.

- Measuring range [Max]: 1500 kg / 3306 lb

- Verification value [e]: 0.5 kg / 1.1 lb

- Cage internal dimensions [WxD]: 900 x 2000 mm / 35.4 x 78.7"

- Interface: USB-B (bidirectional)

- Battery and mains operation possible

- Incl. verification (conformity-assessed)

Verification for Trade / conformity assessment

Weighbridge

Weighbridge PCE-MS AC3T-1-100x200-M

£ 1,203.00

Price excl. VAT &. delivery
2 year Warranty

- Measuring range [Max]: 3000 kg / 6613 lb

- Verification value [e]: 1 kg / 2.2 lb

- Cage internal dimensions [WxD]: 900 x 2000 mm / 35.4 x 78.7"

- Interface: USB-B (bidirectional)

- Battery and mains operation possible

- Incl. verification (conformity-assessed)

Weighbridge

Weighbridge PCE-MS U1,5T-1-M

£ 707.00

Price excl. VAT &. delivery
2 year Warranty

The weighbridge consists of the U-shaped weighing platform and the display unit connected via a 5 m long cable. Due to the U-shape, the weighbridge can be easily loaded with an ant or a hand pallet truck.

- Measuring range [Max]: 1500 kg / 3306 lb

- Verification value [e]: 0.5 kg / 1.1 lb

- Usable area U-shape [WxD]: 800 x 1250 mm / 31.5 x 49.2"

- Interface: USB-B (bidirectional)

- Battery and mains operation possible

- Incl. verification (conformity-assessed)

Weighbridge

Weighbridge PCE-MS U3T-1-M

£ 707.00

Price excl. VAT &. delivery
2 year Warranty

- Measuring range [Max]: 3000 kg / 6613 lb

- Verification value [e]: 1 kg / 2.2 lb

- Usable area U-shape [WxD]: 800 x 1250 mm / 31.5 x 49.2"

- Interface: USB-B (bidirectional)

- Battery and mains operation possible

- Incl. verification (conformity-assessed)

Weighbridge

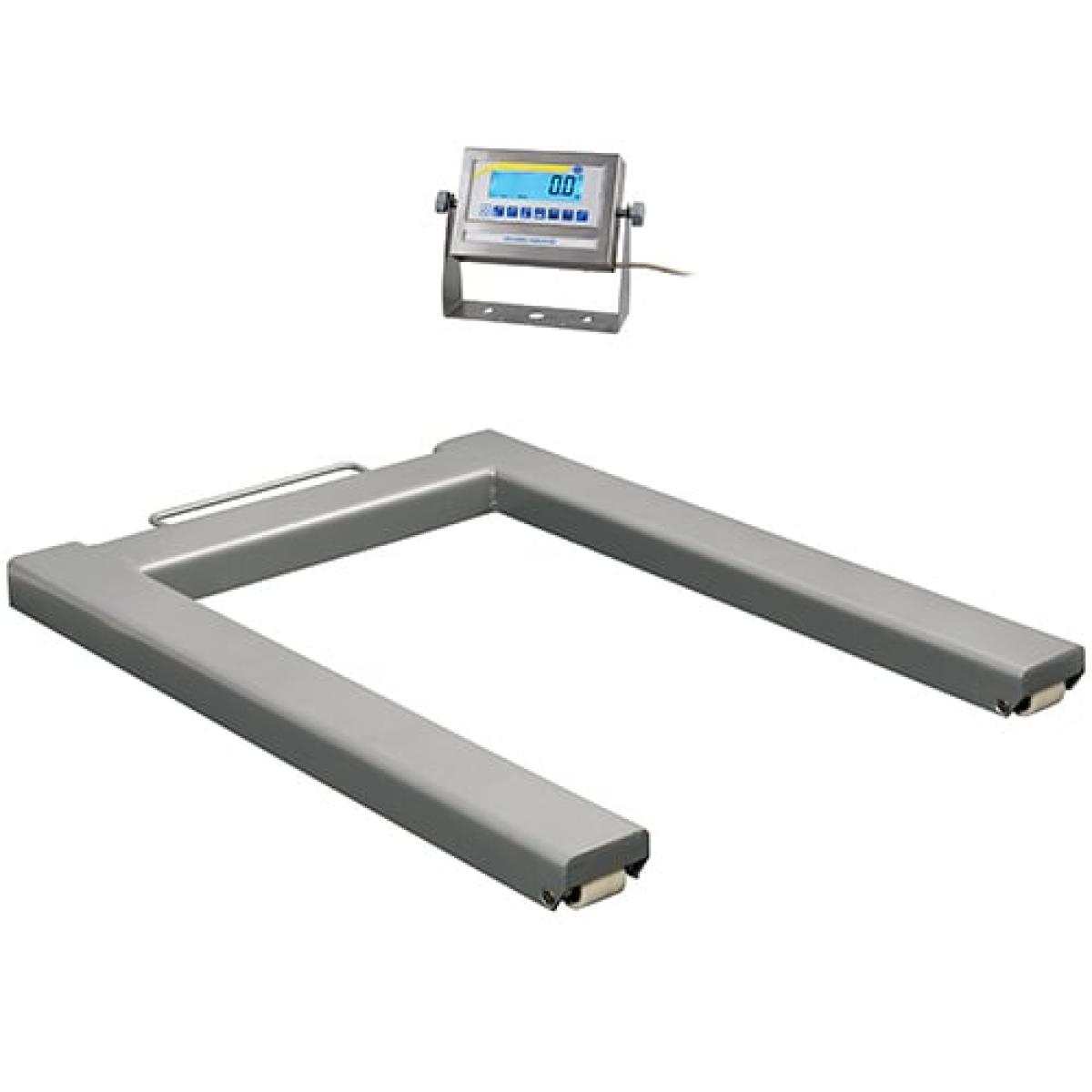

Weighbridge PCE-EP 1500

£ 618.00

Price excl. VAT &. delivery
2 year Warranty

Mobile Weighbridge with 3 ranges, weight range up to 1,500 kg.

- Three ranges for high accuracy
- Accuracy ±0.05 % of current value
- Large removable display 25 mm
- Automatic calculation of the tare, manual insert of tare, adder function

Weighbridge

Weighbridge PCE-SW 1500N

£ 636.00

Price excl. VAT &. delivery
2 year Warranty

PCE-SW 1500N is a portable battery-powered industrial weighbridge or pallet scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 5 m / 16 ft away from the weighing beams, allowing for wall mounting.

- Weighing capacity: 1500 kg / 3306 lb (=1.65 T)
- Weighing units: kilograms (kg) or pounds (lbs)
- Resolution: 0.5 kg
- Accuracy: ± 2 kg
- Bi-directional RS-232 interface

Weighbridge

Weighbridge PCE-SW 3000N

£ 685.00

Price excl. VAT &. delivery
2 year Warranty

PCE-SW 3000N is a portable battery-powered industrial weighbridge or pallet scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 5 m / 16 ft away from the weighing beams, allowing for wall mounting.

- Weighing capacity: 3000 kg / 6613 lb (=3.3 T)
- Weighing units: kilograms (kg) or pounds (lbs)
- Resolution: 1 kg
- Accuracy: ± 4 kg
- Bi-directional RS-232 interface

Weighbridge

Weighbridge PCE-MS B1,5T-1-M

£ 694.00

Price excl. VAT &. delivery
2 year Warranty

As a beam scale, this verified weighbridge has the great advantage that it can be easily adapted to different weighing items by changing the beam spacing. This makes the weighbridge particularly suitable for weighing long goods.

- Measuring range [Max]: 1500 kg / 3306 lb

- Verification value [e]: 0.5 kg / 1.1 lb

- Usable area beam [WxD]: 120 x 1200 mm / 4.7 x 47.2"

- Interface: USB-B (bidirectional)

- Battery and mains operation possible

- Incl. verification (conformity-assessed)

Weighbridge

Weighbridge PCE-MS B3T-1-M

£ 694.00

Price excl. VAT &. delivery
2 year Warranty

- Measuring range [Max]: 3000 kg / 6613 lb

- Verification value [e]: 1 kg / 2.2 lb

- Usable area beam [WxD]: 120 x 1200 mm / 4.7 x 47.2"

- Interface: USB-B (bidirectional)

- Battery and mains operation possible

- Incl. verification (conformity-assessed)

Weighbridge

Weighbridge PCE-RS 2000

£ 798.00

Price excl. VAT &. delivery
2 year Warranty

The weighbridge PCE-RS 2000 is designed for stationary use. The robust construction makes this weighbridge particularly well suited for weighing large objects. The weighbridge is made of painted steel.

- Weighing capacity: 2000 kg
- Resolution: 0.5 kg
- Bidirectional RS-232 interface
- Analog output 4 ... 20 mA optional

Weighbridge

Weighbridge PCE-SD 300B

£ 1,104.00

Price excl. VAT &. delivery
2 year Warranty

The weighbridge is a verifiable weighing balance that is intended for flexible use. Due to the flexibly movable weighing beam (4 m), the weighbridge is well suited for weighing large objects, and non-standard pallet sizes can also be weighed quickly and conveniently.

- Weighing range : 300 kg
- Readability: 0.1 kg
- Calibration value: 0.1 kg
- Verifiable M III

Weighbridge

Weighbridge PCE-SD 600B

£ 1,104.00

Price excl. VAT &. delivery
2 year Warranty

- Weighing range : 600 kg
- Readability: 0.2 kg
- Calibration value: 0.2 kg
- Verifiable M III

Weighbridge

Weighbridge PCE-SW 5000N

£ 1,112.00

Price excl. VAT &. delivery
2 year Warranty

PCE-SW 5000N is a portable battery-powered industrial weighbridge or pallet scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the weighbridge's stainless-steel-encased display can be placed up to 4 m / 13 ft away from the weighing beams, allowing for wall mounting.

- Weighing capacity: 5000 kg / 11023 lb (=5.5 T)
- Weighing units: kilograms (kg) or pounds (lbs)
- Resolution: 2 kg
- Accuracy: ± 8 kg
- Bi-directional RS-232 interface

Weighbridge

Weighbridge PCE-SD 1500B

£ 1,149.00

Price excl. VAT &. delivery
2 year Warranty

- Weighing range : 1500 kg
- Readability: 0.5 kg
- Calibration value: 0.5 kg
- Verifiable M III

Weighbridge

Weighbridge Scale PCE-RS 2000-ICA incl. ISO Calibration Certificate

£ 1,218.00

Price excl. VAT &. delivery
2 year Warranty

The weighbridge PCE-RS 2000-ICA is designed for stationary use. The robust construction makes this weighbridge particularly well suited for weighing large objects. The weighbridge is made of painted steel.

- Weighing capacity: 2000 kg
- Resolution: 0.5 kg
- Bidirectional RS-232 interface
- Analog output 4 ... 20 mA optional
- incl. ISO Calibration Certificate

Weighbridge

Weighbridge PCE-SD 3000B

£ 1,238.00

Price excl. VAT &. delivery
2 year Warranty

- Weighing range : 3000 kg
- Readability: 1 kg
- Calibration value: 1 kg
- Verifiable M III

Weighbridge

Weighbridge PCE-SD 6000B

£ 1,469.00

Price excl. VAT &. delivery
2 year Warranty

- Weighing range : 6000 kg
- Readability: 2 kg
- Calibration value: 2 kg
- Verifiable M III

Weighbridge

Weighbridge PCE-SD 1500U

£ 1,775.00

Price excl. VAT &. delivery
2 year Warranty

The weighbridge is a verifiable, calibrated U-shaped pallet scale intended for mobile use. The dimensions of the calibrated weighbridge are the standard EU size (1200 x 800 mm).

- Weighing range: 0 ... 1500 kg
- Readability: 0.5 kg
- Calibration value: 0.5 kg
- Verifiable M III
