Heavy Duty Scales

The heavy duty scale has a measuring range of 0 … 1000 kg and a resolution of 0.1 kg. With an accuracy of 1% of the measuring range, the heavy duty scale is also a precise measuring device. This is why the heavy duty scale is used, for example, when weighing raw materials.

- Measuring range: 0 ... 1000 kg / 2204 lb
- Adjustable units: kg, lb, N
- "Hold", "Tare" and "MAX" functions
- Optionally with ISO calibration certificate

The heavy duty scale has a measuring range of 0 … 1000 kg and a resolution of 0.1 kg. With an accuracy of 1% of the measuring range, the heavy duty scale is also a precise measuring device. This is why the heavy duty scale is used, for example, when weighing raw materials.

- Measuring range: 0 ... 1000 kg / 2204 lb
- Adjustable units: kg, lb, N
- "Hold", "Tare" and "MAX" functions
- Incl. ISO calibration certificate

The heavy duty scale is a convenient way to save time and shorten work processes. This heavy duty scale can transport and weigh loads up to 2000 kg. For this purpose, four load cells are installed in the forks of the heavy duty scale, which form a weighing system with the evaluation unit.

- Weighing range: 2000 kg / 4409 lb
- Readability: 1 kg / 2.2 lb
- Measurement uncertainty: ± 0.2% full scale
- Summing function
- Piece counting function
- incl. ISO calibration certificate

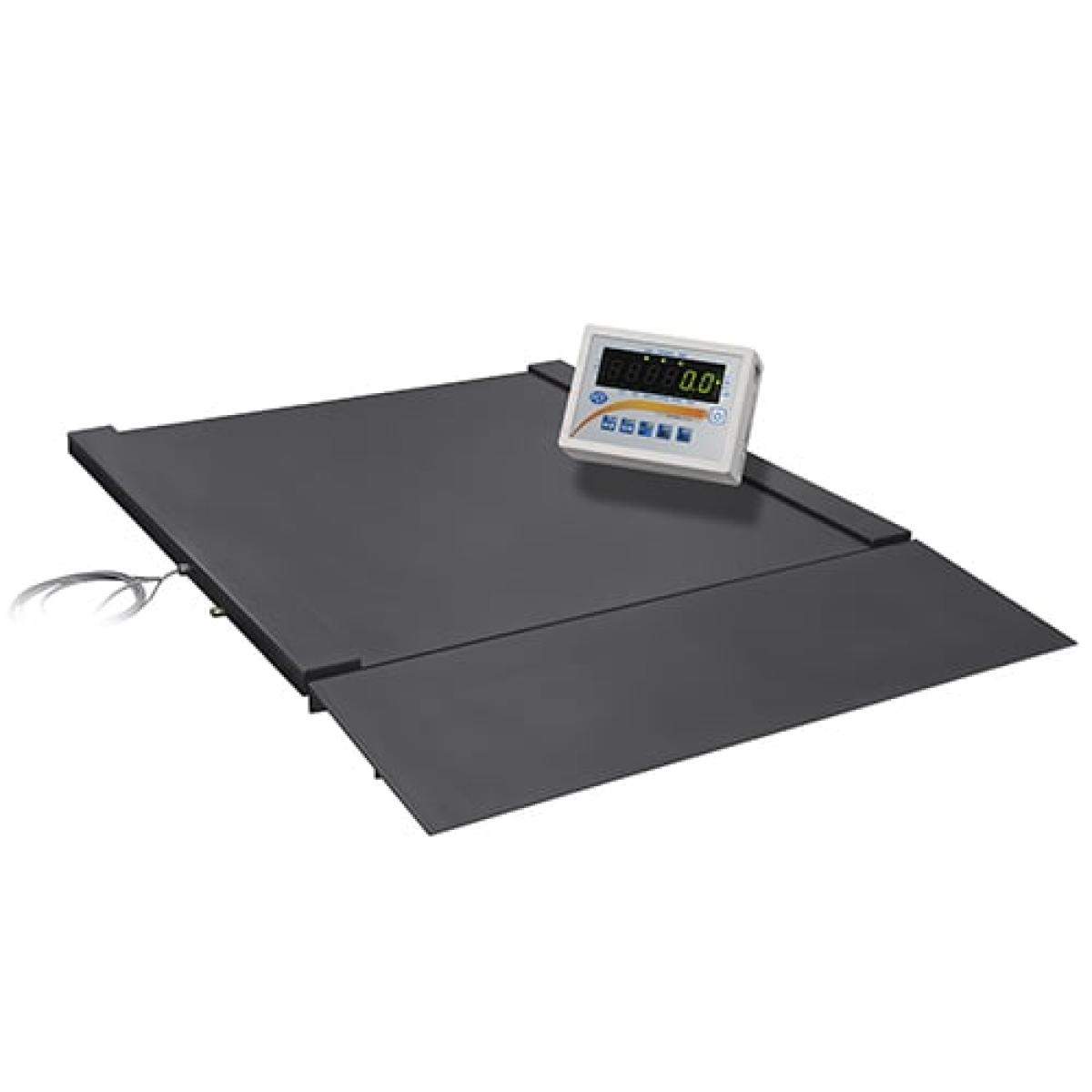

The heavy duty scale consists of the U-shaped weighing platform and the display unit connected via a 5 m long cable. Due to the U-shape, the heavy duty scale can be easily loaded with an ant or a hand pallet truck.

- Measuring range [Max]: 1500 kg / 3306 lb
- Verification value [e]: 0.5 kg / 1.1 lb
- Usable area U-shape [WxD]: 800 x 1250 mm / 31.5 x 49.2"
- Interface: USB-B (bidirectional)
- Battery and mains operation possible
- Incl. verification (conformity-assessed)

The PCE-CS 1000N is a digital, electronic, battery-powered heavy duty scale that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The heavy duty scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the heavy duty scale can be calibrated according to ISO standards.

- Maximum weighing capacity: 1000 kg / 2200 lbs ≈ 1 Ton
- Resolution: 0.2 kg / 0.4 lb
- Tare range: 100% full scale

The PCE-CS 1000N-ICA is a digital, electronic, battery-powered heavy duty scale that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale includes a hook / shackle, remote control and ISO calibration certificate.

- Maximum weighing capacity: 1000 kg / 2200 lbs ≈ 1 Ton
- Resolution: 0.2 kg / 0.4 lb
- Tare range: 100% full scale
- Includes ISO calibration certificate

PCE-CS 3000N is a digital rechargeable battery-powered heavy-duty Heavy Duty Scale that displays measurement values in kilograms (kg) or pounds (lbs). The Heavy Duty Scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.

- Maximum weighing capacity: 3000 kg / 6613 lbs ≈ 3 Tons
- Resolution: 0.5 kg
- Tare range: 100 % full scale
- Includes hook, shackle, and remote control



PCE-CS 3000N-ICA is a digital, rechargeable battery-powered, heavy-duty scale that displays measurement values in kilograms (kg) or pounds (lbs). The heavy duty scale includes a hook, shackle, remote control and ISO calibration certificate.

- Maximum weighing capacity: 3000 kg / 6613 lbs ≈ 3 Tons
- Resolution: 0.5 kg
- Tare range: 100 % full scale
- Includes hook, shackle, and remote control
- Includes ISO calibration certificate

PCE-CS 5000N is a digital battery-powered Heavy Duty Scale that displays measurement values in kilograms (kg) or pounds (lbs). The Heavy Duty Scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.

- Maximum weighing capacity: 5000 kg / 11023 lbs ≈ 5 Tons
- Resolution: 1 kg
- Tare range: 100% full scale



PCE-CS 5000N-ICA is a digital battery-powered heavy duty scale that displays measurement values in kilograms (kg) or pounds (lbs). The Heavy Duty Scale includes a hook, shackle, remote control and ISO calibration certificate.

- Maximum weighing capacity: 5000 kg / 11023 lbs ≈ 5 Tons
- Resolution: 1 kg
- Tare range: 100% full scale
- Includes ISO calibration certificate

PCE-CS 10000N is a digital battery-powered heavy-duty industrial crane, lifter, suspended or hanging scale, dynamometer, electronic balance or weighing hook that displays measurement values in kilograms (kg) or pounds (lbs). The scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.

- Maximum weighing capacity: 10000 kg / 22046 lbs ≈ 10 Tons
- Resolution: 5 kg
- Tare range: 100% full scale



PCE-CS 10000N-ICA is a digital battery-powered heavy-duty industrial crane, lifter, suspended or hanging scale, dynamometer, electronic balance or weighing hook that displays measurement values in kilograms (kg) or pounds (lbs). The heavy duty scale includes a hook, shackle, remote control and ISO calibration certificate.

- Maximum weighing capacity: 10000 kg / 22046 lbs ≈ 10 Tons
- Resolution: 5 kg
- Tare range: 100% full scale
- Includes ISO calibration certificate

- Measuring ranges: 0 ... 1000 kg / 0 ... 2205 lbs
- Minimum load: 10 kg / 22 lbs
- Resolution: 0.2 kg / 0.4 lbs
- Accuracy: ± 1% of full scale
- With remote control
- Different units of mass

The heavy duty scale is available with a measuring range of 0 ... 300 kg / 0 ... 661 lbs. With an accuracy of 1% of the measuring range, the heavy duty scale is a particularly precise measuring device. The housing of the heavy duty scale is made of robust metal.

- Measuring ranges 0 ... 300 kg / 0 ... 661 lbs
- Minimum load: 2 kg / 4.4 lbs
- Resolution: 0.05 kg / 0.1 lbs
- Accuracy: ± 1% of full scale
- Includes remote control
- Different units of mass

- Measuring ranges:  0 ... 500 kg / 0 ... 1102 lbs
- Minimum load: 4 kg / 8.8 lbs
- Resolution: 0.1 kg / 0.2 lbs
- Accuracy: ± 1% of full scale
- With remote control
- Different units of mass

The PCE-SW 1500N is a portable battery-powered heavy duty scale or pallet scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 5 m / 16 ft away from the weighing beams, allowing for wall mounting.

- Weighing capacity: 1500 kg / 3306 lb (=1.65 T)
- Weighing units: kilograms (kg) or pounds (lbs)
- Resolution: 0.5 kg
- Accuracy: ± 2 kg
- Bi-directional RS-232 interface

PCE-SW 3000N is a portable battery-powered heavy duty scale or pallet scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 5 m / 16 ft away from the weighing beams, allowing for wall mounting.

- Weighing capacity: 3000 kg / 6613 lb (=3.3 T)
- Weighing units: kilograms (kg) or pounds (lbs)
- Resolution: 1 kg
- Accuracy: ± 4 kg
- Bi-directional RS-232 interface
