  6. Analog Output Module for PDE-DPD-U
Order no.: PCE-DPD-U/A1

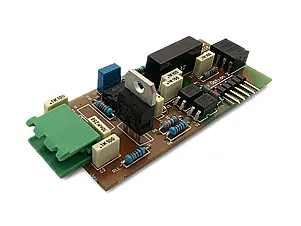

Analog Output Module for PDE-DPD-U

£ 68.00
£ 81.60
PCE-DPD-U/A1
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description


The analog output module offers a 4 ... 20-mA output, isolated, for installation in the Opt1 option.

Specification

Output ranges4 ... 20-mA (active and passive)
Active outputConnect terminal A (+15V DC) and B (mA) R L < 350 R
Passive output          Connect terminal C (GND) and B (mA) R L < 700 R
Precision< 0.5% FS
Isolation1000V DC
Response time   < 100 mSec. + indicator response time
Allowed locationOpt1


Delivery Scope


1 x PCE-DPD-U / A1 Analog output module
