Force Gauge PCE-DFG N 5K

Order no.: PCE-DFG N 5K
US$ 1,399.00
4250348717887
PCE-DFG N 5K
ex. VAT, ex. delivery costs
digital
external
yes
yes
Available in: 1-2 days

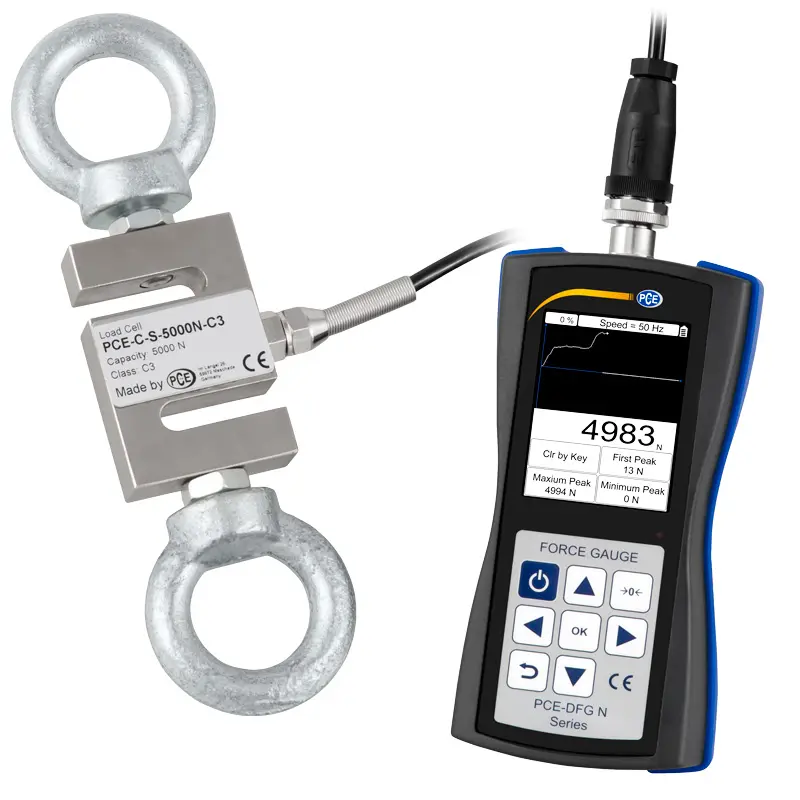

PCE-DFG N Force gauge series
with external measuring cell and USB interface for connection to a PC


The force gauge measures both tensile and compressive forces with very high resolution. The tensile force and the compressive force are often determined in the test laboratory, for example, to determine the yield strength, the pull-off force, and the force required to actuate a push-button or switch. The force gauge is supplied with an external measuring cell. Depending on the model, the force gauge can measure up to 10,000 N / 2,248 lbs. Models for 1,000 N / 225 lbs, 2,500 N / 562 lbs and 5,000 N / 1,124 lbs are still available. Various eyelets or hooks with M10 or M12 thread can be adapted to the measuring cells, but your own devices with this thread can be mounted on the measuring cell.

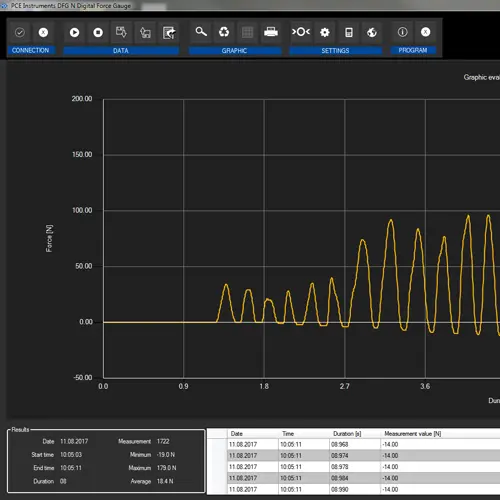

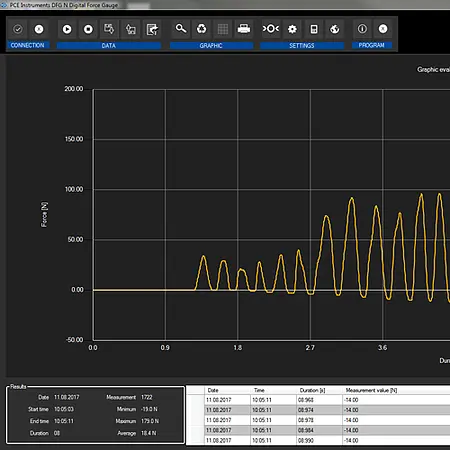

The force gauge is equipped with a USB interface. This interface makes it possible to read the measurement data into the PC software. This makes it possible to create measurement logs and save and export them. The force gauge has a graphic LCD that displays the measured values ​​both numerically and graphically. Furthermore, the force measuring device is protected to IP54 and can therefore also be used in harsh industrial environments, as well as train and pressure tests can be carried out outdoors in bad weather conditions easily.

Various force test stands are available for adaptation to the force gauge. The internal memory and the included hooks, extensions and tips complete the performance of this force gauge. A special feature of the PCE-DFG N force gauge is that the measuring cells are interchangeable among the models. By entering the sensitivity in mV / V, all measuring cells can be used with just one handheld device.

- USB interface
- Graphic display
- Fast response time
- PC software
- Memory for 100 measurements
- Measuring cells easily changeable
Measuring range 0 ... 5,000 N / 1,124 lbs
Resolution 1 N / 0.22 lbs
Accuracy ± 0.1% of the measuring range
Measurement units N, kg, lb, KPa
Display 2.8" TFT graphic display
Alarm Modes Inside, Outside, Crack, Shutdown
Sampling rate 6 ... 1600 Hz
Storage 100 measurements
Power supply NiMH battery, 6V / 1600-mAh
Battery life About 10 hours
Power adapter / charging adapter     12V / 1A
Outputs Interface: USB
Switching output: 12V / 50-mA
Protection class IP 54
Operating and storage conditions -10 ... 50°C / 14 ... 122°F
5 ... 95% rh non-condensing
Mounting thread measuring cell
Up to 1,000 N / 225 lbs
2,500 ... 10,000 N / 562 ... 2,248 lbs
M10
M12

Dimensions 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight 540 g / 1.2 lbs

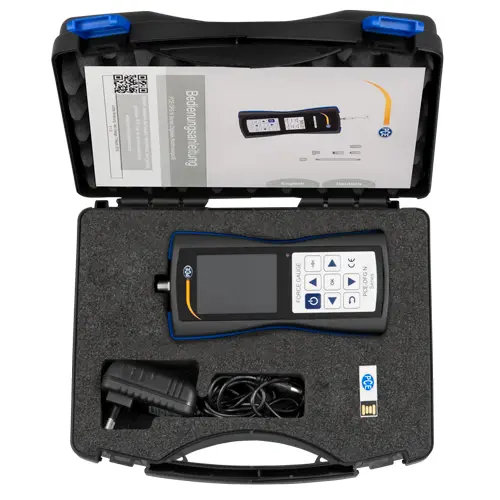

1 x Force gauge PCE-DFG N 5K

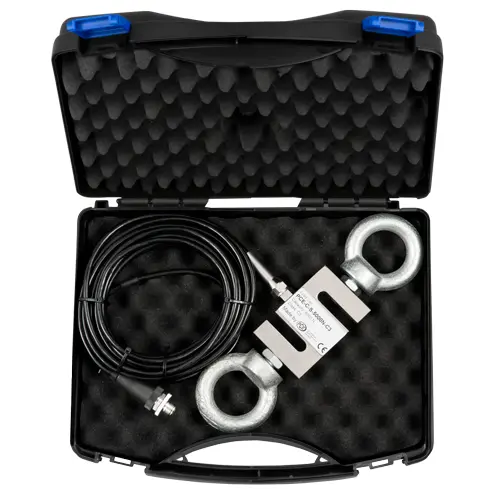

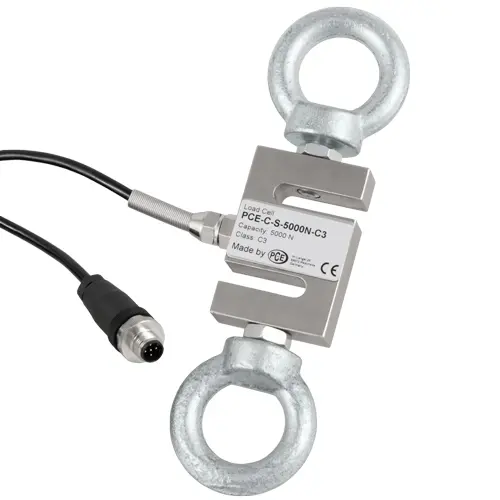

1 x Load cell
2 x Eyebolt
1 x USB cable
1 x Charger
1 x PC software
1 x User manual

Accessories

Order no.: PCE-MTS500
Test Stand for Force Gauge PCE-MTS500
Our test stand for force gauge PCE-MTS500 can be coupled and operated in a wide variety of versions with our force gauges, the PCE series. The test stand for force gauge lets you carry out almost all of your compression and tensile force applications with repeatability. The use of the test stand for force gauge offers the operator the most precise equality of test bench and sample.

- Measuring range: max. 5000 N / 500 kg
- Feed speed: 30 mm/min ... 230 mm/min
- All PCE devices adaptable
- Robust steel design

*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***
Catalogue: Measuring Instruments / Test Meters / Tensile Tester
US$ 2,285.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SJJ011
Clamp Jaw PCE-SJJ11 for Teststand

Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.


- Capacity 5000 N / 1,124 lbs
- Material is iron
- Opening is 4 mm
- M10 threaded connection



US$ 206.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SJJ013
Clamp Jaw PCE-SJJ013 for Test stand
Clamping device with large opening width for pull or push test of block, glass, and board type materials components.

- Capacity 5000 N / 1,124 lbs
- Material is iron
- Opening is 5 mm
- M10 threaded connection
US$ 206.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SJJ01
PCE-SJJ01 Adapters for Pressure Tests
Adapter for pressure force testing of sponge, foam glass, rock material, etc.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Diameter: 16 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
US$ 107.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SJJ04
PCE-SJJ04 Adapter Stamp Round for Pressure Tests
Adapter-stamp for pressure force test of spring and sponge etc.

- Max. Capacity: 3 kN / 3,000 N / 674 lbs
- Diameter: 50 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
US$ 107.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SJJ06
PCE-SJJ06 Adapter Clamps for Tensile Tests
Adapter clamps for tensile testing of wire and filaments.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
US$ 206.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SJJ09
PCE-SJJ09 Fork Holder for Tensile and Compression Tests
Fork holder for tensile and pressure tests.

- Max. capacity: 5 kN / 5,000 N / 1124 lbs
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
US$ 206.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SJJ012
PCE-SJJ012 Tensioning Device for Tensile Tests
Tensioning device for tensile tests.

- Max. capacity: 0.2 kN / 200 N / 45 lbs
- Max. opening: 3 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
US$ 206.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SJJ017
PCE-SJJ017 Universal Clamping Device
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Opening max: 4 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
US$ 699.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: MTS-DSE
Set of thrust washers (square) for engine test stand PCE-MTS500
Set of thrust washers (square) for engine test stand PCE-MTS500.
Catalogue: Measuring Instruments / Test Meters / Test Stand
US$ 315.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: MTS-DSR
Thrust washer set (round) for engine test bench PCE-MTS500
Thrust washer set (round) for engine test bench PCE-MTS500.
Catalogue: Measuring Instruments / Test Meters / Test Stand
US$ 315.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SJJ015
PCE-SJJ015 Clamping Device for Test Stand
Clamping device with large opening width for peel test of block, glass and cardboard.

- Capacity 5000 N / 1,124 lbs
- Max. opening 33 mm / 1.29 in
- M10 threaded connection
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
US$ 222.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: ADP-UNI
Adapter Plate for Force Test Stand ADP-UNI
Adapter plate for mounting the PCE-FM50, PCE-FM200, PCE-SH 500 and PCE-SH 2K force gauge transducers to the PCE-FTS50, PCE-MTS50 and PCE-MTS 500 motorized test stand.
US$ 92.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-MTS500
Test Stand for Force Gauge PCE-MTS500
Our test stand for force gauge PCE-MTS500 can be coupled and operated in a wide variety of versions with our force gauges, the PCE series. The test stand for force gauge lets you carry out almost all of your compression and tensile force applications with repeatability. The use of the test stand for force gauge offers the operator the most precise equality of test bench and sample.

- Measuring range: max. 5000 N / 500 kg
- Feed speed: 30 mm/min ... 230 mm/min
- All PCE devices adaptable
- Robust steel design

*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***
Catalogue: Measuring Instruments / Test Meters / Test Stand
US$ 2,285.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: RE-CAL-FG 2
Re-Calibration for Force Gauge over 50kg / 500N

ISO re-calibration incl. certificate for force gauge over 50 kg / 500 N / 112 lbs. This is often required to comply with ISO/IEC 17025.


If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

Calibration certificates are issued specifically for the customer and are excluded from the right of return

US$ 289.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
