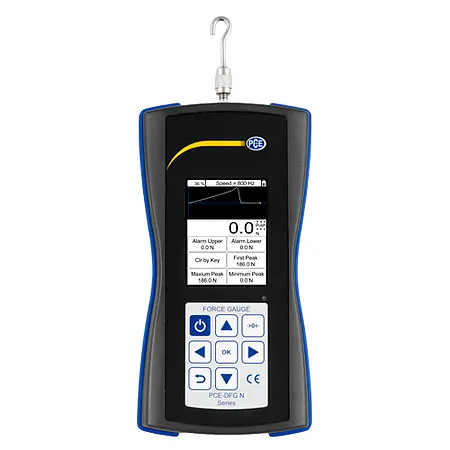

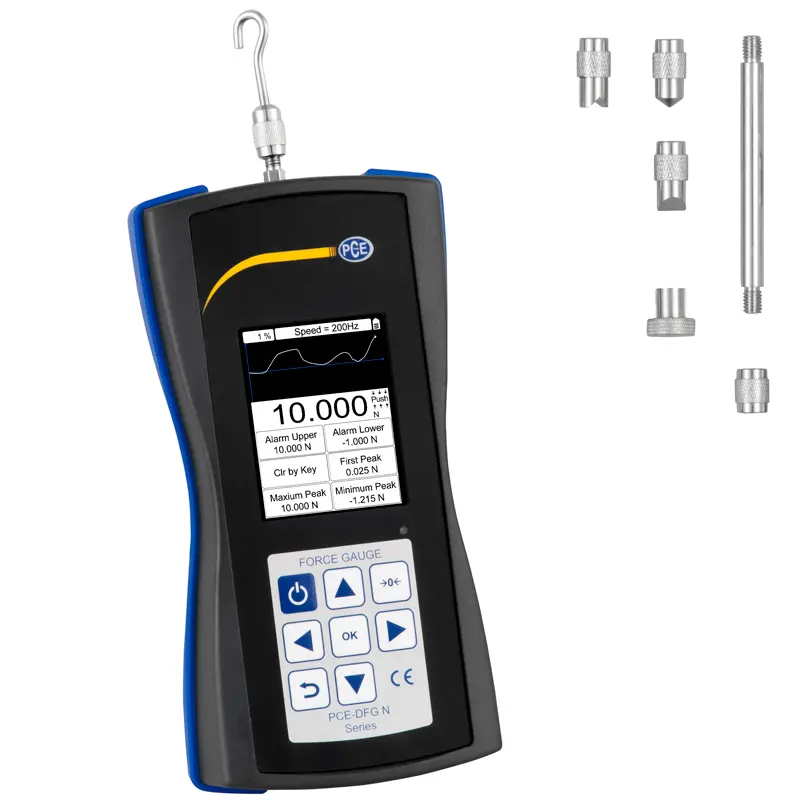

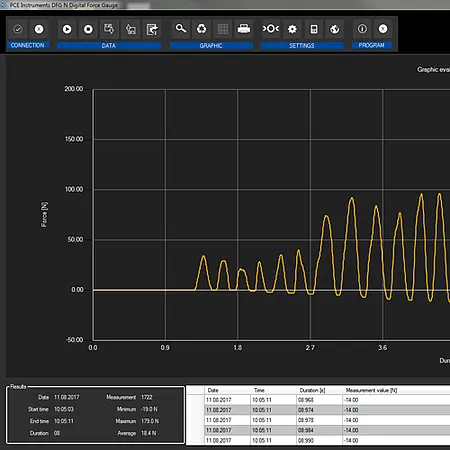

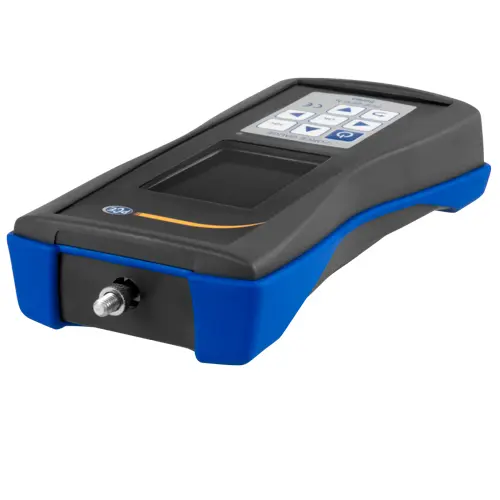

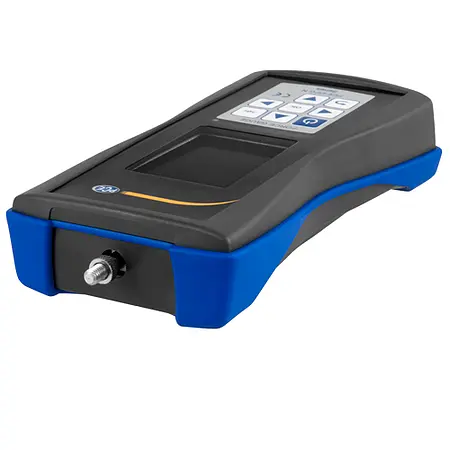

In addition to the internal storage option of 100 measured values, a USB interface is available for data transmission. With the software, the measured values can be saved on a computer for later evaluation. Due to its robust housing, a sensible menu navigation and the simple operation via 8 keys, the digital force meter PCE-DFG N 10 is characterized by a high degree of user-friendliness. The power supply of the dynamometer via batteries, which can be charged via a included charger and allow a continuous operation of the device of 10 hours. With these characteristics, the digital force gauge is suitable for quality control in the production area, for incoming and outgoing inspection as well as for the development of new components or for testing safety-relevant components.
| Measuring range | 0 ... 10 N, 0 ... 2.25 lbs |
| Accuracy | ± 0.1% of the measuring range |
| Resolution | 0.005 N |
| Measurement units | N, kg, lb, KPa |

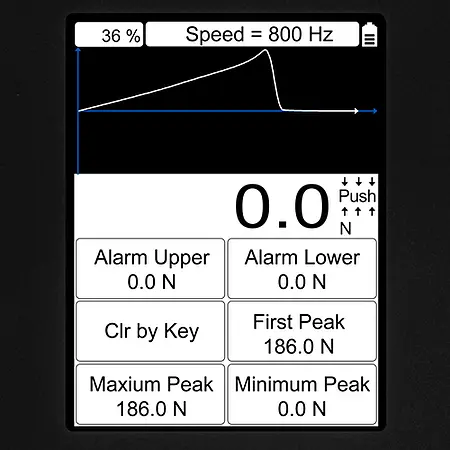

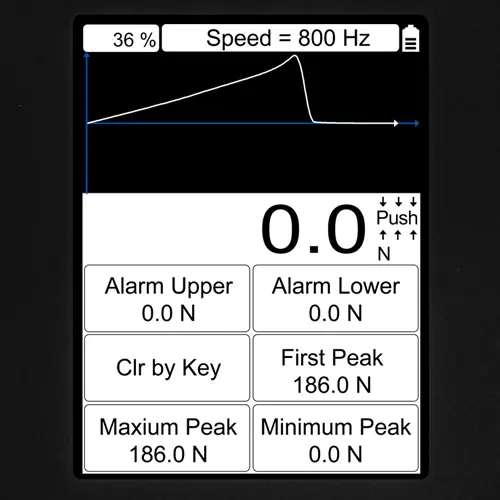

| Display | 2.8" TFT graphic display |
| Alarm Modes | Inside, Outside, Crack, Shutdown |
| Sampling rate | 6 ... 1600 Hz |
| Storage | 100 measurements |
| Power supply | NiMh battery 6V / 1600-mAh |
| Battery life | About 10 hours |
| Charging adapter | 12V / 1A |
| Outputs | Interface: USB Switching output: 12V / 50-mA |
| Protection class | IP 54 |
| Operating and storage conditions | -10 ... 50°C / 14 ... 122°F 5 ... 95% rh non-condensing |
| Force-receiving piece | M6 x 7 mm |
| Dimensions | 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in |
| Weight | 540 g / 1.2 lbs |
