PKH 2.0 Brake Pedal Force Gauge
For brake pedal pressure force testing in cars, trucks, automobiles and other vehicles / Measures forces up to 1500 N / Features mechanical overload protection and an IP65 ingress protection rating (sensor)

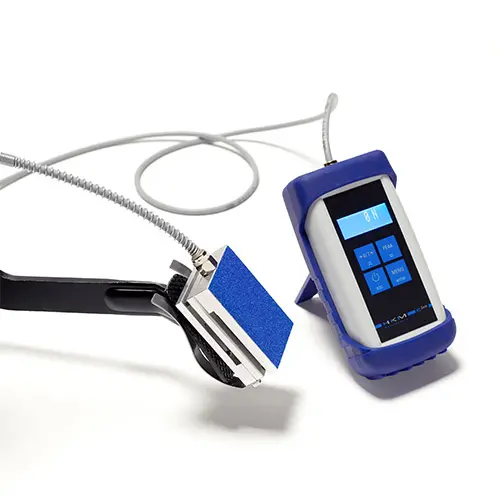

PKH 2.0 Brake Pedal Force Gauge is designed for the inspection of cars, trucks, automobiles and other vehicles. The Brake Pedal Force Gauge makes the force measurement process quick and easy while delivering accurate, repeatable test results. During the force testing process, the sensor of the Brake Pedal Force Gauge is fastened to the brake pedal via a clamping bracket. In addition to brake pedals, this device can be used with parking brakes. Simply attach the sensor to the parking brake with a strap (not included).

There are two ways to read the output of the Brake Pedal Force Gauge. The first way is via analog output. Analog output requires the use of a data recorder equipped with an integrated amplifier (recorder/amplifier sold separately). Alternatively, the included handheld terminal may be used to read the output. When using the handheld terminal, measurement values can be directly read directly on the display. Moreover, when using the handheld terminal, the measured maximum value can be retrieved easily with just the push of a button.

The Brake Pedal Force Gauge comes manufacturer calibrated. An optional ISO calibration certificate is available for purchase separately (see accessories for details).
