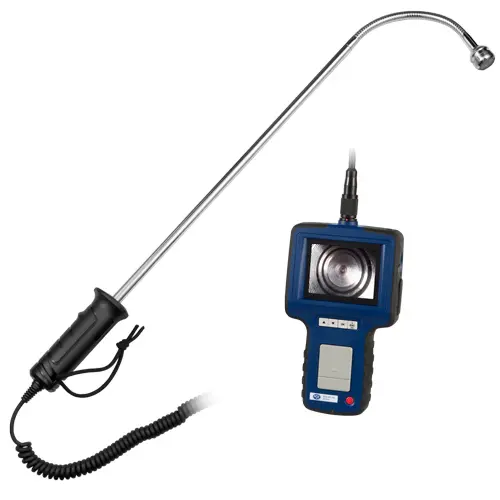

PCE-IVE 300 Automotive Tester
For quick analysis of parts and structures / 1 m (3.3 ft) telescopic pole / Movable gooseneck head
PCE-IVE 300 is an automotive tester or video borescope inspection camera that comes with a rigid telescoping pole that extends up to 1 m / 3.3 ft in length. Ideal for inspecting gutters, chimneys and structures as well for inspecting parts and under vehicles, the borescope camera captures both picture and video and saves the files to an SD card memory (included).
The waterproof and dustproof IP68-rated cable makes the borescope perfectly suited for everyday work in harsh conditions at construction sites and more.
- Telescopic pole extends up to 1 m / 3.3 ft

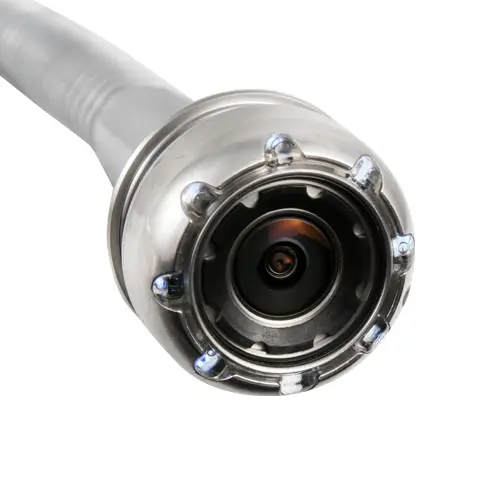

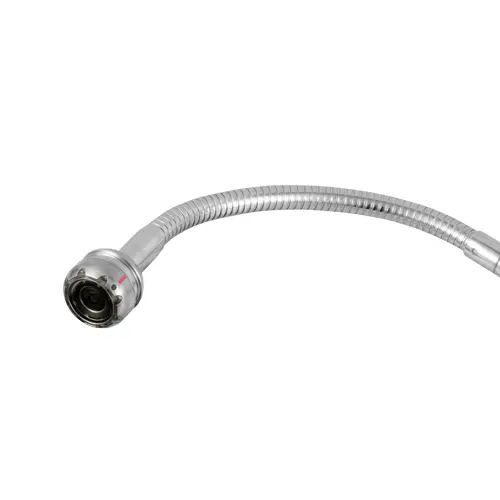

- Gooseneck camera head diameter of 28 mm / 1.11 in
- Waterproof and dust proof IP68 ingress protection rating = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning the cable can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft
Cable length |
1 m / 3.3 ft |
Cable type |
Rigid telescopic pole |
Camera head diameter |
Ø 28 mm / 1.11 in |
Depth of field |
10 mm / 0.4 in ... ∞ |
| Field of view / viewing angle | 150.8° |
| Ingress protection rating | IP68 |
| Illumination | Automatic |
| White balance | Fixed |
| Image sensor | CMOS |
| Camera resolution / image sensor | 640 x 480 |
| Image frequency | 30 / s |
| Display | 3.5" TFT |
| Interface | Mini USB 1.1 and AV out |
| Capture | Picture and video |
| Memory | SD card (incl.) |
| Compression format | MPEG4 |
| Image format | JPEG (640 x 480) |
| Video output format | NTSC & PAL |
| Video format | ASF (320 x 240) |
| Menu navigation | Multilingual |
| Operating and storage temperature | 0 ... 60°C / 32 ... 140°F |
| Power supply | Rechargeable 3.7V Li-Ion battery |
| Dimensions | 207 x 118 (79) x 37 mm / 8.15 x 4.65 (3.11) x 1.46 in |
| Weight | Approx. 450 g (1 lb) |
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SCS includes two semi-flexible camera cables for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
- 3.9 mm diameter
- 1 meter long
- 320 x 240 pixel resolution
- 1 cable with front view camera
- 1 cable with side view camera
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SC10 is a flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
- 5.5 mm diameter
- 10 meters long
- 320 x 240 pixel resolution
- Integrated LED light
***Attention: NOT compatible wit the VE 200 Series!***
