Torque Meter PCE-FB 10TS

Order no.: PCE-FB 10TS
£ 1,468.00
£ 1,761.60
4250348714633
PCE-FB 10TS
price ex. (VAT / delivery)
Digital
Handheld
10 Nm
Yes (integrated & Mini SD)
Yes (RS-232, 9-pin, USB)
Nm, Ncm, kgfm, lbfin, gfm
Delivery time: 1-2 working days
Torque Meter PCE-FB 10TS /
external torque sensor with keyed chuck /
Graphic display / PEAK function / max. 1000 Hz / USB interface / incl. downloadable software

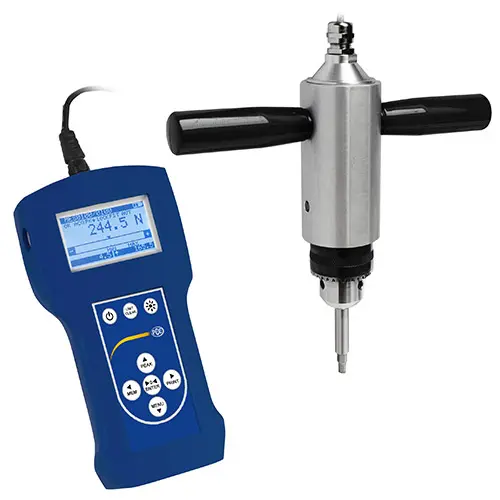

The torque gauge serves for detection of the loosening torque as well as for tightening of screws. Simultaneously the torque gauge can be used as a monitoring instrument. The torque test instrument provides a keyed chuck with two steady handles.

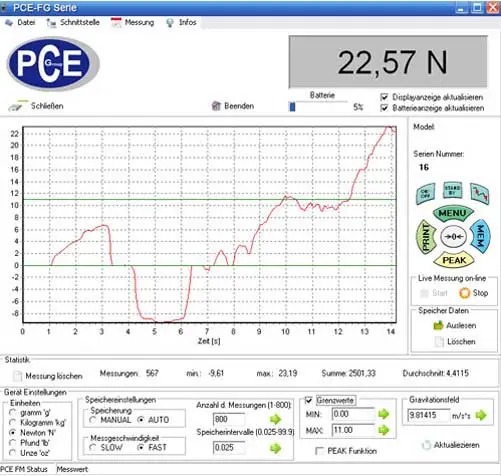

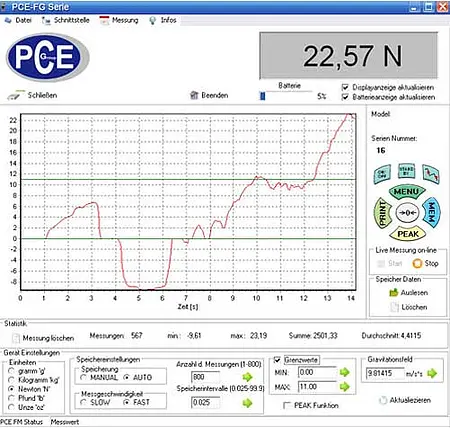

The torque gauge enables taking of the tools with a maximum diameter of 13 mm and thus offers a wide range of applications. It has two adjustable thresholds which can monitor the rotation of the screws and can warn the user acoustically when the limits are reached. Thus the torque gauge can also be used without display visual contact. The display shows at a glance the breakaway or tightening as well as the current force profile. The sampling rate can be individually set up to 1000 Hz. The measurement data can be transferred during or after the measurement to the supplied torque gauge downloadable PC software or can remain in the device stored on the micro SD card. The test instrument is powered by AA mignon replaceable battery packs and thus enables a flexible use.
If you have any further questions about the torque gauge, you are welcome to check the following technical specifications or to use the contact form, or to call PCE. Our technicians and engineers will be glad to give any kind of assistance concerning the “Torque Test Instrument” or any other product from the section control systems, laboratory technology, measuring instruments or weighing equipment of the PCE Instruments.

- max. 0,5 % accuracy from the measuring range
- Measuring rate freely adjustable up to 1000 Hz
- 24 Bit Processor
- keyed chuck up to Ø 13 mm
- MIN / MAX Dynamic Display (PEAK
- setpoint input with audible warning
- statistical analysis on the device
- Units: Nm / N-cm / kgf-m / gf-m / lbf-in
- multilingual: DE, GB, ES, IT
- incl. downloadable PC Software evaluation software
- USB and RS-232 interface
- Overload protection max. 50%

Technical Specification
PCE-FB 10TS
Measuring range10 Nm (1 kgf-m)
Resolution0,01 Nm
Measurement uncertainty±0,5 % from the measuring range
Measuring unitsNm, Ncm, kgfm, lbfin, gfm
max. overload50 % of the measuring range
Tool intakewith sprocket / keyed chuck up to Ø 13 mm
Measuting rateFreely adjustable up to 1.000 values / sec.
24 Bit Processor (16.000.000)
Measuring functionsPEAK Function (MIN - MAX Hold) / limit measurement / real-time measurement with Software
DisplayLCD graphic Display 61 x 34 mm / automatic screen orientation / backlight
Menu guideMultilingual: German / English / Spanish
Memory optionInternal memory and Mini SD memory card (the internal memory is limited to a measuring range of up to 6.400 measurements)
Storagemanual – by pressing a button
automatic - (adjustable)
InterfaceSerial RS-232, 9-pin and USB
OPTIONAL: switching contact output
MIN / MAX / OK (see below) + 1 input
Software incl. downloadable PC Software for evaluation and control
Ambient conditions- 10 ... +40 °C
Power supply4x Ni-MH 2700 mAh AA batteries (replaceable) or via AC adapter ~230 V/12 V; 1,2 A incl.
auto OFF functionadjustable
Battery life Approx. 20 Std. (without lighting approx. 45 Std.)
Dimensions evaluator210 x 110 x 40 mm / 600 g
Dimensions torque sensor Ø 50 x 185 mm / 860 g
Cable length to the torque sensorapprox. 2 m

Delivery Contents
1 x Torque gauge PCE-FB 10TS, 1 x external torque sensor, 1 x RS-232 data cable, 1 x SD Memory Card incl. Reader, 4 x AA batteries, 1 x AC adapter 1 x Carrying Case

Note: Software available by download from the PCE website. See downloads tab for details.

Accessories

Order no.: PCE-SB-SCH
Switch contact output for torque measuring device
The torque meter can be equipped with an OC or an electrically isolated output. This means that with the MIN/OK/MAX force limits set in advance, the contacts can be switched. The circuit can be set as a pulse or continuous signal. A switching input is also installed, e.g. it can trigger storage of the data. (IN -/+)
£ 116.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-PCE-FB-TW-2
ISO calibration certificate for torque meters (2 directions)

ISO calibration certificate for torque meters, certifies the accuracy and is often required to comply with DIN ISO 9000. The test is carried out in both directions (left and right rotation).

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

£ 412.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-PCE-FB-TW-1
ISO calibration certificate for torque meters (1 direction)

ISO calibration certificate for torque meters, certifies the accuracy and is often required to comply with DIN ISO 9000. The test is carried out in one direction only (left or right rotation can be freely selected)

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

£ 352.00
