PCE Instruments

Torque Meter / Torque Tester

Order no.: PCE-TM 80

The Torque Meter PCE-TM 80 with external sensor to measure the static or startup torque moment in screws, components, switches, transmission shafts, etc. The Torque Meter PCE-TM 80 is an affordable solution to easily calibrate and test static torque measurements.


- Range 0 ... 147 Ncm
- Selection of  3 units (Ncm, kgfcm, lbfin)
- Digital output RS-232
- External torque sensor
- Measures startup or static torque, not dynamic torque



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DFG N 100TW
The torque meter PCE-DFG N 100TW consists of a hand-held measuring device and an external torque transducer. The torque wrench tester is delivered adjusted so that the control measurements can be started immediately.

- Measurement range: 100 Nm
- Resolution: 0.1 Nm
- Measurement uncertainty: ± 0.5% of the measurement range
- Memory for 100 measurement series with 8,000 measurement points each
- USB interface including PC software
- Graphic display
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DFG N 10TW
The torque meter PCE-DFG N 10TW consists of a hand-held measuring device and an external torque transducer. The torque wrench tester is delivered adjusted so that the control measurements can be started immediately.

- Measurement range: 10 Nm
- Resolution: 0.005 Nm
- Measurement uncertainty: ± 0.5% of the measurement range
- Memory for 100 measurement series with 8,000 measurement points each
- USB interface including PC software
- Graphic display
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DFG N 50TW
The torque meter consists of a hand-held measuring device and an external torque transducer. The torque wrench tester is delivered adjusted so that the control measurements can be started immediately.

- Measurement range: 50 Nm
- Resolution: 0.01 Nm
- Measurement uncertainty: ± 0.5% of the measurement range
- Memory for 100 measurement series with 8,000 measurement points each
- USB interface including PC software
- Graphic display
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DFG N 5TW
The torque meter PCE-DFG N 5TW consists of a hand-held measuring device and an external torque transducer. The torque wrench tester is delivered adjusted so that the control measurements can be started immediately.

- Measurement range: 5 Nm
- Resolution: 0.001 Nm
- Measurement uncertainty: ± 0.5% of the measurement range
- Memory for 100 measurement series with 8,000 measurement points each
- USB interface including PC software
- Graphic display
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-CTT 10
The torque meter for drinking bottles was developed to determine the torque of screw caps on drinking bottles and similar containers in a stationary manner. The software can then be used to depict a graphical and tabular course of the measurement sequence from the torque meter for drinking bottles.

- Measuring range: 10 Nm
- Resolution: 0.005 Nm
- Accuracy: 0.3% of the measuring range
- USB interface for software connection
- Integrated printer
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-CTT 2
The torque meter for drinking bottles was developed to determine the torque of screw caps on drinking bottles and similar containers in a stationary manner. The software can then be used to depict a graphical and tabular course of the measurement sequence from the torque meter for drinking bottles.

- Measuring range: 2 Nm
- Resolution: 0.001 Nm
- Accuracy: 0.3% of the measuring range
- USB interface for software connection
- Integrated printer
Manufacturer: PCE Instruments
Test Instruments manufacturer

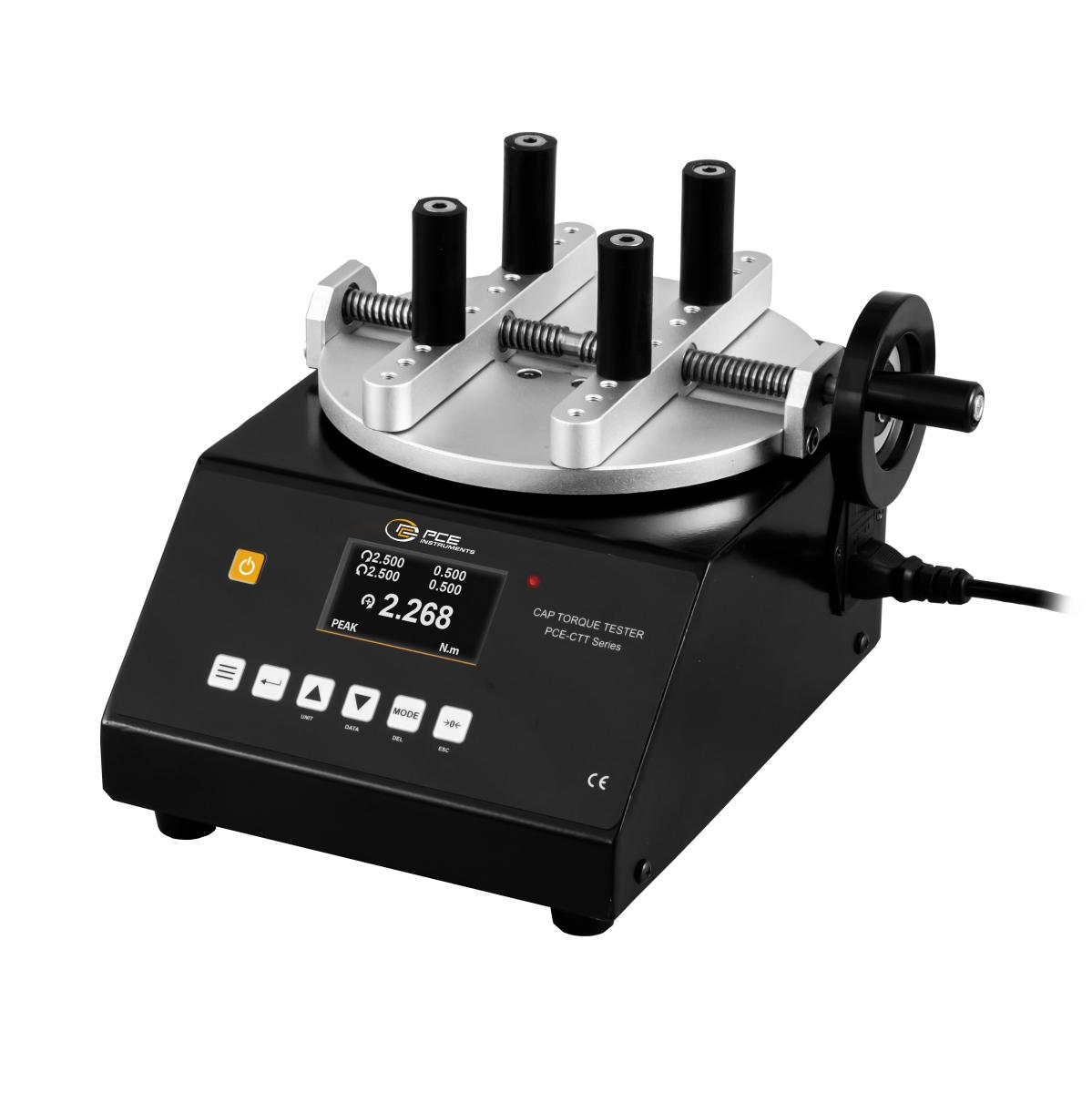

Order no.: PCE-CTT 5
The torque meter for drinking bottles was developed to determine the torque of screw caps on drinking bottles and similar containers in a stationary manner. The software can then be used to depict a graphical and tabular course of the measurement sequence from the torque meter for drinking bottles.

- Measuring range: 5 Nm
- Resolution: 0.002 Nm
- Accuracy: 0.3% of the measuring range
- USB interface for software connection
- Integrated printer
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-FB 10TW

The torque wrench tester of the PCE-TWM series can test torque wrenches up to 500 Nm, depending on the sensor. Due to the precise evaluation electronics, the torque wrench tester has a measurement accuracy of 0.5 % of the measurement range. The torque wrench is fixed by means of a 1/4' female square. The torque wrench tester consists of an evaluation unit and an external torque transducer with a cable which makes the measurement setup convenient.


- Measurement range: 10 Nm (1 kgfm)
- Resolution: 0.01 Nm
- Accuracy: ±0.5 % of measurement range
- Units of measurement: Nm, Ncm, kgfm, lbfin, gfm
- Calibration: possible with external F2 weights
- Max. overload: 50 % of measurement range



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-FB 2TW

The torque wrench tester of the PCE-TWM series can test torque wrenches up to 500 Nm, depending on the sensor. Due to the precise evaluation electronics, the torque wrench tester has a measurement accuracy of 0.5 % of the measurement range. The torque wrench is fixed by means of a 1/4' female square. The torque wrench tester consists of an evaluation unit and an external torque transducer with a cable which makes the measurement setup convenient.


- Measurement range: 2 Nm (0.2 kgfm)
- Resolution: 0.001 Nm
- Accuracy: ±0.5 % of measurement range
- Units of measurement: Nm, Ncm, kgfm, lbfin, gfm
- Calibration: possible with external F2 weights
- Max. overload: 50 % of measurement range



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-FB 5TW

The torque wrench tester of the PCE-TWM series can test torque wrenches up to 500 Nm, depending on the sensor. Due to the precise evaluation electronics, the torque wrench tester has a measurement accuracy of 0.5 % of the measurement range. The torque wrench is fixed by means of a 1/4' female square. The torque wrench tester consists of an evaluation unit and an external torque transducer with a cable which makes the measurement setup convenient.


- Measurement range: 5 Nm (0.5 kgfm)
- Resolution: 0.001 Nm
- Accuracy: ±0.5 % of measurement range
- Units of measurement: Nm, Ncm, kgfm, lbfin, gfm
- Calibration: possible with external F2 weights
- Max. overload: 50 % of measurement range



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-FB 10TS

The torque meter serves for detection of the loosening torque as well as for tightening of screws. Simultaneously the torque meter can be used as a monitoring instrument. The torque test instrument provides a keyed chuck with two steady handles.


- Measuring range: 10 Nm (1 kgf-m)
- Max. 0,5 % accuracy from the measuring range
- Measuring rate freely adjustable up to 1000 Hz
- 24 Bit Processor
- Keyed chuck up to Ø 13 mm

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-FB 2TS

The torque meter serves for detection of the loosening torque as well as for tightening of screws. Simultaneously the torque meter can be used as a monitoring instrument. The torque test instrument provides a keyed chuck with two steady handles.


- Measuring range: 2 Nm (0,2 kgf-m)
- Max. 0,5 % accuracy from the measuring range
- Measuring rate freely adjustable up to 1000 Hz
- 24 Bit Processor
- Keyed chuck up to Ø 13 mm



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-FB 5TS

The torque meter serves for detection of the loosening torque as well as for tightening of screws. Simultaneously the torque meter can be used as a monitoring instrument. The torque test instrument provides a keyed chuck with two steady handles.


- Measuring range: 5 Nm (0,5 kgf-m)
- Max. 0,5 % accuracy from the measuring range
- Measuring rate freely adjustable up to 1000 Hz
- 24 Bit Processor
- Keyed chuck up to Ø 13 mm



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DFG N 100TW-ICA
The torque meter consists of a hand-held measuring device and an external torque transducer. The torque wrench tester is delivered adjusted so that the control measurements can be started immediately.

- Measurement range: 100 Nm
- Resolution: 0.1 Nm
- Measurement uncertainty: ± 0.5% of the measurement range
- Memory for 100 measurement series with 8,000 measurement points each
- USB interface including PC software
- Graphic display
- incl. ISO Calibration Certificate for one direction (left or right)
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DFG N 10TW-ICA
The torque meter consists of a hand-held measuring device and an external torque transducer. The torque wrench tester is delivered adjusted so that the control measurements can be started immediately.

- Measurement range: 10 Nm
- Resolution: 0.005 Nm
- Measurement uncertainty: ± 0.5% of the measurement range
- Memory for 100 measurement series with 8,000 measurement points each
- USB interface including PC software
- Graphic display
- incl. ISO Calibration Certificate for one direction (left or right)
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DFG N 50TW-ICA
The torque meter consists of a hand-held measuring device and an external torque transducer. The torque wrench tester is delivered adjusted so that the control measurements can be started immediately.

- Measurement range: 50 Nm
- Resolution: 0.01 Nm
- Measurement uncertainty: ± 0.5% of the measurement range
- Memory for 100 measurement series with 8,000 measurement points each
- USB interface including PC software
- Graphic display
- incl. ISO Calibration Certificate for one direction (left or right)
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DFG N 5TW-ICA
The torque meter consists of a hand-held measuring device and an external torque transducer. The torque wrench tester is delivered adjusted so that the control measurements can be started immediately.

- Measurement range: 5 Nm
- Resolution: 0.001 Nm
- Measurement uncertainty: ± 0.5% of the measurement range
- Memory for 100 measurement series with 8,000 measurement points each
- USB interface including PC software
- Graphic display
- incl. ISO Calibration Certificate for one direction (left or right)
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-FB 500TW

The torque wrench tester of the PCE-TWM series can test torque wrenches up to 500 Nm, depending on the sensor. Due to the precise evaluation electronics, the torque wrench tester has a measurement accuracy of 0.5 % of the measurement range. The torque wrench is fixed by means of a 1/4' female square. The torque wrench tester consists of an evaluation unit and an external torque transducer with a cable which makes the measurement setup convenient.


- Measurement range: 500 Nm (50 kgfm)
- Resolution: 1 Nm
- Accuracy: ±0.5 % of measurement range
- Units of measurement: Nm, Ncm, kgfm, lbfin, gfm
- Calibration: possible with external F2 weights
- Max. overload: 50 % of measurement range



Manufacturer: PCE Instruments
Test Instruments manufacturer
