Surface Testing - Fiberscope PCE-VE 330N

Order no.: PCE-VE 330N

£ 756.00
£ 907.20
price ex. (VAT / delivery)
Cracks and Defects
Delivery time: 1-2 working days

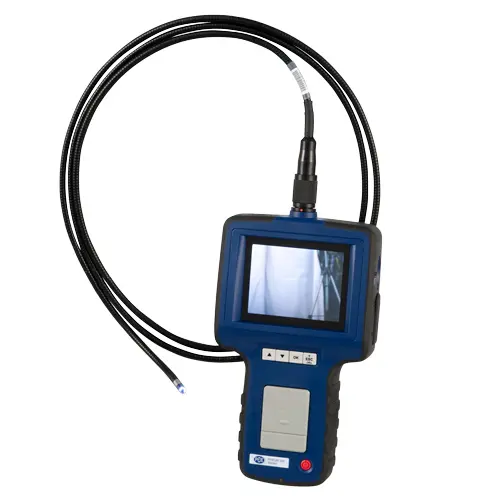

PCE-VE 330N  Video Fiberscope
for industrial use in situ to inspect machine components, and for research and development, cable length of 2 m (6.56 ft) and diameter of 5.5 mm (0.22 in), 8GB memory card, data cable

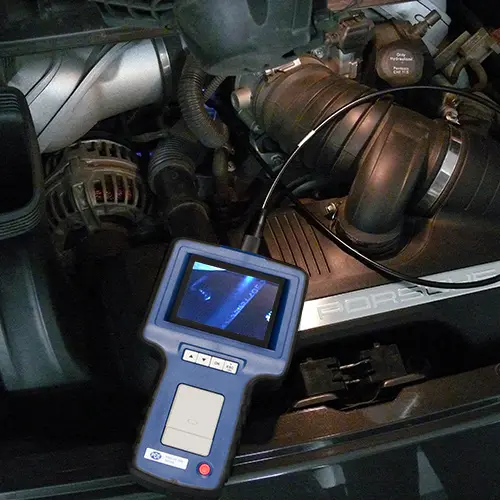

The PCE-VE 330N Video Fiberscope is an ideal tool for professionals, maintenance technicians and in development. The Video Fiberscope allows for visualisation of the interior of machines and installations without the need to dismantle them, to capture images and video sequences of moving components, save them to memory and later transfer these to a computer. This Video Fiberscope is ideal for maintenance and repair in manufacturing or repair shops.


Never before has it been so easy to optically analyse with a Video Fiberscope. The 2 m / 6.56 ft long and 5.5 mm / 0.22 in diameter flexible cable allows for access to small spaces. The cable has marks to assist indetermining the depth of penetration inside a space. It's easy to use, simply insert the cable into a cavity and you will see an image on the display of what's visible inside. Then a photo can be taken to document the area being inspected and this can be stored to memory.


When necessary, these images can be transferred to a computer for further analysis or to send them to other people that might require the images for their work. Thanks to its flexible guide, lightweight design and high quality optics, problematic area can be detected easily and quickly with the Video Fiberscope. This will allow for preventative measures to be taken without having to dismantle the machine first.

- Cable length 1m, 2m or 10m / 3ft 3", 6ft 6" or 32ft 9" (depending on model)
- Cable diameter 5.5 mm / 0.22"
- Storage of pictures and videos
- 8 GB memory card incl.

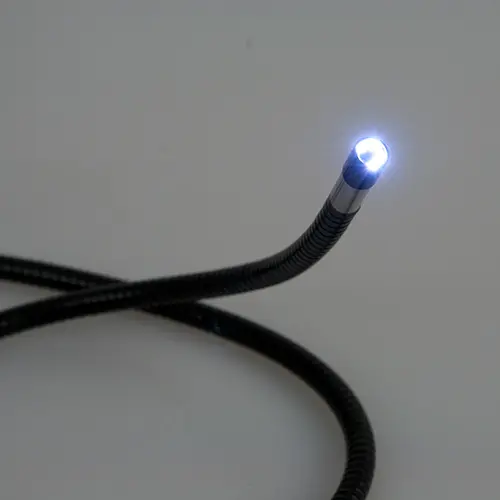

- LED lighting
- Robust carrying case incl.
- Additional camera cables optional

Cable diameter

5.5 mm / 0.22 in

Cable length

2 m / 6.56 ft

Depth of field

1.5 … 10 cm / 0.59 ... 3.94 in

Field of view


Bending radius 90 mm / 3.54 in
Illumination 4 LEDs, automatic
Image sensor CMOS
Picture rate 30 frames per second (fps)
88.9 mm / 3.5 in TFT LCD monitor
Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage 8 GB memory card (can be increased to 32 GB)
Compression format MPEG 4
Picture format JPEG (640 x 480 pixel resolution)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature -10 ... 60°C / 14 ... 140°F
Voltage supply Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 450 g / 1 lb
Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft

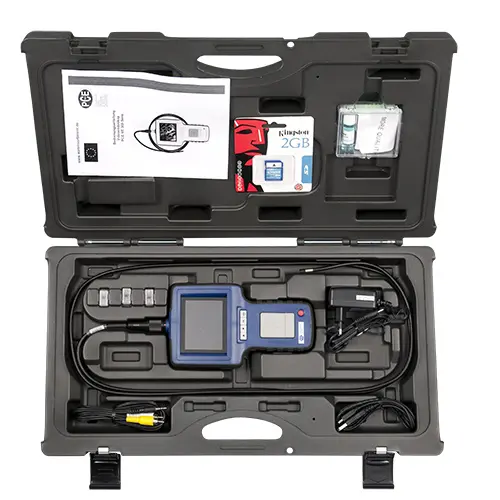

1 x Fiberscope PCE-VE 330N
1 x 8 GB SD memory card
1 x USB cable
1 x Carrying case
1 x Mains power adapter
1 x User manual

Please note: Not to be used for medical applications!
