NDT Test Instruments - Thickness Meter PCE-TG 150 F2.5

Order no.: PCE-TG 150 F2.5

£ 530.00
£ 636.00
PCE-TG 150 F2.5
price ex. (VAT / delivery)
Delivery time: 1-2 working days

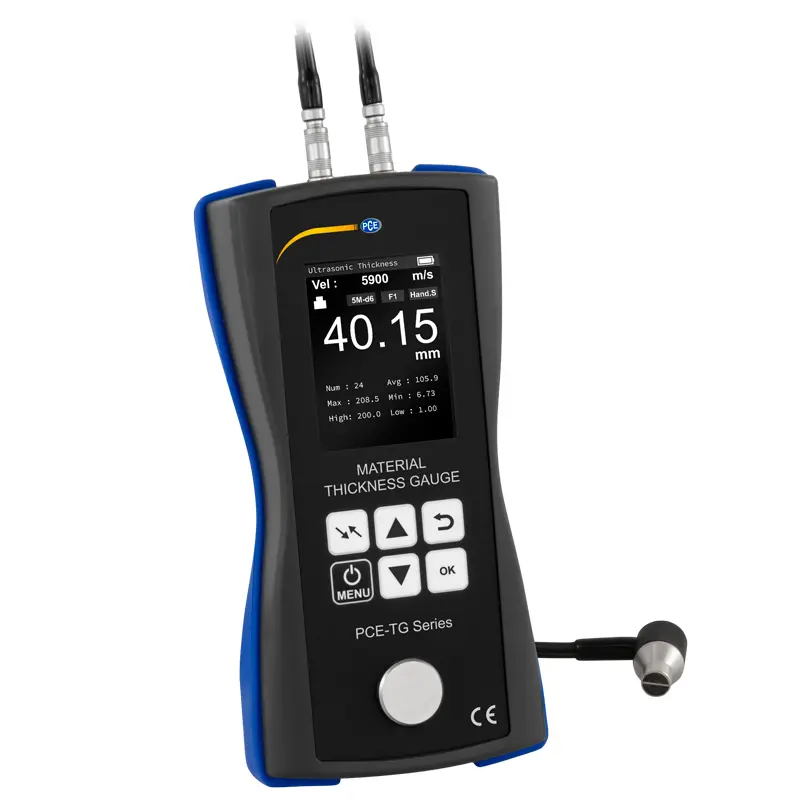

NDT tester - thickness meter with data memory / Adjustable speed of sound /
Calibration reference mounted on the housing / Material thickness measurement up to 300 mm /
Limit alarm / Optional ISO calibration certificate

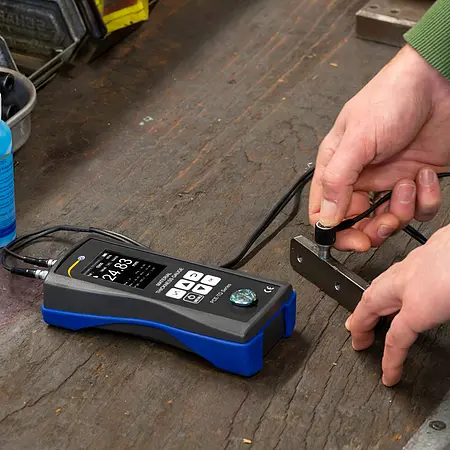

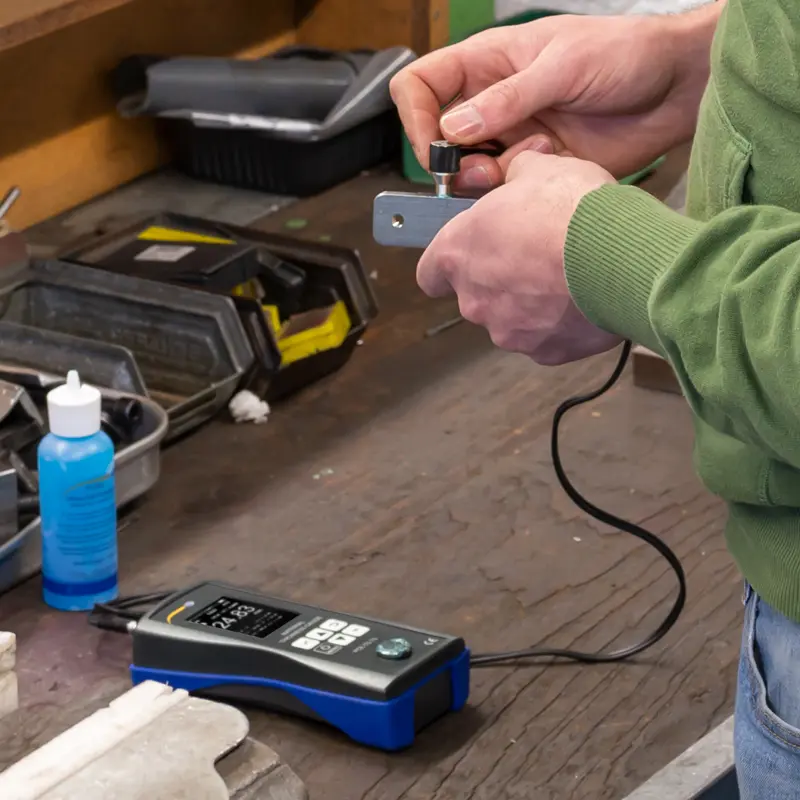

The NDT tester - thickness meter can measure material thicknesses up to 300 mm / 11.81". So that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding speed of sound in the NDT tester - thickness meter. For materials such as steel, aluminum, zinc, silver and gold, the appropriate sound speeds are already stored in the device library. This means that the NDT tester - thickness meter can be used universally.

With the limit value function in the NDT tester - thickness meter, individual maximum and minimum values ​​can be stored. If the measured value of the test piece is outside the limits, the NDT tester - thickness meter signals this visually. If necessary, the signaling can also be done acoustically by the NDT tester - thickness meter in addition to the visual display. This is why the NDT tester - thickness meter is used, for example, in quality assurance and in incoming goods inspections.

The NDT tester - thickness meter has a data memory on which the measured values ​​can be recorded. After a measurement sequence, the stored measurement values ​​can be analyzed directly on the NDT tester - thickness meter. The stored data are graphically displayed by the NDT tester - thickness meter. In addition, each individual measuring point can be approached and read in the graphics of the NDT tester - thickness meter. For a simplified analysis of the measured values, the average, the largest and smallest measured value is displayed on the NDT tester - thickness meter. The NDT tester - thickness meter can optionally be equipped with an ISO calibration certificate.

- Measured value memory
- Calibration reference on the housing
- Automatic shutdown
- Material thickness measurement up to 300 mm / 11.81"
- Battery status indicator
- Optionally with ISO calibration certificate
Measuring range 1.20 ... 300.0 mm  / 0.04 ... 11.81"
Resolution 0.01 mm at ≤99.99 mm
  0.1 mm at ≥100.0 mm
Accuracy ±0.5 % of measured value + 0.05 mm
Storage space 1500 measured values
Sensor PCE-TG 2.5M
Probe frequency 2.5 MHz
Temperature range -10 ... 60 °C / 14 ... 140 °F
Diameter Ø12mm
Further specifications
Adjustable speed of sound
1000 ... 9999 m/s
Smallest pipe diameter Ø20 x 3 mm (steel)
Material library 15 memory locations
Calibration reference 4 mm

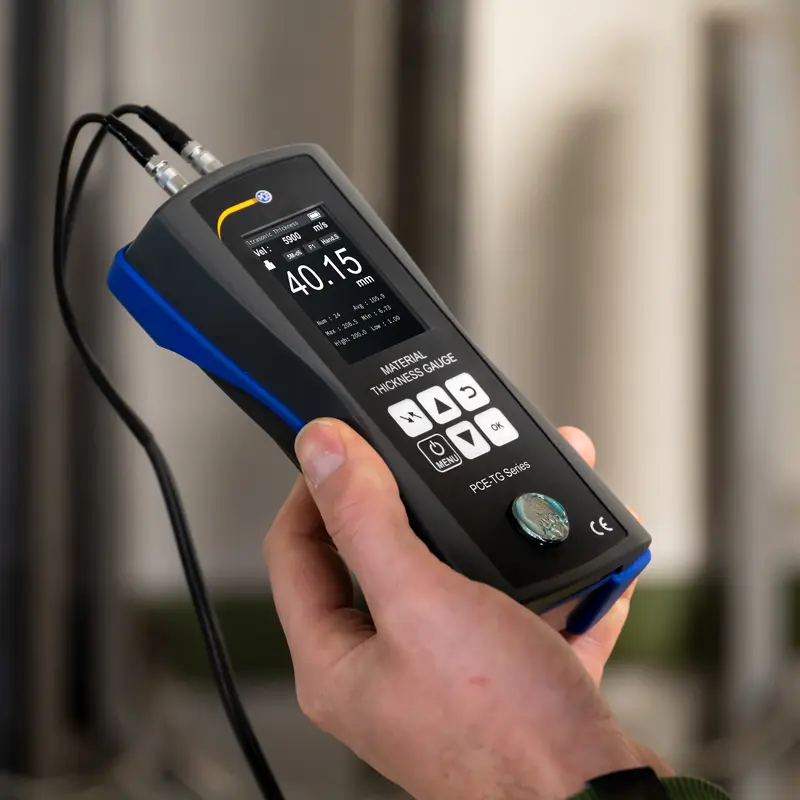

Display 2.4 inch TFT LCD color display
  with brightness adjustment
Power supply 3 x 1.5 V AA batteries
Automatic switch-off switched off, 2, 5, 10, 30 minutes
Ambient conditions 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing
Dimensions 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5"
Weight 320 g / 11.2 oz

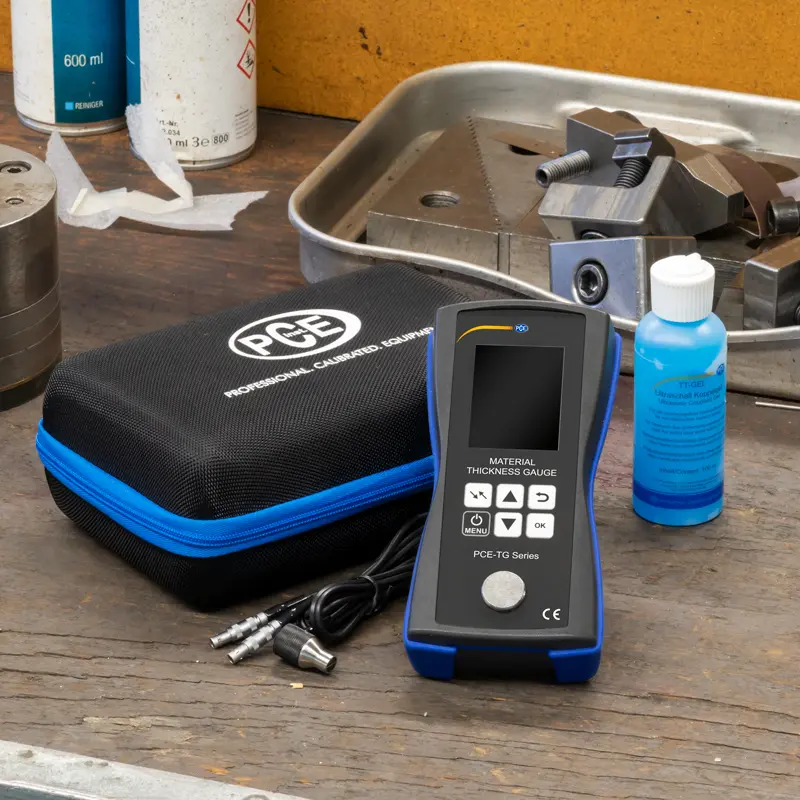

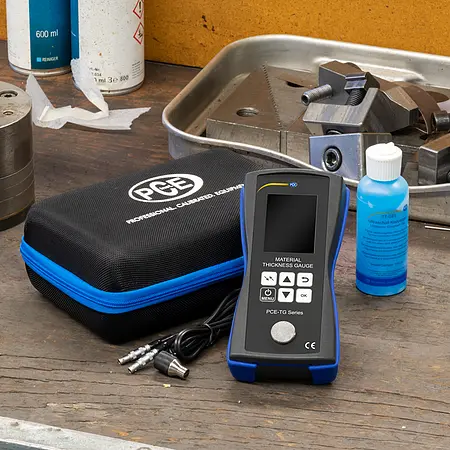

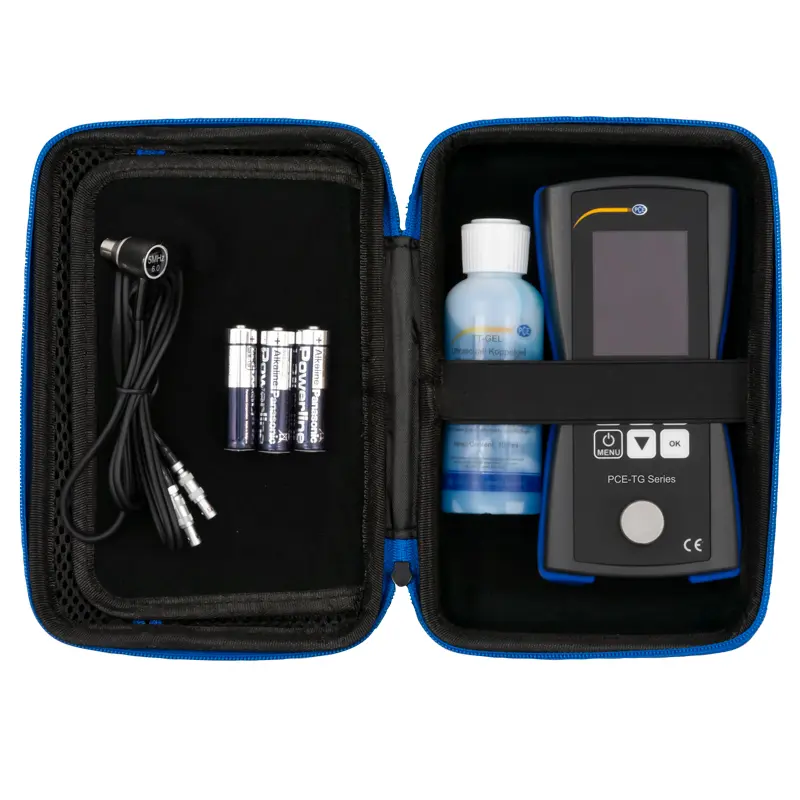

1 x NDT Tester - Thickness Meter PCE-TG 150 F2.5

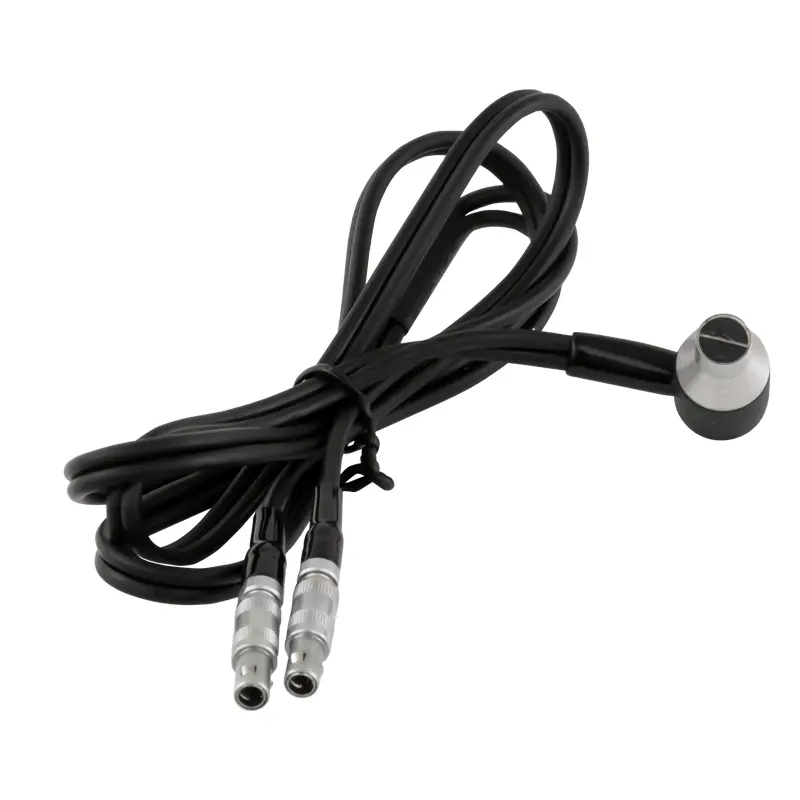

1 x Sensor PCE-TG 2.5M

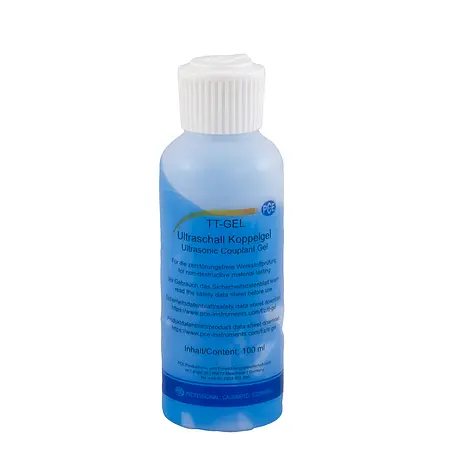

1 x Coupling gel (TT-GEL)
1 x Transport bag
3 x 1.5 V AA batteries
1 x Quick start guide
