Barcol Hardness Tester PCE-1000N

Order no.: PCE-1000N
£ 868.00
£ 1,041.60
price ex. (VAT / delivery)
Delivery time: 1-2 working days

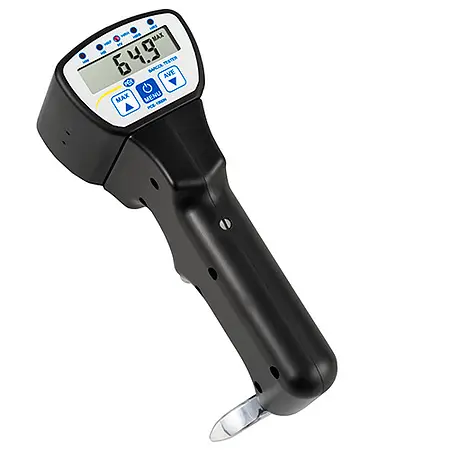

PCE-1000N Barcol Hardness Tester
Barcol impressor hardness meter with backlit LCD, power-saving automatic shutdown, maximum and average functions

PCE-1000N is a portable handheld Barcol hardness tester used to measure the hardness of pure aluminum, soft aluminum, thick aluminum alloy and aluminum sheets, strips, rods, castings and forgings. The hardness of fiber-reinforced (FRP) plastics, glass-reinforced (GRP) plastics, hard plastics and soft metals (such as copper or lead) also can be tested using this battery-powered digital Barcol impressor hardness meter. The digital meter offers a wide measuring range, high accuracy and direct display of the measured values ​​on the built-in backlit LCD. In addition to Barcol (HBA) hardness units, the meter displays hardness measurements in Brinell (HB), Vickers (HV), Webster (HW) and Rockwell (HRB / HRE / HRF / HRH) hardness units. Adding to the meter's versatility is its sleek design, allowing for quick and easy one-handed operation.

The Barcol Hardness Tester meets the following ASTM (American Society for Testing and Materials) standards: E140-97; D2583-75; B648-78: E140-97 Standard Hardness Conversion Tables for Metals; D2583-75 Standard Method of Testing for Indentation Hardness of Plastics by means of a Barcol Impressor; B648-78 Standard Method of Testing for Indentation Harness of Aluminum Alloys by means of a Barcol Hardness Tester.

- Direct display of measured value
- High accuracy
- Maximum and average value functions
- Easy-to-read backlit LCD screen
- Power-saving automatic shutdown
- Wide measuring range
- One-handed operation
Measurement parameters Barcol (HBA)
Brinell (HB)
Vickers (HV)
Webster (HW)
Rockwell (HRB / HRE / HRF / HRH)
Measuring range 0 ... 100 HBA / 25 ... 150 HB
Resolution 0.1 HBA
Accuracy 81 .. 88 HBA: ± 1 HBA
42 ... 48 HBA: ± 2 HBA
Repeatability 81 .. 88 HBA: ± 1.5 HBA
42 ... 48 HBA: ± 2.5 HBA
Operating conditions 0 ... 50°C / 32 ... 122°F
< 80 % relative humidity (RH)
Power supply 2 x 1.5V AAA batteries
Dimensions 170 x 63 x 82 mm / 6.6 x 2.4 x 3.2 in
Weight 390 g / < 1 lb  (without batteries)

1 x PCE-1000N Barcol hardness tester
3 x Screwdrivers
1 x Wrench
1 x User manual
1 x Carrying case
