Order no.: PCE-CT 22BT-ICA

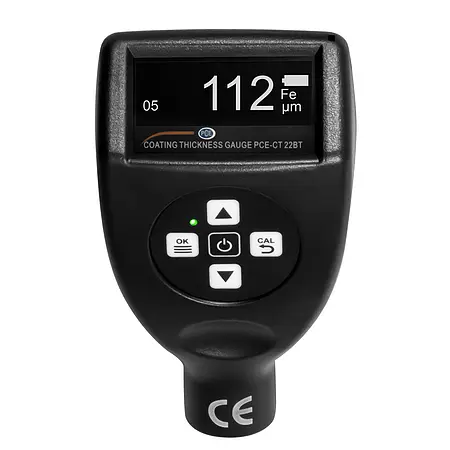

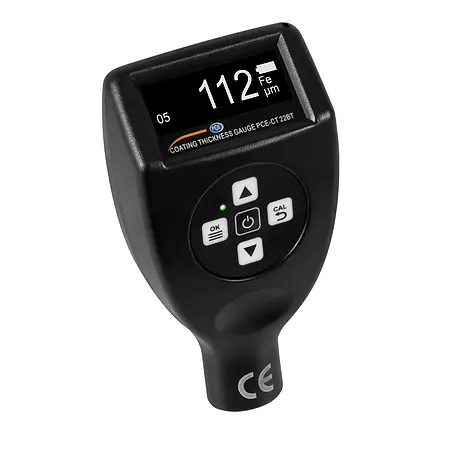

Material Tester PCE-CT 22BT-ICA incl. ISO Calibration Certificate

ISO Calibration

£ 463.00
£ 555.60
price ex. (VAT / delivery)
Delivery time: 10 - 14 days


Material Tester with 5-point calibration / various interfaces /
for measurement on ferrous and non-ferrous metals / app connection / internal probe / data storage / incl. ISO Calibration Certificate

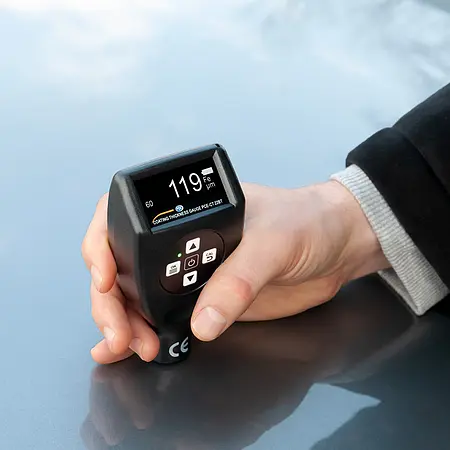

With this Material Tester, layer thicknesses on metallic surfaces can be reliably determined. The Material Tester has a measuring range of 1500 µm. This means that the Material Tester is used, for example, in a paint shop, for incoming goods inspection or for an expert.

With the Bluetooth interface on the Material Tester, all data can be transferred to a mobile iOS or Android device and exported as a CSV, PDF or TXT file. A live view with analysis of the measured values ​​is also possible via the free app with the Material Tester.

In addition to the Bluetooth interface, the Material Tester has a micro USB interface. All data can also be transferred to the PC and analyzed via this interface in the Material Tester. Another special feature of this interface is that the Material Tester can also be operated without batteries via this interface. As a result, many measurement processes are no longer dependent on the battery charge level.


- Micro USB and Bluetooth interface
- Calibration foils included
- Adjustable alarm thresholds
- Backlit display
- Data storage for up to 600 measured values
- Measuring range up to 1500 µm
- incl. ISO Calibration Certificate


Measurable substratesFe, NFe
Measuring range0… 1500 µm
Resolution0.1 µm (in the measuring range 0… 99.9 µm)
 1 µm (in the measuring range 100… 1500 µm)
Accuracy± (1 µm + 2% of the layer thickness)
Unitsµm, mil
Smallest curvatureconvex 5 mm, concave 5 mm
Smallest measuring area10 x 10 mm
Minimum thickness of the substrate   0.4 mm
InterfaceBluetooth, micro USB
Memory10 groups with 60 measurements each
Power supply2 x 1.5 V AA batteries, 5 V USB interface
Environmental conditions-10… 50 °C, 10… 85% RH
Dimensions126 x 69 x 35 mm (without sensor)
Weightapprox. 97 g (without batteries)

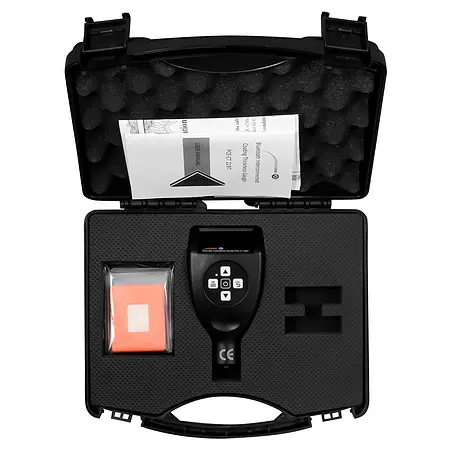

Delivery Scope

1 x PCE-CT 22BT-ICA Material Tester
5 x Calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x Wrist strap
2 x 1.5 V AA batteries
1 x Carrying case
1 x Instruction manual
1 x ISO Calibration Certificate
