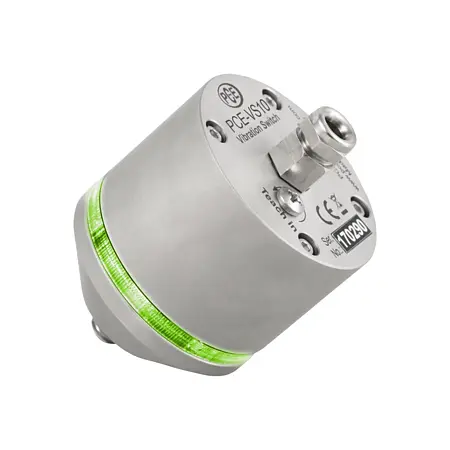

Condition Monitoring Vibration Sensor Switch PCE-VS10

Condition Monitoring Vibration Sensor Switch PCE-VS10

Order no.: PCE-VS10
GTIN (EAN):

£ 272.00
£ 326.40
price ex. (VAT / delivery)
PCE-VS10

Description

Condition Monitoring Vibration Sensor Switch
Setup via USB and PC / Includes software for detailed vibration analysis


A condition monitoring vibration sensor switch from the PCE-VS1x series is used to monitor vibration acceleration and velocity. The condition monitoring vibration sensor switch is used in various measurement projects. Areas of application for the condition monitoring vibration sensor switch include, for example, monitoring the condition of motors, fan blowers, pumps and compressors. The condition monitoring vibration sensor switch can also be used for quality control in production.

The various measurement projects that can be carried out with the condition monitoring vibration sensor switch show the distinctiveness of this measuring device. In addition, the condition monitoring vibration sensor switch can be used to trigger an emergency shutdown of production systems where strong vibrations could cause damage to personnel or equipment. The condition monitoring vibration sensor switch can also be used to monitor vibrations on various railway vehicles and can also be used as a safety switch on doors and gates.

Highlights

- Ideal for machine condition monitoring and quality control applications
- Measures RMS and peak value of vibration velocity or acceleration
- Piezoelectric accelerometer
- IP67 ingress protection rating against water and dust

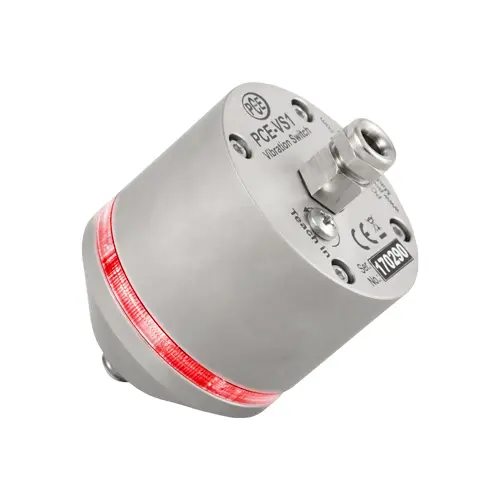

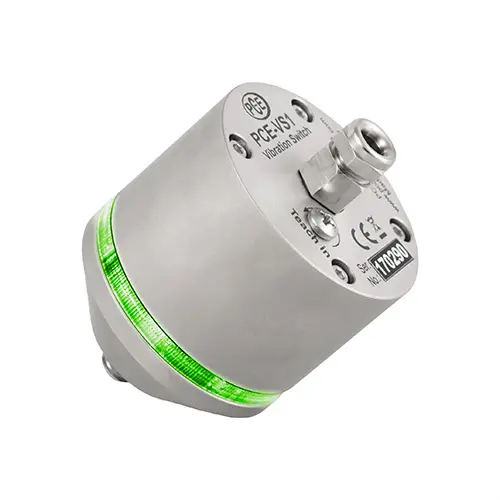

- Features a red and green visual warning or alarm
- Programmable high pass and low pass filters
- Emergency shut-off
- Setup via USB and PC

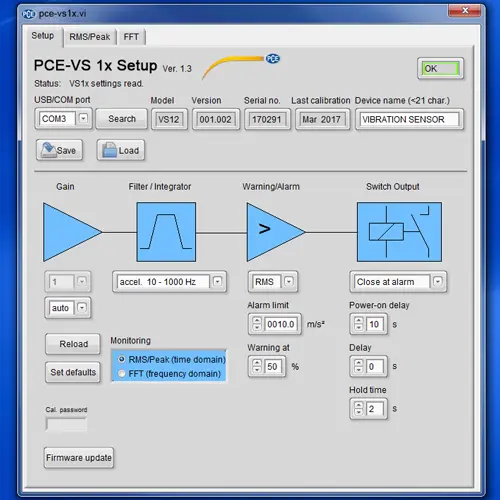

- Includes software for detailed vibration analysis


Specification

Measuring range 0.1 ... 1000 m/s² acceleration
Frequency dependent velocity
Monitoring values Peak value of vibration acceleration or vibration velocity
RMS value of vibration acceleration or vibration velocity
High pass filter 0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration
2 / 5 / 10 / 20 / 50 Hz velocity
Low pass filter 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration
1 kHz velocity
Relay output PhotoMOS relay
SPST
Max. 60 V / 0.5 A (AC/DC)
Open/close programmable
Connection via screw terminals

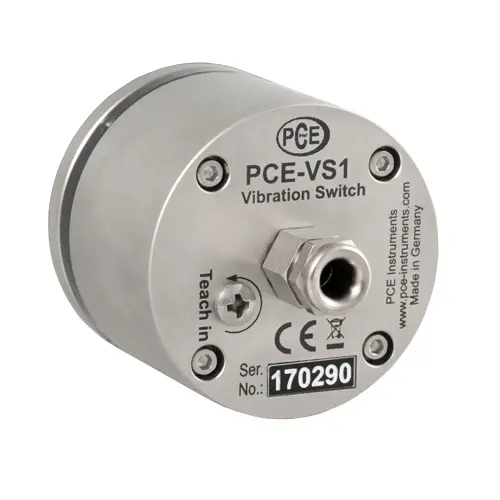

Teach-in function
Warning / alarm
Alarm delay / hold time
Button for measuring the switching threshold
Green and red LEDs
0 ... 99 s / 0 ... 9 s
Interfaces USB 2.0 full speed for parameterization and measurement
CDC mode / virtual COM port
Micro USB port inside
External USB port
Power supply voltage
No
5 ... 30 V DC
5 V DC USB
< 100 mA screw terminals
Ingress protection IP67 rating
Operating temp. range -40 ... +80 °C / -40 ... +176 °F
Approx. weight 160 g / 0.36 lb
Approx. dimensions 50 mm / 1.97" Ø
52 mm / 2.05" height

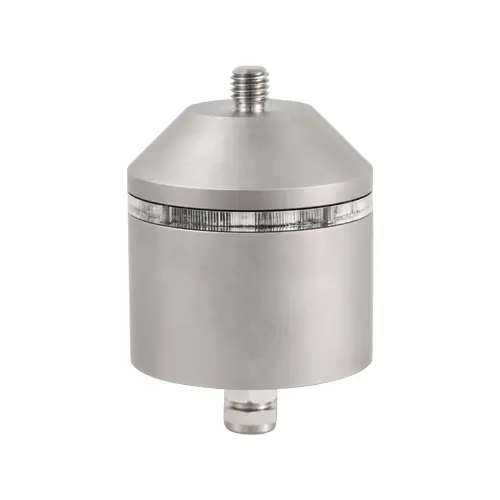

Mounting M8 thread pin
8 mm / ≈ 0.32" length
25 mm / ≈ 0.99" Ø coupling surface

Delivery Scope

1 x Condition Monitoring Vibration Sensor Switch PCE-VS10
1 x USB cable
1 x PC-compatible software
1 x user manual
