£ 65.00

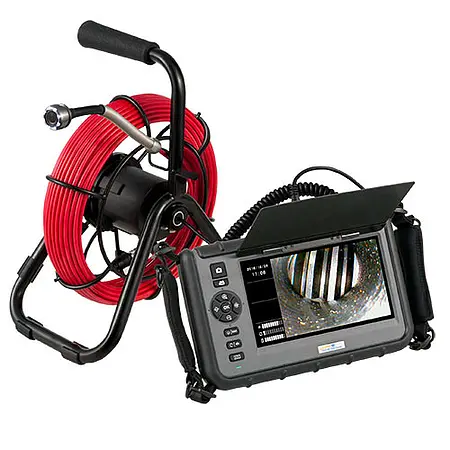

Conditioning Monitoring Inspection Camera
Borescope with 30 m / 98 ft long, 28 mm / 1.1 in diameter waterproof semi-flexible push-pull cable on reel / Captures and stores pictures and audio-enabled videos to included SD card memory

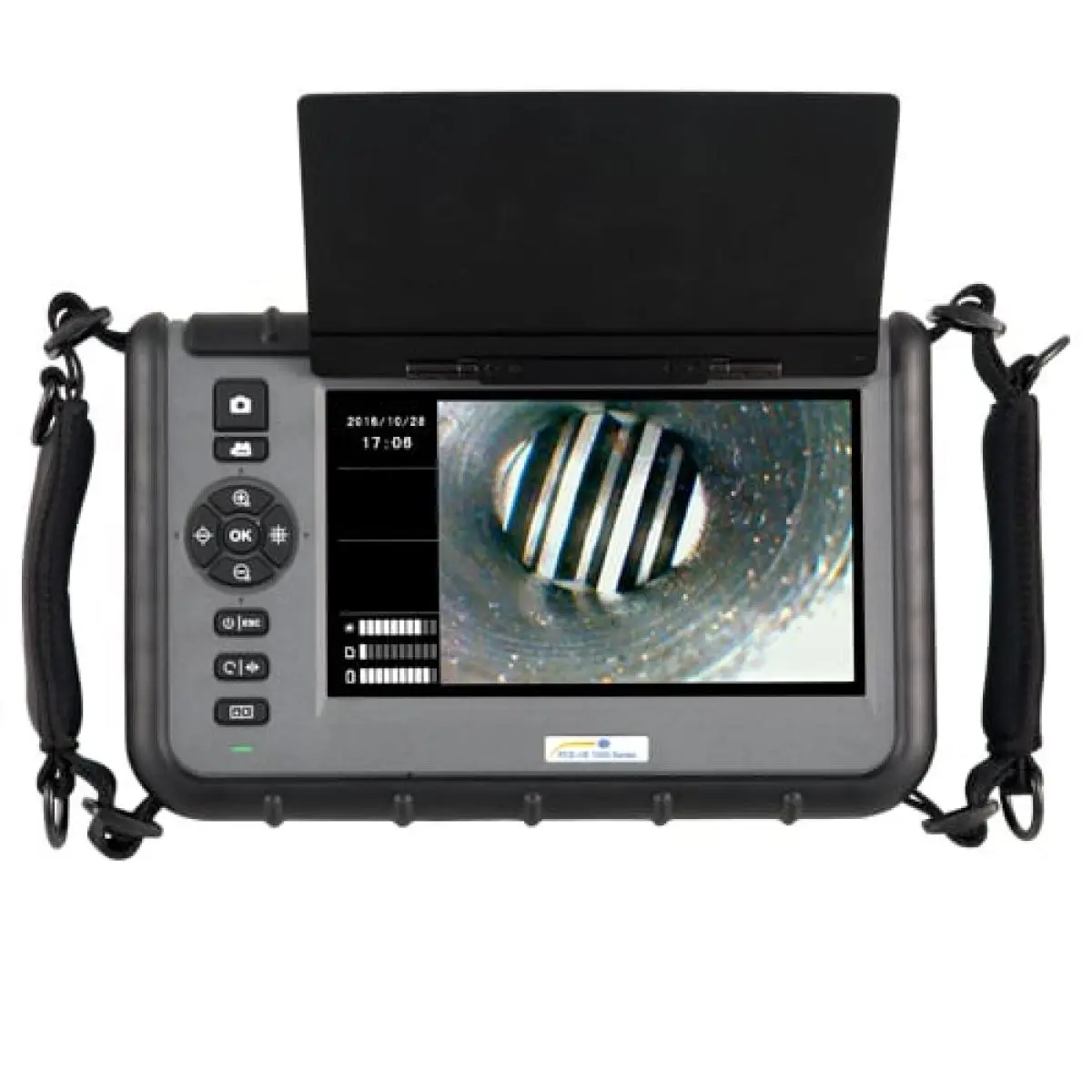

PCE-VE 1030N is a versatile condition monitoring inspection camera with a large 7" high-resolution display. This condition monitoring inspection camera captures both picture and video. Video recordings are accompanied by audio for a more immersive inspection experience.
All files are saved to the included SD card memory for quick and easy transfer to a PC. The condition monitoring inspection camera accommodates an SD card with a maximum capacity of up to 32 GB. For example, an 8 GB SD card would store more than 60,000 images or 530 minutes of video.
The condition monitoring inspection camera comes with a 30 m / 98 ft long, 28 mm / 1.1 in diameter semi-flexible push-pull cable on a reel. The included camera cable is waterproof and the head is equipped with 8 bright LED lights for optimal illumination. In addition, various cables with different lengths, diameters and special features can be connected to accommodate myriad applications. Additional cables are optional and sold separately - see accessories for details.
| General technical data | |
| Resolution | Image resolution: 640 x 480 JPEG Video recording: 640 x 480 MPEG (with sound recording) |
| Cable length | 30 m |
| Display type | LC touch display |
| Display size | 7 Inch |
| Display resolution | 800 x 480 pixels |
| Storage medium | SD card |
| Storage capacity | 32 GB |
| Memory capacity (additional information) | SD card up to a maximum of 32 GB |
| Interface | Mini-USB, SD card |
| Camera orientation | frontal 0° |
| Operating time | 5 h |
| Automatic power-off from...to | 5 ... 30 min. |
| Camera head length | 20 mm |
| Camera head diameter | 28 mm |
| Protection class camera probe | IP68 |
| Field of vision | 150 ° |
| Depth of field of vision | 10 ... 100 mm |
| Luminous intensity | 8 LEDs |
| Menu language | English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Hungarian, Romanian, Swedish, Greek, Norwegian, Slovenian, Estonian, Finnish |
| Power supply | AC 100 ... 240 V | Hz 50/60 |
| Connector type | Device-europlug |
| Capacity | 2400 mAh |
| Operating conditions | 0 ... 45 °C , 0 ... 95 % RH |
| Storage conditions | 0 ... 45 °C , 0 ... 95 % RH |
| Dimensions ( L x W x H ) | 240 x 154 x 47 mm |
| Weight | 1310 g |
