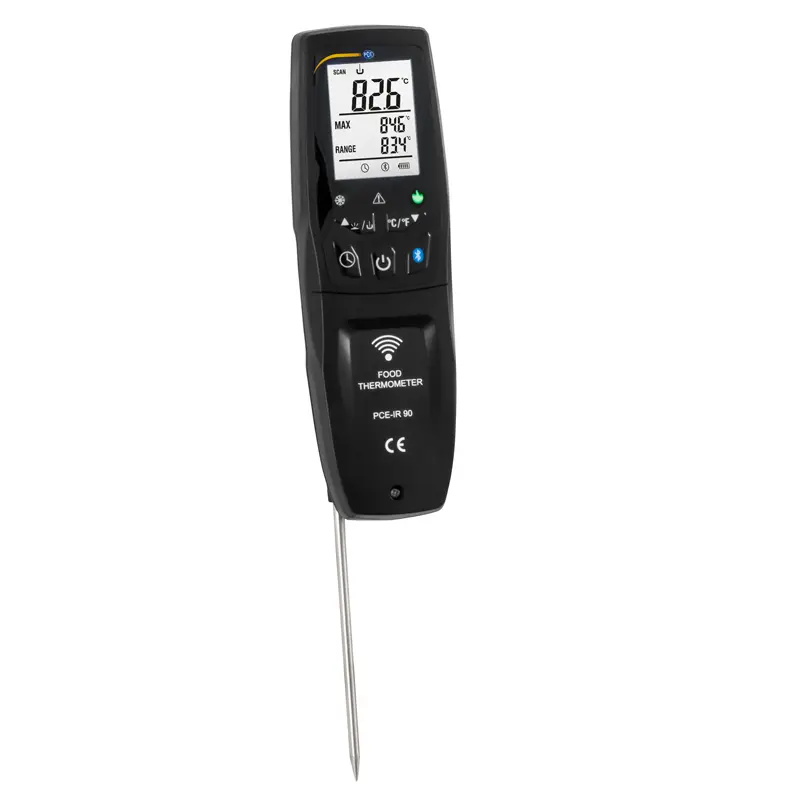

Condition Monitoring Contact / Non-Contact Food Thermometer PCE-IR 90

Condition Monitoring Contact / Non-Contact Food Thermometer PCE-IR 90

Order no.: PCE-IR 90
GTIN (EAN): 4250348723376
£ 100.00
£ 120.00
Wireless
price ex. (VAT / delivery)
:
4250348723376
PCE-IR 90
Delivery time: 1-2 working days

Description

Condition Monitoring Contact / Non-contact Food Thermometer with Bluetooth interface / Measuring range -40 ... 300°C (-40 ... 572°F) / Charging station / penetration temperature probe for checking the core temperature / Background lighting / Temperature indicator display / Stop watch / Emissivity 0.95

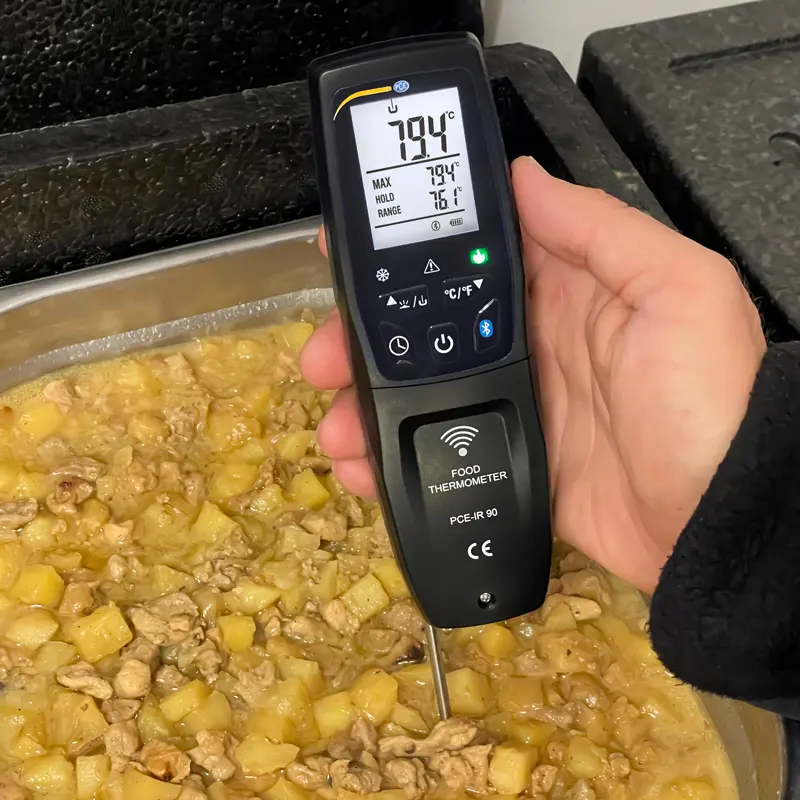

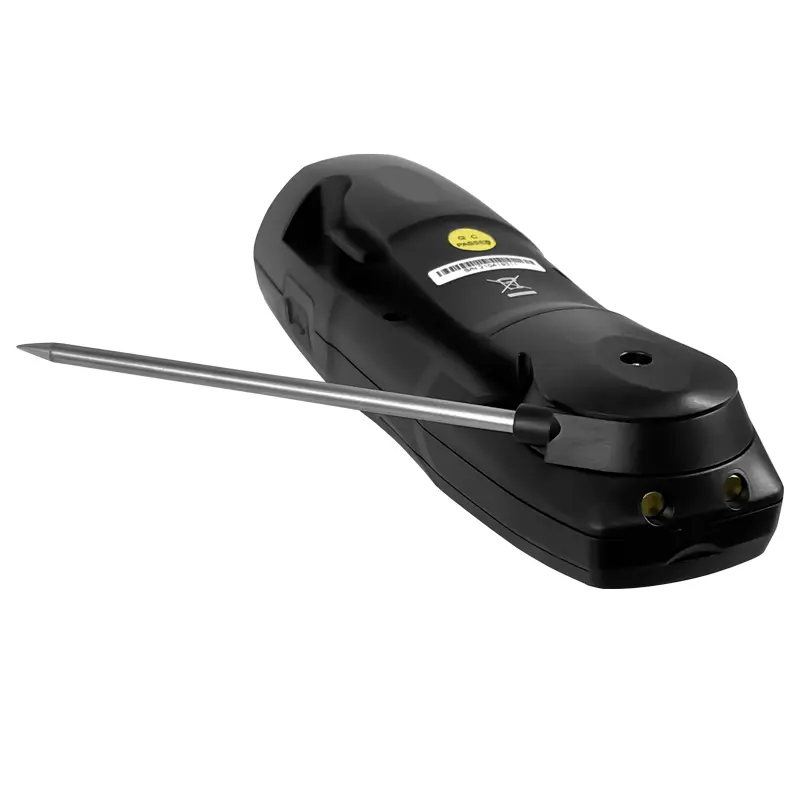

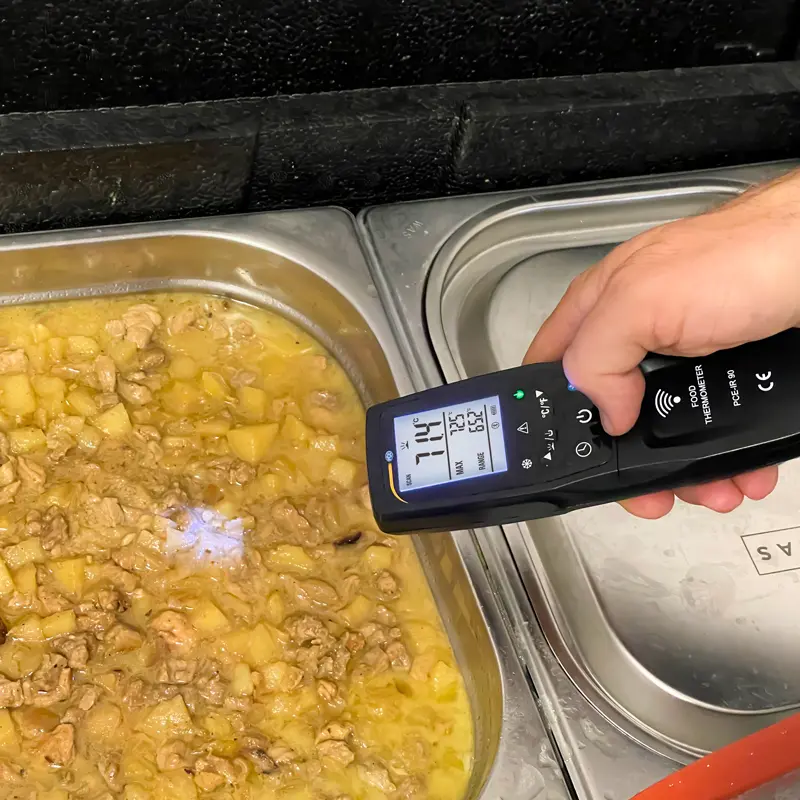

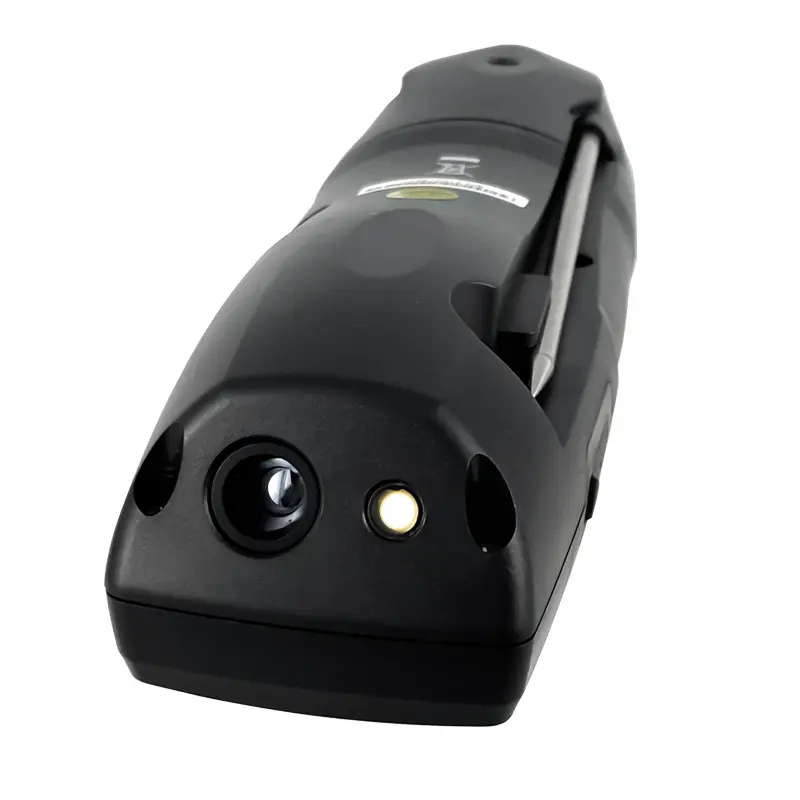

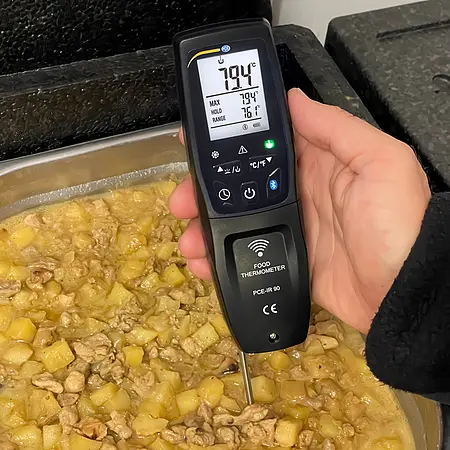

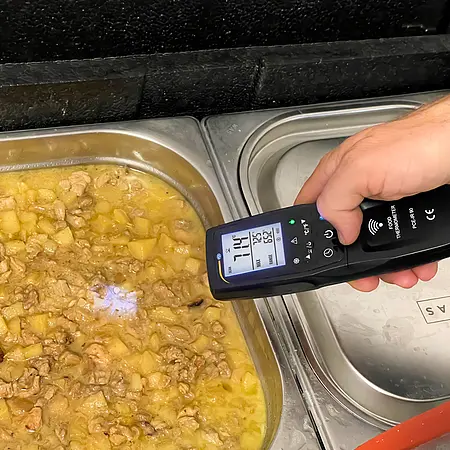

The condition monitoring contact / non-contact food thermometer is used to check the temperature of food. In addition to the surface temperature via the infrared sensor, the condition monitoring contact / non-contact food thermometer can also be used to determine the core temperature via the fold-out resistance temperature sensor. Both temperature sensors on the thermometer have a measuring range of -40 ... 300°C / -40 ... 572°F.

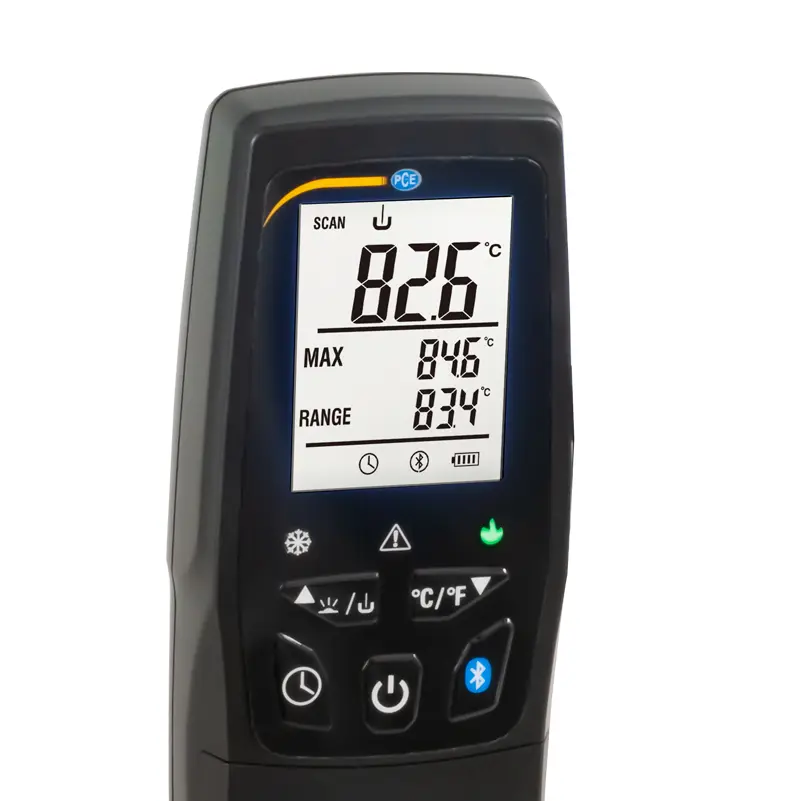

In addition to the normal measured value display, the thermometer has a temperature display. This display on the condition monitoring contact / non-contact food thermometer signals whether the temperature of the food being measured is optimal. If the temperature is between 4 … 65°C / 39.2 ... 149°F, this is indicated by a red LED. If the temperature is colder than 4°C / 39.2°F or warmer than 65°C / 149°F, this is indicated by a green LED. This function in the thermometer is particularly important in order to monitor the respective temperature chain. Therefore, the condition monitoring contact / non-contact food thermometer is used especially in the food industry.

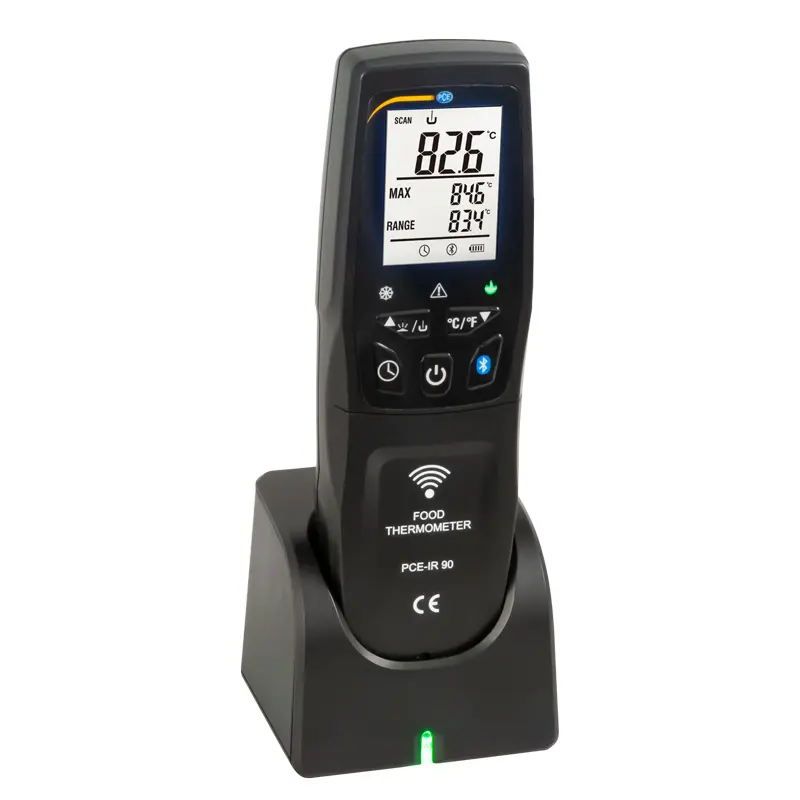

The Bluetooth interface enables communication between the condition monitoring contact / non-contact food thermometer and a mobile Android and iOS device. With the free app for the thermometer, the measured values ​​can be recorded with a mobile device and exported for later analysis. To charge the measuring device, the thermometer can be plugged into the charging station provided. If necessary, the condition monitoring contact / non-contact food thermometer can also be charged via a 5 V micro USB interface.

Highlights

- Measuring range -40 ... 300°C / -40 ... 572°F
- Infrared and penetration temperature sensor
- Timer and stopwatch function

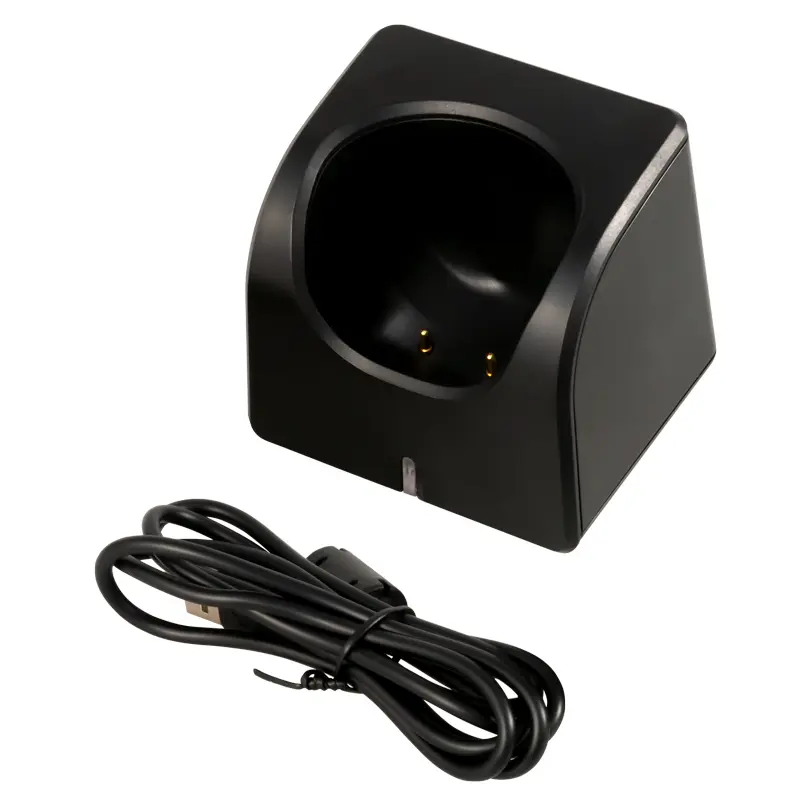

- Charging station with micro USB cable
- Bluetooth interface
- Mobile temperature measuring device
- Easy handling

Specification


Infrared measurement
Measuring range-40 ... 300°C, -40 ... 572°F
Resolution0.1°C, °F
Measurement accuracy        ± 1°C, ± 1.8°F at 0 ... 65°C, 32 ... 150°F
 ± 2.5°C, ± 4.5°F at < 0°C, < 32 ° F
 ± 1.5% at > 65°C, 150°F
Spot ratio2: 1
Reaction time< 500 ms

Penetration probe
Measuring range-40 ... 300°C, -40 ... 572°F
Resolution0.1° C,°F
Measurement accuracy± 1°C, ± 1.8°F at -40 ... 200°C, -40 ... 392°F
 ± 1.5°C, ± 4.5°F at > 200°C, > 392°F
Sensor typeResistance temperature sensor
Probe length100 mm

Further specifications
Emission value0.95 fixed
InterfacesBluetooth (data transfer)
 Micro USB (for charging)
Additional functions      Timer and stopwatch
Power supply4.2V 1300-mAh battery,
 5V DC / 1 A fixed voltage supply via
 Micro USB interface
Operating conditions0 ... 50°C, < 85% RH, non-condensing
Dimensions176 x 55 x 40 mm / 6.9 x 2.2 x 1.6 in
Weight185 g / < 1 lb

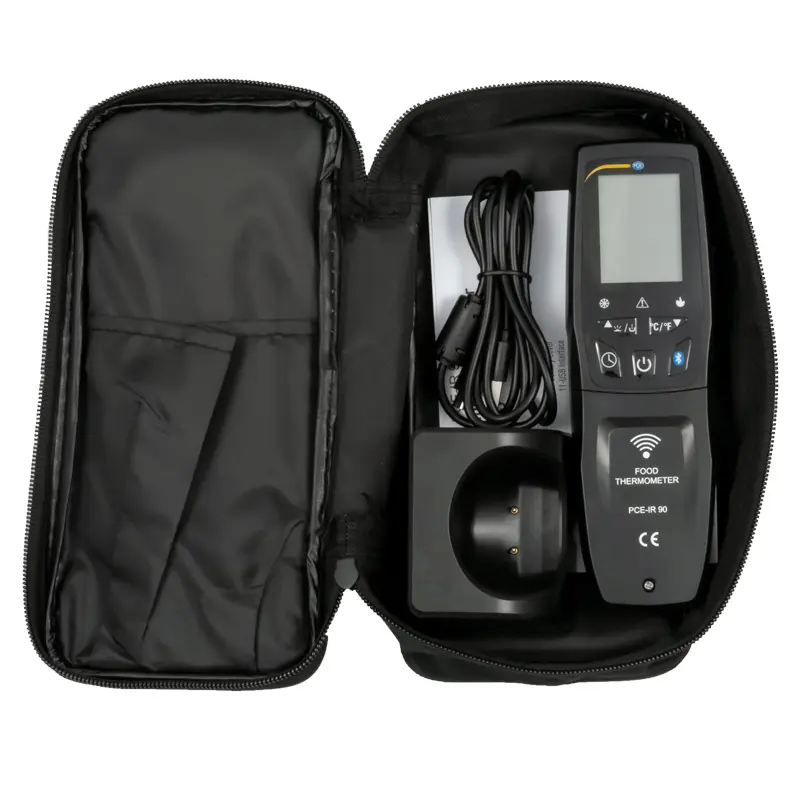

Delivery Scope

1 x Condition monitoring contact / non-contact food thermometer PCE-IR 90
1 x Micro USB charging cable
1 x Charging station
1 x Transport bag
1 x Operating instructions
