Order no.: PCE-WSAC 50

Climate Meter Alarm Controller PCE-WSAC 50

ISO Calibration
£ 378.00
£ 453.60
price ex. (VAT / delivery)
Attention: The sensor must be selected according to the sensor input signal!

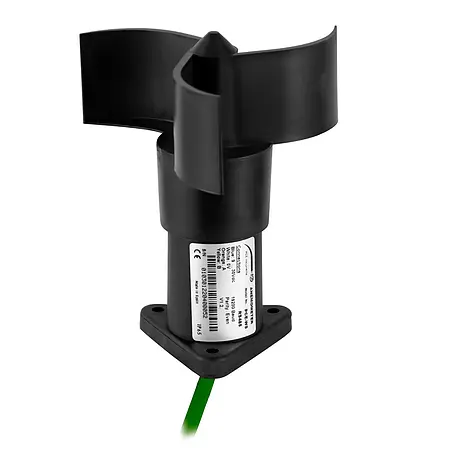

Cup vane
Yes (optional RS-485 modbus)
Delivery time: 1 week

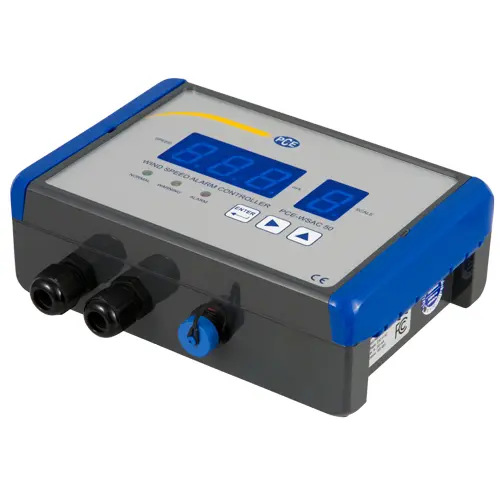

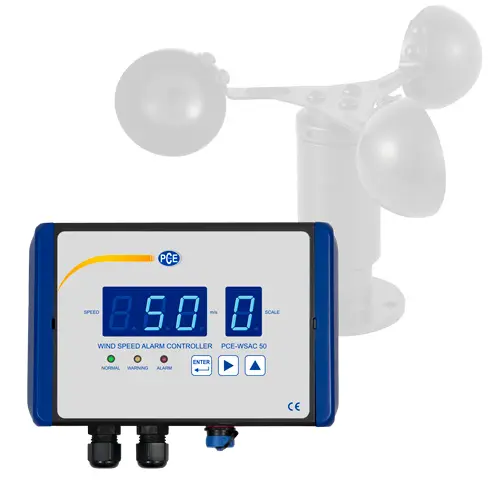

Climate Meter Alarm Controller PCE-WSAC 50
Pre-alarm and full alarm / Optional RS-485 modbus interface / Displays current wind speed and average wind speed of last 2 and 5 minutes

PCE-WSAC 50 is a climate meter alarm controller that displays the current wind speed as well as the average wind speed of the last 2 and 5 minutes. A pre-alarm and full alarm can be activated based on preset values. If wind speeds are higher than the preset values, a pre-alarm is first applied before the full alarm is issued. Both alarms are delivered visually and audibly. If the pre-alarm is triggered, a yellow LED will flash on the front of the unit and a beep will periodically be emitted as a warning tone. If the full alarm is triggered, a red LED will flash on the front of the unit and a beep will continuously be emitted.

The climate meter alarm controller allows measurement of the slightest of wind movements. This climate meter alarm controller is used for a variety of wind monitoring applications in industries such as construction, mining, renewable energy and manufacturing. If necessary, a relay can also be connected to the controller.

***Sensors sold separately***


- Pre-alarm and full alarm with visual and audible warnings
- Allows measurement of the slightest wind movements

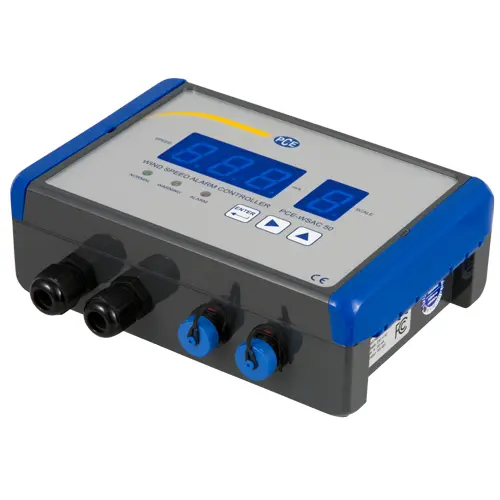

- Optional RS-485 modbus interface for data communication
- Bright, easy-to-read LED display
- Simple to use

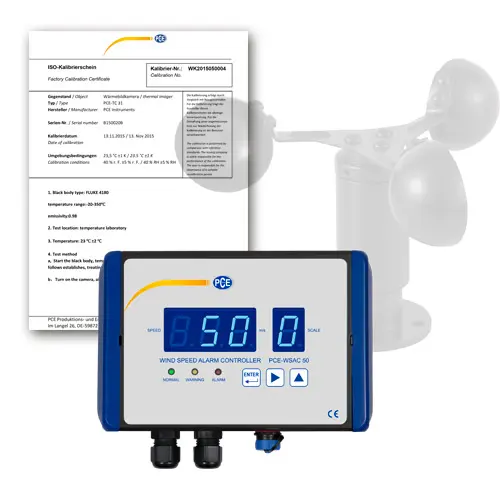

- Incl. ISO Calibration Certificate

***Sensors sold separately***

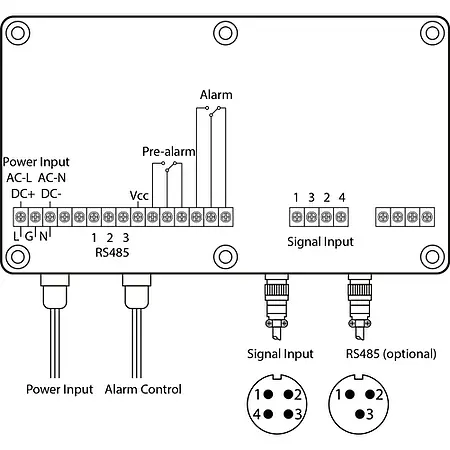

Power supply 115V AC
230V AC
24V DC
Supply voltage for sensors (output) 12V DC
24V DC
Measuring range 0 ... 50 m/s or 0 ... 110 mph
Measuring accuracy ± 3% of measuring range

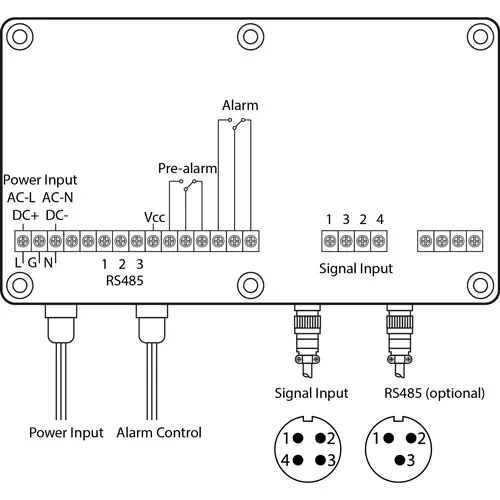

Signal input (selectable) 4 ... 20-mA
0 ... 5 / 10V
Alarm relay
2 NO/NC relays with max. load of 220V AC / 10 A
Optional interface RS-485 modbus
Operating temperature -20 ... 60°C / -4 ... 140°F
Dimensions 197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7 in
Weight Approx. 400 g / < 1 lb

***Sensors sold separately***

Delivery Scope

1 x Climate Meter Alarm Controller PCE-WSAC 50
1 x User manual

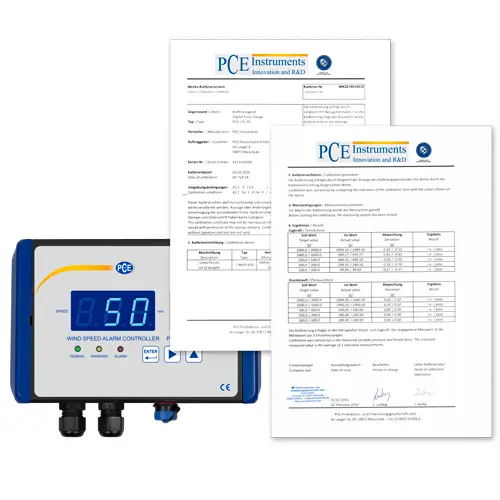

1 x ISO Calibration certificate

***Sensors sold separately***
