Pressure Indicator PCE-N20I

Order no.: PCE-N20I

£ 97.00
£ 116.40
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Pressure Indicator PCE-N20I
2 open collector outputs / setup via software /
for 4...20 mA, 0...20 mA signals / IP 65 protected front / Power supply system for sensors and transducers

The pressure indicator is used for processing 4...20 mA and 0...20 mA signals. Many measuring transducers and sensors use this type of output, which makes the pressure indicator suitable in a wide application area. The measurement results are shown on the large 5 -digit LED-display of the pressure indicator. Depending on the actual values, the results can be shown in three different colours, which makes it easier to evaluate them. The pressure indicator can also output signals via its two open collector outputs, when a threshold value is exceeded. This allows the usage of external alarm systems in combination with the pressure indicator.

The threshold values and other configuration settings can be set by using the free software LPCon and the optional PCE-PD 14 programming adapter. An integrated power supply system of 24 V allows the direct connection of sensors and transducers to the pressure indicator. The pressure indicator is available with different measuring units, inputs and power supplies. You can select the particular parameters further below.

- IP 65 protection on the front
- for 4...20 mA and 0...20 mA signals
- connection via screw terminals
- 24 V power supply sytem for sensors and transducers
- 5-digit, three-coloured LED display
- two open connector outputs

Technical specifications
Input (selectable4)4 ... 20 mA
0 ... 20 mA
± 20 mA
Input impedance10 Ω ± 1 %
Accuracy± (0,2 % FS + 1 dgt.)
Scale2 points
Averaging time0,5 ... 20 s
Outputs2x open collector outputs, 30 V, 20 mA
Sensor power supply24 V, 30 mA
Display 5-digit 7-segment LED display, height: 14 mm, three-coloured
Display range-19999 ... 99999
Environmental temperatureDuring operation: -10 °C ... 55 °C
During Storage: -25 °C ... +85 °C
max. humidity95 % non-condensating
Dimensions96 mm x 48 mm x 64 mm
Panel installation92 mm x 45 mm (according to DIN standard)
Power supply
85 ... 253 V AC/DC
20 ... 40 V AC/DC
Power consumption< 6 VA
Protection classFront: IP 65
Weight< 250 g
MountingMounting clips with screws,

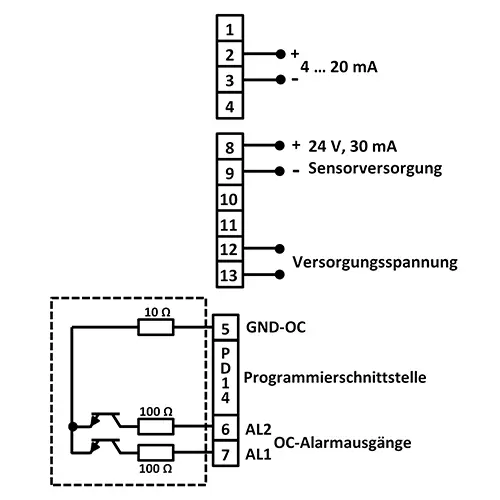

Connection via screw terminals (connection plan on the housing)
HousingSolid plastic

1 x Pressure Indicator PCE-N20I
1x mounting clips
1x gasket seal
1x instruction manual
