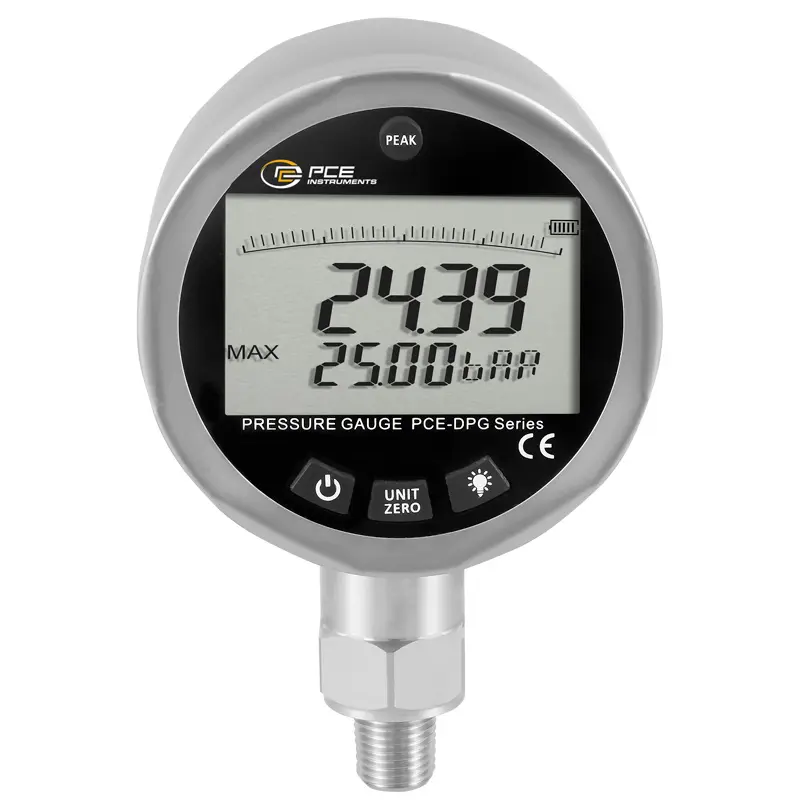

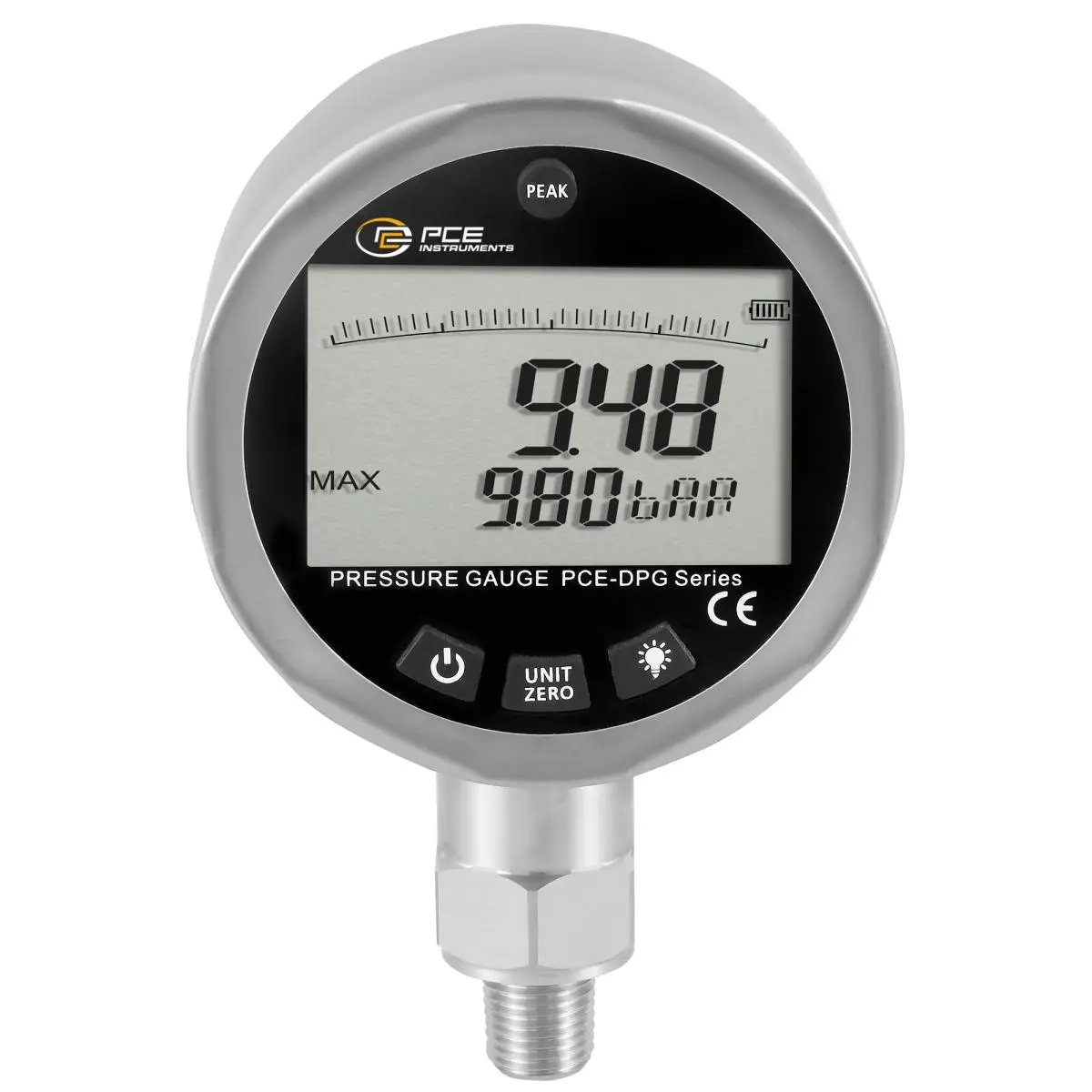

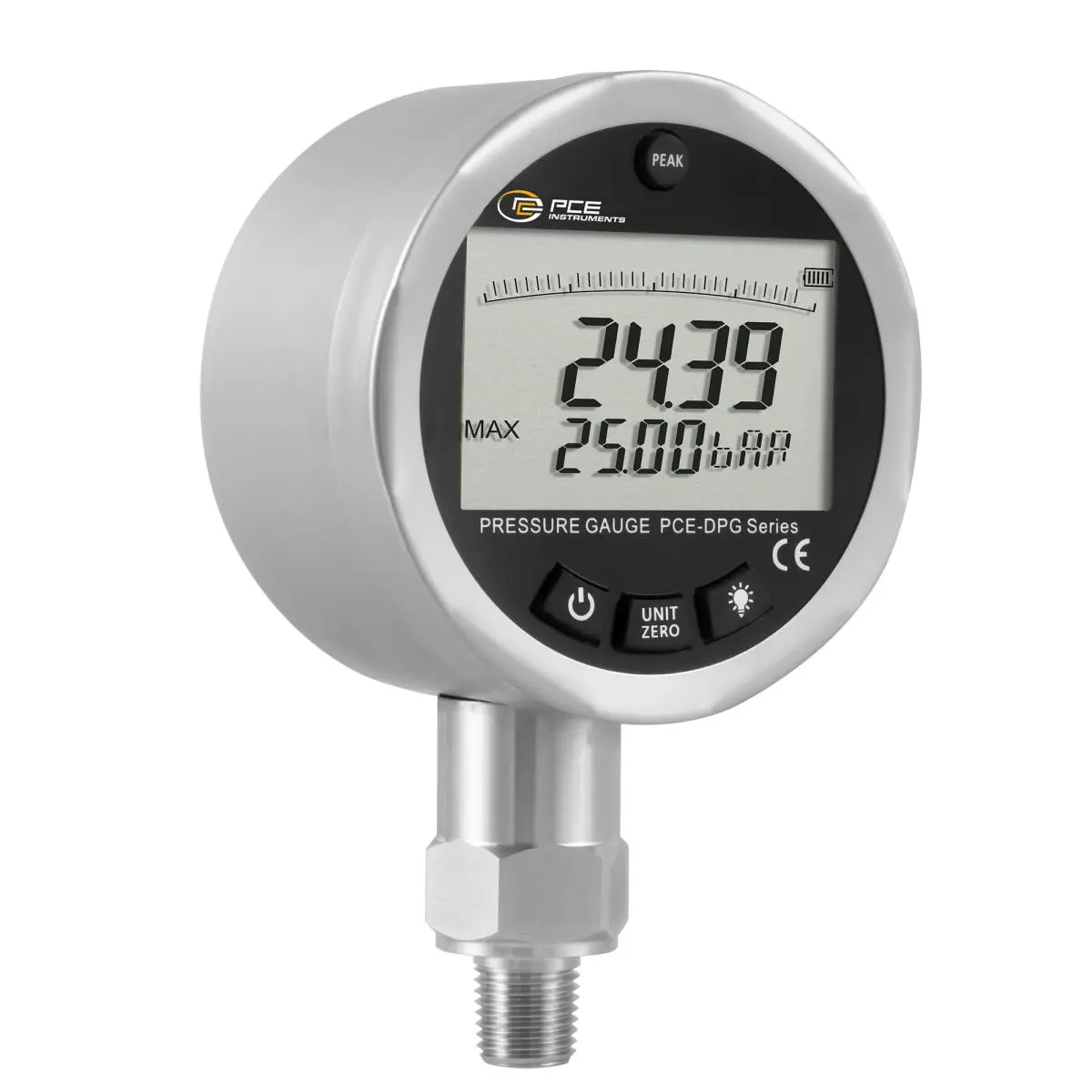

The pressure indicator of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this pressure indicator is versatile. The current pressure is displayed by the pressure indicator as a value and at the same time as a bar graph. As an additional function, the pressure indicator offers a peak function. This function shows the operator the maximum and minimum pressure measured on the pressure indicator at the push of a button.

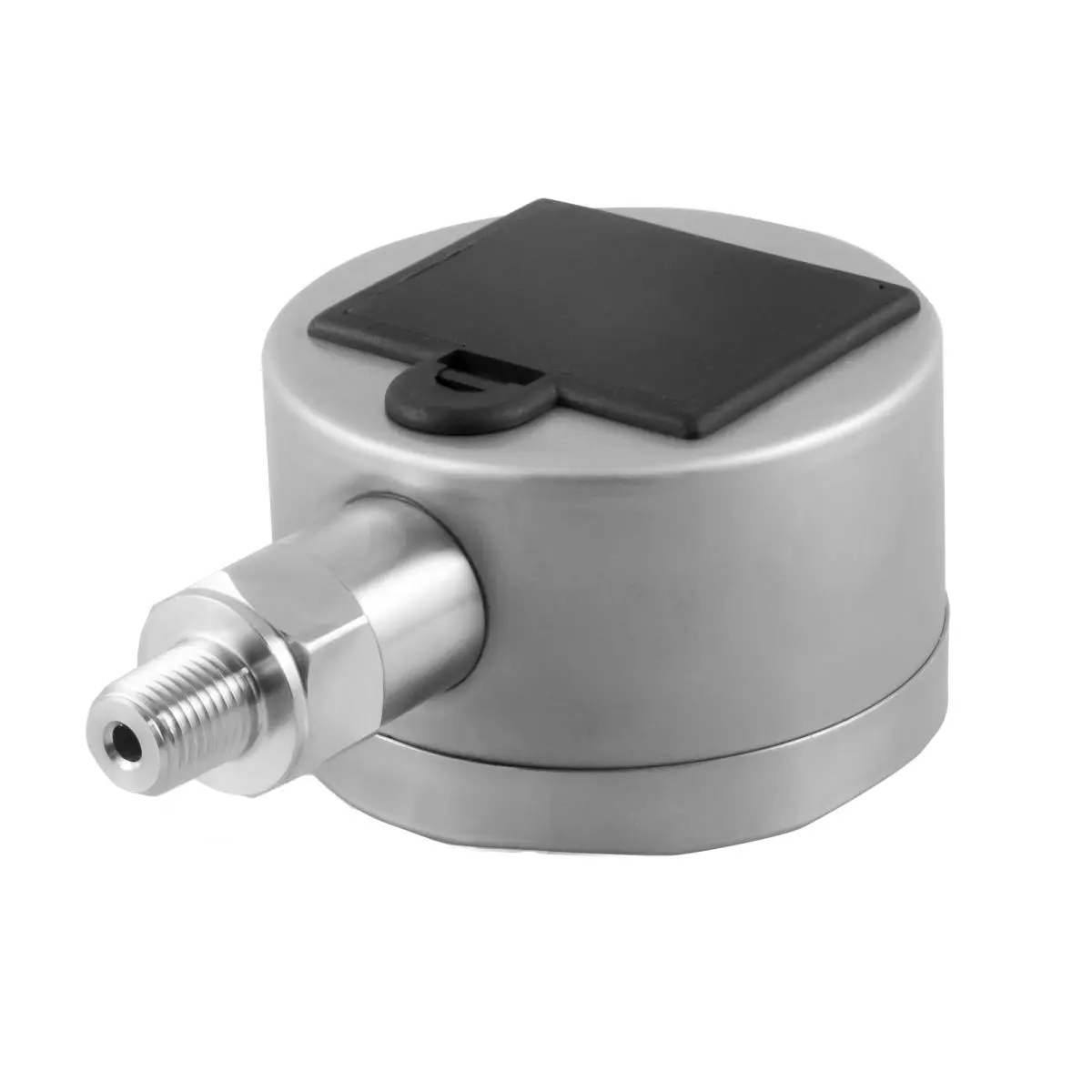

Thanks to the large display of 2.5" almost all measured values ​​can be read directly. Possible adjustable units for the pressure indicator would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the pressure indicator is < 50 ms. The connection of the pressure indicator to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.
