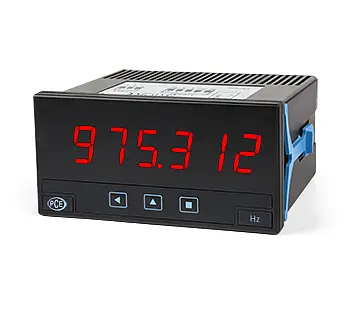

PCE-DPD-Px Series digital pulse panel indicator
Pulse counter, tachometer and periodometer / LED display 6 digits red 14 mm

This multifunction digital panel indicator is a pulse counter, tachometer and and periodometer, for all types of pulse signals, and for all types of applications in the industry. The digital panel indicator has pulse type input signals, and the most common types in the industry are NPN, PNP, Namur, push-pull, inductive, potential free, quadrature, ... The digital panel indicator has a size 96 x 48 mm / 3.8 x 1.9 in and displays the values ​​on a 6-digit red LED display of 14 mm. The digital panel indicator has functions to quickly configure the sensor, multiple types of counting (addition, subtraction, inhibition, quadrature, ...), shortcuts to alarm setpoints, "trigger sense" function and configurable alarm delays, between Other functions

Highlights

- Digital panel indicator with pulse counter, tachometer and periodimeter function
- LED display 6 digits red 14 mm
- Dimensions 96 x 48 mm / 3.8 x 1.9 in
- Functions: Push-pull, NPN, PNP, Namur, pick-up inputs , TTL, inductive, mechanical contact, quadrature signals (encoder)
- Two power versions 85/265 V AC / DC, 11/60V AC / DC

Specification

Screen6-digit 7-segment LED
Indication999999 / -199999
Decimal pointConfigurable
Color Red or green (check availability)
Digits height14 mm
Signals AcceptedNPN, PNP, Namur, pick-up, TTL, inductive, mechanical, quadrature, ...
Excitation voltage +5V DC, +9V DC, +15V DC, +18V DC (max. 70-mA)
V DC maximum at the input                 ± 30V DC
Quartz Accuracy± 0.01%
Thermal stability20 ppm / ºC / °F
Display refresh15 times / second
Maximum frequencies   Count up to 250 KHz
Tachometer and periodometer up to 500 KHz
Minimum frequencies  Tachometer and periodimeter up to 1 mHz (0.001 Hz)
Power '1'85 to 265V AC / DC (isolated 2500 Veff)
Power '2' 11 to 60V DC and 24/48V AC (isolated 1500 Veff)
Output and control optionsRelays, analog outputs, serial communications, ...
Consumption< 1.5 W (indicator only)
< 4.0 W (indicator with options)
Electric connections  Screw plug-in terminal
Protection Front: IP65
Mounting Panel
Panel cut92 x 44 mm / 3.6 x 1.7 in
Dimensions96 x 48 x 91 mm / 3.8 x 1.9 x 3.6 in
WeightApprox. 150 g
Operating temperature   0 ... 50°C / 32 ... 122°F
Storage temperature-20 ... 70°C / -4 ... 158°F


Delivery Scope

1 x PCE-DPD-Px Series digital panel indicator
1 x Power terminal
1 x Signal terminal
1 x Sheet of units
1 x Instruction manual
