US$ 178.00
Bilingual Technical Support (EN / ES)
Public Service, Military and First Responder Discount
30 Day Return Policy
2 Year Warranty
| General Technical Specifications of the Platform Scale PCE-TB series | |||||||||||||||||||
| |||||||||||||||||||
| Tare Range | covering the whole weighing range | ||||||||||||||||||
| Settling Time | approx. 3 sec. | ||||||||||||||||||
| Display | LCD with background lights | ||||||||||||||||||
| Digit height | Approx. 30 mm | ||||||||||||||||||
| Weighing unit | ct / g / kg / lb / oz / ozt / gr / dwt | ||||||||||||||||||
| Interface | bi-directional RS-232 and USB | ||||||||||||||||||
| Calibration | external via any M1 weight standard | ||||||||||||||||||
| Operation temperature | -10 °C ... +40 °C | ||||||||||||||||||
| Power Supply | ~230
V 50 Hz 12 V 1.2 A adapter or CE 6 V / 4.5 Ah battery (not included in delivery) | ||||||||||||||||||
| Battery life time | approx. 50 hrs. / 100 hrs. ( with / without background lights) | ||||||||||||||||||
| IP Code | IP 54 | ||||||||||||||||||

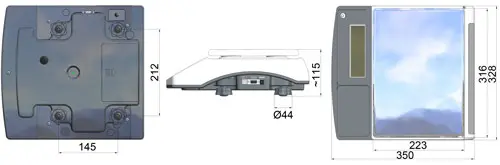

| Diameter platform | 316 x 223 mm | ||||||||||||||||||
| Diameter system scale | 350 x 328 x 115 mm | ||||||||||||||||||
| Weight of system scale | approx. 3.5 kg | ||||||||||||||||||
