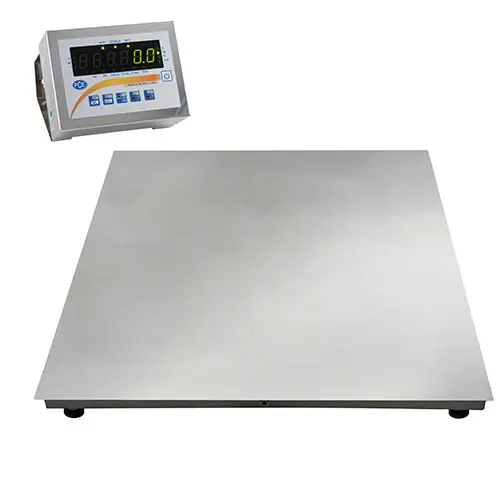

Legal for Trade Scale PCE-SD 6000E SST

Order no.: PCE-SD 6000E SST

Verification for Trade / conformity assessment

Question / Callback

Available in: up to 10 working days

Calibratable Legal for Trade Scales up to 6,000 kg / Resolution from 0.1 kg /
Summing function / Tare weight storable / Piece counting function / Limit value weighing
Optional: analog output 4-20 mA, 0-10 V, OC switch contacts, RS-232, USB, LAN

The legal for trade scale is made entirely of high quality, acid resistant stainless steel. The weighing cells installed in the legal for trade scale have a protection class of IP68. The weighing surface of the legal for trade scale is smooth and has no screw connections or recesses so that the cleaning of the legal for trade scale can be done quickly and reliably. The platform size of the legal for trade scale is available in different dimensions depending on the measuring range. The functions of the legal for trade scale are summing function, counting function, statistical function, animal weighing function, percentage weighing function, recipe weighing function, multiple tare, storable tare value, gross - net weighing and adjustable weight limits MIN / MAX / OK. Furthermore, the legal for trade scale can be provided with interfaces, which can be used to monitor and control tasks. We offer bidirectional RS-232, USB, LAN, 4-20 mA analog interface, 0-10 V analogue interface and passive 3 floating contacts / OC. In industry special sizes or functions of the legal for trade scale may be in demand. For such applications we also offer individual solutions such as Level controls with SMS notification.

- Approved for class MIII
- Made entirely of high quality stainless steel
- Protection class IP68 - IP65
- Tolerance determination weight min / ok / max
- Average weight determination
- Sum up several weighings
- Percent % comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- Piece counting function
- A tare value storable
- Formulation mixed weighing
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Optional: USB, LAN, 4-20 mA, 0-10 V, OC

Model	Weighing range	Resolution	Min.*	Dimensions	Weight
PCE-SD 6000E SST	6000 kg	2 kg	40 kg	1500 x 2000 x 112 mm	300 kg

* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor scale also indicates smaller weights, but these may not be used in legal traffic.

Calibration

calibratable according to class M III (calibrated)

Tare range

multiple tare over the full range

Settling time

<4 s

Display

LED with 20 mm digit height (on the 3 m cable)

Weighing units

kg / piece / lb

Interface

optional bidirectional RS-232, USB, LAN
as well as 4-20 mA, 0-10V, OC

Ramp

optional, see accessories

Operating temperature

-10 °C ... +40 °C

Power supply

~230V 50Hz 8VA (safety plug)

Protection

IP68 cells / IP65 display

1x Legal for Trade Scale (calibrated)
1 x display with wall / table mount
1 x manual

Datasheet

Accessories

Order no.: RS232-USB

Adaptor RS232 to USB

[more]

US$ 43.00

ex. VAT, ex. delivery costs

Order no.: PCE-USM

USB Memory Adapter

This RS-232 - USB data logger can be connected to the serial Sub-D 9 interface of a device and store the received data on a USB stick in TXT format. The RS-232 - USB data logger can save received data with time and date stamps and also interrogate the data automatically at adjustable time intervals.

- TXT Format
- Query commands adjustable
- Polling cycle adjustable
- Internal clock for time / date stamp
- External power supply
- USB Stick incl.

US$ 178.00

ex. VAT, ex. delivery costs

man-rs-232-usb-logger-pce-usm-v1.0-2015-10-12-en.pdf

Manual

Datasheet

Order no.: AF-RS232-PCE

Additional RS-232 interface

Our scale is equipped with an RS-232 interface. If you want to connect the scale to a PC and a printer at the same time we recommend a second RS-232 interface which prevents annoying cable replugging.

US$ 46.00

ex. VAT, ex. delivery costs

Order no.: AF-RS485-PCE

RS485 interface AF-RS485-PCE

If you require an RS485 interface, instead of the RS232 interface.

US$ 74.00

ex. VAT, ex. delivery costs

Order no.: AF-USB-S

USB interface AF-USB-S

Since most PCs do not have RS232 interface anymore, we provide the possibility to get the verifiable / calibrated floor scale installation with a USB interface.

US$ 74.00

ex. VAT, ex. delivery costs

Order no.: PCE-USB

USB cable PCE-USB

USB cable for PCE scales

US$ 22.00

ex. VAT, ex. delivery costs

Order no.: AF-4-20mA-PCE

Analog output / analog interface 4-20mA

US$ 112.00

ex. VAT, ex. delivery costs

Order no.: AF-0-10V-PCE

Analog output / analog interface 0-10V

US$ 132.00

ex. VAT, ex. delivery costs

Order no.: AF-LAN-S

LAN interface

US$ 198.00

ex. VAT, ex. delivery costs

Order no.: AF-TD-PCE

Additional date and time function

If you need to weigh data with date and time, this option equips the scale with this function.

US$ 41.00

ex. VAT, ex. delivery costs

Order no.: PCE-SOFT-SC-Basic

Scale Software PCE-SOFT-SC-Basic

The multilingual scale software offers the possibility of transferring the weighing data of the various PCE scales to the PC. Depending on the software license, the values of several scales can be recorded simultaneously.

- Key input simulation in active cursor position
- Storage option as a TXT file
- Connection via RS232 / USB / LAN
- Time and date stamp
- Statistics function

Basic = PC balance software / 1 license for using only one balance

Catalogue: Weighing Equipment / Scales and Balances / Tabletop Scales

US$ 228.00

ex. VAT, ex. delivery costs

Manual

Order no.: PCE-SOFT-SC-Pro

Scale Software PCE-SOFT-SC-Pro

- Key input simulation in active cursor position
- Storage option as a TXT file
- Connection via RS232 / USB / LAN
- Time and date stamp
- Statistics function

Pro = PC scale software / 1 license for simultaneous use of multiple scales

Catalogue: Weighing Equipment / Scales and Balances / Tabletop Scales

US$ 263.00

ex. VAT, ex. delivery costs

Manual

Order no.: PCE-SOFT-SC-3XPro

Scale Software PCE-SOFT-SC-3XPro

- Key input simulation in active cursor position
- Storage option as a TXT file
- Connection via RS232 / USB / LAN
- Time and date stamp
- Statistics function

3xPro = PC scale software / 3 licenses for simultaneous use of multiple scales

Catalogue: Weighing Equipment / Scales and Balances / Tabletop Scales

US$ 501.00

ex. VAT, ex. delivery costs

Manual

Order no.: PCE-M-STATIV

Stand for PCE-SD Series

The display of the PCE-SD series is provided with a universal mount, which gives you the opportunity to mount the display securely to the wall or on the table or on the optional 80 cm high stainless steel stand.

US$ 198.00

ex. VAT, ex. delivery costs

Two additional function ranges for PCE-SD Series

Order no.: AF-DW-PCE

Two additional function ranges for PCE-SD Series

This function divides the weighing area into two-areas, this allows a higher resolution in the lower weighing range.

Only for scales up to 3 t.

US$ 74.00

ex. VAT, ex. delivery costs

Order no.: PCE-BDM-RS232

RS232 Cable

The serial RS-232 cable is about 2 m long and has the right pinout 2-3 / 3-2 / 5-5 which is necessary for bidirectional communication of the scale with the PC.

US$ 33.00

ex. VAT, ex. delivery costs

Limit weighing including control interface

Order no.: AF-TSD

Limit weighing including control interface

This feature allows you to conveniently and effectively establish the precision scales as a weight checker. You can set an upper and a lower limit. In addition, the calibrated precision scale is equipped with a control interface so that you can switch three different power circuits using the limit values and the interface.

US$ 79.00

ex. VAT, ex. delivery costs

Order no.: PCE-CSD

Signal lights for Balances

This signal lamp is used to visualise weighing boundaries and help reduce staff carelessness. If the weight is below the lower limit, a yellow lamp is lit, between the lower and upper light, a green light and when exceeding the upper limit a red lamp lights up.

US$ 594.00

ex. VAT, ex. delivery costs
