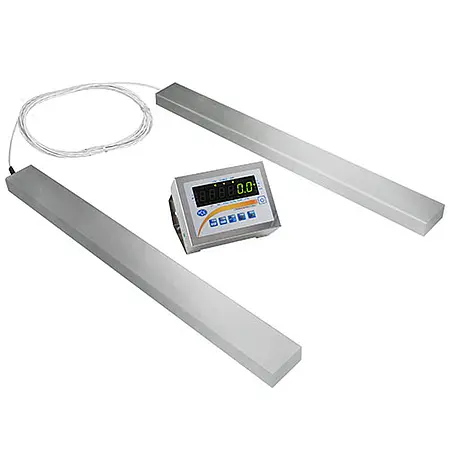

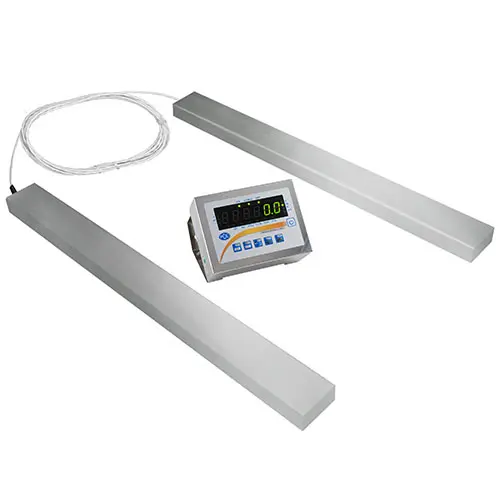

Legal for Trade Scale weighing bar up to 6 t / Resolution from 0.1 kg
/ Flexible use /
Large range of functions / IP68 - 65 protection / Optionally with control interfaces
* The minimum load is the load from which the calibration authority checks the accuracy. The calibrated stainless steel balance bars also indicate smaller weights, but these may not be used in legal calculations.
|Calibration||Calibratable to class M III (to be calibrated)|
|Tare range||Multiple tare over the entire weighing range|
|Settling time||<3 s|
|Display||LED with 20 mm digit height|
|Weighing units||kg / piece / lb|
|Interface||optional bi-directional RS-232, USB or LAN interface, as well as analogue output 4-20 mA, 0-10 V, OC
|Operating temperature||-10 ... +40 °C|
|Protection||IP68 cells / IP65 display|
|Power supply||~230V, 50Hz, 8VA|
If other dimensions, cable lengths or tapped holes are required, we can also realize these with our calibrated load beam. Please contact us.
