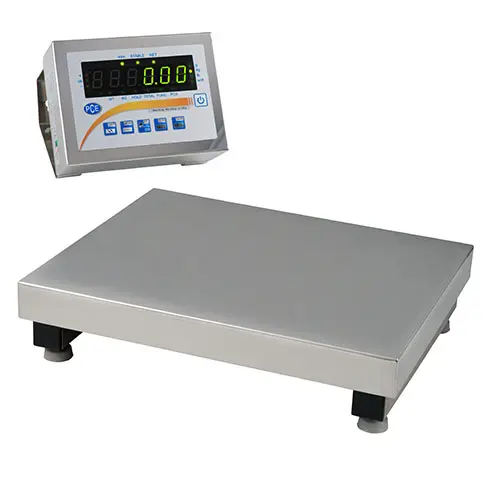

Legal for Trade Balance PCE-SD 60SST C

Order no.: PCE-SD 60SST C

Verification for Trade / conformity assessment

Question / Callback

Available in: up to 10 working days

Legal for Trade Balance made entirely of stainless steel / weighing range up to 300 kg / IP67 - IP65 protection class / summation function / threshold-function / statistics function /

interface RS-232, RS-485, USB, LAN, Analogue 4-20 mA, 0-10 V, OC optional

The water resistant accurate scale PCE-SD SST featuring a separate display can be MIII calibrated and will be delivered calibrated. The load cells of the water resistant accurate scale are IP67 protected, while the display device is made of an IP65 protected enclosure. Thus the water resistant accurate scale proves to be ideal for high-moisture locations or such locations that require a high hygienic standard. With the appropriate equipment that is optionally purchasable, you can also use the water resistant accurate scale on ships at sea.

Standard functions of the water resistant accurate scale are: summation function, counting function, statistics function, mixing on formula, percentage weighing function, animal weighing function, alarm on trespassing thresholds etc. Due to its high IP protection the water resistant accurate scale does not feature any interface. But optionally interfaces can be purchased for the water resistant accurate scale, e.g. RS-232, RS-485, USB, LAN, OC contactors, analogue interfaces 4-20 mA or 0-10 V.

- Calibrated according to calibration class MIII
- Completely made of stainless steel IP67-IP65
- Unit Counter
- Summation function
- MAX. / MIN. indication
- Percentage weighing
- Formula weighing

- Statistics function
- Animal weighing function
- Gross / Net display
- Tare storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contactors
- Analogue output optional 4-20 mA / 0-10 V

Technical specifications of the Water Resistant Scale PCE-SD SST Series

Model	weighing range	resolution	calibration value	Min.*	platform size

PCE-SD 60SST C	60 kg	20 g	20 g	400 g	400 x 500 mm

* The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.

Calibration Class

M III (is delivered calibrated)

Unit Counter Function

counting by reference values

Tare function

multiple taring covering the whole measurement range

Interface

optional bi-directional RS-232, USB, LAN
datasheet on interface
as well as analogue output 4-20 mA, 0-10, OC

Display

LED with 20 mm digit height

Cable Length

from platform to display

Power Source

~230V, 50Hz, 8VA (schuko plug)

Protection Class

IP 67 cell / IP65 display

Operational Temperature

-10 °C ... +40 °C

Weight

platform 400 x 500 x 120 mm / 17 kg
platform 600 x 500 x 135 mm / 25 kg

1 x Legal for Trade Balance PCE-SD 60SST C
1 x display device
1 x instruction manual

Manual

Accessories

Order no.: AF-RS232-PCE

Additional RS-232 interface

Our scale is equipped with an RS-232 interface. If you want to connect the scale to a PC and a printer at the same time we recommend a second RS-232 interface which prevents annoying cable replugging.
