Order no.: PCE-DMM 70-SENS

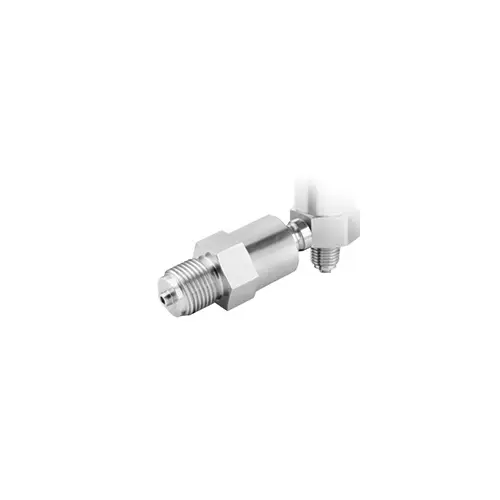

Single Pressure Sensor PCE-DMM 70-SENS

Name: Single Pressure Sensor PCE-DMM 70-SENS
SKU: 5839426
Price: 623 USD
Availability: InStock

US$ 623.00

Price

Order no.

PCE-DMM 70-SENS

ex. VAT, ex. delivery costs

Pressure Type

Sensor Version

Accuracy (Pressure ranges noted)

Connection thread

Measuring range (0.10 ... 0.25 bar only relative available)

Specification

Nominal relative pressure in Bar	0.1	0.16	0.25	0.40	0.60	1		1.6	2.5	4	6
Nominal absolute pressure in bar				0.40	0.60	1		1.6	2.5	4	6
Overpressure in bar	0.5	1	1	2	5	5		10	10	20	40
Burst pressure in bar	1.5	1.5	1.5	3	7.9	7.5		15	15	25	50
Nominal relative / absolute pressure in bar	10	16	25	40	60	100		160	250	400
Overpressure in bar	40	80	80	108	210	210		600	1050	1050
Burst pressure in bar	50	120	120	210	420	420		1000	1250	1250
Negative pressure	-1 ... 0 bar; Overload: 5 bar; Burst pressure: 7.5 bar
Vacuum resistance	P ≥ 1 bar: unrestricted
General Specifications
Accuracy							≥ 0.4 Bar: ≤ ± 0.05% FSO < 0.4 Bar: ≤ ± 0.125% FSO
Measuring rate							1/s or 2/s (adjustable)
Long term stability							< ± 0.1% FSO
Media							Gases Water
Temperature ranges							Fluid: -10 ... 55°C / 14 ... 131°F Operating: -10 ... 55°C / 14 ... 131°F Storage: -20 ... 70°C / -4 ... 158°F
Pressure port / housing							Stainless steel 1.4404
Seal							FKM
Diaphragm							Stainless steel 4.4435
Parts exposed to water							Pressure port, seals, diaphragm
Display							Graphic LCD Digit height 5.5 mm (gauge) Reading: max. 7 points, depending on the pressure range Temperature display, time, 100-segment bar graph, Adjustable backlighting
Memory							Storage of printing units and sensor temperature (min, hrs., Daily for a set time) max. 8,500 values, modes: cyclical, linear measurement interval adjustable
Power supply							3 x 1.5V Duracell Plus Batteries, AA
Battery life							1.5 years standby
Protection							IP67
Weight							ca. 680 g / 1.5 lbs
