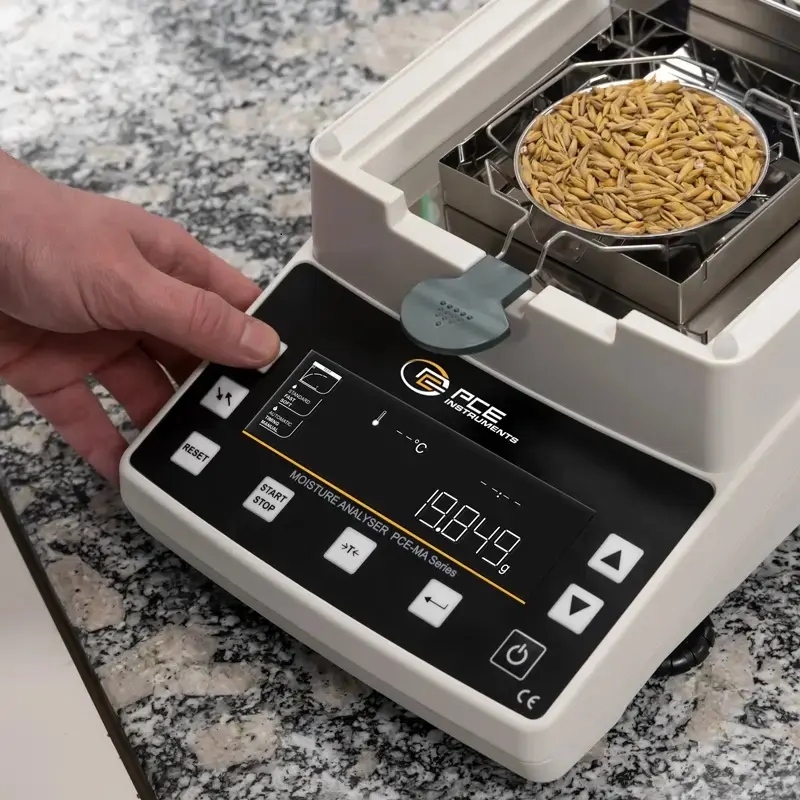

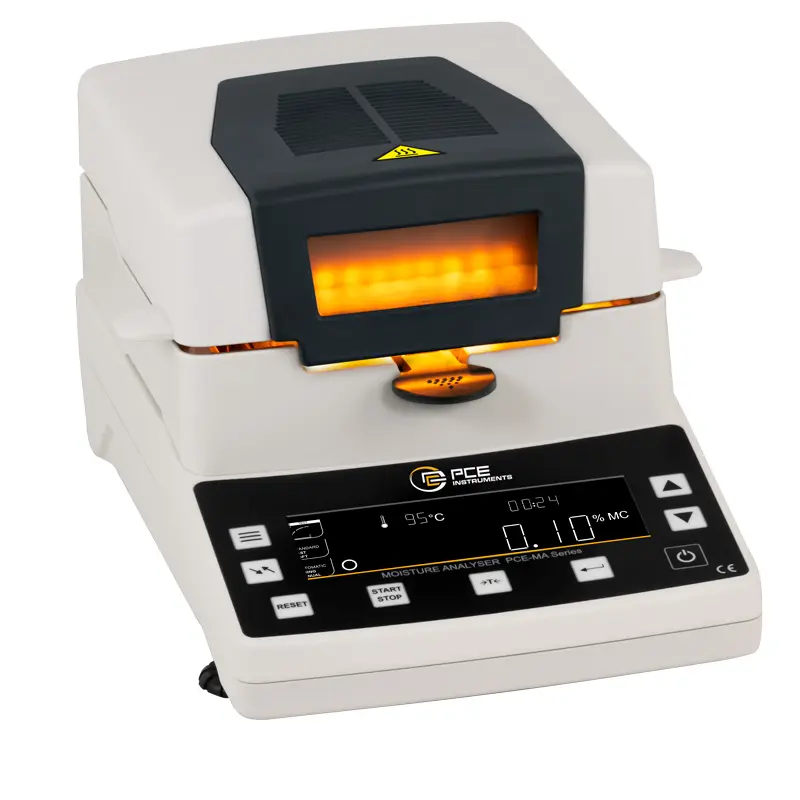

PCE-MA 100 Wood Moisture Meter
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content
The wood moisture meter PCE-MA 100 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the wood moisture meter dries the material to be weighed, and then calculates the moisture content from the weight difference. The wood moisture meter can determine the smallest weight differences thanks to a readability of 0.001 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the wood moisture meter. Accordingly, the wood moisture meter is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the wood moisture meter can be calibrated at any time.
Technical specifications |
|
| Weighing range | 110 g |
| Readability | 1 mg / 0.001 g |
| Heating element | halogen lamp |
| Temperature range | +40 ... +199 °C |
| Heating time | 1 ... 99 min. adjustable |
| Humidity measurement range | 0 ... 100 % |
| Readability | 0.01 % |
| Memory | 15 drying programs |
| Interface | RS-232 |
| Display | LCD, 9 membrane keys |
| Power supply | 220 V / 50 Hz or 110 v / 60 Hz |
| Dimensions | 200 x 180 x 380 mm |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
The calibration procedure includes laboratory calibration process and ISO certification. The customers name and address is filled in. These certificates are comparable to NIST and UKAS certificates. They are accepted all over the world.
Calibration certificate for PCE-MB and PCE-MA series moisture balances.
The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.
ex. VAT, ex. delivery costs
When drying liquids, pastes or substances that may melt or lose liquid during drying, it is advised to use glass fibre filters for PCE-MA moisture balances.
- Chemical resistant
- Usable for liquid and gelatinous materials
- Pack of 100
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
