Vibration Analyzer PCE-VM 3D

Order no.: PCE-VM 3D
US$ 1,188.00
ex. VAT, ex. delivery costs
Machine vibration
Available in: 1-2 days
Vibration Analyzer PCE-VM 3D for machines and systems / analog interface for headphones / with different sensor tips

The vibration measuring device PCE-VM 3D enables a quick and very simple measurement of the acceleration, the vibration path and the vibration speed to test vibrations on machines and components. The PCE-VM 3D vibration measuring device can measure vibrations in three directions, i.e. on the x, y and z axes. Defects or excessive imbalances can be precisely determined with the vibration measuring device. Various measuring sensors are optionally available for this vibration measuring device.

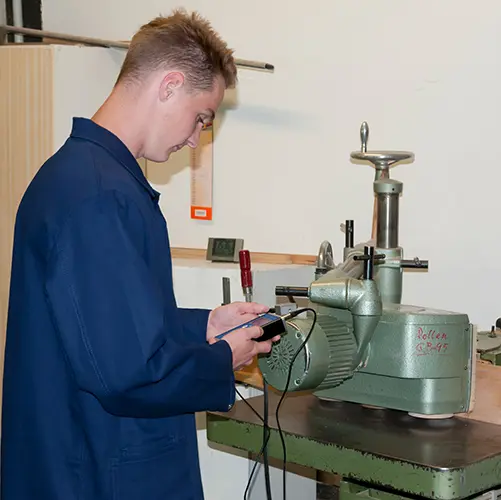

The LCD display is backlit and easy to read. With a weight of only 305 g, the vibration measuring device is an suitable companion at every workplace. Areas of application are, for example, large or small companies that have to measure the vibrations or imbalances on the motors of their machines. The detection of errors, defects or excessive imbalances can significantly extend the service life of a machine. The vibration measuring device can also be calibrated according to ISO. Check the vibration behavior of your machines with this vibration measuring device and prevent major damage.

- Frequency range: 10 Hz ... 10 kHz
- Measurement of acceleration, speed and displacement

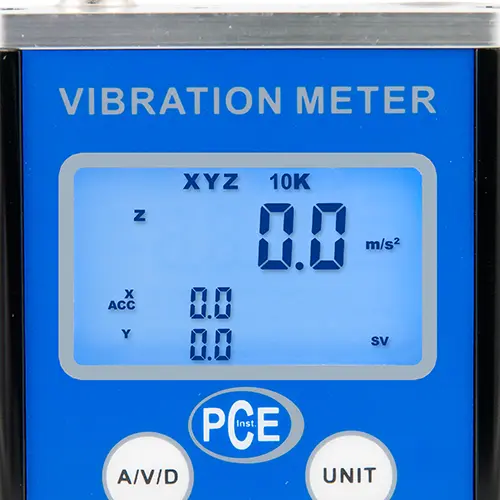

- Large backlit LCD display
- Three display options
- Common mode
- Status bar in the display
- Alarm function
Measuring ranges
Vibration acceleration0.1 m/s² ... 400.0 m/s² (Peak) / 0.3 ft/s² ... 1312.3 ft/s²  (Peak) (0 ... 40 g / 0.09 lb force)
Vibration velocity0.01 ... 400.0 mm/s / 4.0 x 10-4 in/s ... 15.7 in/s
Vibration amplitude0.001 mm ... 4.000 mm (Peak-Peak) / 4.0 x 10-5 in ... 0.16 in (Peak-Peak)
Range of Frequencies
Vibration velocity10 Hz ... 10 kHz
Vibration acceleration10 Hz ... 10 kHz
Vibration amplitude10 Hz ... 10 kHz
General Specifications
Resolution0.25 Hz
Accuracy± 5 %
Data interfaceRS-232C
Batteries2 x AA 1.5 V batteries
Environmental conditions
0 ... +50 °C /  32 ... 122° F / < 95 % r.H.
Dimensions device
130 x 70 x 30 mm / 5.1 x 2.8 x 1.2 in
Dimensions sensor40 x 40 x 22 mm / 1.5 x 1.5 x 0.8 in
Weight305 g / 0.67 lbs (without batteries)

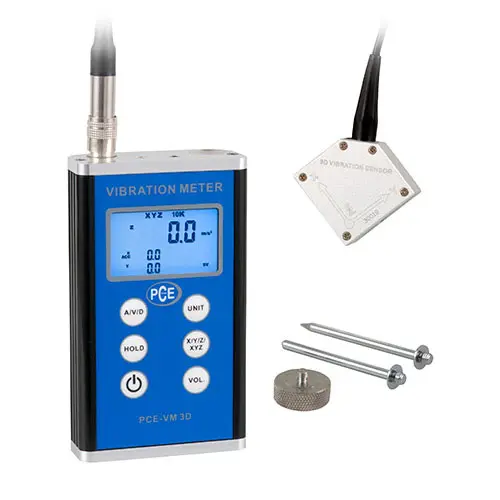

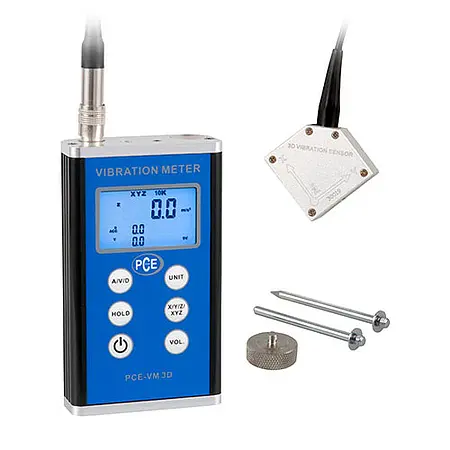

1 x Vibration Analyzer PCE-VM 3D
1 x Cable (1.5 m)

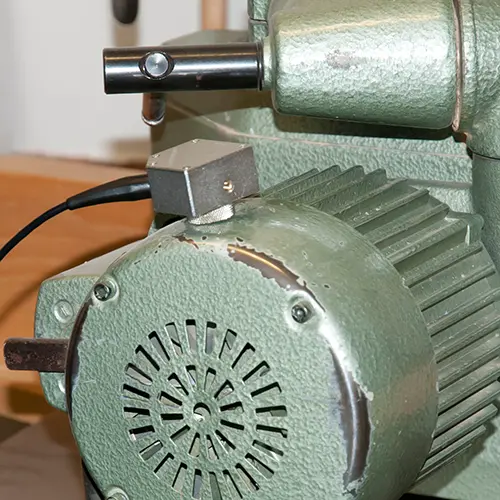

1 x Magnetic sensor
1 x Measuring sensor x-, y-, z-axis
2 x Measuring tip
2 x AA 1.5 V batteries
1 x Manual and case
