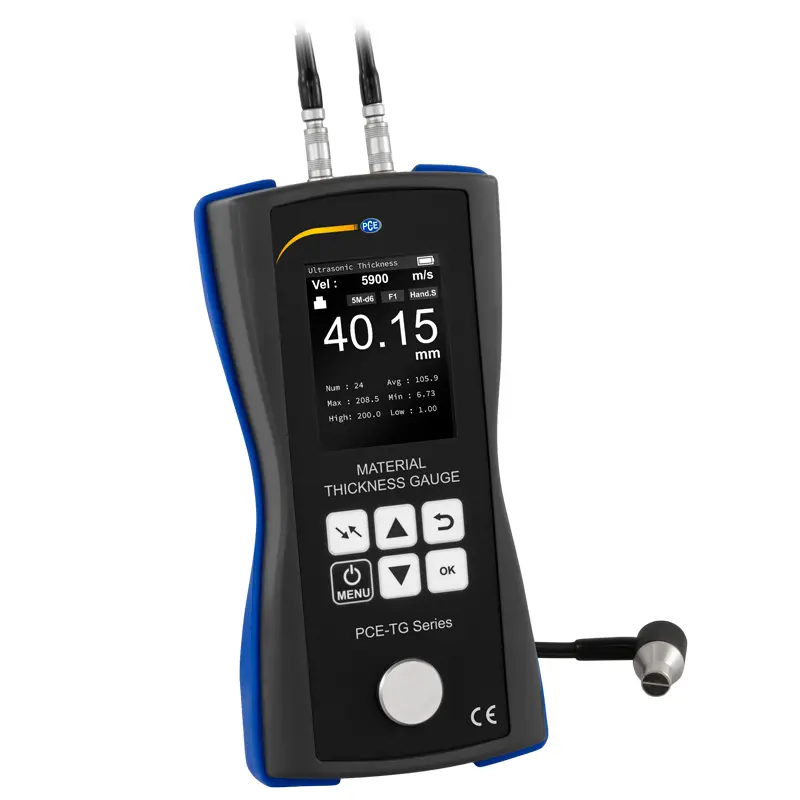

Ultrasonic Wall Thickness Gauges PCE-TG 150 F2.5-ICA incl. ISO Calibration Certificate

Order no.: PCE-TG 150 F2.5-ICA
ISO Calibration

US$ 787.00
PCE-TG 150 F2.5-ICA
ex. VAT, ex. delivery costs
Available in: 10 - 14 days
Wall thickness gauge with data memory / Adjustable speed of sound /
Calibration reference mounted on the housing / Material thickness measurement up to 300 mm /
Limit alarm / Optional ISO calibration certificate

The ultrasonic wall thickness gauges can measure material thicknesses up to 300 mm / 11.81". So that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding speed of sound in the thickness gauge. For materials such as steel, aluminum, zinc, silver and gold, the appropriate sound speeds are already stored in the device library. This means that the thickness gauge can be used universally.

With the limit value function in the ultrasonic wall thickness gauges, individual maximum and minimum values ​​can be stored. If the measured value of the test piece is outside the limits, the thickness gauge signals this visually. If necessary, the signaling can also be done acoustically by the thickness meter in addition to the visual display. This is why the thickness gauge is used, for example, in quality assurance and in incoming goods inspections.

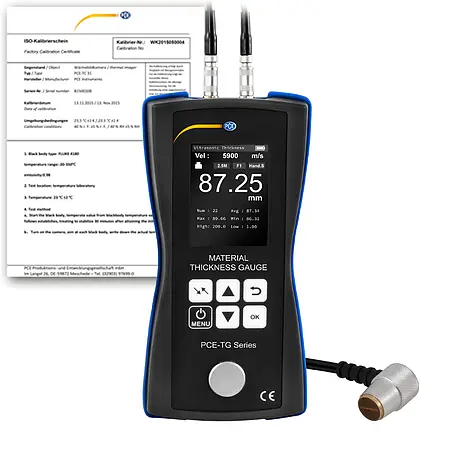

The ultrasonic wall thickness gauges has a data memory on which the measured values ​​can be recorded. After a measurement sequence, the stored measurement values ​​can be analyzed directly on the thickness gauge. The stored data are graphically displayed by the thickness gauge. In addition, each individual measuring point can be approached and read in the graphics of the thickness gauge. For a simplified analysis of the measured values, the average, the largest and smallest measured value is displayed on the thickness gauge.

- Measured value memory
- Calibration reference on the housing
- Automatic shutdown
- Material thickness measurement up to 300 mm / 11.81"
- Battery status indicator
Measuring range 1.20 ... 300.0 mm  / 0.04 ... 11.81"
Resolution 0.01 mm at ≤99.99 mm
  0.1 mm at ≥100.0 mm
Accuracy ±0.5 % of measured value + 0.05 mm
Storage space 1500 measured values
Sensor PCE-TG 2.5M
Probe frequency 2.5 MHz
Temperature range -10 ... 60 °C / 14 ... 140 °F
Diameter Ø12mm
Further specifications
Adjustable speed of sound
1000 ... 9999 m/s
Smallest pipe diameter Ø20 x 3 mm (steel)
Material library 15 memory locations

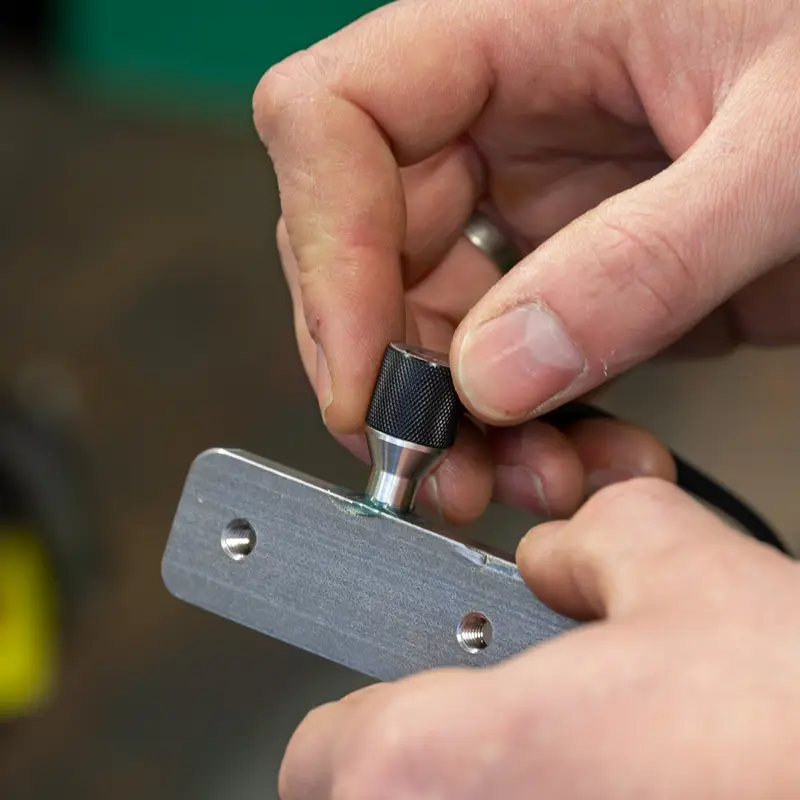

Calibration reference 4 mm
Display 2.4 inch TFT LCD color display
  with brightness adjustment
Power supply 3 x 1.5 V AA batteries
Automatic switch-off switched off, 2, 5, 10, 30 minutes
Ambient conditions 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing
Dimensions 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5"
Weight 320 g / 11.2 oz

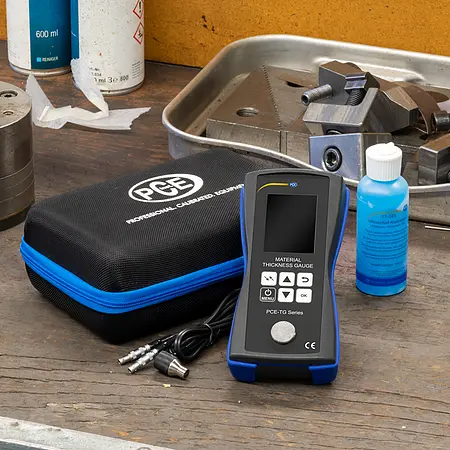

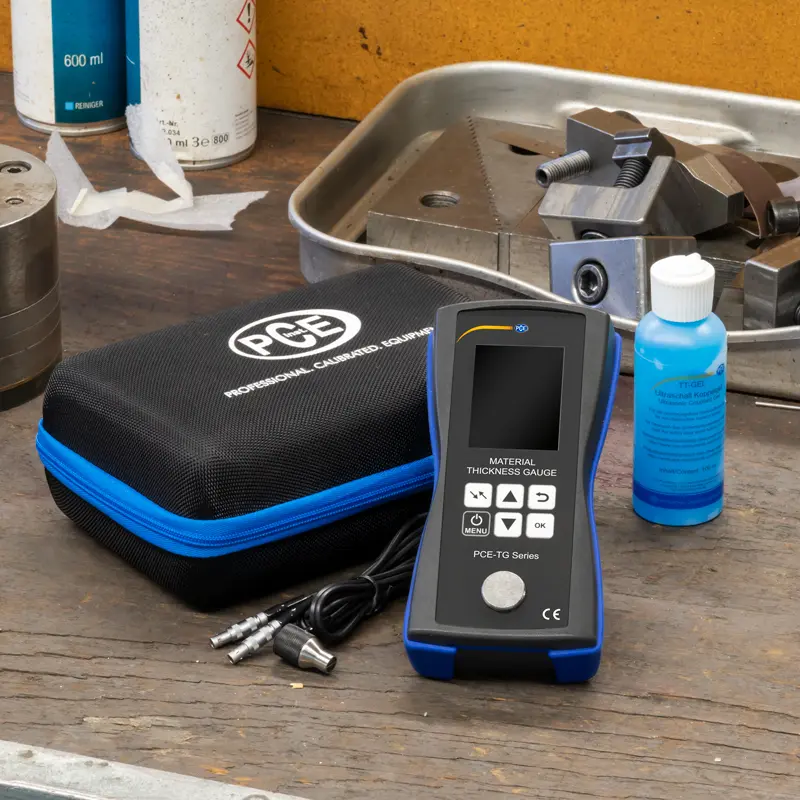

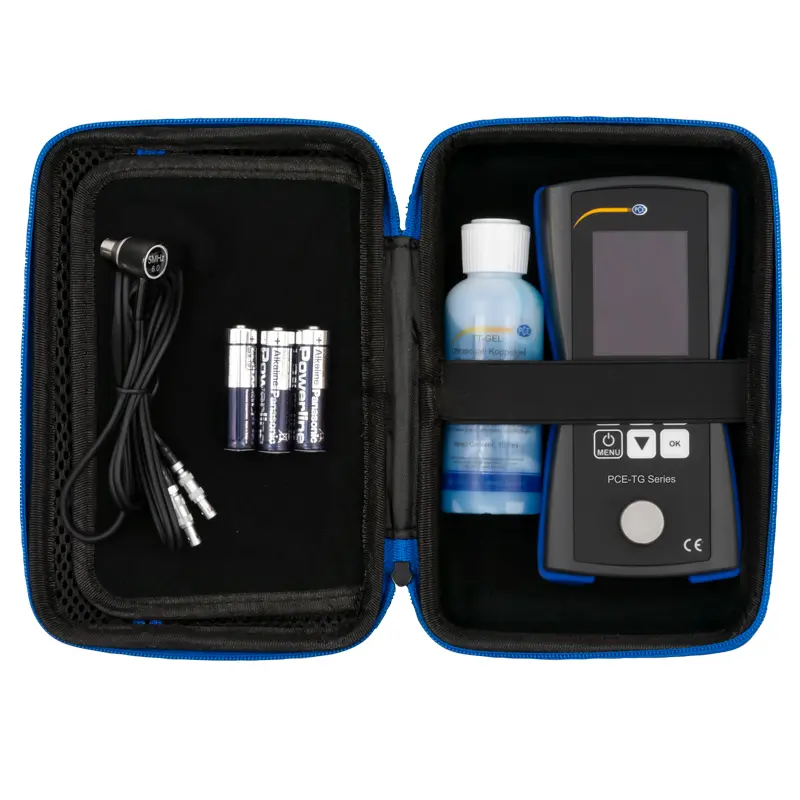

1 x Wall Thickness Gauge PCE-TG 150 F2.5

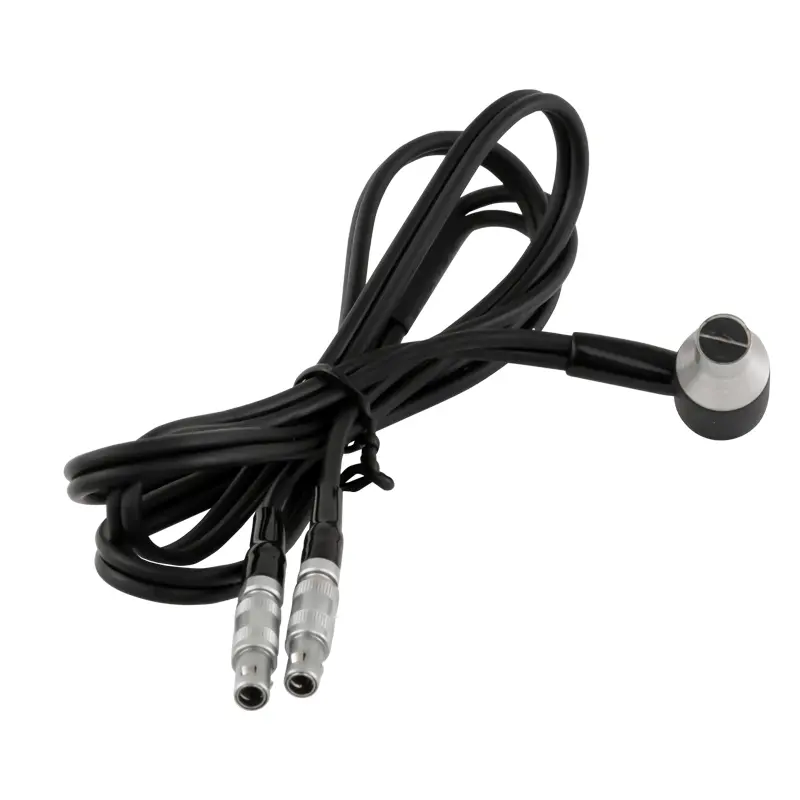

1 x Sensor PCE-TG 2.5M

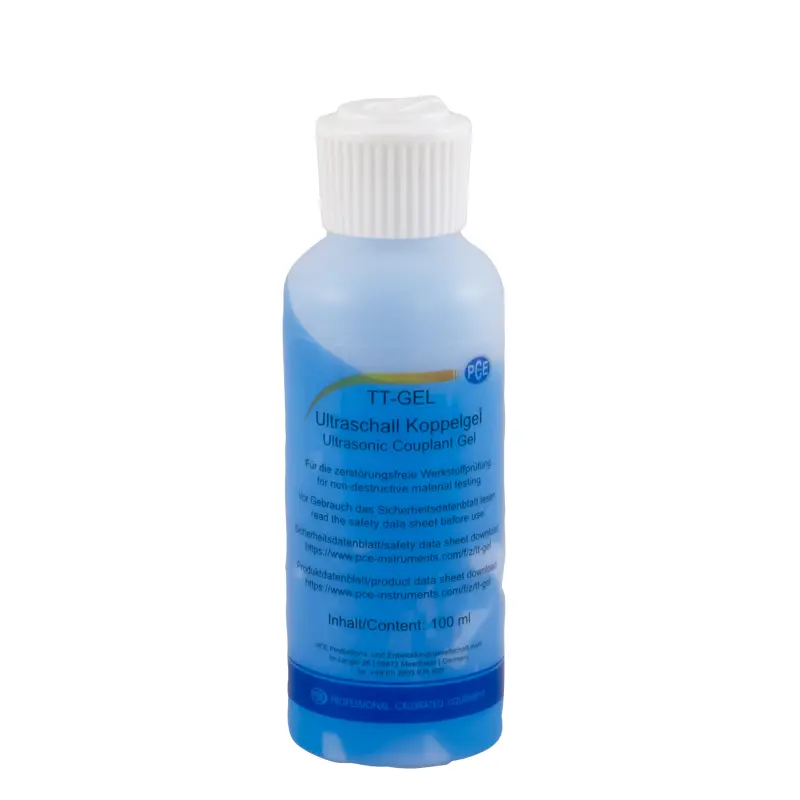

1 x Coupling gel (TT-GEL)
1 x Transport bag
3 x 1.5 V AA batteries
1 x Quick start guide

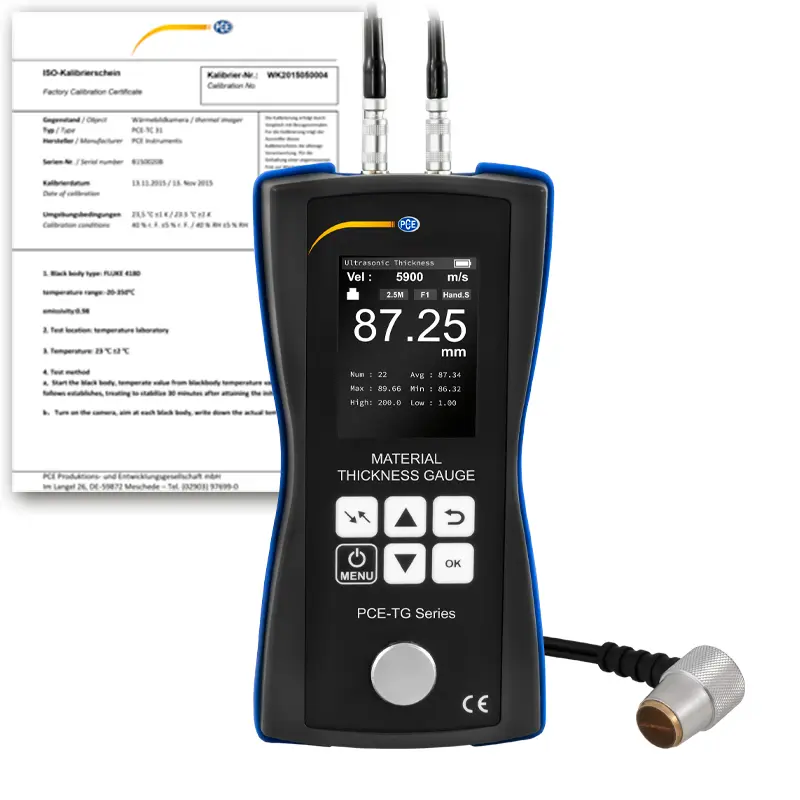

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
