Ultrasonic Thickness Gauge PCE-TG 300-NO5/90

Order no.: PCE-TG 300-NO5/90
Wireless
US$ 1,318.00
4250348731135
PCE-TG 300-NO5/90
ex. VAT, ex. delivery costs
Available in: 1-2 days
Ultrasonic thickness gauge
Large measuring range / Up to 600 mm / Pulse-echo or echo-echo mode /  For all homogeneous materials / Print function via Bluetooth / USB connection

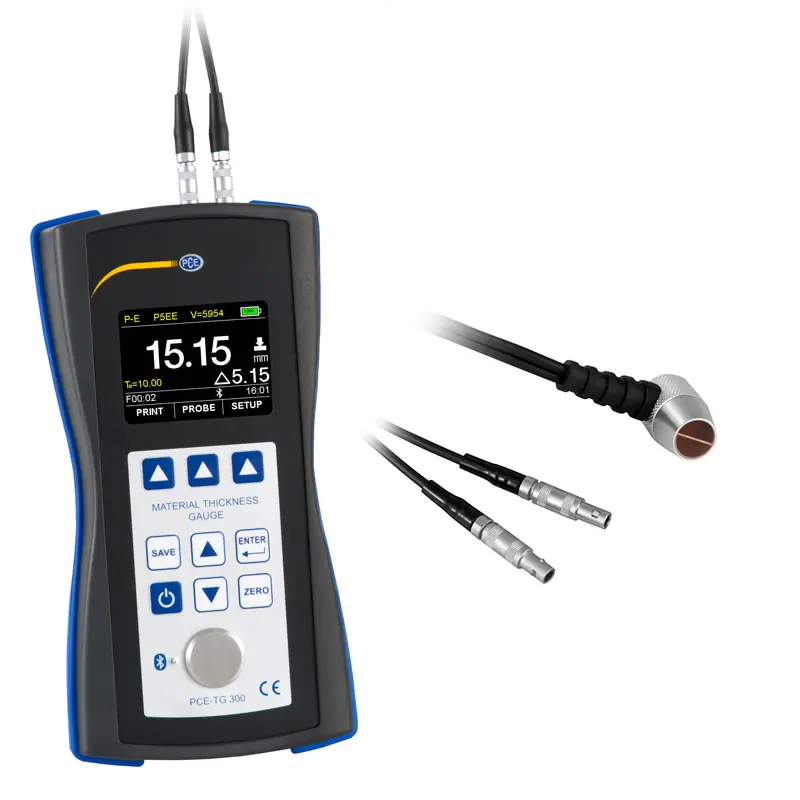

The PCE-TG 300-NO5/90 is an ultrasonic thickness gauge with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90° sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials.

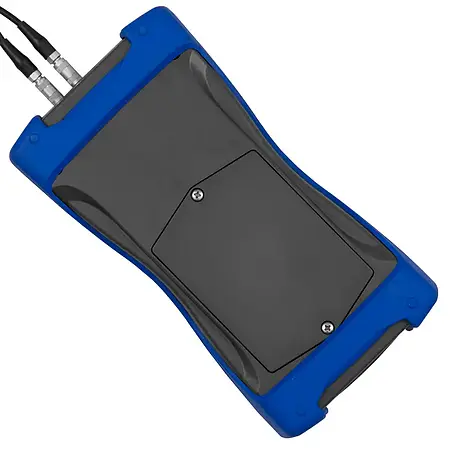

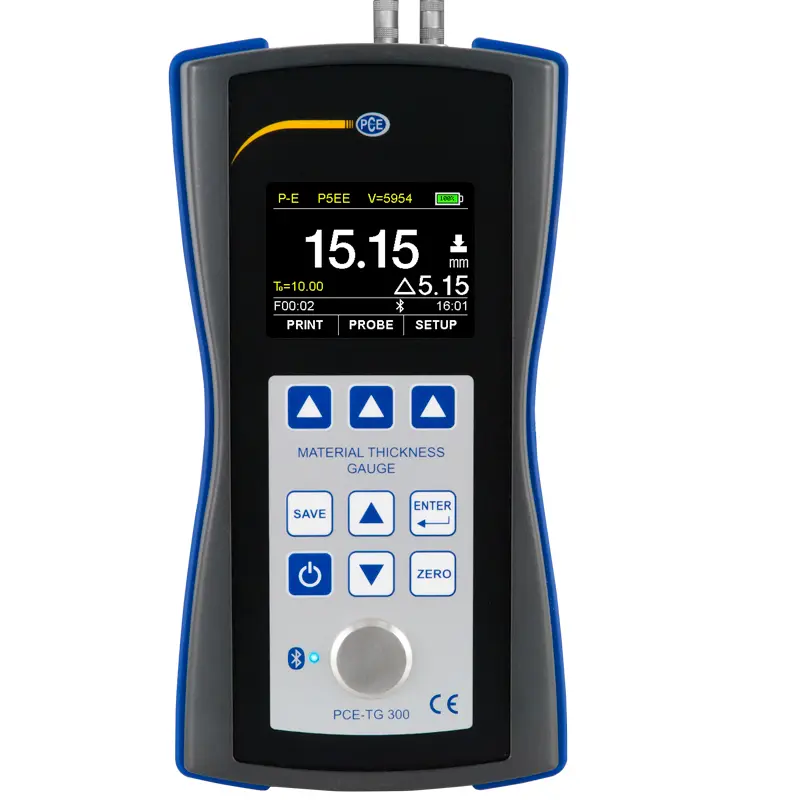

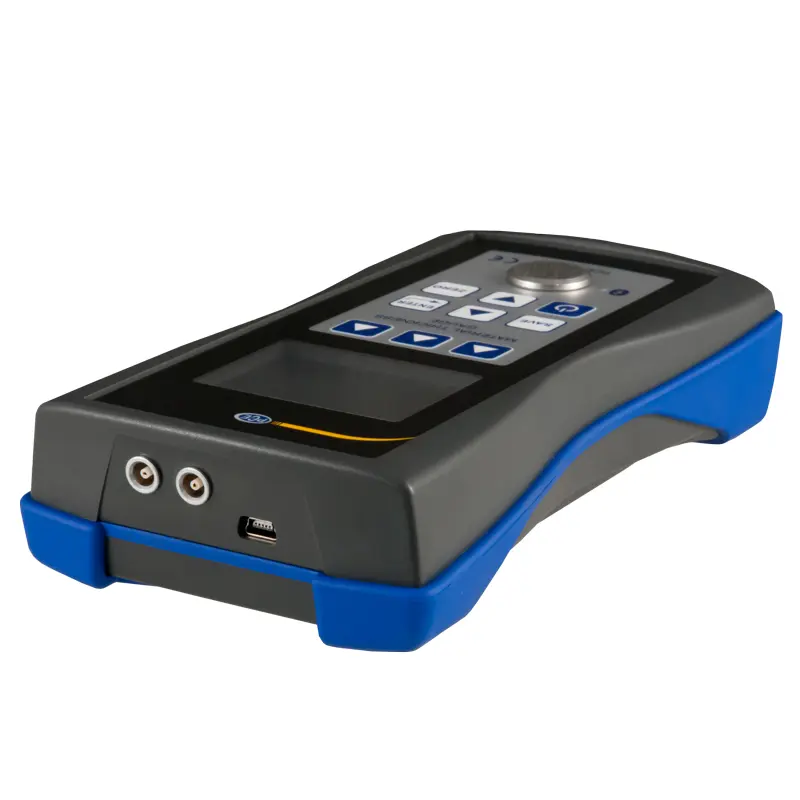

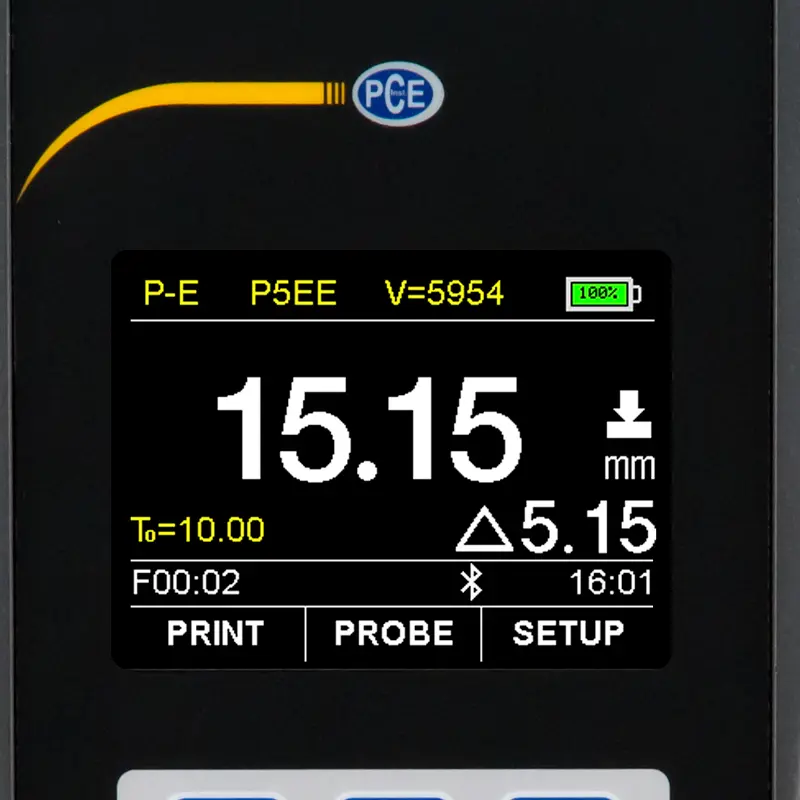

The measured values ​​are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured (only with PCE-TG 300-P5EE sensor).

- Large measuring range
- Various sensors available
- Battery operation
- Error and voids detection
- Internal measurement data memory
- Print via Bluetooth

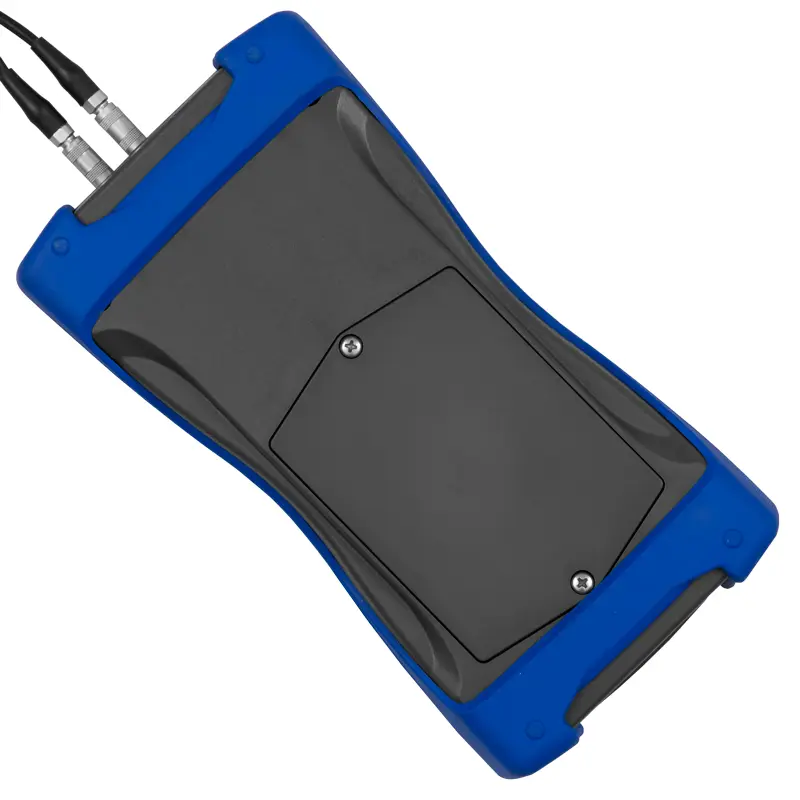

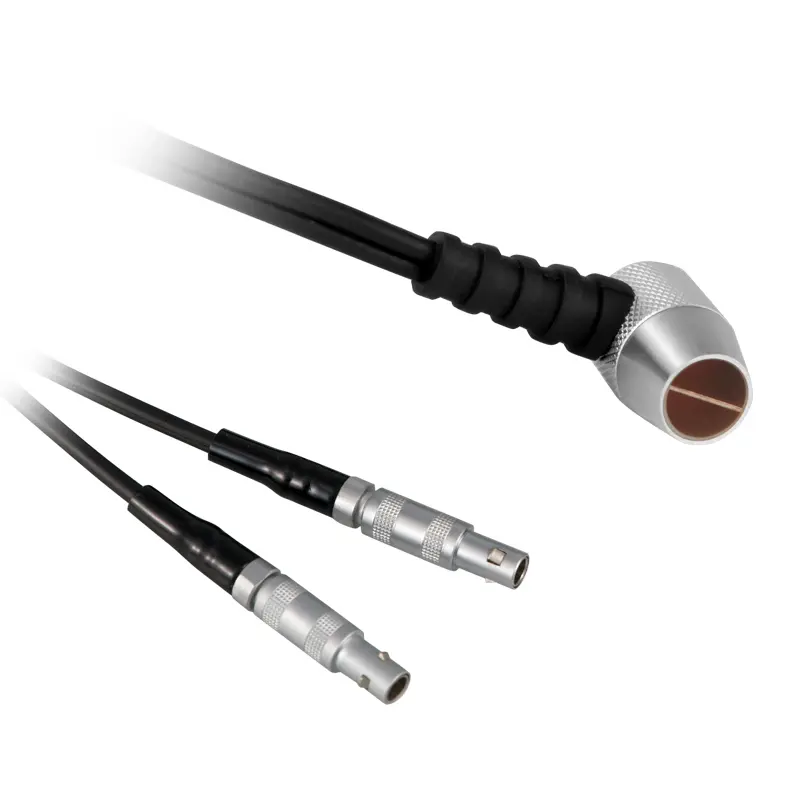

PCE-TG-NO5/90 sensor (at 90° angle)
Measuring range1 ... 600 mm / 0.039 ... 23.62" (steel)
Minimum diameter of pipes
20 x 3 mm / 0.787 ... 0.118"
Frequency5 MHz
Diameter10mm / 0.39"
Descriptionnormal measurement
PCE-TG 300-NO5/90 device
Measuring rangeP-E: pulse-echo mode 0.65 ... 600 mm / 0.025 ... 23.62" (steel)"
 (measurement range varies depending on the sensor)
 E-E: Echo-Echo mode 2.50 ... 100 mm / 0.098 ... 2.36"
 (only with PCE-TG 300-P5EE sensor)
Accuracy±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm)
 H refers to the material thickness of the workpiece
Resolution0.1 mm / 0.01 mm / 0.001 mm (adjustable)
Measurable materialsmetals
 plastics
 ceramics

epoxy resin
 glass
 and all homogeneous materials
Working modesPulse-echo mode (fault and void detection)
 Echo-echo mode (hide layer thicknesses, e.g. paint)
Calibrationsound velocity calibration
 zero calibration
 two-point calibration
View ModeNormal Mode, Scan Mode, Difference Mode
Unitsmm / inch
Data transferprinting via Bluetooth / USB 2.0
Memorynon-volatile memory with 100 data groups with 100 data sets each
Operating time
continuous operation 100 h
 automatic stand-by mode (adjustable)

auto power off mode (adjustable)
Power supply4 x AA battery 1.5 V
Display320 x 240 pixels TFT LCD color display with brightness adjustment
Operating conditions0 ... +50 °C / 32 ... 122 °F, ≤80 % RH non-condensing
Storage conditions-20 ... +70 °C / -4 ... 158 °F, ≤80 % RH non-condensing
Dimensions185 x 97 x 40 mm / 7.2 x 3.8 x 1.5"
Weight375 g / 13.2 oz

1 x Ultrasonic thickness gauge PCE-TG 300-NO5/90
1 x Sensor PCE-TG-NO5/90
1 x 100 ml coupling gel
1 x Transport case
4 x AA batteries
1 x User manual

Accessories

Order no.: TT-GEL
Ultrasonic Contact Gel (100 ml)
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The moderate temperature contact gel can be used at temperatures of -10 to 80°C / -14 to 176°F.

- Usable up to 80°C / 176°F
- Improves contact between the transducer head and the material to be measured
- Protects material surfaces from the transducer head
- 100 ml size
- See downloads for MSDS
US$ 26.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: RE-CAL-MT
Re-Calibration for Material Thickness Meter

ISO re-calibration incl. certificate for material thickness meter. This is often required to comply with DIN ISO 9000.



- Calibration points are: 5; 10; 20; 50 and 100 mm

If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

Calibration certificates are issued specifically for the customer and are excluded from the right of return

US$ 234.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: CAL-MT
ISO Calibration Certificate for Material Thickness Meter
The calibration certificate shows the accuracy the device has achieved under defined test conditions. The material thickness measuring device is tested in our calibration laboratory for the following reference values:
Measurement accuracy: five parallel gauge blocks with the thicknesses
5 mm; 10 mm; 20 mm; 50 mm and 100 mm


N.B. The calibration certificate is issued by the PCE calibration service specifically for the customer and is excluded from the right of return.

Catalogue: Measuring Instruments / Test Meters / Thickness Meter
US$ 234.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-TG 300-SOFT

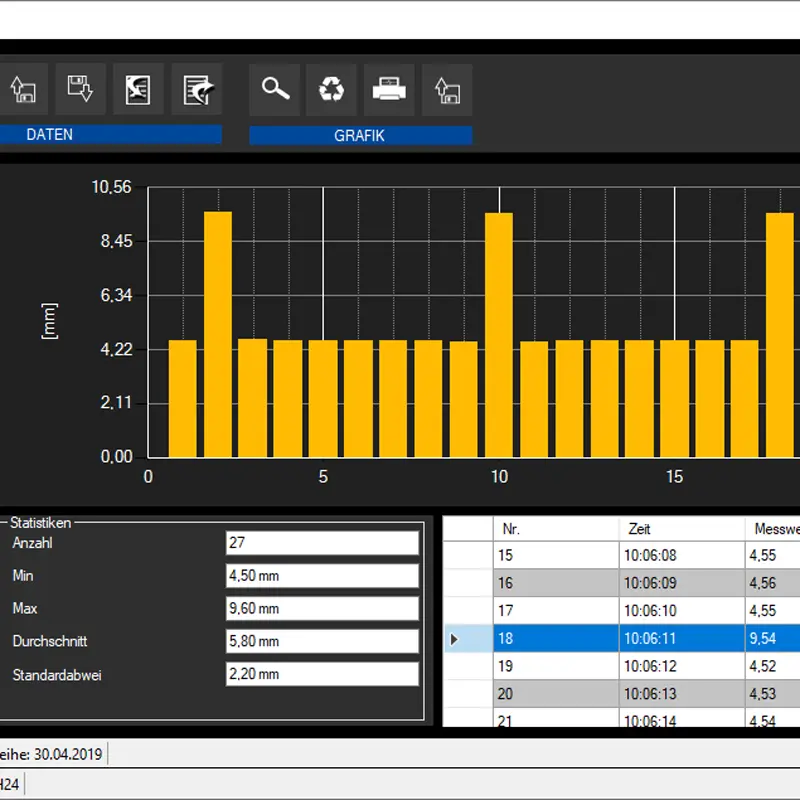

PC software with USB cable for PCE-TG 300
System Requirements
- USB port (2.0 or higher)
- An installed .NET Framework 4.0
- A minimum resolution of 800x600 pixels
- 1 GHz processor
- 1 GB of RAM is recommended
Catalogue: Measuring Instruments / Test Meters / Material Thickness Meter
US$ 247.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-TG-P5EE
Sensor PCE-TG 300-P5EE (5 MHz)
P5EE
- Frequency: 5 MHz
- Diameter: 10 mm
- Measuring range: PE: 2 ... 600 mm, EE: 2,5 ... 100 mm
- Minimum diameter of pipes: Ø20 x 3 mm
- Description: Normal measurement and EE test
Catalogue: Measuring Instruments / Test Meters / Material Thickness Meter
US$ 479.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-TG-NO2
Sensor PCE-TG 300-NO2 (2.5 MHz)
NO2
- Frequency: 2.5 MHz
- Diameter: 14 mm
- Measuring range: 3 ... 40 mm (steel), 3 ... 300 mm (cast.iron)
- Minimum diameter of pipes: not suitable for bent materials
- Description: for damping / scattering materials (plastics, cast iron)
Catalogue: Measuring Instruments / Test Meters / Material Thickness Meter
US$ 190.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-TG-NO5
Sensor PCE-TG 300-NO5 (5 MHz)
NO5
- Frequency: 5 MHz
- Diameter: 10 mm
- Measuring range: 1 ... 600 mm (steel)
- Minimum diameter of tubes: 20 x 3 mm
- Description: normal measurement
Catalogue: Measuring Instruments / Test Meters / Material Thickness Meter
US$ 158.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-TG-NO5/90
Sensor PCE-TG 300-NO5/90 (5 MHz)
NO5/90°
- Frequency: 5 MHz
- Diameter: 10
- Measuring range: 1 ... 600 mm (steel)
- Minimum diameter of tubes: 20 x 3 mm
- Description: normal measurement
Catalogue: Measuring Instruments / Test Meters / Material Thickness Meter
US$ 158.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-TG-NO7
Sensor PCE-TG 300-NO7 (7 MHz)
NO7
- Frequency: 7 MHz
- Diameter: 6 mm
- Measuring range: 0.65 ... 200 mm (steel)
- Minimum diameter of pipes: 15 x 2 mm
- Description: for thin-walled or heavily curved pipes
Catalogue: Measuring Instruments / Test Meters / Material Thickness Meter
US$ 193.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-TG-HT5
Sensor PCE-TG 300-HT5 (5 MHz)
HT5
- Frequency: 5 MHz
- Diameter: 12 mm
- Measuring range: 1 ... 600 mm (steel)
- Minimum diameter of tubes: 30 mm
- Description: for high temperatures (max 300°C / 572°F)
Catalogue: Measuring Instruments / Test Meters / Material Thickness Meter
US$ 323.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-TG-BLOCK
Step Calibration Block (4) PCE-TG-BLOCK
4 step calibration block for PCE-TG series material thickness gauges. Test areas: 3 mm, 5 mm, 10 mm, 15 mm
Catalogue: Measuring Instruments / Test Meters / Thickness Gauge
US$ 178.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: K-Gel
K-Gel High Temperature Coupling Gel
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The high temperature contact gel can be used at temperatures up to 350°C / 662°F.

- Usable up to 350°C / 662°F
- Content: 100 ml
Catalogue: Measuring Instruments / Test Meters / Thickness Gauge
US$ 131.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
