Thickness Gauge PCE-CT 26

Order no.: PCE-CT 26
GTIN (EAN): 4250348700674
US$ 405.00
ex. VAT, ex. delivery costs
:
4250348700674
PCE-CT 26
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

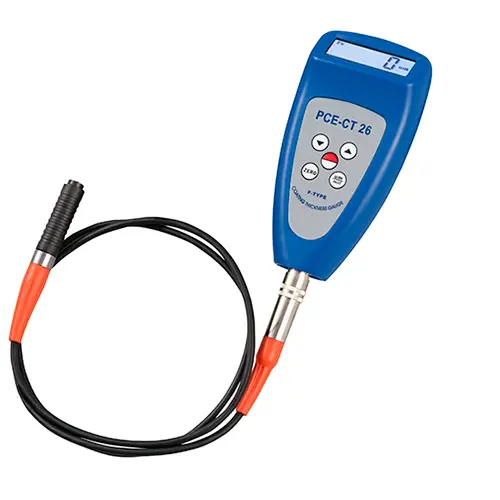

PCE-CT 26 Thickness gauge
Thickness gauge with external sensor to test coating thickness on metal surfaces

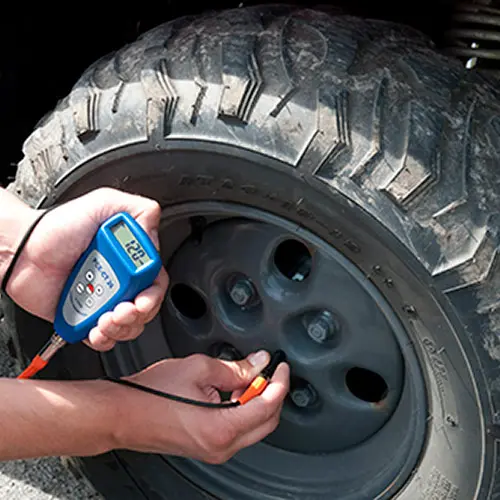

The PCE-CT 26 thickness gauge is used for quickly detecting the coating thickness of paint on magnetic metals, such as iron in the automotive sector. One typical use is in detecting damage to car bodies to establish if the car has been in an accident and the resulting value of the car in the used car market. The combination of a device with an external sensor which allows for measurements indoors. It is very easy to use, simply turn on the device, place the sensor on top of the surface that is to be measured and read the measurement value on the display. The gauge allows for the selection of damage to a car or if it has been painted again. This clarifies, at the time of purchase, if the price of the car should be adjusted, to ensure that a fair price can be negotiated and the true condition of the car is known.


Highlights

- External sensor with a 50 cm (19.69") long cable
- Easy to use either for professional or personal use
- Digital LCD
- Zero reset function which can be performed on any uncoated metal or using the calibration standards which come included with the device
- Auto shut-off to protect battery power
- RS-232 port
- Optional software and RS-232 cable
- An ISO calibration certificate can be ordered separately

Specification

Measurement range0 to 2000 µm
Resolution
0.1 µm (0 to 99.9 µm)
1 µm ( >100 µm)
Accuracy
± 1 to 3% or 2.5 µm
Display
4 digit LCD, 10 mm in height
Operating conditions
0 ... 50°C / 32 ... 122°F; <80% r.h.
Interface
RS-232
Power
Four 1.5V batteries (included)
Dimensions
Device: 126 x 65 x 27 mm / 5 x 2.6 x 1.1 in
Weight
130 g / < 1 lb

Delivery Scope

1 x PCE-CT 26 Thickness gauge

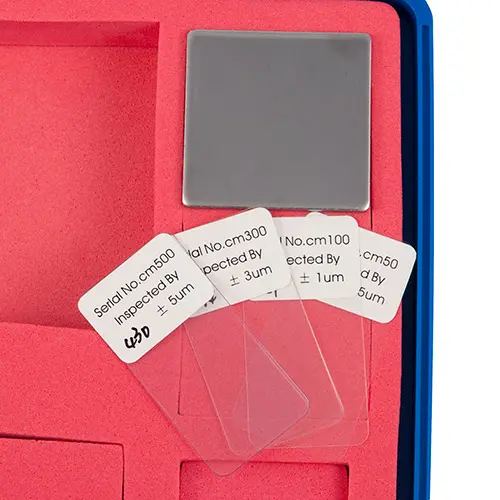

1 x Set of calibration standards
1 x Testing plate
1 x Carrying case
3 x Batteries
1 x User's manual

Downloads
