Temperature Data Logger / Temperature Logger PCE-AQD 6

Temperature Data Logger / Temperature Logger PCE-AQD 6

Order no.: PCE-AQD 6
GTIN (EAN): 4250348748355
US$ 68.00
ex. Sales Tax, ex. delivery costs
:
4250348748355
PCE-AQD 6
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Temperature Data Logger / Temperature Logger / Air Quality Index / Trend curve for relevant parameters / Fine dust comparison function / Alarm function / portable use / Internal memory for data for up to one year

This versatile Temperature Data Logger / Temperature Logger enables seamless and highly precise monitoring of indoor climate conditions as well as potential pollutant exposure indoors. The device measures not only classic parameters such as temperature and relative humidity, but also the general air quality index (AQI) and critical gaseous pollutants, including CO2, CO, TVOC, HCHO and C6H6. In addition, the modern Temperature Data Logger / Temperature Logger offers differentiated particle measurement, breaking down fine dust in six different size classes from PM 0.3 to PM 10 in detail.

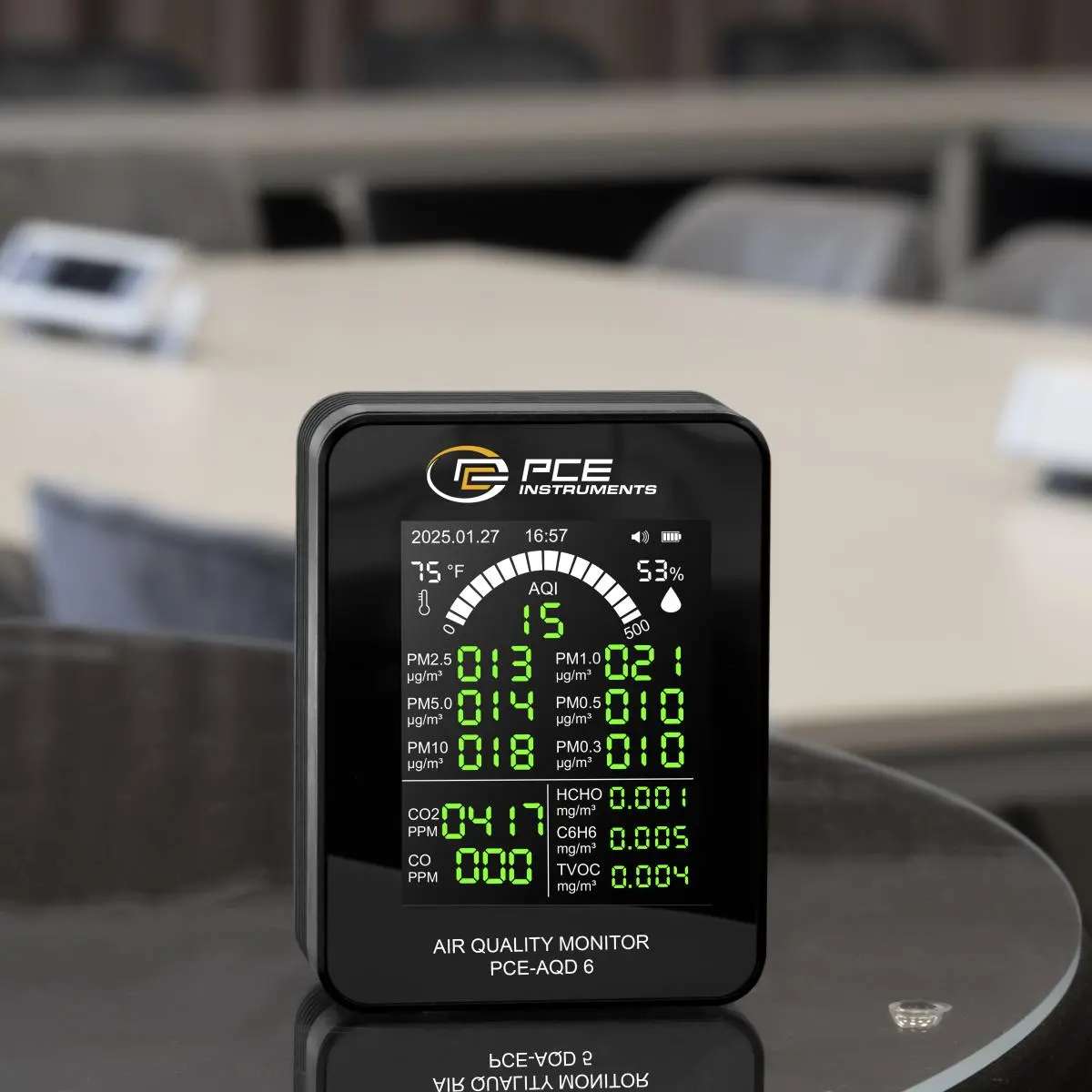

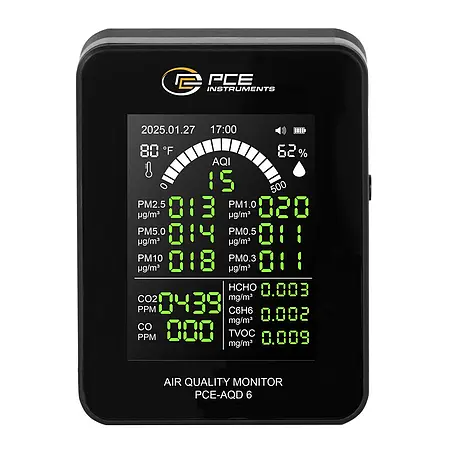

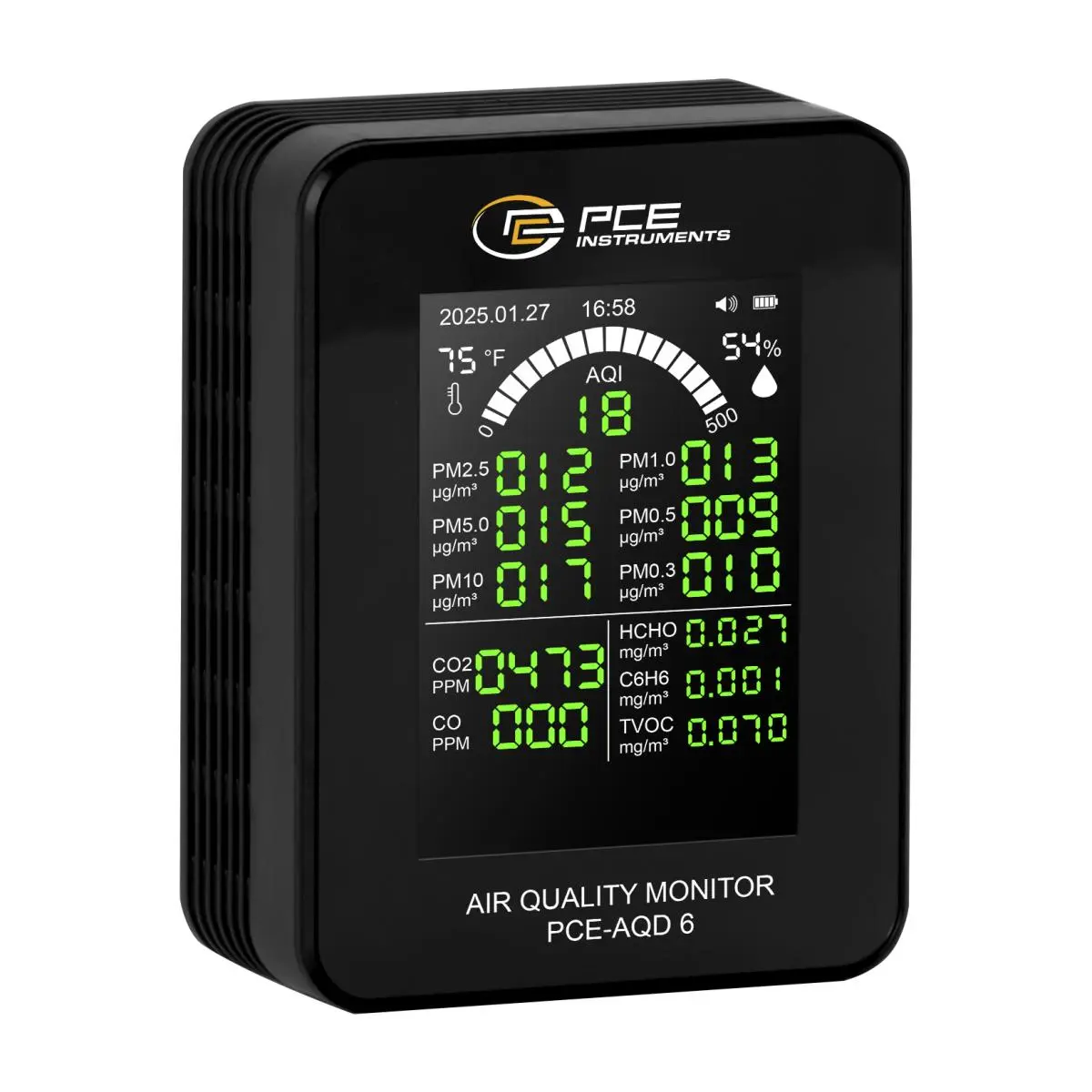

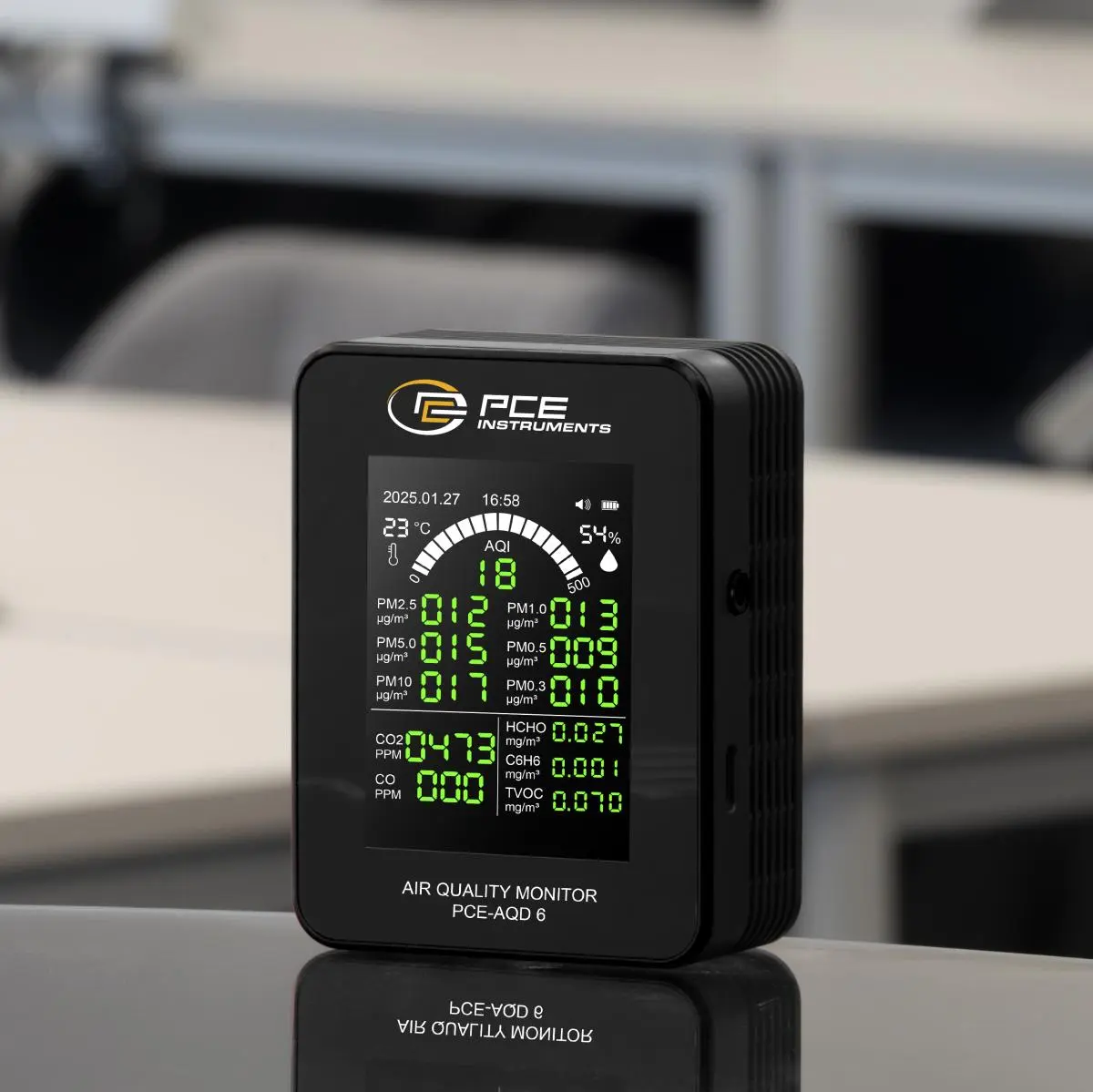

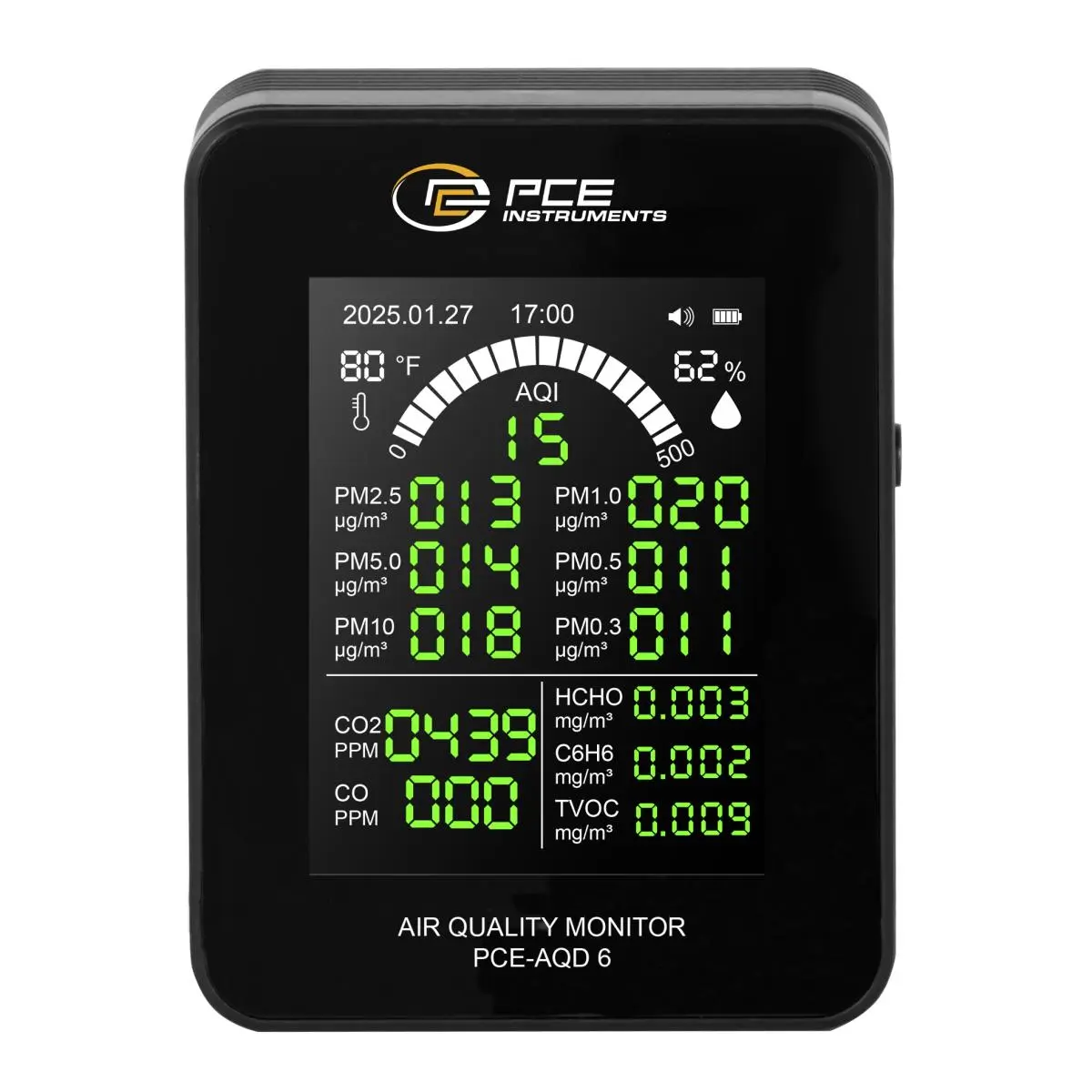

A clear, colour-coded display ensures quick and intuitive orientation in everyday use. The respective measured values are automatically classified based on the current level of exposure: from green for excellent air quality, through yellow and orange, to red, which signals an acute hazard. This visual warning system makes it possible to react immediately to poor air conditions and initiate targeted ventilation measures, allowing the 18-in-1 Air Quality Detector to be used optimally as a safety monitor.

Thanks to the integrated rechargeable battery, the compact Temperature Data Logger / Temperature Logger can be used flexibly and is not tied to a permanent power source, making spontaneous spot checks at changing locations easier. For further documentation and long-term analysis, the collected measurement data can be transferred easily to a computer in .txt format via the modern USB-C interface. There, the values can be exported and evaluated in order to provide lasting proof of the effectiveness of air purification concepts.


Highlights

- Comprehensive 18-in-1 measurement (climate, gases & fine dust)
- Detailed pollutant and particle recording
- 24-hour parameter trend curve
- Colour-coded traffic-light system from green to red
- Integrated rechargeable battery for flexible mobile operation
- USB-C connection for easy data export

Specification

CO²
Measuring range  400 ... 5000 ppm
Resolution  1 ppm

Formaldehyde
Measuring range  0 ... 1,99 mg/m³
Resolution  0,001 mg/m³
Accuracy  ±0.05 mg/m³

Particle
Measuring channel sizes  0.3, 0.5, 1.0, 2.5, 5.0, 10
Measuring range  0 ... 999 µg/m³
Resolution  1 µg/m³
Accuracy  ±10 µg/m³

TVOC
Measuring range  0 ... 9,99 mg/m³
Resolution  0,001 mg/m³
Accuracy  ±0.05 mg/m³

CO
Measuring range  0 ... 999 ppm
Resolution  1 ppm
Accuracy  ±10 ppm

Benzene
  0 ... 1,999 mg/m³
  0,001 mg/m³
  ±0.05 mg/m³

Relative humidity
Measuring range  0 ... 99 %
Resolution  1 %
Accuracy  ±5 % of Rd

Temperature
Measuring range  -10 ... +50 °C
Resolution  1 °C
Accuracy  ±2°C

General technical data
Display type  TFT colour display
Display size  2,8 in
Storage medium  Internal memory
Storage capacity  2 GB
Memory capacity (additional information)  Data logging every 5 seconds, one memory file per month, data storage period 1 year
Data transfer  USB-C
Housing  Plastic
Alarm  optical, Acoustic
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5V DC, 1 A
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  2000 mAh
  7,4 Wh
Operating conditions  -10 ... 50 °C , 10 ... 90 % RH
Storage conditions  -20 ... 55 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  90 x 70 x 35 mm
Weight  134 g

Delivery Scope

1 x Temperature Data Logger / Temperature Logger PCE-AQD 6
1 x USB-C to USB-A cable
