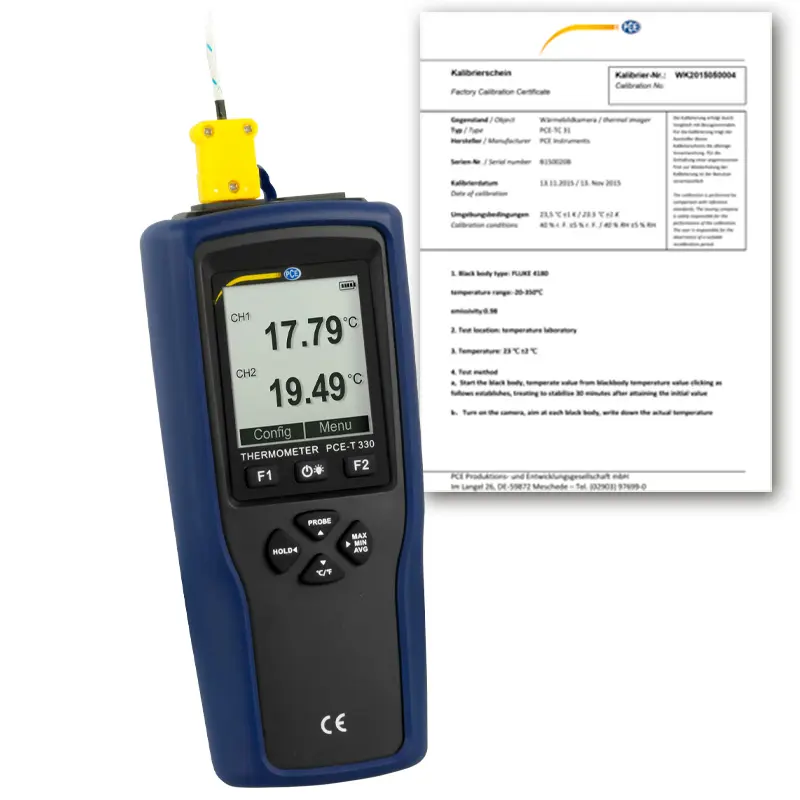

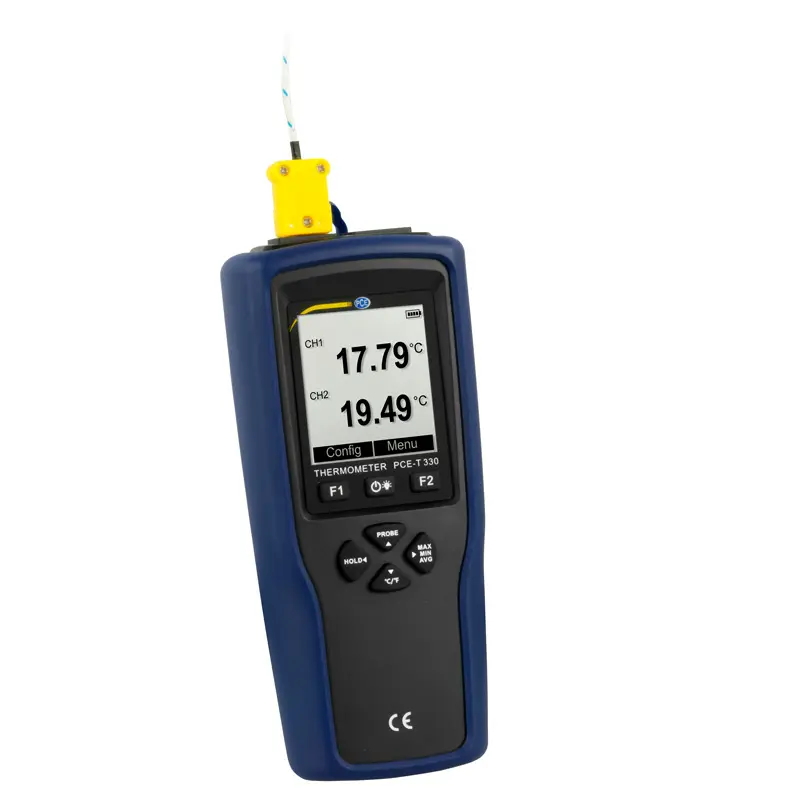

Temperature Data Logger PCE-T 330-ICA incl. ISO Calibration Certificate

Order no.: PCE-T 330-ICA
ISO Calibration
US$ 365.00
PCE-T 330-ICA
ex. VAT, ex. delivery costs
Temperature
Available in: 10 - 14 days
Two-channel thermometer / Battery life of approx. 190 hours /
Different file formats / No software required / Storage for 20,000 data points

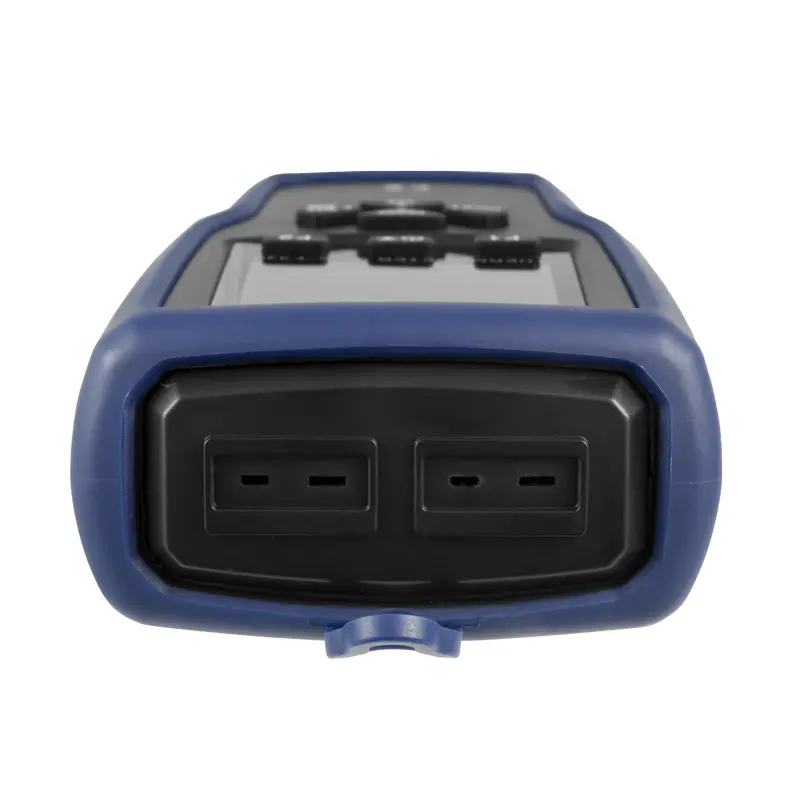

The temperature data logger has two measuring inputs. Each measuring input from the thermometer can be connected to a thermocouple of type K, T and J. With a measuring rate of 2 Hz, the thermometer shows rapid temperature fluctuations. With the high accuracy and a resolution of 0.01 °C, these rapid temperature fluctuations can also be displayed precisely by the thermometer.

With a data memory of 20,000 measuring points, the thermometer can be used for a long period of time. A data point on the thermometer contains a measured value per channel and date as well as the current time. When the thermometer is connected to a computer, it is recognized as a removable disk. This allows the thermometer to be connected to computers with different operating systems, as no additional software is required for further analysis. The measurement data from the thermometer can be saved as TXT, CSV, XLS and DLG format.

- Two-channel temperature data logger
- For thermocouples type K, T and J
- Long battery life
- Data storage for 20,000 measuring points
- File format TXT, CSV, XLS and DLG
- Rubberized protective cover
- incl. ISO Calibration Certificate

Temperature Sensor    Measuring range
Resolution
Accuracy
Type K-200 ... 1370 °C / -328 … +2498 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type T-200 ... 400 °C / -328 … 752 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type J-200 ... 1200 °C / -328 … 2192 °F
   0.01 °C±0.3 % of rdg. +0.4 °C

Units°C / °F
Number of channels2
Measuring rate2 Hz
Data storage15,328 kB for 20,000 data points
File formatsTXT, CSV, XLS, DLG
Storage interval1 .... 86,399 s

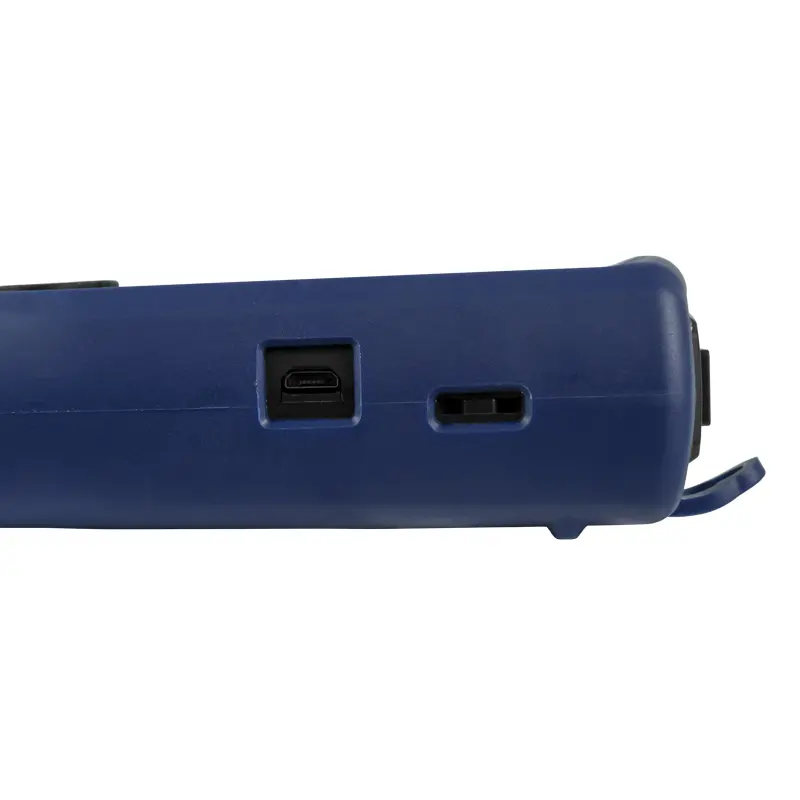

InterfaceMicro-USB
Power supply
3 x 1.2 V AAA rechargeable batteries
 3 x 1.5 V AAA batteries
Battery lifeca. 190 hours
 (without backlight, battery capacity
 1200 mAh, ambient temperature 25 °C)
Operating conditions-10 ... 50 °C / 14 … 122 °F
Storage conditions-20 ... 60 °C / -4 … +140 °F (without batteries)
Dimensions173 x 71 x 38 mm / 6.8 x 2.8 x 1.5"
Weightca. 226 g /  7.9 oz

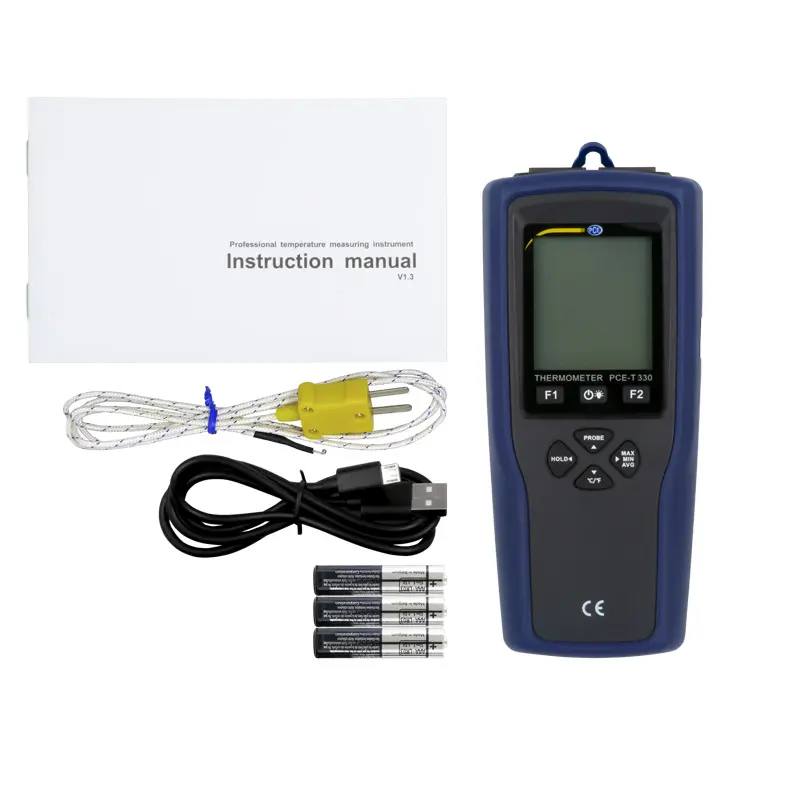

1 x Temperature Data Logger PCE-T 330
1 x Thermocouple Type K
1 x Micro-USB cable
3 x 1.5 V AAA batteries
1 x User manual
1 x ISO Calibration Certificate



N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.


Accessories

Order no.: TF-RA330-5
Temperature Contact Sensor TF-RA330-5
Temperature contact sensor with Velcro tape

- Measuring range Tmax.: 400 °C / 752 °F
- Accuracy: ± 0.5 °C
- Ø 2 mm
- Length: 5 m / 16.4 ft
- Thermocouple: Type T
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 66.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-119
Screw-in Sensor TF-119
Screw-in sensor with T-handle for solid or frozen materials with 1m cable (removable)

- Tmax: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 6.0 mm
- Length: 130 mm
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 191.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-110A
HT Surface Sensor TF-110A
High-temperature surface sensor with resilient tip, angled 90° on a 1 m cable

- Tmax.: 900 °C / 1652 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 8.0 mm
- Length: 130 mm / 50 mm
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 105.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-109
Crocodile Clip Sensor TF-109
Crocodile clip sensor for pipes with 1 m cable

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Opening max. Ø 35 mm
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 53.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-108
Air Sensor TF-108
Stainless steel air sensor with handle and 1 m cable for air and gases with fast response time

- Tmax.: 600 °C / 1112 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 6 mm
- Length: 130 mm
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 63.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-106
Penetration / Immersion Sensor TF-106
Stainless steel penetration / immersion sensor with handle and 1m spiral cable for liquids, semi-solid media and air

- Tmax: 600 °C / 1112 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.0 mm
- Length: 130 mm
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 66.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-104B
High Temperature Sensor TF-104B (extra long)
Extra long flexible high temperature sensor, handle and 1m spiral cable

- Tmax.: 1100 °C / 2012 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.0 mm
- Length: 1000 mm
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 131.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-104A
High Temperature Sensor TF-104A
Flexible high temperature sensor, handle and 1 m coiled cable

- Tmax.: 1100 °C / 2012 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.0 mm
- Length: 300 mm
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 66.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-102A
Insulated Surface Temperature Sensor TF-102A
Electrically insulated probe for measuring live surfaces

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.5 mm
- Length: 130 mm
- Type K thermocouple
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 73.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-101
Temperature Sensor TF-101
Temperature sensor with resilient plate tip and 1m cable

- Ø3 mm
- Length: 120 mm
- Temperature Max: 450 °C / 842 °F
- Accuracy: ±1.5 °C
- Thermo couple: Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 90.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-120
Flexible Sensor TF-120
Flexible sensor for air and liquids at higher temperatures

- Tmax.: 480 °C / 896 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 2 mm
- Length: 1 m
- Cable type: fiber optic
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 43.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-121
High Temperature Wire Sensor TF-121
Flexible ceramic-insulated wire probe for highest temperatures

- Measuring range: Tmax. 1150 °C / 2102 °F (according to IEC584-2)
- Accuracy: ± 1.5 °C
- Diameter: Ø 4 mm
- Length: 1 m
- Cable type ceramic insulated max.: 1430 °C / 2606 °F
- Thermocouple: Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 92.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-RA330-3
Temperature Contact Sensor TF-RA330-3
Temperature contact sensor with Velcro tape

- Measuring range Tmax.: 400 °C / 752 °F
- Accuracy: ± 0.5 °C
- Ø 2 mm
- Length: 3 m / 9.8 ft
- Thermocouple: Type T
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 61.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-RA330
Temperature Contact Sensor TF-RA330
Temperature contact sensor with Velcro tape

- Measuring range Tmax.: 400 °C / 752 °F
- Accuracy: ± 0.5 °C
- Ø 2 mm
- Length: 1 m / 3.2 ft
- Thermocouple: Type T
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 53.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-551
Miniature Connector TF-551
Female miniature flat connector for K-Type thermocouples, e.g. for our compensation cables AGL-90, AGL-260 and AGL-400
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 9.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-550
Miniature-Connector TF 550
• Male miniature flat connector for K-Type Thermocouples, e.g. for our compensation cables AGL-260 and AGL-1100
US$ 9.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-524
Screw-on Sensor TF-524
Screw-on temperature sensor. The sensor is connected to a measuring instrument via a miniature plug.

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Length: 1 m
- Washer interior: 8 mm
- Thermocouple: Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 59.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-520
Extension Cable TF-520
Extension cable for K-type temperature sensors with plug and socket for standard miniature connector

- Length: 10 meters / 32.8 ft
- For temperature sensors K-type
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 78.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-513
Magnetic Surface Sensor TF-513
Magnetic surface sensor for secure fixation on metallic surfaces

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Magnet: 5 x 5 x 2 mm
- Thermocouple: Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 112.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-509
Surface Sensor TF-509 (self-adhesive)
Self-adhesive surface sensor with fiberglass insulation for permanent fixation (with adhesive patch) at a specific measuring point

- Tmax.: 250 °C / 482 °F
- Accuracy: ± 1.5 °C
- Area: 50 x 25 x 2 mm
- Thermocouple: Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 62.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TF-500
Flexible Temperature Sensor TF-500
Flexible sensor for air and liquids

- Tmax.: -40 to 200 °C / -40 to 392 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø2 mm
- Length: 1m, 3m, 5m, 7m or 10m (selectable)
- Cable type: PTFE
- Thermocouple: Type K

Note: Please select the desired length of the temperature sensor!
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 14.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SP-101
Surface temperature roller sensor PCE-SP-101
Surface temperature roller sensor for use on moving or rotating, smooth surfaces

- Measuring range: -50 to 250 °C / -58 to 482 °F
- Response time: <5 seconds
- Type: K
- Sensor length: 360 mm / 14.1" (without handle)
- Sensor length: 480 mm / 18.9" (with handle)
- Sensor head width: 45 mm / 1.7"
- Sensor head length: 40 mm / 1.5"
- Accuracy class: Class Ⅰ
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 99.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SP-202
Surface temperature sensor PCE-SP-202
Ideal for measuring surface temperature

- Measuring range: up to 500 °C / 932 °F
- Type: K
- Spiral cable: 2000 mm / 78.7"
- Handle: ABS / rubber
- Length: 160 mm / 6.3"
- Sensor head diameter: 30 mm / 1.1"
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
US$ 61.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
