Screw-on temperature sensor. The sensor is connected to a measuring instrument via a miniature plug.
- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Length: 1 m
- Washer interior: 8 mm
- Thermocouple: Type K
Temperature Type K | |
Measurement Range | -200°C ... +1370°C |
Resolution | 0.1°C |
Accuracy | ± (0.04% + 0.3°C) |
Temperature Type J | |
Measurement Range | -200°C ... +1050°C |
Resolution | 0.1°C |
Accuracy | ± (0.04% + 0.3°C) |
Temperature Type S | |
Measurement Range | 0°C ... +1750°C |
Resolution | 0.1°C |
Accuracy | ± (0.05% + 1°C) |
Temperature Type R | |
Measurement Range | 0°C ... +1750°C |
Resolution | 0.1°C |
Accuracy | ± (0.05% + 1°C) |
Temperature Type E | |
Measurement Range | -200°C ... +850°C |
Resolution | 0.1°C |
Accuracy | ± 0.6°C |
Temperature Type T | |
Measurement Range | -200°C ... +400°C |
Resolution | 0.1°C |
Accuracy | ± 0.6°C |
Temperature Type N | |
Measurement Range | -200°C ... +1300°C |
Resolution | 0.1°C |
Accuracy | ± 0.6°C |
Temperature Type B | |
Measurement Range | +600°C ... +1800°C |
Resolution | 0.1°C |
Accuracy | ± (0.05% + 1°C) |

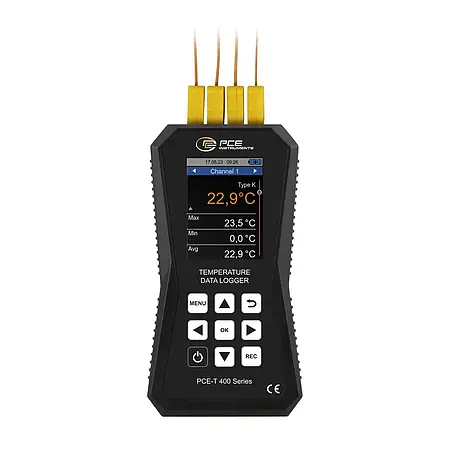

General Technical Data | |

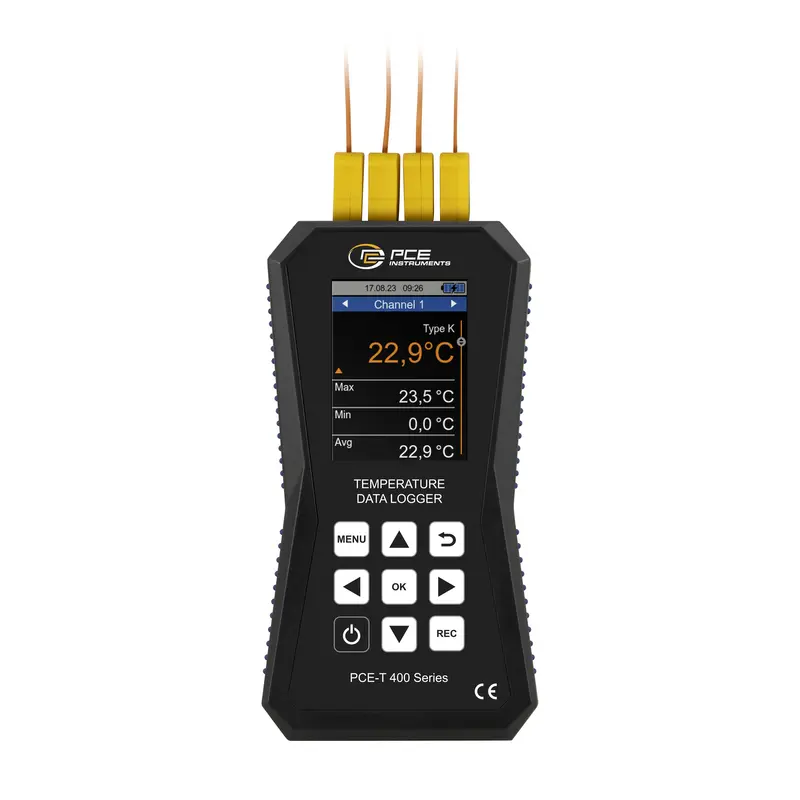

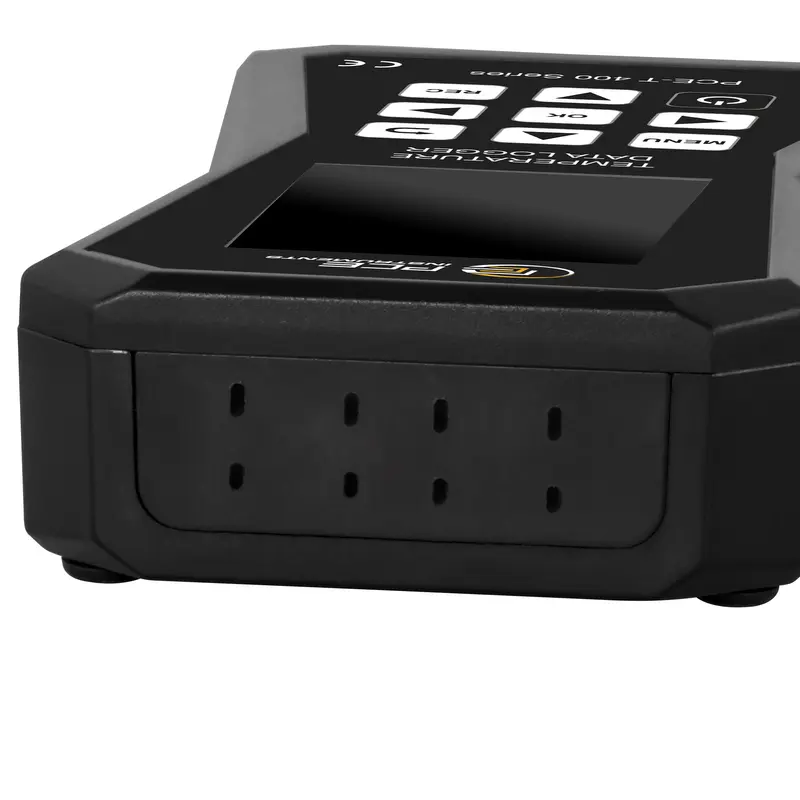

Inputs | 4 channels for Thermocouples |
Display Type | LCD |
Units | °C, °F, K |
Display Size | 2.8 inches |
Memory Capacity | 100 data sets |
up to 100,000 measurements per data set | |
Memory Interval | 1 ... 43,200 s |

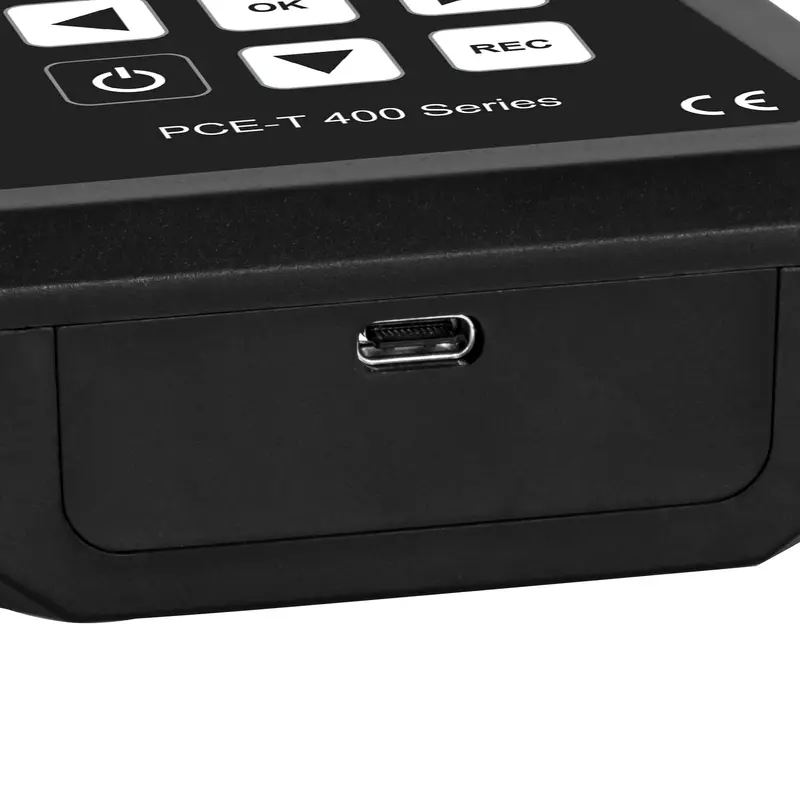

Data Interface | USB-C |
Power Supply | USB 5V DC 500mA |
Battery Capacity | 2,500 mAh |
Battery Voltage | 3.7 V |
Battery Type | Lithium-Ion Polymer Battery |
Operating Duration | Approximately 15 ... 20 hours (depending on display brightness) |

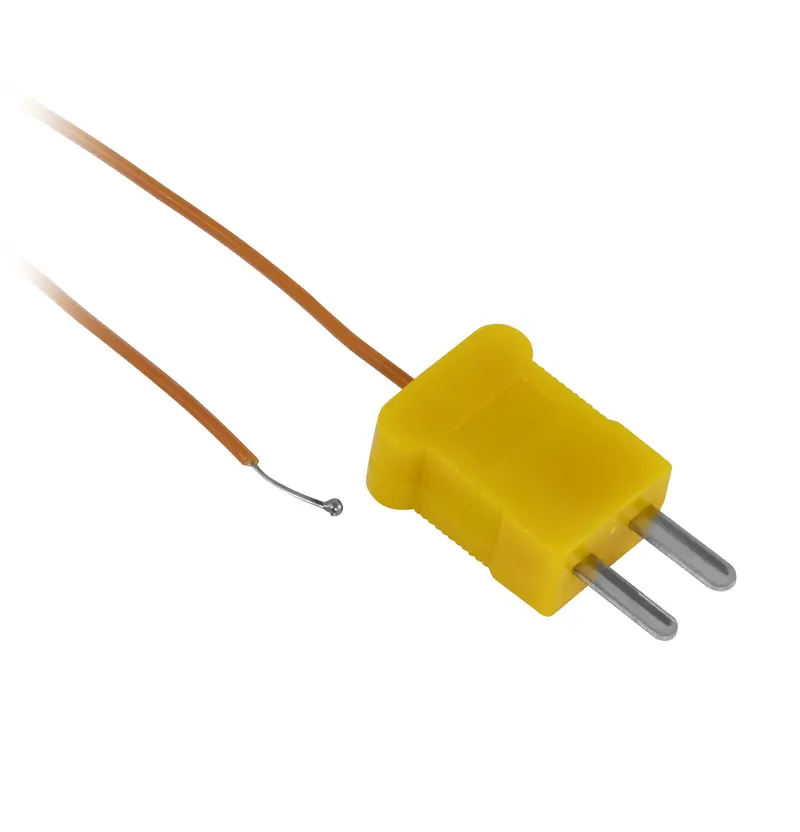

Thermocouple Length | Approximately 1 meter |
Menu Language | English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese, Danish |
Protection Class | IP52 |
Operating Conditions | -20 ... 65°C, 10 ... 95% r.H. |
Dimensions | 6.4 x 3.3 x 1.2 inch (L x W x H) |
Weight | 255 g |
ex. VAT, ex. delivery costs
Screw-on temperature sensor. The sensor is connected to a measuring instrument via a miniature plug.
ex. VAT, ex. delivery costs
Magnetic surface sensor for secure fixation on metallic surfaces
ex. VAT, ex. delivery costs
Self-adhesive surface sensor with fiberglass insulation for permanent fixation (with adhesive patch) at a specific measuring point
ex. VAT, ex. delivery costs
Electrically insulated probe for measuring live surfaces
ex. VAT, ex. delivery costs
High-temperature surface sensor with resilient tip, angled 90° on a 1 m cable
ex. VAT, ex. delivery costs
Temperature sensor with resilient plate tip and 1m cable
ex. VAT, ex. delivery costs
Stainless steel penetration / immersion sensor with handle and 1m spiral cable for liquids, semi-solid media and air
ex. VAT, ex. delivery costs
Flexible sensor for air and liquids
ex. VAT, ex. delivery costs
Surface temperature roller sensor for use on moving or rotating, smooth surfaces
ex. VAT, ex. delivery costs
Ideal for measuring surface temperature
