Surface Testing - Roughness Tester PCE-RT 1200

Order no.: PCE-RT 1200

Question / Callback

Available in: 1-2 days

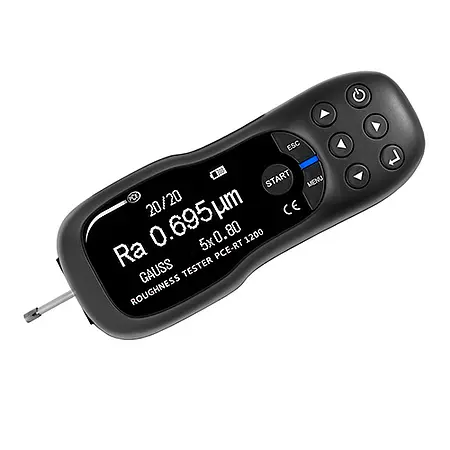

Surface Testing - Roughness Tester PCE-RT 1200
Portable roughness tester for fast detection of Ra, Rz, Rq and Rt /
Large OLED display / Micro-USB interface / With calibration plate and roughness standard / Measuring software / Permanently installed li-ion battery

The Surface Testing - Roughness Tester PCE-RT 1200 is used to determine surface roughness. The compact roughness tester is a handheld device for mobile use. Due to the power supply via a powerful battery, it can be used directly on site. The roughness tester is used in the laboratory, in production and everywhere where the roughness of surfaces is to be determined. The measured values are displayed on the clear and user-friendly OLED display directly on the measuring device. In addition, the roughness tester has a storage option for up to 20 measured values, which can later be read out via the micro USB interface. For this purpose, the measurement software can be used, and a USB cable is included in the delivery. The built-in rechargeable battery is also charged via the micro USB interface. The above mentioned measurement software is particularly suitable when measurement series are pending. The data is then transferred to the software and can be evaluated directly on the screen.

The roughness meter has a protective cap for the sensor, which protects it from external influences and can be easily screwed to the device. A calibration plate with roughness standard is also part of the standard equipment and serves to check the correctness of the measurement results.

Rz = average roughness
The average roughness Rz is the arithmetic mean of the largest single roughness depths of several adjacent individual measuring sections.
Ra = arithmetic centers roughness
Ra is the generally recognized and internationally applied roughness parameter. It is the arithmetic mean of the absolute values of the profile deviations within the reference line. The measured value Ra is always smaller than the Rz value determined on the same roughness profile.

- Very compact
- Easy to handle
- A large OLED display
- 4 measurable parameters of roughness
- The probe of the roughness meter consists of a high-quality diamond

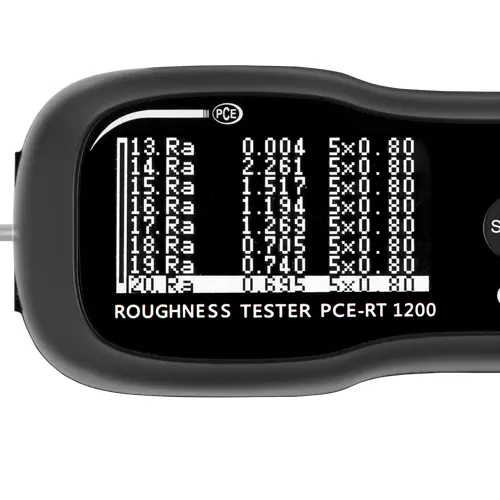

- The display of the roughness meter outputs the measured values in tabular form

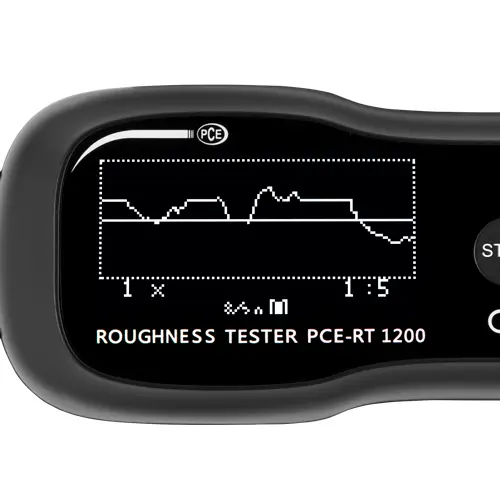

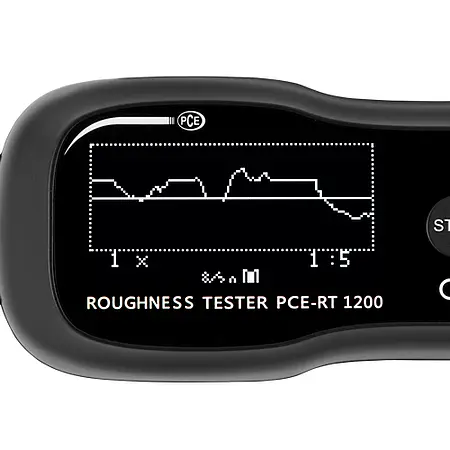

- The measured values can also be output by the roughness meter as a graph

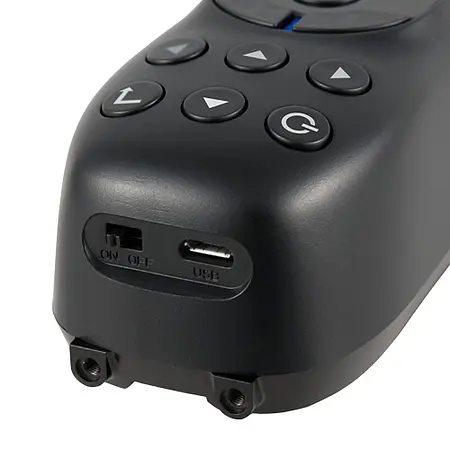

- A micro-USB interface for online data transmission to a PC (for example useful for serial measurement or laboratory measurement)
- An internal rechargeable battery (3000 measurements with one battery charge (Li-ion))

Measurement parameters	Ra, Rz, Rq, Rt
Measuring ranges	Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin
Radius probe tip	5 µm/ 196.850 µin
Material probe tip	Diamond, 90° angled
Max. recommended force for static measurement	4 mN (0.4 gf)
Radius longitudinal guide bar	45 mm / 1.77"
Standards	ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
Maximum driving distance	15 mm / 0.59"
Measuring principle	Inductive
Cut-off wavelength	0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"
Testing speed	0.135 mm/s at cut-off wavelength: 0.25 mm 0.5 mm/s at cut-off wavelength: 0.8 mm 1 mm/s at cut-off wavelength: 2.5 mm Reversing speed: 1 mm/s
Measuring accuracy	< ± 10%
Repeatability	< 6%
Display	OLED
Units	μm / μinch (switchable)
Interface	Micro-USB
Power supply	Rechargeable Li-ion battery
Dimensions L x W x H	150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in
Weight	370 g / < 1 lb

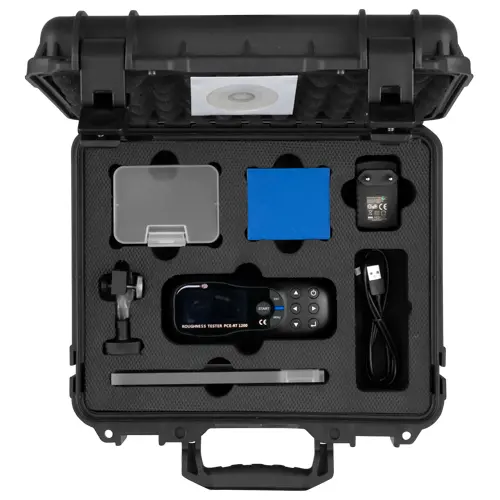

1 x Surface Testing - Roughness Tester PCE-RT 1200
1 x Micro-probe
1 x Downloadable Software
1 x Roughness standard
1 x USB cable
1 x Charging adapter
1 x Carrying case
1 x User manual

man-roughness-tester-pce-rt-1200-pce-rt-2000-pce-rt-2200-en.pdf

Manual

Video

Accessories

Order no.: PCE-RT2000-Teststand

Test Stand for Roughness Tester

Test stand for PCE-RT 1200, PCE-RT 2000 and PCE-RT 2200. The test stand can be used to mount the roughness meter. The test stand allows precise positioning of the probe on the test item.

- Test stand for mounting PCE-RT 1200, PCE-RT 2000 and PCE-RT 2200
- In combination with PCE-RT2000-RP110 and PCE-RT2000-RP131

Catalogue: Measuring Instruments / Test Meters / Roughness Tester

Manufacturer: PCE Instruments

US$ 1,109.00

ex. VAT, ex. delivery costs

Order no.: PCE-RT2000-RP131

Groove Sensor PCE-RT2000-RP131

Probe for the PCE-RT 1200 and PCE-RT 2000 for measuring the roughness of grooves.

- Probe for grooves
- Width > 2.5 mm
- Depth < 10 mm

N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.

Catalogue: Measuring Instruments / Test Meters / Roughness Tester

Manufacturer: PCE Instruments

US$ 1,668.00

ex. VAT, ex. delivery costs

Order no.: PCE-RT2000-RP110

Curvature Sensor PCE-RT2000-RP110

Curved surface sensor suitable for PCE-RT 1200 und PCE-RT 2000. The sensor is used to measure surfaces with radii.

- Probe for curved surfaces
- Radius > 3mm for PCE-RT 1200 / PCE-RT 2000

N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.

Catalogue: Measuring Instruments / Test Meters / Roughness Tester

Manufacturer: PCE Instruments

US$ 1,457.00

ex. VAT, ex. delivery costs

Spare Sensor for Roughness-Tester PCE-RT2000-RP200

Order no.: PCE-RT2000-RP200

Spare Sensor for Roughness-Tester PCE-RT2000-RP200

Spare standard sensor for Roughness-Tester PCE-RT 1200 / PCE-RT 2000.

Catalogue: Measuring Instruments / Test Meters / Roughness Tester

Manufacturer: PCE Instruments

US$ 1,018.00

ex. VAT, ex. delivery costs

Order no.: PCE-RT 1200-GP

PCE-RT 1200-GP groove sensor

Probe for the PCE-RT 1200 for measuring the roughness of grooves.

- Probe for grooves
- The test stand PCE-RT 1200-STAND is required

Manufacturer: PCE Instruments

US$ 729.00

ex. VAT, ex. delivery costs

Order no.: PCE-RT 1200-CP

PCE-RT 1200-CP curvature sensor

Curved surface sensor suitable for PCE-RT 1200. The sensor is used around surfaces which have radii to measure.

- Probe for curved surfaces
- The test stand PCE-RT 1200-STAND is required

Manufacturer: PCE Instruments

US$ 729.00

ex. VAT, ex. delivery costs

Order no.: PCE-RP-100

Spare Sensor PCE-RP-100

Spare sensor PCE-RP-100 for rougness tester PCE-RT 2300

Catalogue: Measuring Instruments / Test Meters / Roughness Tester

Manufacturer: PCE Instruments

US$ 1,443.00

ex. VAT, ex. delivery costs

Order no.: PCE-RTS 520

Roughness Test Stand PCE-RTS 520

The PCE-RTS 520 is a roughness force test stand that works with the PCE-RT Series. If the Ra value of the surface is low then you should use a test stand to ensure precise measurements.

- Stroke is 200 mm
- Dimensions are 260 x 180 x 12 mm
- Weight is 7.3 kg

Catalogue: Measuring Instruments / Test Meters / Test Stand

Manufacturer: PCE Instruments

US$ 891.00

ex. VAT, ex. delivery costs

Order no.: PCE-RTS 620

Roughness Test Stand PCE-RTS 620

The PCE-RTS 620 is a roughness test stand that works with the PCE-RT 2200. If the Ra value of the surface is low then you should use a test stand to ensure precise measurements.

- Stroke is 300 mm
- Dimensions are 400 x 250 x 70 mm
- Weight is 30 kg

Catalogue: Measuring Instruments / Test Meters / Test Stand

Manufacturer: PCE Instruments

US$ 1,898.00

ex. VAT, ex. delivery costs

Order no.: CAL-PCE-RT

ISO Calibration Certificate CAL-PCE-RT

CAL-PCE-RT includes calibration of the instrument in accordance with applicable ISO standard(s), along with documentation containing all readings taken.

**US calibration certificate is ISO 17025**

Each calibration certificate is issued especially for the customer and instrument, and therefore is exempt from the right of return.

Manufacturer: Exova Metech GmbH ( Caldi )

US$ 310.00

ex. VAT, ex. delivery costs
