PCE-900 Surface Testing for metals
9 materials pre-calibrated / Conversion into 6 different hardness scales
/ Type D impact probe

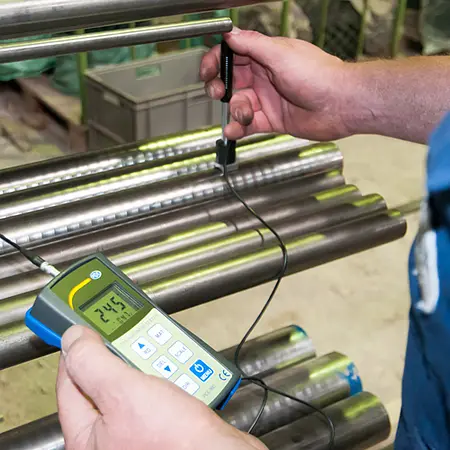

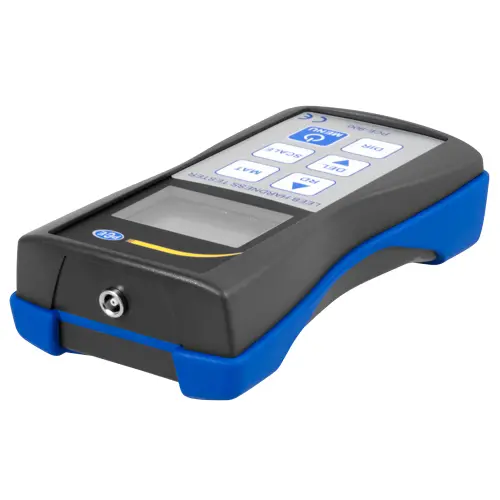

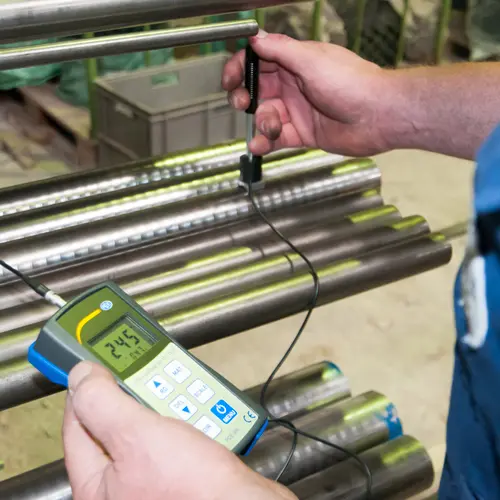

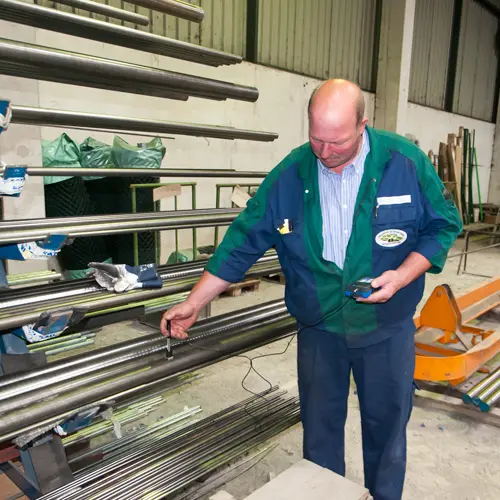

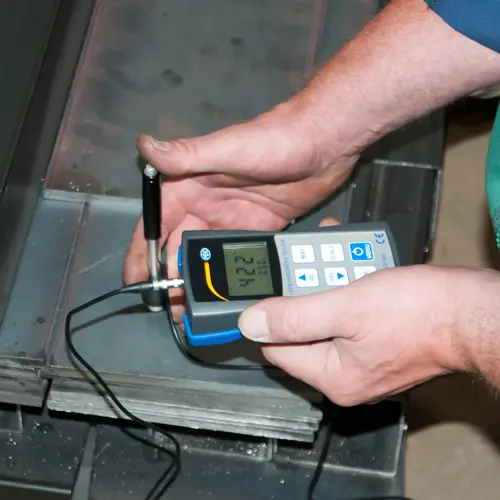

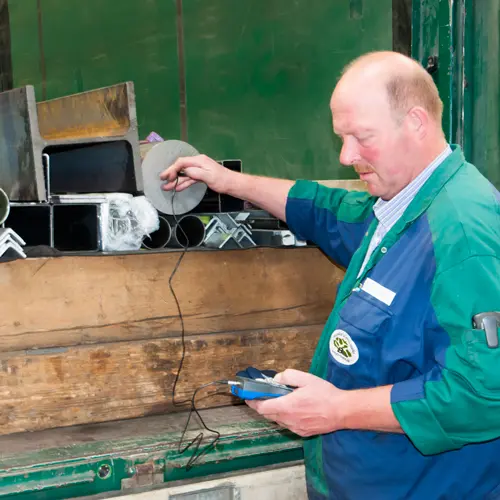

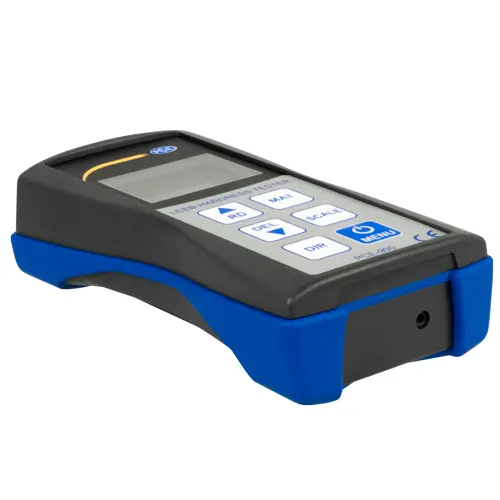

The Leeb Hardness Tester PCE-900 measures the hardness of nine different metals using the Leeb rebound method.

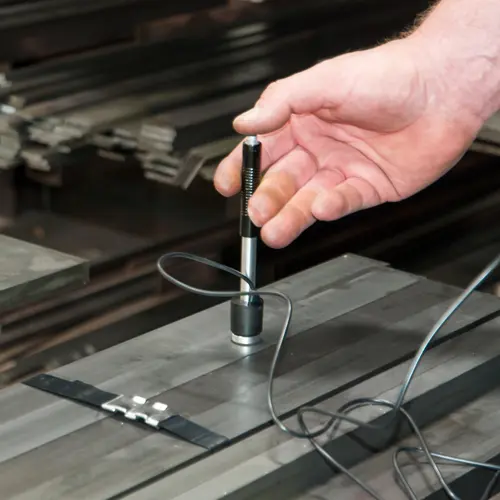

This means that with the hardness tester a firing pin bounces on a metallic surface and the intensity of the rebound is used as an indicator of the material hardness.
The hardness tester PCE-900 measures the metal hardness in 6 different hardness scales, including: Rockwell, Vickers, Leeb, Brinell and Shore.
A distinction is made between Rockwell B and C when measuring in the Rockwell scale.

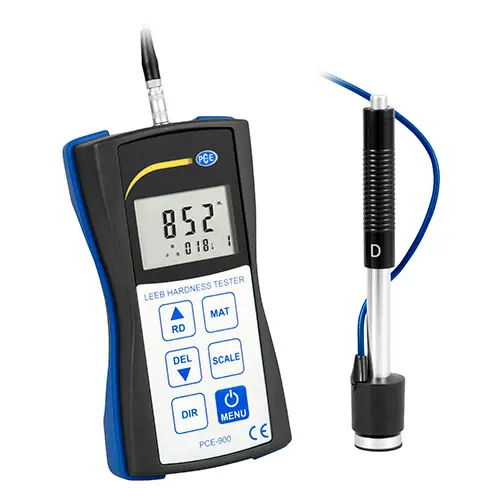

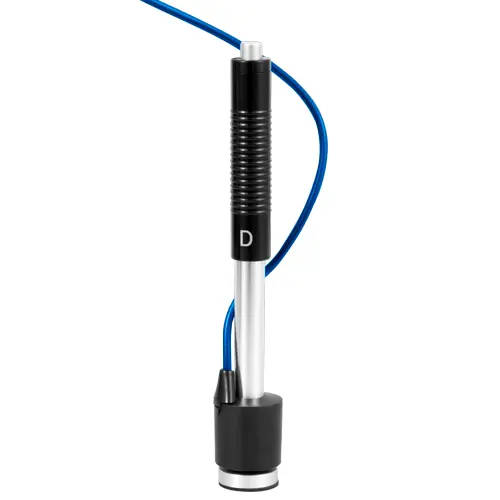

The Leeb hardness tester PCE-900 comes with a type D impact probe as standard. This probe can be used for many measurements. Via the optional software, the measured values can be transmitted live to the PC. This makes the PCE-900 Leeb hardness tester an important instrument in the field of material inspection in goods control.
| Measuring range | 200 ... 900 HL |
| Measuring accuracy | ± 0.8% at HLD=900 |
| Materials | 9 common material presets |
| Hardness scales | Leeb: HL Rockwell C: HRC Rockwell B: HRB Brinell: HB Vickers: HV Shore: HSD |

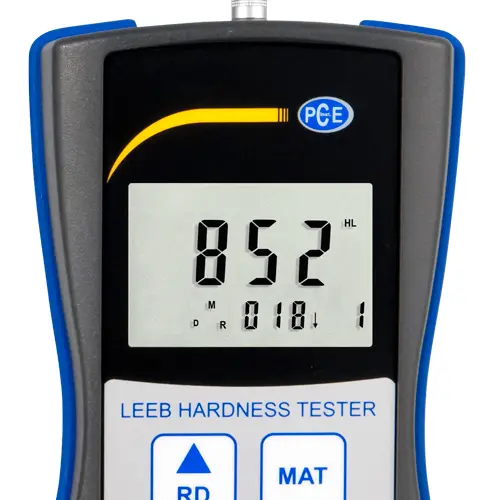

| Display | 12.5 mm / 0.5" LCD with backlight |
| Impact probe | Type D |
| Memory | 50 data sets |
| Interface | RS-232 |
| Power supply | 4 x 1.5V AAA batteries |
| Environmental conditions | Operating temperature: -10 ... 50°C / 14 ... 122°F Storage temperature: -30 ... 60°C / -22 ... 140°F Relative humidity: < 90% |
| Dimensions | 142 x 77 x 40 mm / 5.59 x 3.03 x 1.58 in |
| Weight | Device weight: ca. 130 g / < 1 lb Probe weight: 75 g / < 1 lb |
| Cable length | ca. 1.2 m / 3.9 ft |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
ex. VAT, ex. delivery costs
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
ex. VAT, ex. delivery costs
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
ex. VAT, ex. delivery costs
Replacement impact body type D probe for the PCE-900.
ex. VAT, ex. delivery costs
Consisting of:
HZ12.5-17 Mounting adapter concave, 12.5 … 17 mm (inside)
HZ11-13 Mounting adapter concave, 11 … 13 mm (inside)
HZ16.5-30 Mounting adapter concave, 16.5 … 30 mm (inside)
Z10-15 Mounting adapter convex, 10 … 15 mm (outside)
Z14.5-30 Mounting adapter convex, 14.5 … 30 mm (outside)
Z25-50 Mounting adapter convex, 25 … 50 mm (outside)
HK11-13 Ball mounting adapter ball, 11 … 13 mm (inside)
HK12.5-17 Ball mounting adapter ball, 12.5 … 17 mm (inside)
HK16.5-30 Ball mounting adapter ball, 16.5 … 30 mm (inside)
K14.5-30 Mounting adapter ball, 14.5 … 30 mm (outside)
K10-15 Mounting adapter ball, 10 … 15 mm (outside)
ex. VAT, ex. delivery costs
PC-compatible software for PCE-900 devices. Data cable included.
ex. VAT, ex. delivery costs
ISO recalibration for vibration meters is often required to comply with DIN ISO 9000.
If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.
