Surface Testing - Gloss Meter PCE-IGM 60 ICA incl. ISO calibration certificate

Order no.: PCE-IGM 60-ICA
GTIN (EAN): 4250348728043
US$ 1,868.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348728043
PCE-IGM 60-ICA
Available in: 10 - 14 days
Gloss

Description

Gloss meter for use in quality and incoming goods control /
60 ° measurement geometry / 3.5" TFT display / Fast measurement time /
Internal data memory / Including evaluation sofware

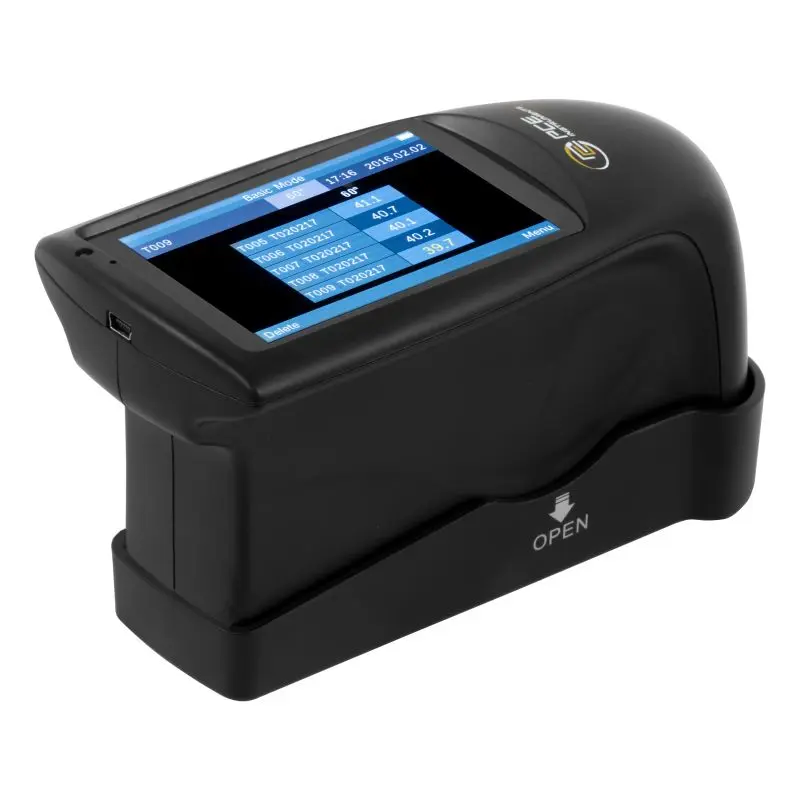

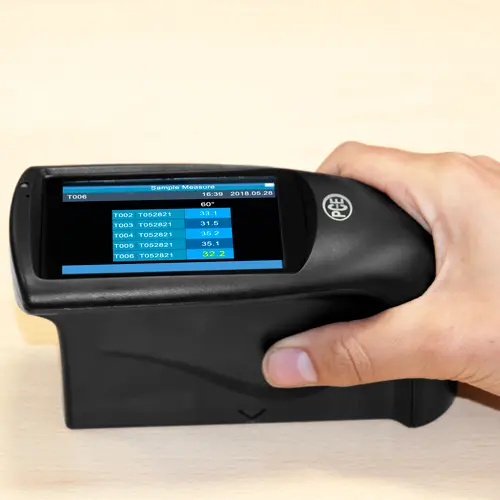

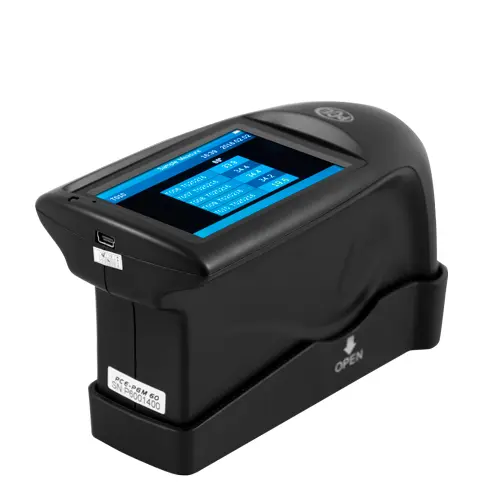

The gloss meter PCE-GM 60 is an optical measuring instrument with a measuring geometry of 60°. The surface is analyzed by the gloss meter and then the result is shown. Every surface has the characteristic to reflect light. This feature is used by the glossmeter to send light onto the surface. This happens when the gloss meter PCE-IGM 60 is at an angle of 60°. A large part of the transmitted light penetrates the surface and the remaining light particles are reflected from the surface. Then the gloss meter calculates which gloss value the surface has, by the light that is reflected.

The measured values thus obtained can be stored directly on the gloss meter. Using the supplied software, it is possible to read out the data at a later time on the computer and analyze it. The fact that the glossmeter has a measuring range up to 2000 measurement points ensures that the majority of surfaces can be measured with the gloss meter.


Highlights

- Measurement geometry 60°
- 3.5 " TFT
- Internal data memory
- Calibration plate supplied
- Fast measurement time
- With evaluation software
- Light source: D65
- Wave length: 400-700 nm

Specification

Measurement geometry60°

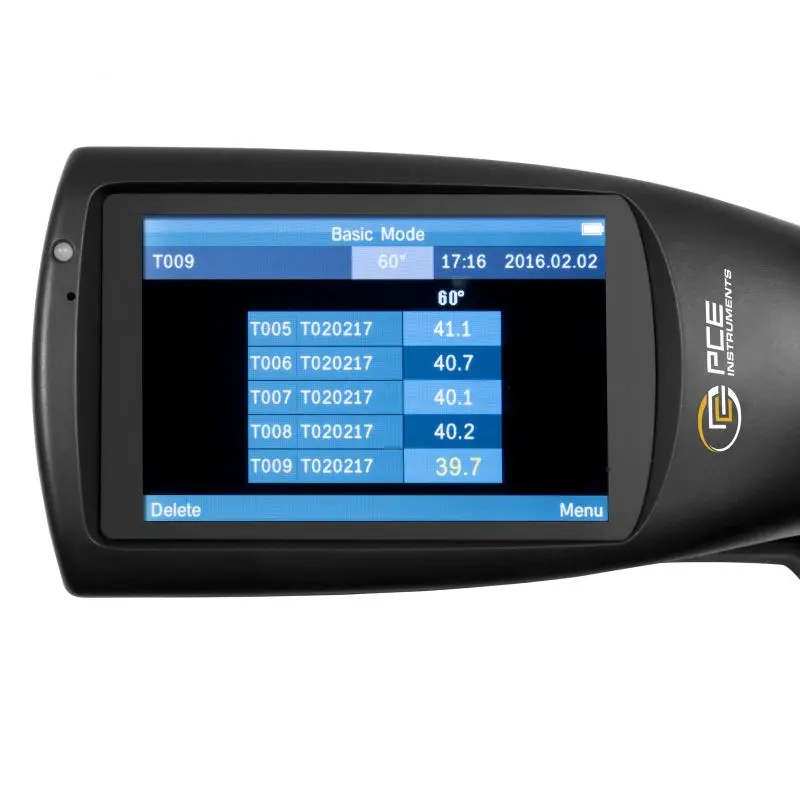

Display3.5 in TFT touch display
StandardsISO 2813
GB/T 9754
ASTM D 523
ASTM D 2457
Measuring surface9 x 15 mm / .4 x .6 in
Measuring range0 ... 300 GU
Readability0.1 GU
RepeatabilityMeasuring range 0 ... 10 GU: ±0.1 GU
Measuring range 10 ... 100 GU: ±0.2 GU
Measuring range 100 ... 300 GU: ±0.2 GU (%)
ReproducibilityMeasuring range 0 ... 10 GU: ±0.2 GU
Measuring range 10 ... 100 GU: ±0.5 GU
Measuring range 100 ... 300 GU: ±0.5 GU (%)
ChromaticityCorresponds to CIE 1931 (2°) under a CIE C - light source
Measurement accuracy±1.2 / ±1.2 %
Measuring time0.5 seconds
Dimensions160 x 75 x 90 mm / 6.3 x 3 x 3.4 in
Weight350 g / < 1 lb
Menu languageEnglish, Chinese
Power supply3200-mAh Li-ion rechargeable battery
InterfaceUSB / RS-232
Measurement memoryBasis measurement: 1000
Statistical mode: 5000
Continuous measurement: 5000
SoftwareIncluded
Operating temperature0 ... 40°C / 32 ... 104°F
Storage temperature-20 ... 50°C / -4 ... 122°F
Relative humidity< 85% rel. humidity (non-condensing)

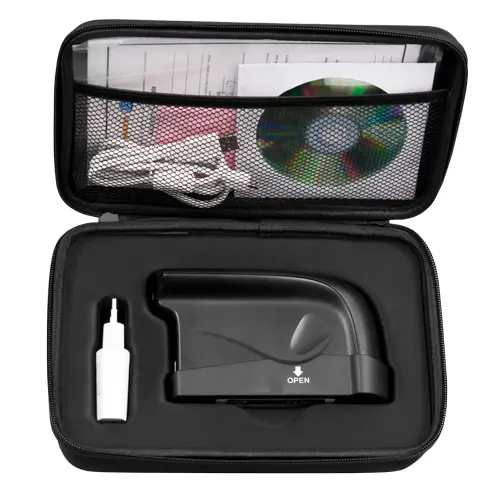

Delivery Scope

1 x Gloss Meter PCE-IGM 60
1 x Lithium-Ion-Battery
1 x Evaluation software (on CD-ROM)
1 x USB Cable
1 x Calibration plate
1 x Instruction manual

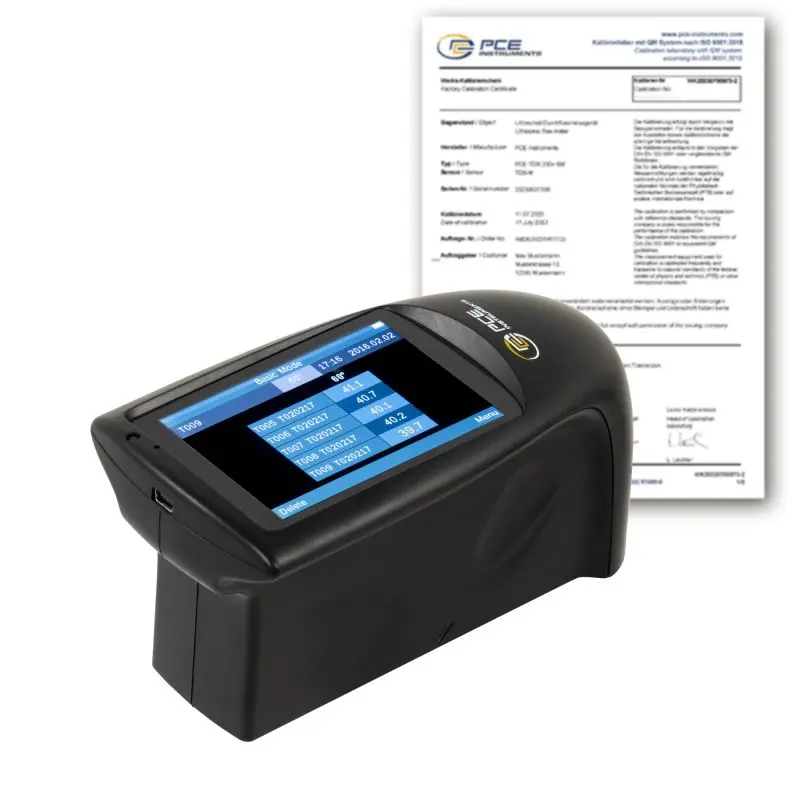

1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
