Order no.: PCE-318-ICA

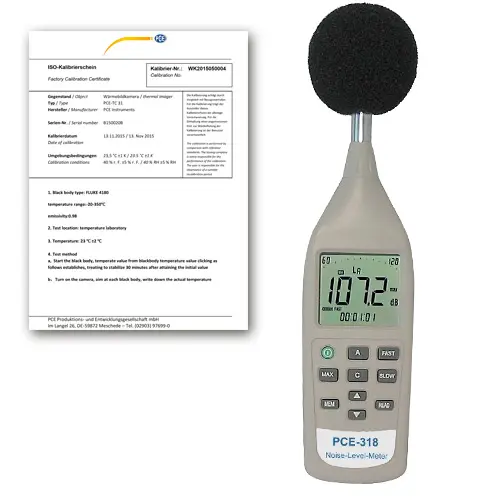

SPL Meter PCE-318-ICA incl. ISO Calibration Certificate

ISO Calibration
US$ 554.00
:
4250348700315
PCE-318-ICA
ex. VAT, ex. delivery costs
A / C
Battery powered
Class II
Yes
Fast / Slow
No
Sound / Noise Meter
Yes
Available in: 10 - 14 days

Description

SPL meter PCE-318 with a range between 26 ... 130 dB (A) and an analog output / recalibrated / Class II (accuracy ±1.5 dB)

The SPL meter PCE-318 detects the volume from a sound level of 26 dB (A). The meter is ideal for measuring very low noises, for example, noises from computer fans. The class II noise meter with jumbo display (and at a very good price / performance ratio) is ideal for measurements of sound and noise in different environments, at work, condition monitoring, etc.



Also known as the phonometer, this device is designed to IEC 651 Type II and has a very high accuracy of ± 1.5 dB. Another advantage of this meter is the analogue output. This allows the connection of an external data logger / recorder for long-term recording.


Highlights

- measuring range 26 ... 130 dB
-
6 measuring ranges selectable
- analog output (AC & DC) / usable in combination with optionally available data logger (see accessories)
- memory for 99 measured values, available in the display
- frequency range 31.5 Hz to 8 kHz
- large display with bargraph
- adjustable measuring ranges on the dB meter: Low & High
- A and C frequency rating
- fast and slow time evaluation
- Min- & Max Hold function
- Tripod mounting device
- including wind noise suppressor
- incl. ISO Calibration Certificate




Specification

Technical specifications
Measurement range26 ... 130 dB
Level range selection6 level ranges: 26 ... 80 dB, 30 ... 90 dB, 40 ... 100 dB, 50 ... 110 dB, 60 ... 120 dB, 70 ... 130 dB
Resolution0.1 dB
Accuracy±1.5 dB (ref. 94 dB at 1 kHz)
Frequency range31.5 Hz ... 8 kHz
Time weightingFast and Slow
Frequency weightingA and C
MemoryUp to 99 readings, available on the display
OutputAnalog, AC / DC
Operating conditions-10 ... +50 °C / +14 ... +122 °F, less than 90% RH
Storage conditions-10 ... +60 °C / +14 ... +140 °F, less than 75% RH
Power1 x 9 V battery (PP3)
WeightApprox. 260 g / 0.57 lb
DimensionsApprox. 264 x 68 x 27 mm / 10.39 x 2.68 x 1.06"
StandardsIEC 651 Type 2 Class 2

See user manual for complete technical specifications.

Delivery Scope

1 x SPL Meter PCE-318-ICA
1 x microphone windscreen
1 x calibration screw
1 x 9 V battery
1 x 3.5 mm jack for analog output
1 x carrying case
1 x user manual
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
