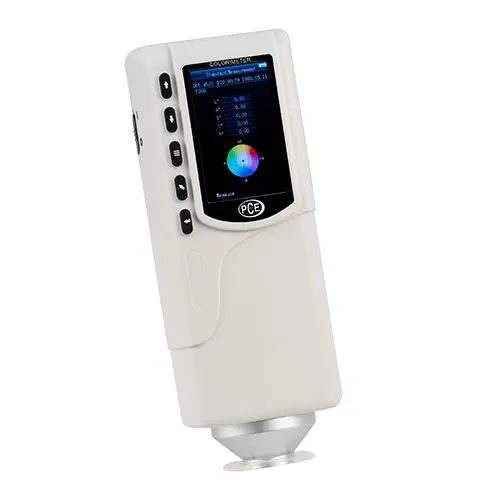

Spectrophotometer PCE-CSM 4

Order no.: PCE-CSM 4
US$ 1,910.00
ex. VAT, ex. delivery costs
Available in: 1-2 days
Spectrophotometer for quality control / digital software included / Li-ion battery /
black-and-white contrast calibratable / measuring modes for various parameters /
colour analysis of black, white, red, green, yellow and blue

The Spectrophotometer proves to be a good multitasking device. It is designed to measure the color spectrum of various objects. Light consists of a broad spectrum of colours which are not always purely white, black or blue. A light-source illuminates an object, which then absorbs part of that light and reflects another one. That reflected light can be then detected by a sensor in order to determine the reflected wavelengths and thus calculate its colour. Spectrophotometers are often applied in areas of quality control in industrial sectors. Spectrophotometer of the PCE-CSM series are applied especially in industries where the characteristics of colors play a big role. Whether it is dental technology, painting industries or for the production of plastic bags, the Spectrophotometer PCE-CSM 4 is an ideal product for quality management and thus assure highest reliability, whenever it is important to assure a certain standard in optic quality.

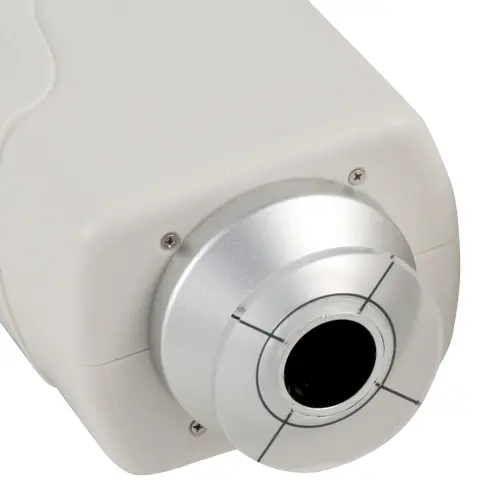

The Spectrophotometer supports an ergonomic design and features a user-friendly menu navigation. The Spectrophotometer PCE-CSM 4 has a large measuring aperture of 20 mm. The supported colour spaces of the Spectrophotometer PCE-CSM 4 are CIEL*a*b*C*h, CIEL*a*b and CIEXYZ. Thus the Spectrophotometer is designed for application in professional industries.

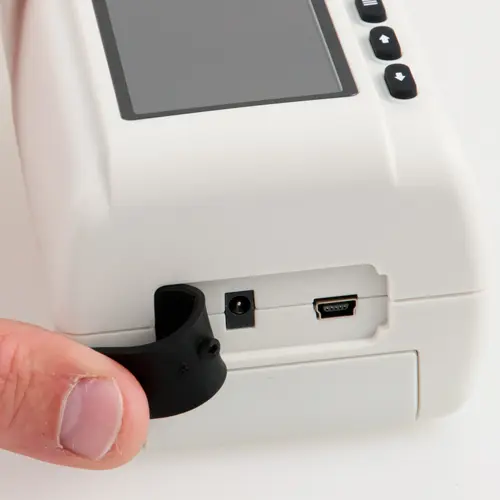

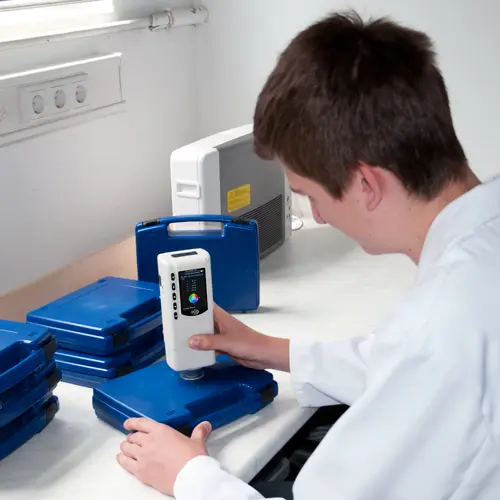

Another advantage of the Spectrophotometer of the PCE-CSM series is that it supports a vertical justification. This means that the whole device does not need to be placed on the object to analyse, but only the part with the sensor in it. The industrial perspective of it is that this method allows the measuring of damp objects, textiles and even food. The Spectrophotometer PCE-CSM 4 is therefore ideally applied for measurements of e.g. meat, bananas or tomatoes. Due to the software "CQCS3" that is included in the delivery, the measured data can be read out on a computer or laptop for a digital overview.

- Rechargeable Lithium-Ion battery
- Autom. calibration of black-and-white contrast
- Continuous performance
- Designed for food industry
- Measures various colours
- Application on different surfaces
- Simplified user-interface
- Software included in delivery

Measuring Geometry

Measuring apertures


Ø20 mm (PCE-CSM 4)



Colour spaces

CIEL a* b*

Formula for indifference in colour


Light source


Type of light source


Data memory

100 standards, 20000 samples

Aberrance in-between the utilities

≤0.50 ΔE*ab

Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate


500 g / 17.6 oz


205 x 67 x 80 mm / 8.07 x 2.6 x 3.14 in

Power Supply

rechargeable lithium-ion-batteries
3.7 V at 3200 mAh

Charging time

8 hours

Battery operation time

approx. 5000 measurements

Lifetime of lamp

5 years, more than 1.6 million measurements

Temperature range

0 ... +40 °C / 32 ... +104 °F

Relative humidity

0 ... 85 %, non-condensing

The L*a*b color space

Colorimeter NR145 and NR20XE: Color Spaces

Here you can see the colour space L*a*b. This colour space covers all colors that are visible with the naked eye. L=100 stands for white and L=0 for black. "a+" and "a-" or "b+" and "b-" stands for the colour contrasts red, green, yellow and blue.

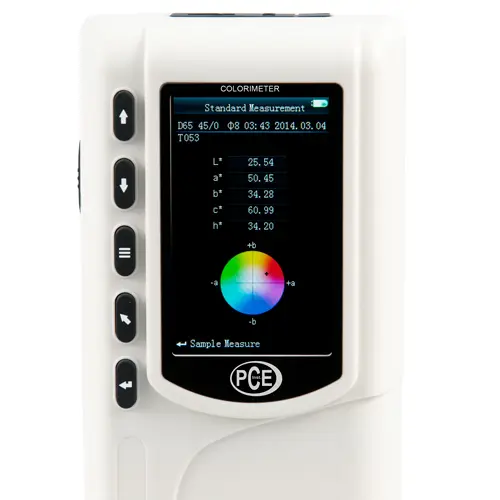

Main Functions of the Colorimeter PCE-CSM 4

The menu of the Colorimeter PCE-CSM 4 contains all characteristics and settings that can be performed at the Colorimeter PCE-CSM 4. Such are the basic settings like time, language, date, but also settings about the recording and the colour spaces that shall be displayed by the Colorimeter PCE-CSM 4.

1 x Spectrophotometer PCE-CSM 4
1 x USB cable
1 x battery
1 x AC Mains adapter
1 x Wrist band
1 x Standard calibration plate white
1 x Computer software
1 x Instruction manual
1 x Soft carry case
