Order no.: PCE-675

Pyrometer PCE-675 incl. Type K

Question / Callback

Available in: 1-2 working days

Description

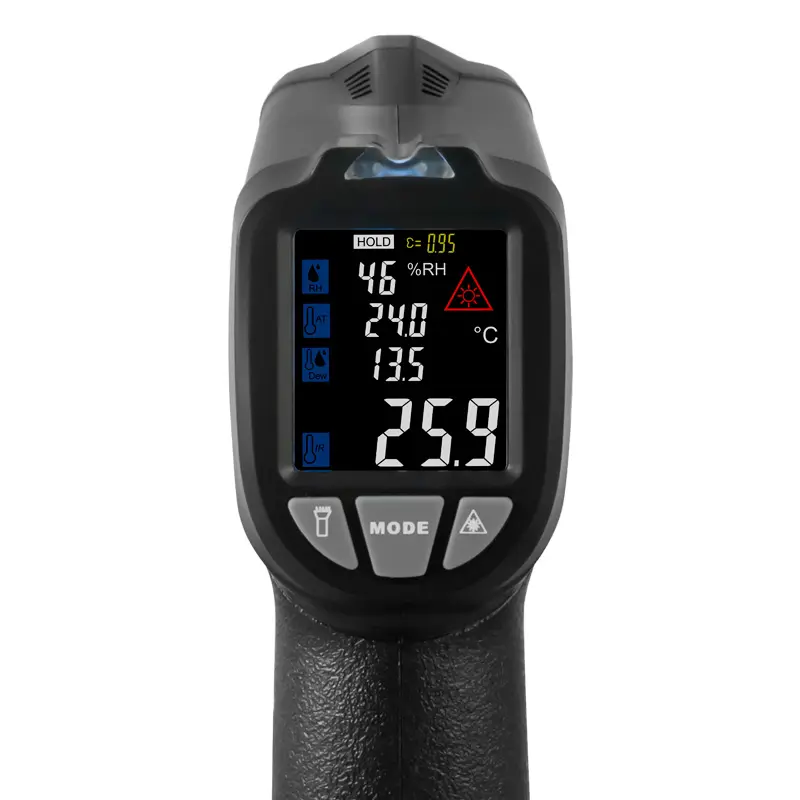

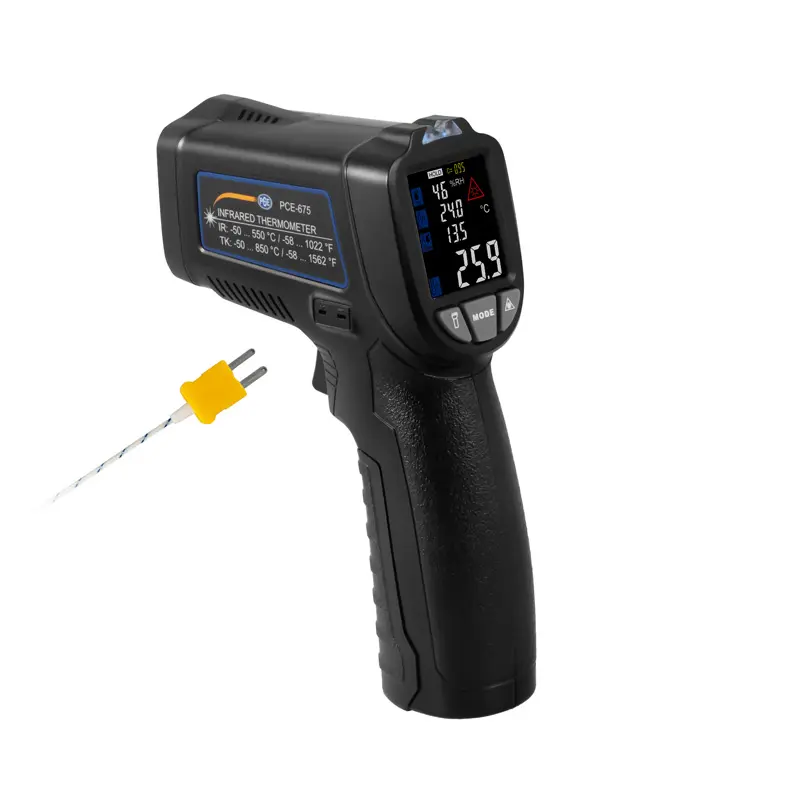

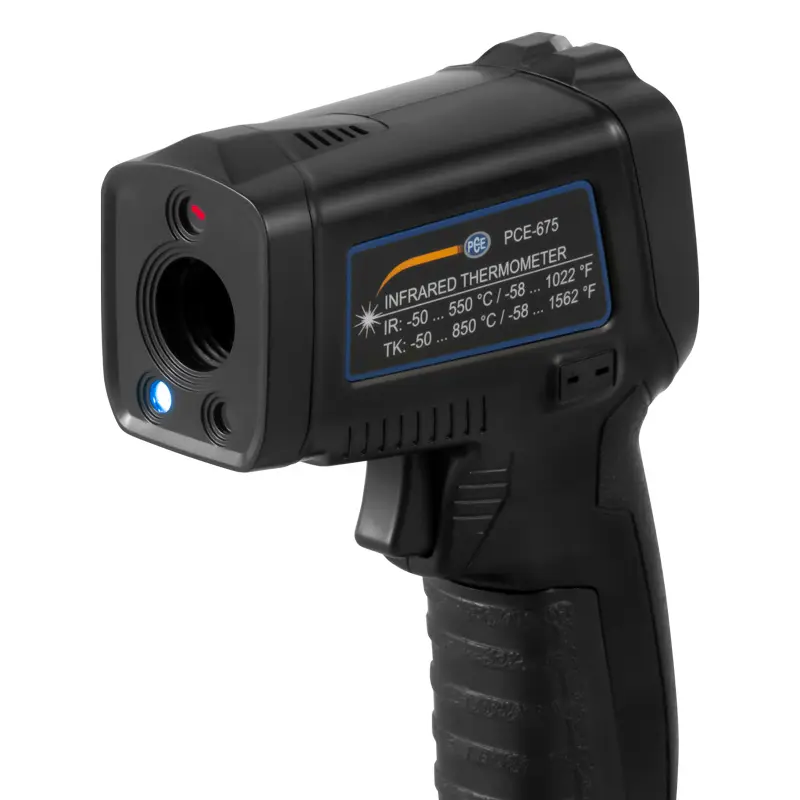

Pyrometer PCE-675

Easy-to-use infrared thermometer with red laser pointer / Measuring input for K-type / Surface temperatures / Air temperature / Humidity / Dew point temperature

The pyrometer has a 13:1 spot-to-spot ratio and can accurately measure surface temperatures and ambient humidity over a very long distance. The pyrometer brings advantages, such as a simple operation and a red sighting laser. These features allow the near perfect alignment of the pyrometer for accurate measurements.

The pyrometer is universally applicable. The integrated flashlight allows the measuring point to be illuminated in the dark. The individual settings of the pyrometer allow a wide range of temperatures and humidity to be measured. The pyrometer does not have a fixed emission value, but has a setting span of 0.1 to 1.0, thus covering more than 90% of all temperature measurement tasks.

Highlights

- Low measurement sequence

- Emissivity adjustable between 0.1 and 1.0

- Automatic shutdown

- Switchable laser sighting aid

- Measured value display selectable between °C and °F

- Different exhibition settings

- Battery operation

- Compact and robust design

Specification

Measuring function	Infrared
Measuring range	-50 ... 550 °C
Resolution	≤ 1000 °C/°F: 0.1 °C/°F
	> 1000 °C/°F: 1 °C/°F
Accuracy	-50 … 0 ºC: ± 3 ºC
	> 0º C: ± 1.5 % or ± 2.0
	the larger value counts

Measuring function	Type K
Measuring range	-50 … 850 ºC
Resolution	≤ 1000 °C/°F: 0.1 °C/°F
	> 1000 °C/°F: 1 °C/°F
Accuracy	± 1.5 % or ± 1.5 °C
	the larger value counts

Measuring function	Air temperature
Measuring range	-20 … 60 ºC
Resolution	0.1 °C
Accuracy	0 … 40 ºC: ± 1.0 ºC
	Other: ± 2 °C

Measuring function	Humidity
Measuring range	0 … 100 % r.H.
Resolution	1 %
Accuracy	35 … 75 % r.H.:
	± 3.0 % r.H.
	Other: ± 5 % r.H.

Measuring function	Dew point
Measuring range	-20 … 60 ºC
Resolution	0.1 °C
Accuracy	25 ºC, 40 … 80 % r.H.: ± 1.5 ºC

	Wet bulb temp.
Measuring range	-20 … 60ºC
Resolution	0.1 °C
Accuracy	25 °C: ± 1.5 °C

Emissivity	adjustable between 0.1 and 1.0
Optical resolution	13 : 1
Response time	≤ 500 ms
Spectral sensitivity	8 … 14 um
Laser	≤ 1 mW, 630 … 670 nm, class 2 laser
Automatic shutdown	after one minute
Operating conditions	0 … 50 ºC / ≤ 95% r.H.
Storage conditions	-20 … 70 ºC / ≤ 80 % r.H.
Power supply	9 V battery
Weight	ca. 130 g

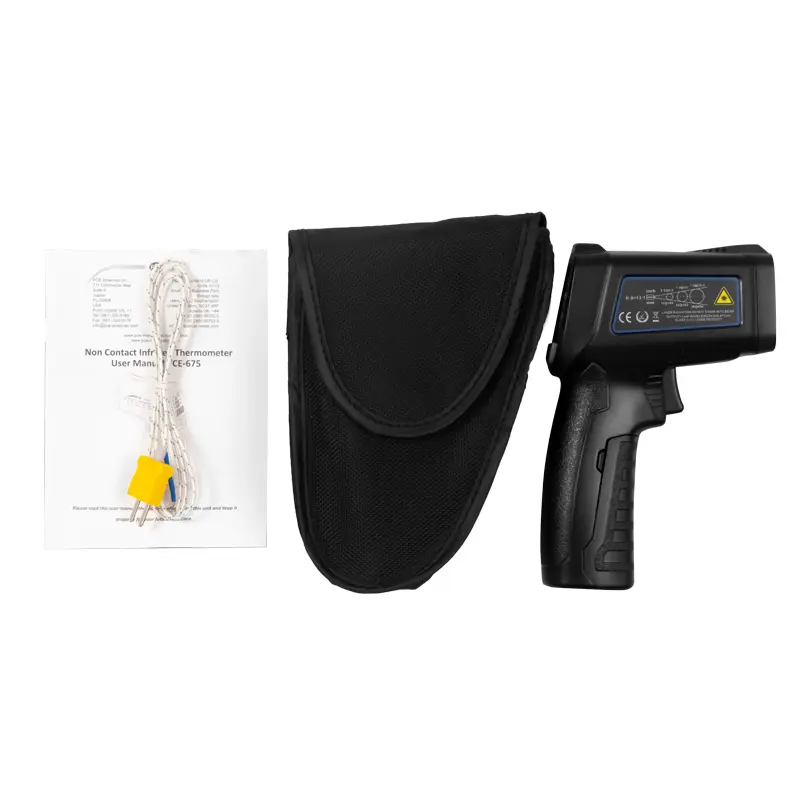

Delivery Scope

1 x Pyrometer PCE-675
1 x Thermocouple Type-K
1 x 9 V block battery
1 x Carrying bag
1 x User manual

Downloads

Manual

Datasheet

Accessories

Infrared Thermometer

ISO Calibration Certificate for Infrared Thermometer

US$ 160.00

ex. VAT, ex. delivery costs

ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this purpose, we give the measuring device to our in-house calibration laboratory. As the client, the measured values and the serial number are recorded in this ISO calibration certificate.

4 measuring points evenly distributed over the measuring range
Calibration range: 30 … 500 °C
Calibration applies to infrared sensors onlyN.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
