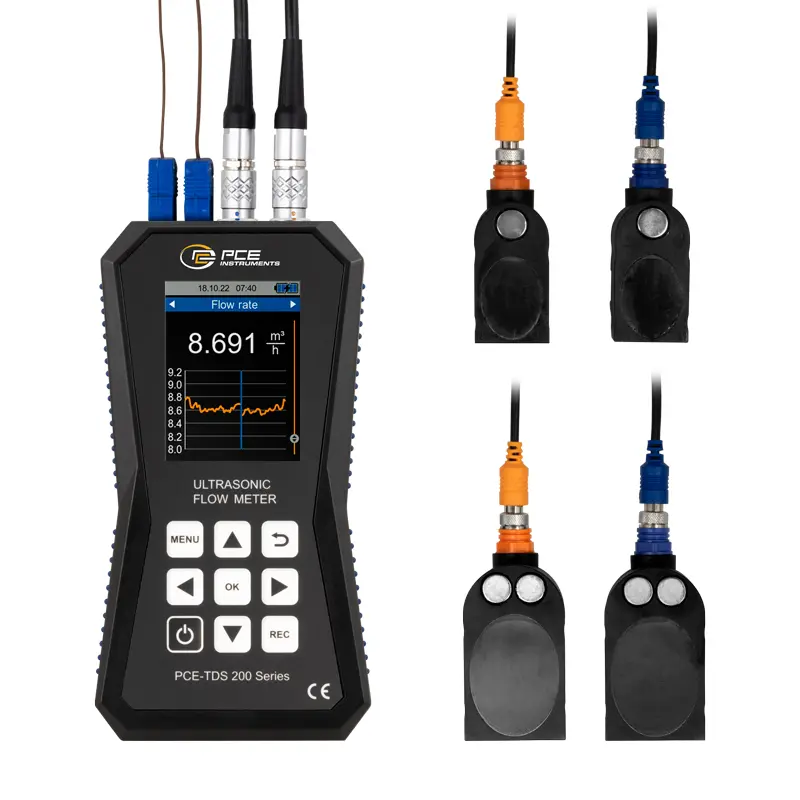

  5. Portable Ultrasonic Flow Meter PCE-TDS 200+ ML
Order no.: PCE-TDS 200+ ML

Portable Ultrasonic Flow Meter PCE-TDS 200+ ML

US$ 4,382.00
:
4250348731371
PCE-TDS 200+ ML
ex. VAT, ex. delivery costs
Available in: 5-7 working days

Description

Ultrasonic flowmeter with 32 GB data memory / measuring range ±32 m/s /
reproducibility ±0.5 % of measured value / different measuring probes / alarm limit values /
2.8 " LC display / for all media / optionally with DAkkS or ISO calibration certificate

The ultrasonic flowmeter has a measuring range of ±32 m/s. With an accuracy of ±1.5 % f.s. for a pipe diameter of DN ≥50, ±3.5 % f.s. for a pipe diameter of DN <50 and a reproducibility of ±0.5 % f.s., the Portable Ultrasonic Flow Meter is a particularly precise measuring device. An installation aid is available for installing the sensors of the Portable Ultrasonic Flow Meter. The installation aid graphically displays the signal quality of the Portable Ultrasonic Flow Meter. In addition, it is graphically displayed whether the sensors of the Portable Ultrasonic Flow Meter are positioned at the correct distance from each other. To carry out flow measurements with the Portable Ultrasonic Flow Meter, the flow velocity, the volume flow and the volume are displayed after entering the pipe and medium specifications. The Portable Ultrasonic Flow Meter displays the measured values in a wide range of units. For example: m³, l, gal, igl, mgl, cf, bal, ib and ob.

During a measurement, it is possible to record the measured values via the data logger function of the Portable Ultrasonic Flow Meter. Start and stop conditions and the storage interval can be set from 1 second to 12 hours for the Portable Ultrasonic Flow Meter. A memory point of the Portable Ultrasonic Flow Meter contains all measured values once. The measured values are stored on the 32 GB built-in memory of the Portable Ultrasonic Flow Meter. 10 million measuring points can be stored on the Portable Ultrasonic Flow Meter.

With the optional software, the recorded measured values can be read out from the Portable Ultrasonic Flow Meter. For analysis, the measured values from the Portable Ultrasonic Flow Meter can be displayed in tabular and graphic form. For further processing of the measured values from the Portable Ultrasonic Flow Meter, they can be exported in .csv file format. Alternatively, a PDF report can be created via the software. For simplified operation, the Portable Ultrasonic Flow Meter can be set via the software. A live view of the measured values from the Portable Ultrasonic Flow Meter is also possible with the software.

In order to determine the amount of heat with the Portable Ultrasonic Flow Meter, two additional thermocouples are required. These are available with the PCE-TDS 200+. The two thermocouples of the Portable Ultrasonic Flow Meter are connected to the flow and return of a pipe system. Based on the temperature difference and the measured flow rate, the Portable Ultrasonic Flow Meter can determine the amount of heat. If required, the Portable Ultrasonic Flow Meter can calculate and display the costs per unit of heat simultaneously during the measurement. Thus, the Portable Ultrasonic Flow Meter is used, for example, in the inspection of heating systems.

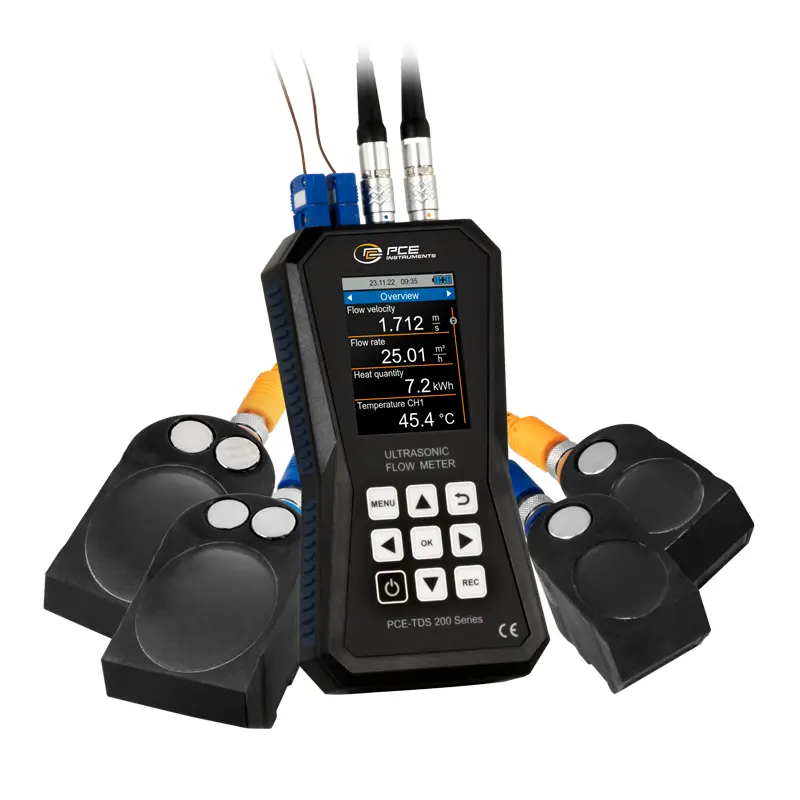

The LC colour display of the Portable Ultrasonic Flow Meter has a size of 2.8" and is therefore easy to read. Optionally, the Portable Ultrasonic Flow Meter can be equipped with an ISO or DAkkS calibration certificate.

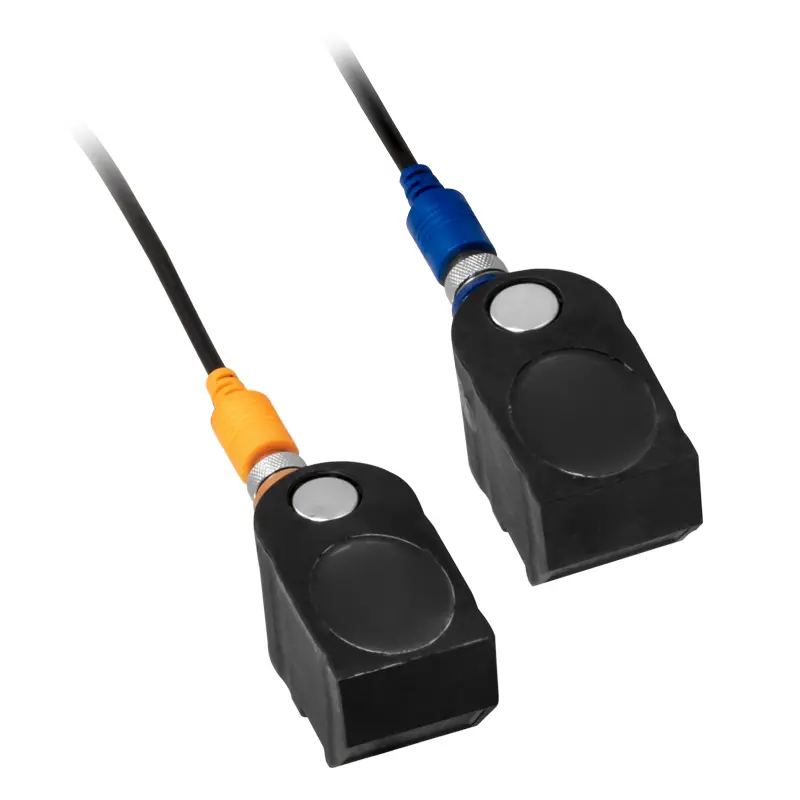

PCE-TDS 200 M SENSOR
Medium sensor pair for pipe diameters DN 50 ... 700 / 57 ... 720 mm. Suitable for flow measurement on medium-sized pipes. The sensors of the Portable Ultrasonic Flow Meter can be attached to ferrous pipes with the built-in magnets. Alternatively, the sensors can be mounted to the pipe with detachable cable ties. The temperature resistance is between -30 ... 160 °C.

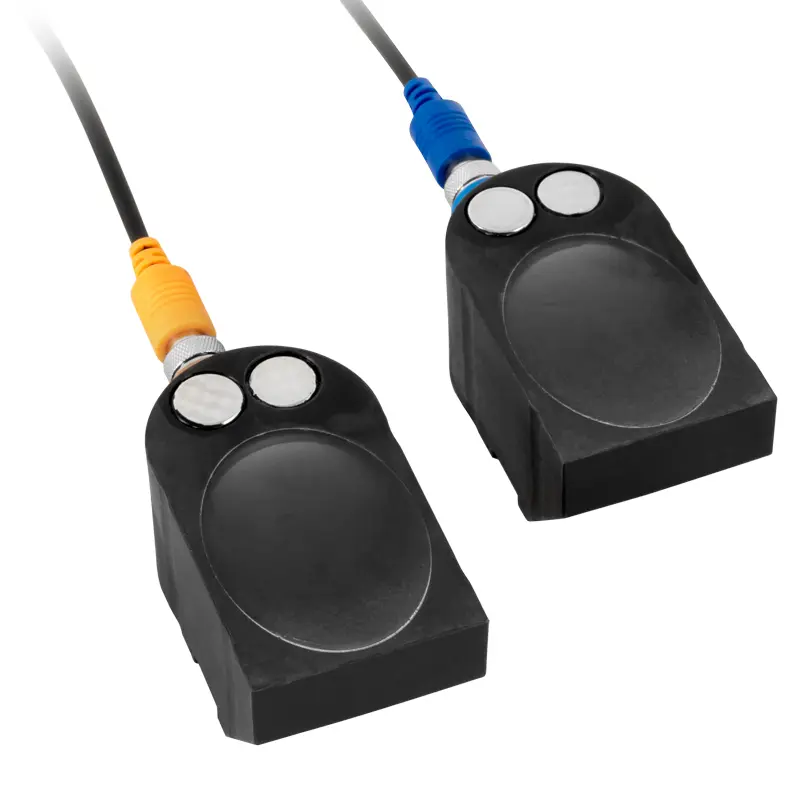

PCE-TDS 200 L SENSOR
Large sensor pair for pipe diameters DN 300 ... 6000. 6000. This sensor pair is therefore suitable for particularly large pipes. The sensors can be attached to the Portable Ultrasonic Flow Meter with detachable cable ties. Thanks to the built-in magnets, the sensors can be attached to pipes with ferrous metal. The sensors have a dimension of 91 x 52 x 44 mm.

Highlights

- Messbereich ±32 m/s
- USB-C Schnittstelle zur Datenübertragung
- optionale Software zur Analyse der Messwerte
- Reproduzierbarkeit ±0,5 % vom Messwert
- Wärmemengenmessung
- Datenspeicher für 10 Millionen Messpunkte
- individuell einstellbare Alarmgrenzwerte
- optional mit ISO oder DAkkS Kalibrierzertifikat

Specification


Flow measurement
Measuring range ±32 m/s
Accuracy 0,001 m/s
Genauigkeit DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s
  DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s
Reproducibility ±0.5 % of measured value

PCE-TDS 200 S SENSOR Sensor pair
Pipe diameter DN 15 ... 100 / 20 ... 108 mm
Temperature resistance -30 ... 160 °C
Dimension 45 x 30 x 30 mm

PCE-TDS 200 M SENSOR
Pipe diameter DN 50 ... 700 / 57 ... 720 mm
Temperature resistance -30 ... 160 °C


Measuring method Z, V, N, W
Medium - water
  - sea water
- oil
  - crude oil
  - methanol
  - ethanol
  - diesel
  - petrol
  - petroleum
  - user defined
  (manual input of the sound velocity from the medium)

All liquids with an impurity <5 %
Pipe material - copper CU
  - steel FE
  - stainless steel VA
  - aluminium AL
  - brass ME
  - cast iron CI
  - iron FE
  - nickel NI
  - titanium TI
  - zink ZI
- acrylic AC
  - polyethylene PE
  - polypropylene PP
  - polyvinyl chloride PVC
  - nylon NY
  - user defined
(manual input of the transversal sound velocity
  of the pipe material)

Inner pipe lining - no lining
  - user defined
  - epoxy resin
  - rubber
  - mortar
  - polystyrene PS
  - polyethylene PE
  - polytetrafluoroethylene PTFE
- polyurethane PU
  - polypropylene PP
  - user defined
  (manual input of the longitudinal sound velocity
  of the inner lining of the pipe)

Measurement parameters flow velocity, volume flow and volume
Units (dimensions) mm, in
Units (flow velocity) m/s, ft/s
Units (volume flow) m³, l, gal, igl, mgl, cf, bal, ib, ob
Time specification seconds, minutes, hours, days
Units (volume) m³, l, gal, igl, mgl, cf, bal, ib, ob

Temperature measurement
Measuring range Accuracy
Type B: 600 ... 1800 °CType B: ±(0.5 % + 3 °C)
Type E: -100 ... +900 °CType E: ±(0.4 % + 1 °C)
Type J: -100 ... 1150 °CType J: ±(0.4 % + 1 °C)
Type K: -100 ... +1370 °CType K: ±(0.4 % + 1 °C)
Type N: -100 ... + 1150 °CType N: ±(0.4 % + 1 °C)
Type R: 0 ... 1700 °CType R: ±(0.5 % + 3 °C)
Type S: 0 ... 1500 °CType S: ±(0.5 % + 3 °C)
Type T: -100 ... +400 °CType T: ±(0.4 % + 1 °C)

Resolution 0.1 °C
Connectable thermocouples B, E ,J ,K ,N ,R ,S ,T
Measuring parametersflow rate, volume flow, volume, temperature,
 Heat output and heat quantity
Units (temperature) °C / °F
Units (heat quantity)K, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu
Units (heat output)W, kW, MW, J/h, kJ/h MJ/h, Btu/h, kBtu/h, MBtu/h
Cost displayEUR, Pound, USD, Turkish Lira, Zloty, Yen

Further specifications
2.8" LCD 2,8“ LCD
Menu metrisch / imperial
Menu languages German, English, French, Spanish,
  Italian, Dutch, Portuguese, Danish, Turkish, Polish, German
  Turkish, Polish, Russian, Chinese, Japanese
Operating and storage conditions  Temperature: -20 ... +65 °C
  Humidity: 10 ... 95 % r. h., non-condensing
Data logger 32 GB memory capacity / 10 million measuring points
 Unterface USB (for online measurement, readout of the internal memory
  memory and for recharging the battery)
Protection class IP52
Power supply Internal Internal: LiPo battery (3.7 V, 2500 mAh)
  External: USB 5 VDC, 500 mA
Operating time approx. 10 h
Dimensions 165 x 85 x 32 mm
Weight 255 g

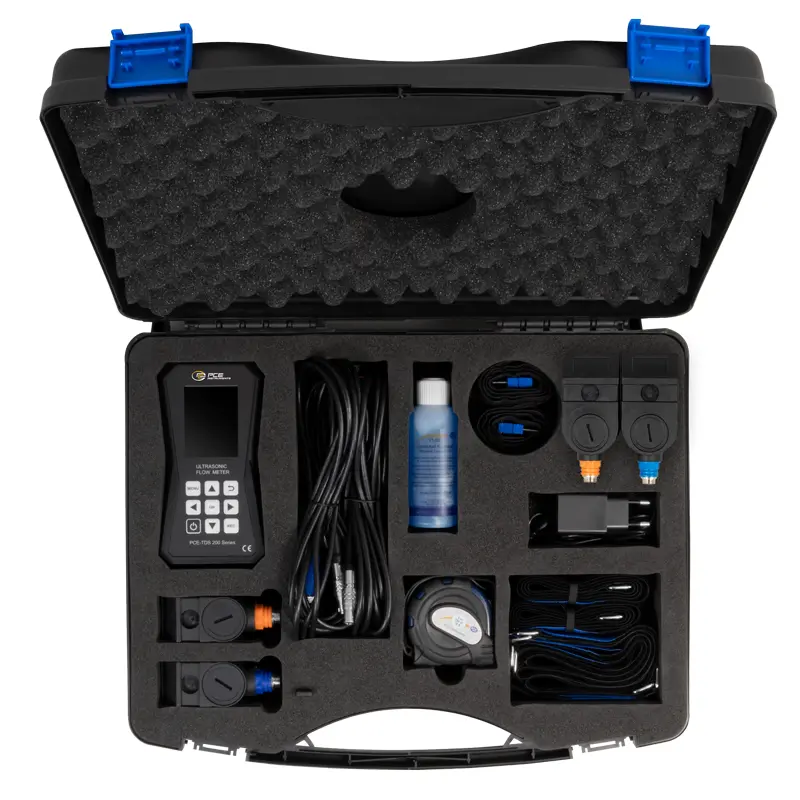

Delivery Scope

1 x Ultraschall Durchflussmessgerät PCE-TDS 200+ ML
1 x Durchflusssensoren PCE-TDS 200 M SENSOR (Paar)
1 x Durchflusssensoren PCE-TDS 200 L SENSOR (Paar)
2 x Temperatursensor TF-RA330
2 x 5 m Verbindungskabel
2 x lösbarer Kabelbinder
1 x Netzteil
1 x USB-C Kabel
1 x Ultraschall-Kontaktgel
1 x PCE-Maßband
1 x Kunststoffkoffer
1 x Bedienungsanleitung
