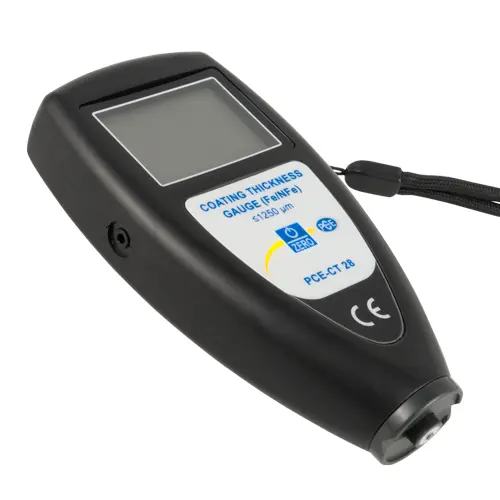

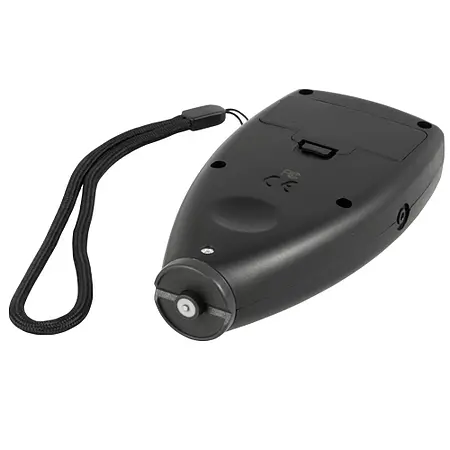

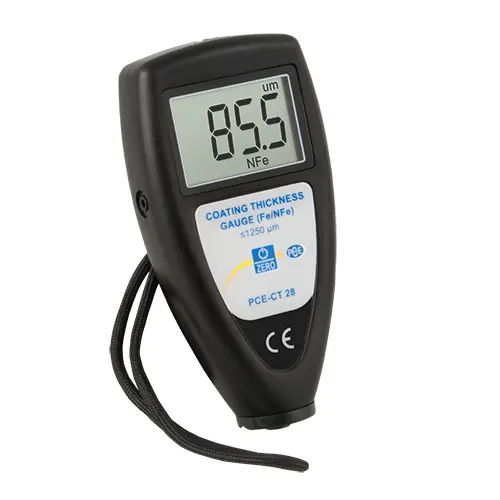

Material Thickness Meter PCE-CT 28
Determines thickness of coating on steel or iron (F) / Non-ferrous metals (N) with high range of measurement

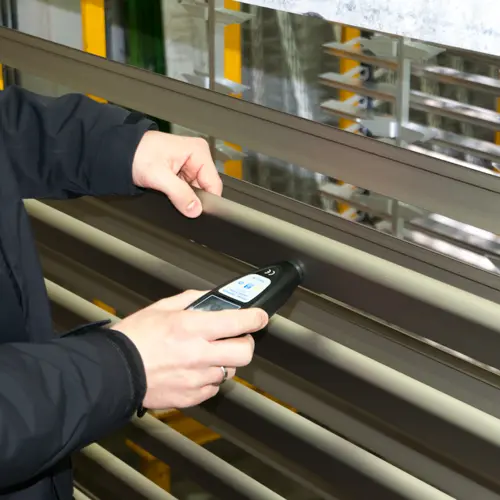

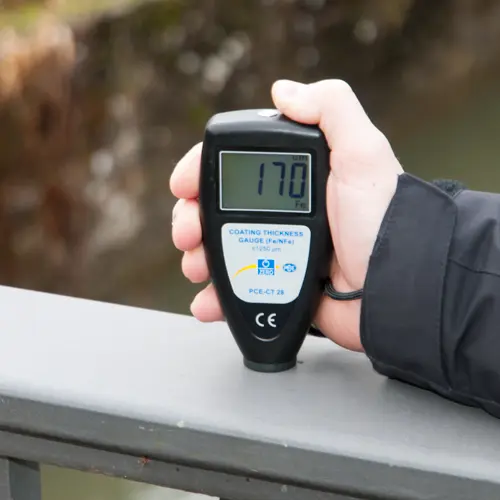

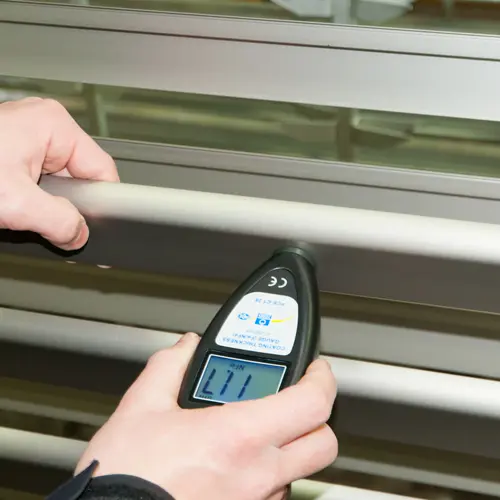

The material thickness meter for cars is for measuring the thickness of paint and plastic on ferrous or non-ferrous materials without damaging the coating's surface. The material thickness meter stands out due to its high range of measurement. This material thickness meter works excellently as a tool for technicians in areas of paint or lacquering such as in production, automotive body repair or quality control. The material thickness meter is particularly useful in detecting damage to vehicles produced by an accident, for preventing possible damage or as a toll in auto body repair. Also, in the industrial sector, this device is essential for quality control in shipping and receiving and during production. It is ergonomic with an integrated sensor and it shows results of measurements quickly and accurately. The material thickness meter was designed for non-magnetic coatings such as plastic, chrome, zinc, copper, etc. and insulation such as rubber, plastic, glass and paper over steel, iron, aluminium, brass and stainless steel. Thanks to its wide measurement range, the material thickness meter is ideal for the naval and metal industries.
| Measurement range | 0 ... 1250 µm / 49.2 mils |
| Resolution | 0.1 µm / 0.004 mils (in a range of 0.0 to 99.9 µm / 3.9 mils) 1 µm / 0.04 mils(above the range) |
| Accuracy | ±2 % or 2.5 µm / 0.10 mils (highest reading is valid) |
| Minimum surface measurable | 6 mm x 6 mm / 0.2 in x 0.2 in |
| Minimum radial curve | convexed: 5 mm / 0.2 in concaved: 60 mm / 2.4 in |
| Minimum thickness of material | 0.3 mm / 0.01 in (for ferrous materials) 0.1 mm / 0.004 in (for non-ferrous materials) |
| Display | LCD with 4 mm x 10 mm (0.2 in x 0.4 in) high digits |
| Operating temperature | 0 ... 50°C / 32 ... 122°F |
| Power | 4 batteries |
| Dimensions | 126 x 65 x 27 mm / 5.0 x 2.6 x 1.1 in |
| Weight | 120 g / 0.26 lbs with batteries |

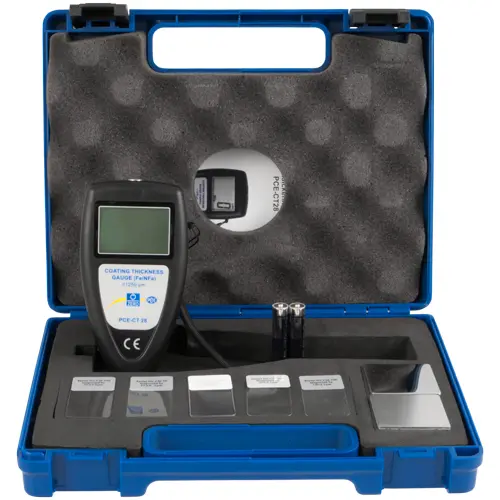

1 x Material Thickness Meter PCE-CT 28
1 x Carrying case
4 x Batteries

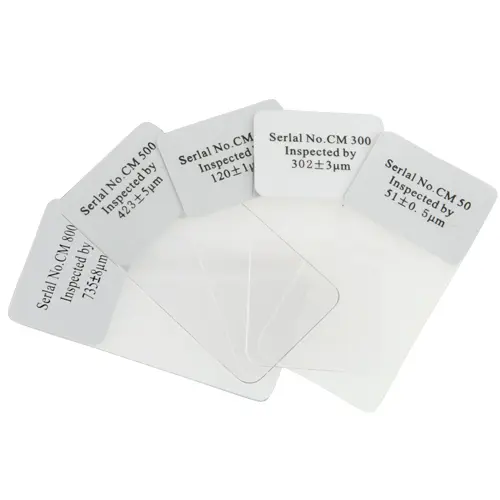

1 x Set of calibration standards
1 x User's manual

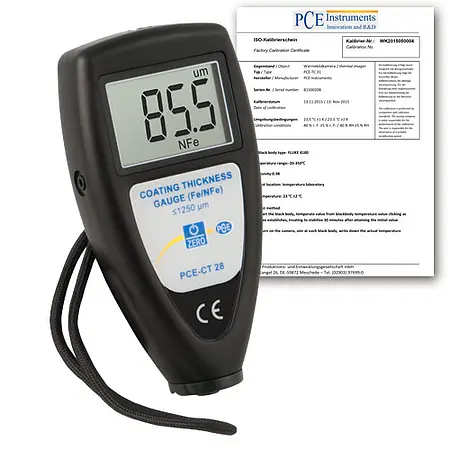

1 x ISO Calibration Certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
ex. VAT, ex. delivery costs
ISO re-calibration incl. certificate for coating thickness meter. This is often required to comply with DIN ISO 9000.
If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.
*US calibration certificate is ISO 17025** Calibration certificates are issued specifically for the customer and are excluded from the right of return
