IoT Sensor PCE-HWA 20BT

Order no.: PCE-HWA 20BT
Wireless
US$ 297.00
4250348723383
PCE-HWA 20BT
ex. VAT, ex. delivery costs
Available in: 1-2 days
IoT Sensor with Bluetooth interface / Measuring range 0 ... 30 m / s / Adjustable telescopic rod with a length of 390 mm (15.4 in) / Temperature and humidity measurement

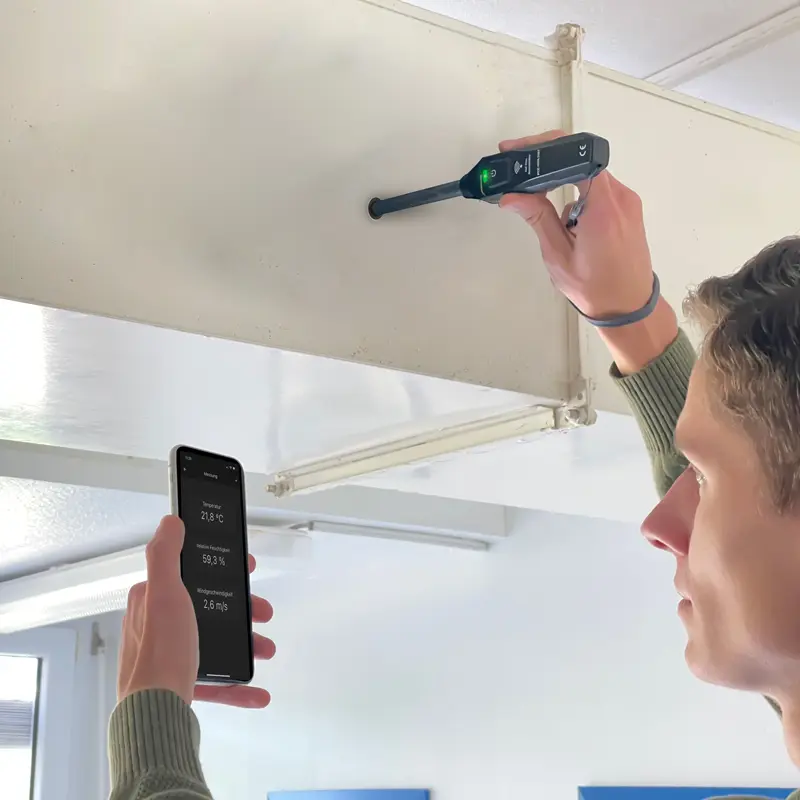

The IoT sensor has a measuring range of 0 ... 30 m / s. In addition to the air flow, the IoT sensor can also measure the ambient temperature between -20 ... 60°C / -4 ... 140°F and the ambient humidity between 0 ... 100% RH. The telescopic arm can be extended up to a length of 390 mm / 15.4 in. The IoT sensor is part of the basic equipment of a ventilation technician for regulating and controlling ventilation systems.

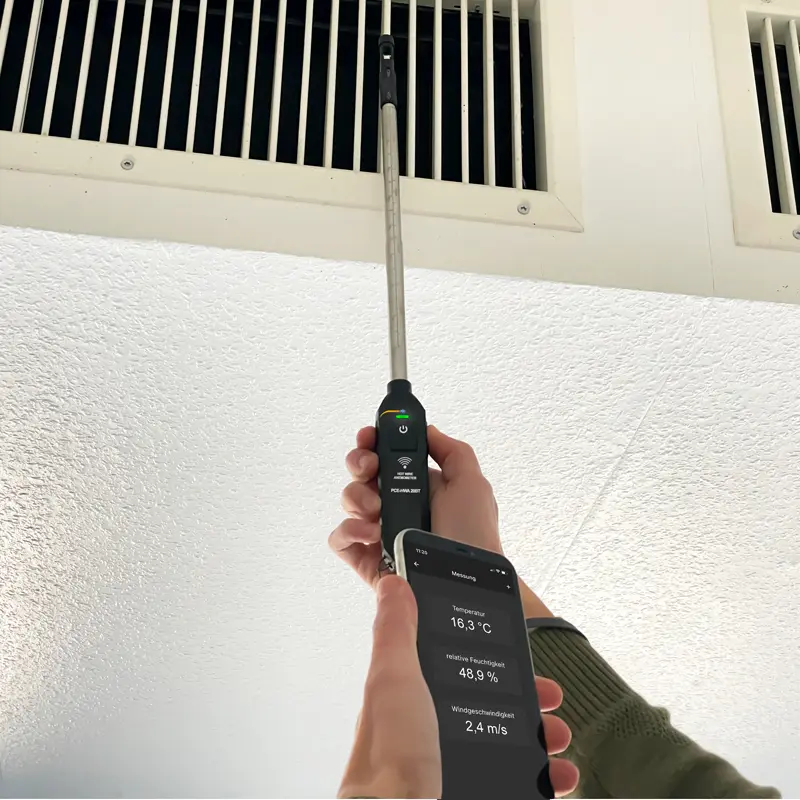

The IoT sensor can be connected to an Android or iOS device via the Bluetooth 4.0 data interface. With the free app, all sensors can be read out by the IoT sensor. In addition to the normal view of all measurement parameters from the IoT sensor, the measurement values ​​can also be displayed graphically. Another function is the data recording of the app. This means that all measured values ​​that have been measured by the IoT sensor are saved directly. After a measurement, the data can be exported as a CSV file.

- Bluetooth 4.0 interface
- Battery operation
- Telescope diameter 12 mm

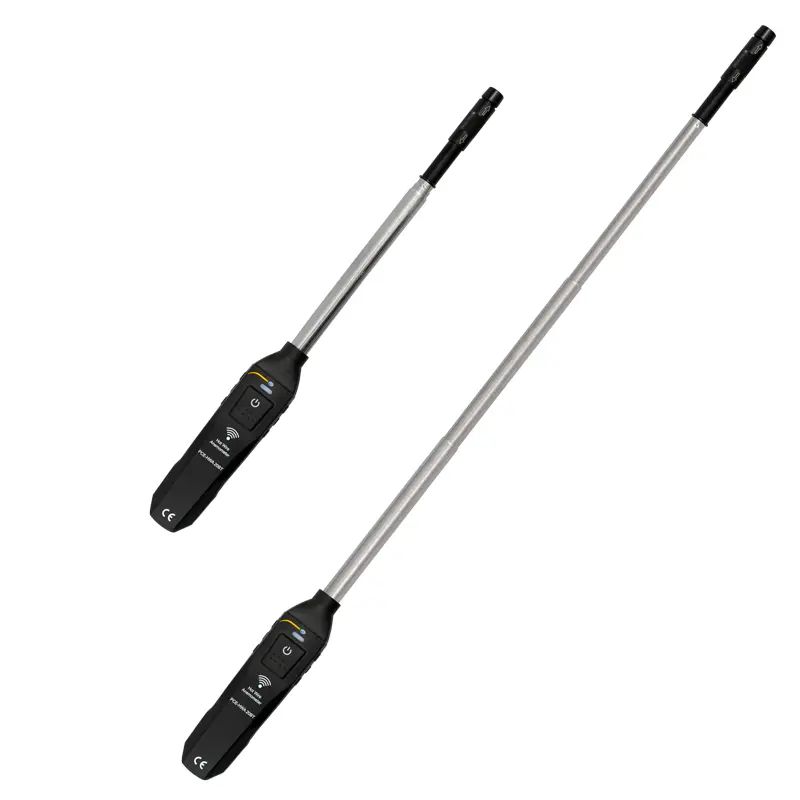

- 390 mm / 15.4 in telescopic pole
- Measuring range 0 ... 30 m / s
- Compact design
Wind speed
Measuring range0.00 ... 30.00 m / s
Resolution 0.01 m / s
Measurement Accuracy ± 0.1 m / s ± 5%, between 0 ... 5 m / s
 ± 0.3 m / s ± 5%, between 5 ... 30 m / s

Temperature
Measuring range-20 ... 60°C, -4 ... 140°F
Resolution 0.1°C / °F
Measurement  Accuracy ± 0.8°C / 1.4°F, between -20 ... 0°C / -4 ... 32°F
 ± 0.5°C / 0.9°F, between 0 ... 60°C / 32 ... 140°F

Humidity
Measuring range0 ... 100% RH
Resolution0.1%  RH
Measurement Accuracy± 3.5% RH, between 20 ... 80%  RH
 ± 5%  RH, between 0 ... 20 RH and
 80 ... 100%  RH

InterfaceBluetooth 4.0
Power supply3 x 1.5V AAA batteries
Telescope length390 mm / 15.4 in
Telescope Diameter     12 mm
Environmental Conditions    -20 ... 60°C / -4 ... 140°F, < 90% RH, non-condensing
Dimensions325 x 35 x 22 mm / 12.8 x 1.4 x 0.9 in (retracted)
 525 x 35 x 22 mm / 20.7 x 1.4 x 0.9 in (extended)
Weight83 g / < 1 lb

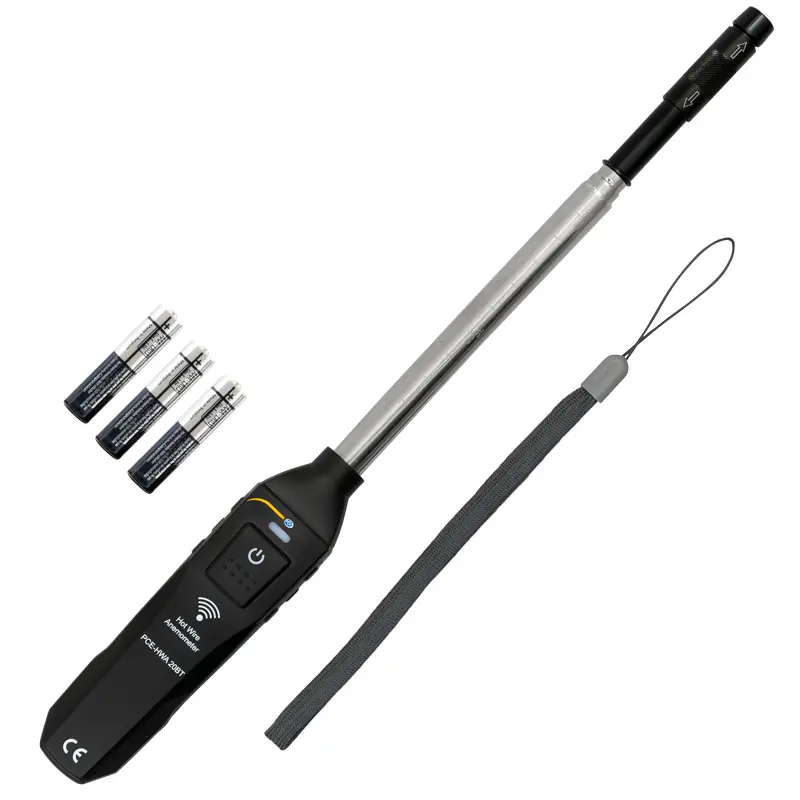

1 x IoT Sensor PCE-HWA 20BT
3 x 1.5V AAA batteries
1 x Wrist loop
1 x Instruction manual
