HVAC Meter PCE-VT 3900S

Order no.: PCE-VT 3900S
US$ 1,713.00
PCE-VT 3900S
ex. VAT, ex. delivery costs
Available in: Available soon!
HVAC meter with internal memory / Route measurement /
Rechargeable battery / Software for evaluating the stored data /
Measuring range up to 399.9 m/s² / PC interface / Optionally with ISO calibration certificate

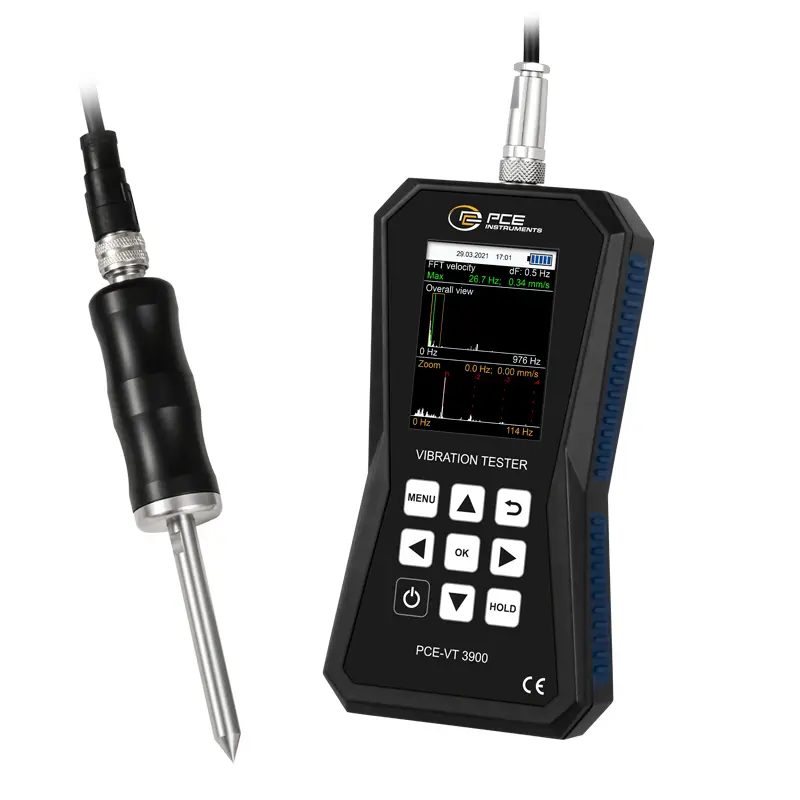

The HVAC meter is an ideal measuring device for fast and precise checking of vibrating parts, machines and systems. This vibration meter uses the external vibration sensor to determine the vibration displacement (measuring range 0.000 ... 3.9 mm), the vibration velocity (measuring range 0.00 ... 399.9 mm/s) and the vibration acceleration (measuring range 0.0 ... 399.9 m/s²). Various measurement parameters are available for the vibration meter, such as RMS, peak, peak-peak and crest factor. The vibration meter is equipped with a mode that allows a measurement to be automatically evaluated according to the limit values ​​of ISO 10816-3. The vibration meter analyzes the measured values ​​and shows a corresponding good/bad rating on the display. The built-in battery in the vibration measuring device has a capacity of 2500 mAh and can be recharged directly via the built-in micro-USB interface.

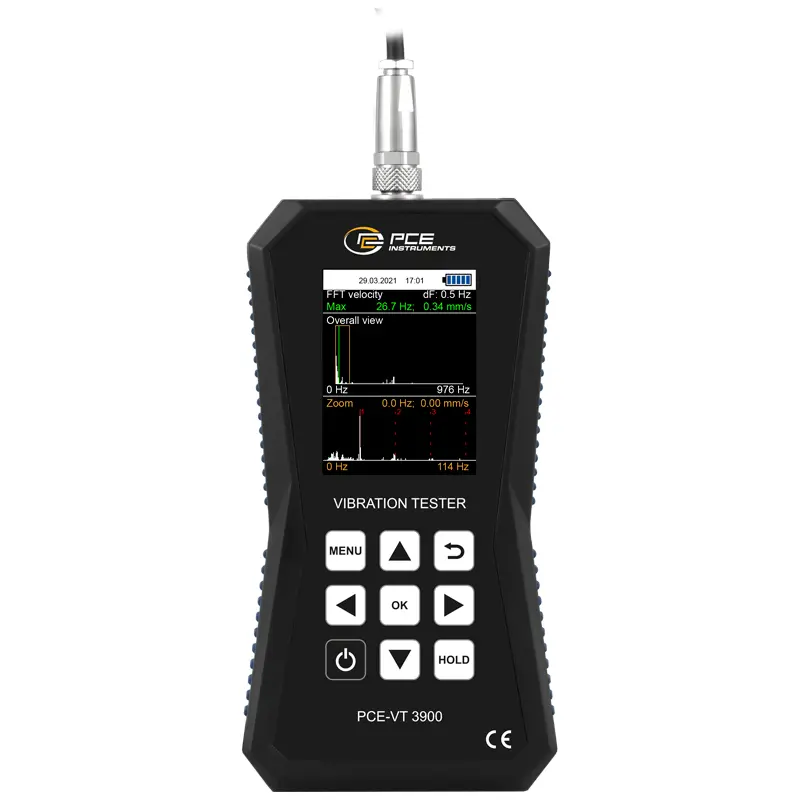

In addition to the normal measuring mode, the HVAC meter has an FFT mode. In the FFT mode, the frequency spectrum for the measured vibration speed or vibration acceleration is calculated and displayed. The calculated FFT lines are displayed in a graphic representation in an overall view for the entire frequency band and parallel to this in a zoom view to display the individual lines.

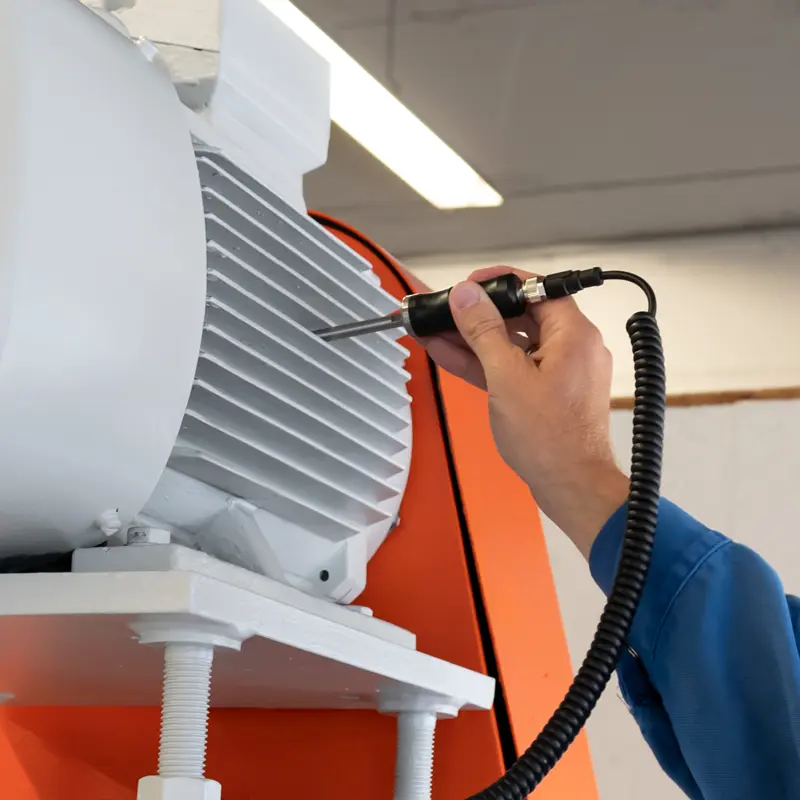

An additional function is route measurement. The route measurement is specially designed for recurring measurements at identical measuring points. This enables an orderly measurement of different measuring points. Because of its extensive measuring functions, the HVAC meter is therefore used for maintenance and repair work on machines.

The measurement data displayed for the various measurement functions can be stored in the internal memory of the HVAC meter. After a measurement, the measurement data stored on the vibration meter can be transferred to a PC via the built-in micro USB interface. The software for the vibration meter then enables a graphic and tabular analysis of the measured values. The software can export the measurement data as a CSV file for further processing. In order to keep the vibration measuring device up to date, the software can also perform an automatic firmware update in addition to analyzing the measurement data.

- For mobile vibration measurement
- Measuring range up to 399.9 m/s² / 15744 in/s²
- FFT analysis
- Route measurement
- Manual measured value memory
- Automatic ISO 10816-3 evaluation
- Internal memory
- 2.48" LC display
- Rechargeable battery

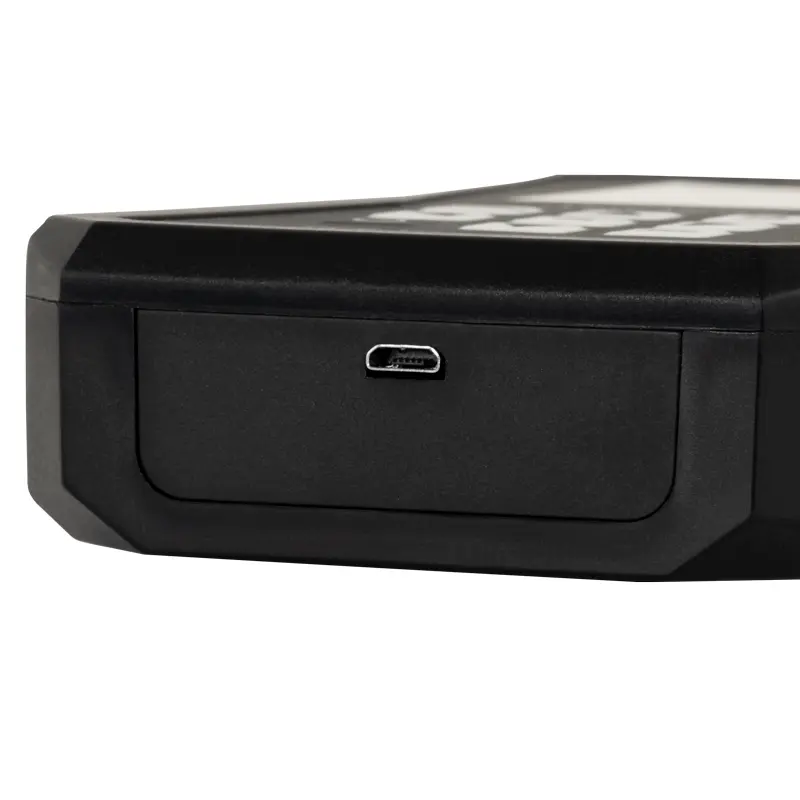

- Micro-USB interface
Measuring rangeAcceleration
 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²
Resolution0.1 m/s² / 3.94 in/s²
Accuracy @ 160 Hz±2 %
Frequency range10 Hz ... 10 kHz
 1 kHz ... 10 kHz
Measuring rangeVelocity
 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s
Resolution0.1 mm/s / 0.0039 in/s
Accuracy @ 160 Hz±2 %
Frequency range10 Hz ... 1 kHz

Measuring range
Rotational Speed

600 ... 50000 RPM

FFT acceleration
10 Hz ... 8 kHz
FFT velocity
10 Hz… 1 kHz
Accuracy @ 160 Hz
± 2%
Number of FFT lines
Route measurement
100 routes each with 100 machines each with

100 measuring points with 1000 measured values each
Measuring rangeDisplacement
 0.000 ... 3.9 mm / 0.000 - 0.154 in
Resolution1 µm / 39.4 µin
Accuracy @ 160 Hz±2 %
Frequency range10 Hz ... 200 Hz
Measurement parametersRMS, Peak, Peak-Peak
 Crest factor
Manual memory99 folders with 50 measured values ​​each
Data loggerVarious start/stop triggers
 Measurement interval between 1 s … 12 h
 50 memory locations with 43200 measured values ​​each
Unitscan be switched to metric / imperial
Display2.48" LC display
Menu languagesEnglish, German, French
 Spanish, Italian, Dutch
 Portuguese, Turkish, Polish
 Russian, Chinese, Japanese
Power supplyinternal: LiPo battery (3.7 V, 2500 mAh)
 external: USB 5 VDC, 500 mA
Operating timeca. 15 … 20 h (depending on display brightness)
Operating and storage conditions
temperature: -20 ... +65 °C / -4 ... 149 °F
 humidity: 10% RH ... 95% RH,
Dimensions165 x 85 x 32 mm / 6.5 x 3.3 x 1.3"
Weight239 g / 8.4 oz
Technical Data Vibration Sensor
Resonance frequency24 kHz
Transverse sensitivity≤ 5%
Destruction limit5000 g (peak)
Operating and storage temperature  -55 °C … +150 °C / -67 °F ... 302 °F
Housing materialstainless steel and plastic
Mounting thread¼ - 28“
DimensionsØ 29 x 81 mm / 1.14 x 3.18"
Weight (without cable)119 g / 4.2 oz

1 x HVAC Meter PCE-VT 3900S

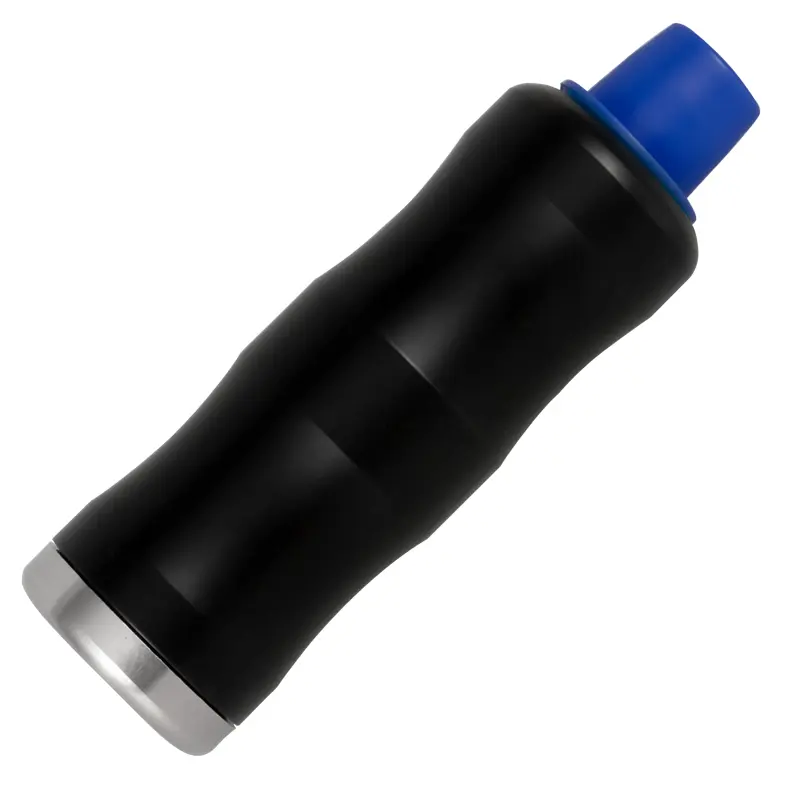

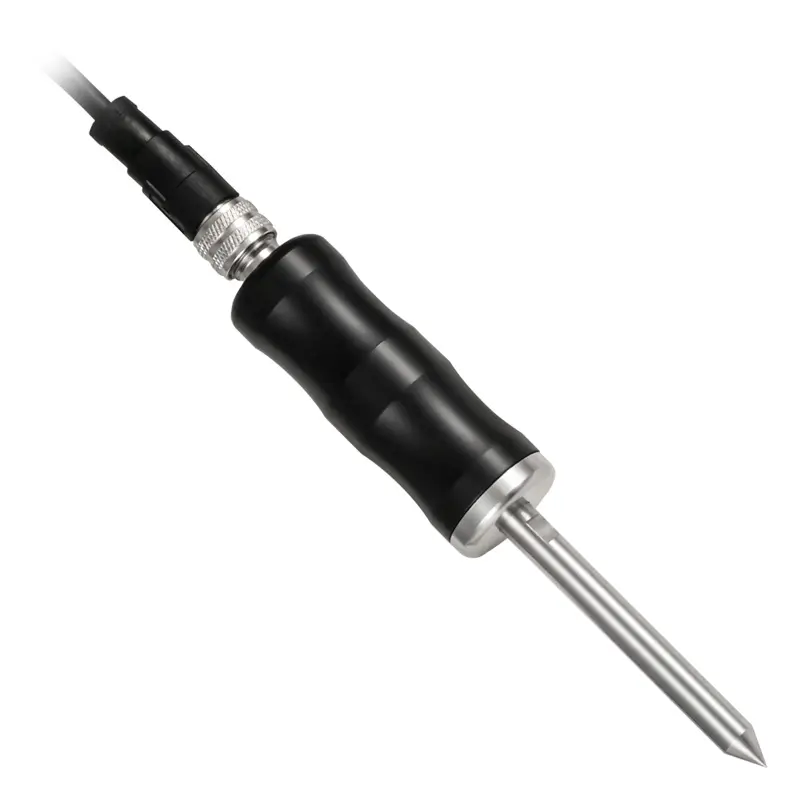

1 x Sensor with handgrip
1 x Spiral cable

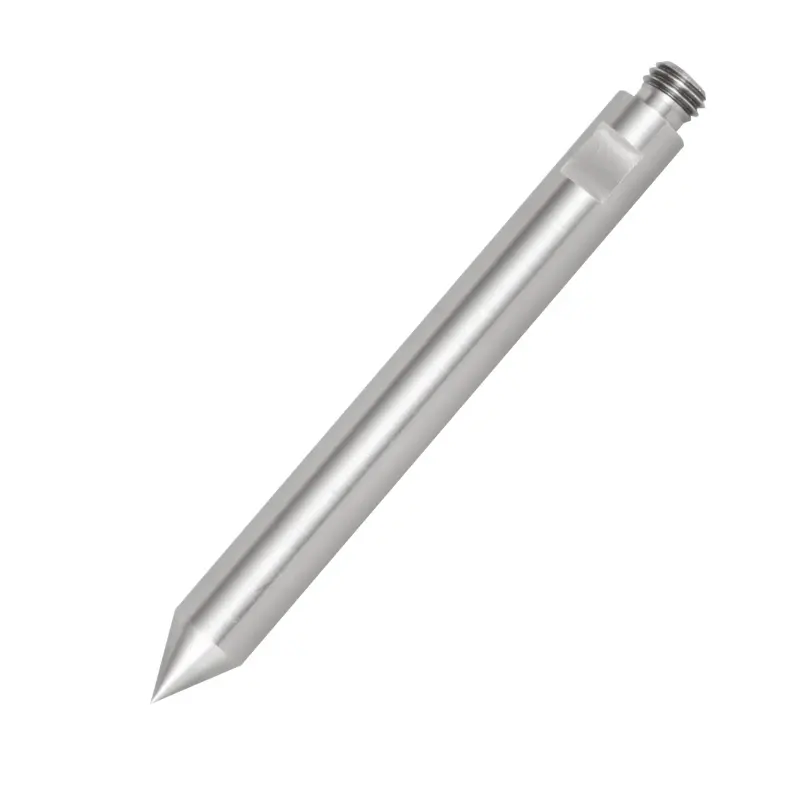

1 x Measuring tip
1 x Micro USB cable
1 x USB stick with software and instructions
1 x Quick start guide

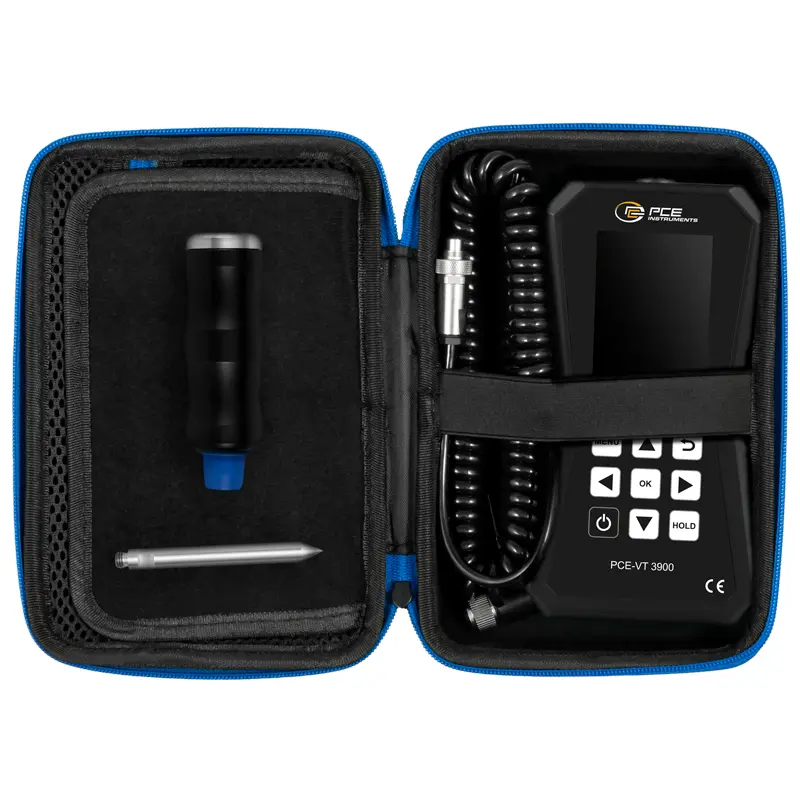

1 x Service bag
