Humidity Detector PCE-HVAC 3S

Order no.: PCE-HVAC 3S

US$ 263.00
4250348723550
PCE-HVAC 3S
ex. VAT, ex. delivery costs
Available in: 1-2 days

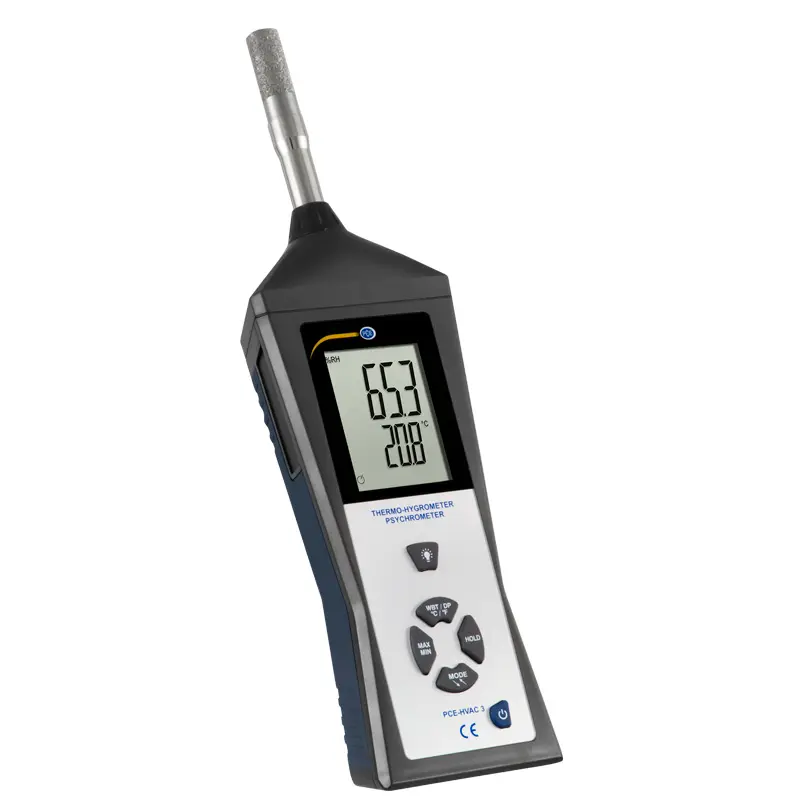

Environmental Meter PCE-HVAC 3S
Environmental measuring device in an ergonomically shaped housing / Backlighting / For recording ambient humidity (% rH) and room temperature (°C / °F) / Calculation of dew point and wet bulb temperature in °C and °F / Extreme value measurement

The environmental measuring device PCE-HVAC 3 is a multifunctional diagnostic device for climate testing. In addition to the ambient humidity and room temperature, the environmental measuring device also determines the dew point and wet bulb temperature in °C and °F. The heat and climate measurement and installation is therefore one of the core areas of application of the PCE-HVAC 3 thermo hygrometer. The measurement of ambient humidity and temperature is determined directly via the built-in sensors. In addition, there is the option of showing the dew point temperature and wet bulb temperature on the display. The basis for the calculation are the values ​​transmitted via the sensors.

In addition to the large, easy-to-read dual display, which also offers the option of lighting, the environmental measuring device needs six buttons, which is the reason why it is an intuitively operated measuring instrument that performs extensive climate tests in private and professional Area in a simple way. In addition to the one-off measurement with the climate measuring device, condition monitoring can also be carried out over a long period of time. The thermo hygrometer is equipped accordingly.

- Ergonomically shaped housing
- One-hand operation
- Background lighting
- HOLD and extreme value display
- Automatic switch-off can be deactivated
- Measurement of dew point and wet bulb temperature

Humidity measuring range

0 ... 20% (accuracy: ± 4% rh)
20 ... 40% (accuracy: ± 3% rh)
40 ... 60% (accuracy: ± 2% rh)
60 ... 80% (accuracy : ± 3% RH)
80 ... 100% (accuracy: ± 4% RH)

Measuring range temperature

-30 ... -19.9°C / -22 ... -3.8°F (accuracy: ± 1.0°C / 1.8°F)
-20 ... 60°C / -4 ... 140°F (accuracy: ± 0.5°C / 0.9°F)
60 ... 100°C / 140 ... 212°F (accuracy: ± 1.0°C / 1.8°F)

Resolution air humidity

0.1%

Resolution temperature

0.1°C / 0.18°F

Units of measurement

°C
°F
Dew point (°C / °F)
Wet bulb temperature (°C / °F)

Measurement parameters

% RH, GPP (grains per pound), g / kg,
g / m³ (absolute), gr / ft³ (absolute)

Display

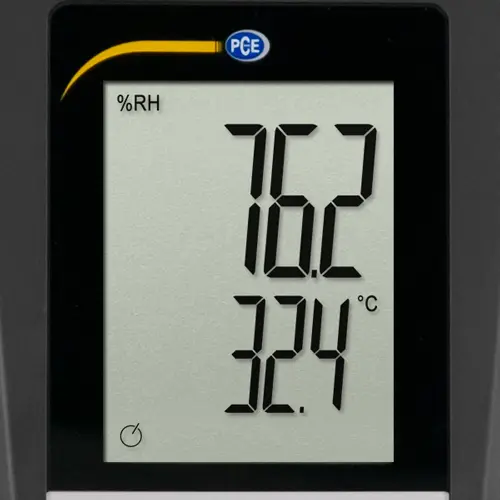

Dual LCD

Response time

< 15 seconds

Sensor type

Humidity: Precise capacitive
Sensor Temperature: Thermistor

Absolute humidity

0 ... 500 g / m³
0 ... 218.5 g / ft³

Measuring range dew point temperature

-30 ... 100°C / -22 ... 212°F

Wet bulb temperature measurement range

0 ... 80°C / 32 ... 176°F

Operating conditions

0 ... 50°C / 32 ... 122°F, < 80% RH (non-condensing)

Storage conditions

-40 ... 85°C / -40 ... 185°F, < 99% RH (non-condensing)

Power supply

9V block battery

Battery life

Approx. 48 hours

Dimensions

300 x 75 x 50 mm / 11.8 x 3 x 2 in

Weight

400 g / < 1 lb



1 x Environmental meter PCE-HVAC 3S

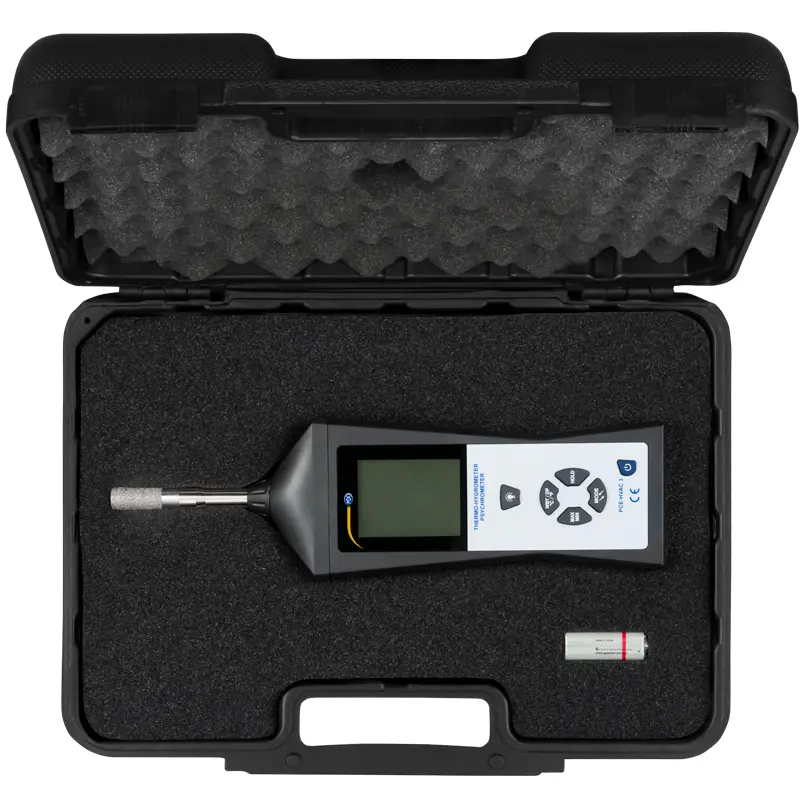

1 x Carrying case
1 x Battery
1 x Operating instructions

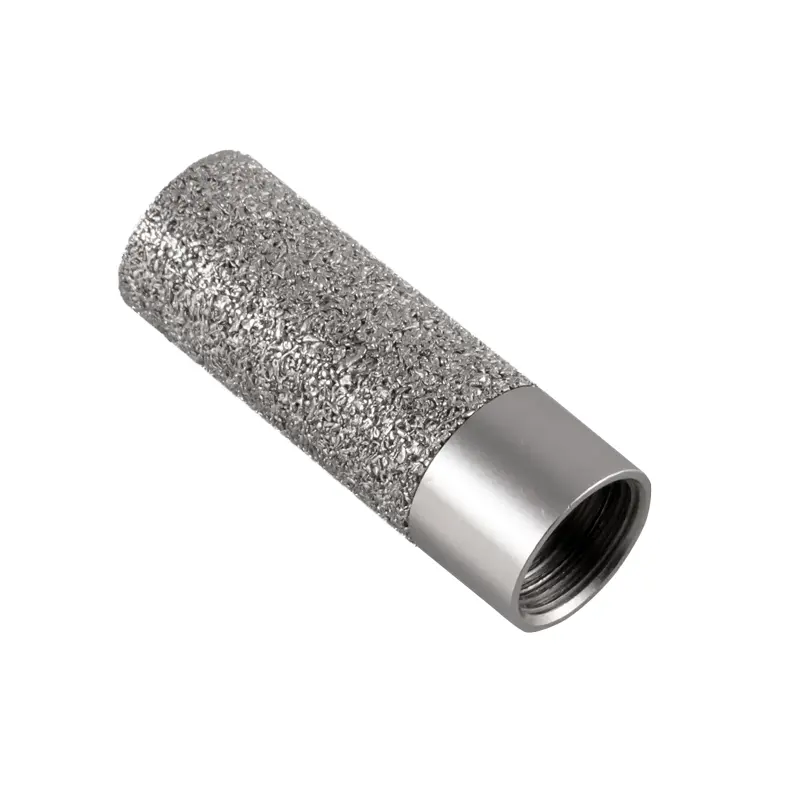

1 x Sintered filter
