Order no.: AQ-300 Set OZU

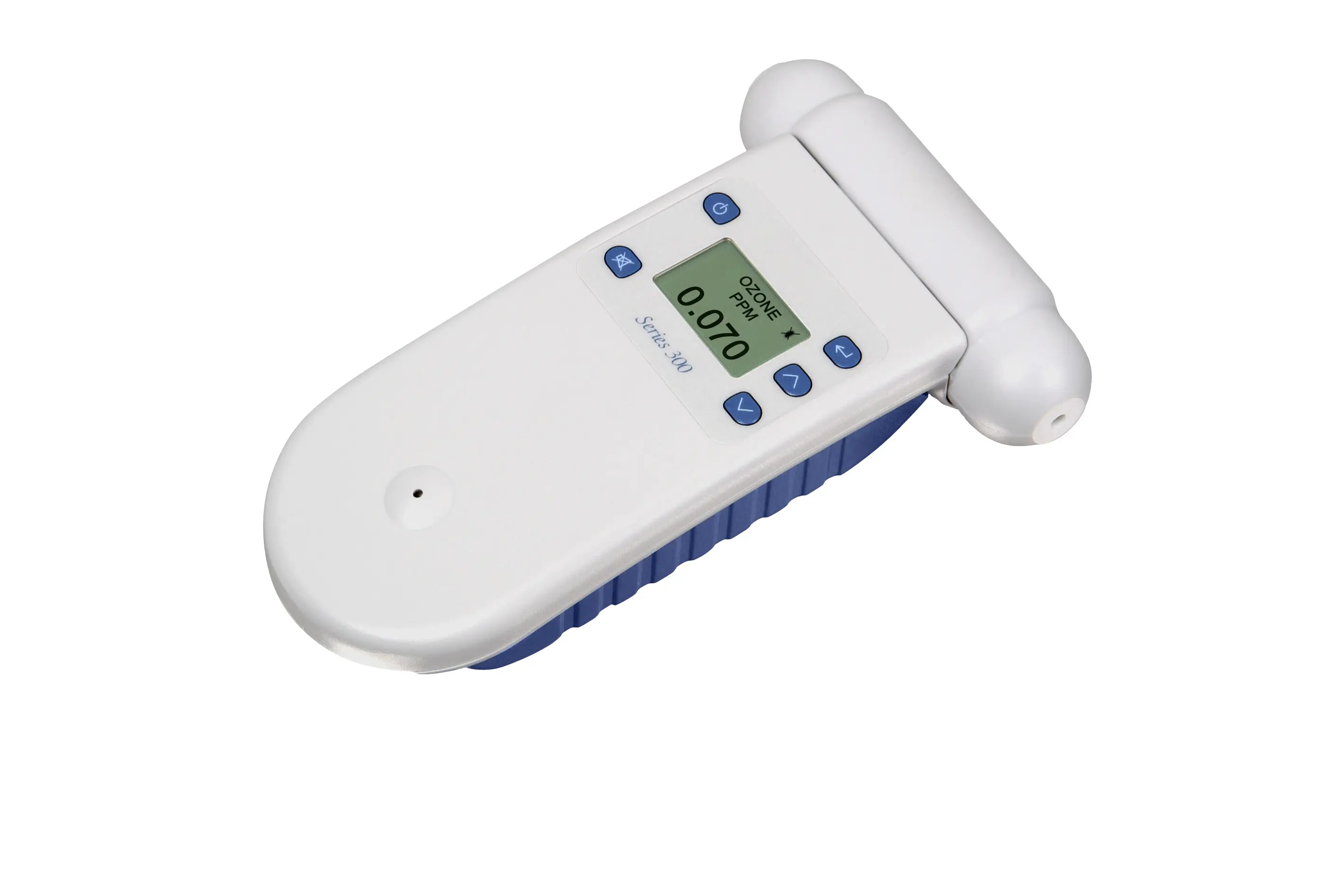

Gas Detector AQ-300 Set OZU

US$ 2,142.00
AQ-300 Set OZU
ex. VAT, ex. delivery costs
Available in: 10 - 14 days

Description

Gas Detector for measurement of ozone / Many different sensors available /
Broad range of application / Replaceable sensor head / Alarm function / Sensor OZU included
Optional sensor for temperature and humidity

The Gas Detector AQ-300 is a highly accurate instrument for measuring ozone concentrations in the air. The Gas Detector can be equipped with four different heads that vary in their measurement range. Furthermore, the Gas Detector has sensor heads for other gases available, which are automatically recognized when plugged into the device. Thus, you can use the Gas Detector in many different areas. The possibilities of the Gas Detector extend the use of ozone in your processes for bleaching oils, greases, wax, paper, synthetic fibers, cellulose or textiles,within the paper, textile, or lubricant production industries. Another field of application for the Gas Detector is in cleaning, disinfection and sterilisation of swimming pools, water treatment facilities or after fire damage or water damage. With a head for lower measurements of up to 0.150 ppm, you can measure ozone concentrations that have a negative effect on the mental state of humans. Thanks to the leading GSS technology of the sensors, the Gas Detector not only is high precision, it also has a long lifespan. The unique possibility to refresh the sensors makes their maintenance more economical than the maintenance of other types of sensors. Depending on the model, the measured concentrations may be written to the internal memory of the Gas Detector via an analog interface with a 0... 5V output, or the output is transferred via a USB interface to a PC. Similarly, a remote kit is available as an option, allowing the Gas Detector to take measurements in a secure room while the sensor is connected via cable to the Gas Detector. Through simplicity of operation the alarm thresholds for the optical or acoustic signal can be changed in a very short time. In addition to the measured concentrations in the LCD display, which are displayed in ppm or mg / m³, the high and low alarms are shown.




Highlights

- High accuracy and functionality
- Easy to operate and maintain
- Fast response time
- Interchangeable sensor heads
- LCD display
- Battery operation
- Alarm function
- Sensor calibration function
- Max. / Min. / Average function
- Analog output

Specification

Technical Specification of the Gas Detector
Model 300 Series
As Model 200 Series, in addition:
Alarm function"High", "Low", Mute
Alarm outputTransistor output, 150-mA max
Low Alarm, High Alarm & Control
Analog output0... 5V
Location IDStorage of the measuring location
Model 200, 300 and 500 Series
Power supply12V DC
Rechargeable batteryLithium-Polymer 12V DC / 2700 mAh
Charger12.6V 2 A
Charging voltage12.6V
Charging time2... 3 hours
Lifecycle> 500 charges
HousingPC & ABS / IP20 & NEMA 1
Dimensions (incl. opt. sensorsavailable)7.7 x 4.8 x 2.1 in / 195 x 122 x 54 mm
Weight< 1 lb / 460 g (with battery)
ApprovalsEN 50082-1: 1997, EN 50081-1: 1992, CE

Optional accessories for the gas detector:

Sensors:

Gas
Code		Meas. (ppm)Min.
(ppm)		Meas.
(ppm)		Resolution.
(ppm)		Temp. °C/ humidity. %
GSS sensors (semiconductor sensors):
Ozone
(O3)  OZU		0 ... 0.150.001< ±0.005 %0.0010 ... +40
10 ... 90
Ozone
(O3) OZL
0 ... 0.50.001

< ±0.008

0 ... 0.1

0.0010 ... +40
10 ... 90
Ozone
(O3) OZG 		0 ... 100.01 < ±0.1
0...1 		0.010 ... +40
10 ... 90
Hydrogen
(H2) HA		0 ... 50005< ±10 %10 ... +40
10 ... 90
Chlorine
(CL2) ECL		0 ... 100.1< ±10 %0.010 ... +40
10 ... 90

Ozone (O3)

Leakage finder OZK


0.01
0.010 ... +40
10 ... 90
Methane
(CH4) MT		0 ... 10,00010< ±15 %10 ... +40
10 ... 90
NMHC
VN		0 ... 250.1< ±10 %
0.1 ... 25 		0.10 ... +40
10 ... 90
Tetrachlorethylene
(C2CL4) PE		0 ... 2001< ±5
0 ... 50		10 ... +40
10 ... 90
(VOC)
VM		0 ... 250.1±10 %0.10 ... +40
10 ... 90
(VOC)
VP		0 ... 5001±10 %10 ... +40
10 ... 90

GSE sensors (electrochemical sensors):
Ammonia
(NH3) ENG		0 ... 1000.2±10 %0.10 ... +40
10 ... 90
Carbon monoxide (CO) ECN0 ... 1000.1< ±1
0... 10		0.10 ... +40
10 ... 90
Carbon monoxide
(CO) ECM		0 ... 250.02< ±0.5
0 ... 5		0.010 ... +40
10 ... 90
Formaldehyde
(CH2O) EF		0 ... 100.01< ±0.05
0 ... 0.5		0.010 ... +40
10 ... 90
Sulfur-
hydrogen (H2S) EHS		0 ... 100.01< ±0.05
0 ...0.5		0.010 ... +40
10 ... 90
Sulfur-
hydrogen (H2S) EHT		0 ... 1000.2< ±0.5
0 ... 5		0.10 ... +40
10 ... 90
Nitrogen dioxide (NO2) ENW0 ... 10.002< ±0.02
0 ... 0.1		0.0010 ... +40
10 ... 90
Sulfur dioxide (SO2) ESO0 ... 100.01< ±0.05
0 ... 0.5		0.010 ... +40
10 ... 90
Sulfur dioxide (SO2) ESP0 ... 1000.2< ±0.05
0 ... 0.5		0.10 ... +40
10 ... 90

NDIR sensors (infrared sensors):
Carbon dioxide (CO2) CD0 ... 20002< ±5 %
(of the display)		10 ... +40
10 ... 90
Carbon dioxide (CO2) CE0 ... 50005<± 5 %
(of the display)		10 ... +40
10 ... 90
Carbon dioxide
(CO2) CF		0 ... 5 %0.02 %<± 5 %
(of the display)		0.01 %0 ... +40
10 ... 90

PID sensors (photoionization detector sensors):
VOC
PDL		0 ... 200.01< ±10 %0.010 ... +40
10 ... 90
VOC
PDH		0 ... 10000.2< ±10 %0.10 ... +40
10 ... 90

Combi sensors:
CO2
CO
PID
Code: MS2		0 ... 2000
0 ... 100
0 ... 25		2
0.1
0.01		±40  + 3 %
±10 % 1 ...100
±10 % of result		1
0.1
0.01		0 ... +40
10 ... 90
CO2
CO
Code: MS1		0 ... 2000
0 ... 100		2
0.1		±40  + 3 %
±10 % 1 ...100		1
0.1		0 ... +40
10 ... 90

Delivery Scope

1 x Basic device AQ-300
1 x Sensor head OZU (Ozone 0-10 ppm)
1 x 12V DC 800-mA AC/DC Power Supply Unit
1 x Battery pack 12V
1 x Operating instructions.

Downloads

Accessories

Accessories

AQ-NH / ammonia (NH3)
US$ 735.00

ex. VAT, ex. delivery costs

Ammonia (NH3) NH / GSS sensor / semiconductor sensor

  • Measuring range: 0 … 1000 ppm
  • Minimum: 2 ppm
  • Accuracy: <± 15%
  • Resolution: 1 ppm
  • Temperature: 0 … +40 ° C
  • Humidity: 10 … 90%

Test Instruments manufacturer
AQ-EOZH / ozone (O3)
US$ 1,201.00

ex. VAT, ex. delivery costs

Ozone (O3) GSE sensor (electrochemical sensor)

  • Measuring range: 0 … 30 ppm
  • Lower detection limit: 0.01 ppm
  • Measurement accuracy: <± 0.05 ± 10%
  • Resolution: 0.01 ppm
  • Response time: 60 s
  • Temperature: 0 … 40 °C
  • Rel. humidity: 15 … 90% RH

Test Instruments manufacturer
AQ-END / nitrogen dioxide (NO2)
US$ 1,201.00

ex. VAT, ex. delivery costs

Nitrogen dioxide (NO3) GSE sensor (electrochemical sensor)

  • Measuring range: 0 … 1 ppm
  • Lower detection limit: 0.005 ppm
  • Measurement accuracy: <± 0.02 ppm 0-0.2 ppm; <± 10% 0.2-1 ppm
  • Resolution: 0.001 ppm
  • Response time: 30 s
  • Temperature: 0 … 40 °C
  • Rel. humidity: 15 … 90% RH

Test Instruments manufacturer
AQ-CO / carbon monoxide (CO)
US$ 735.00

ex. VAT, ex. delivery costs

Carbon monoxide (CO) CO / GSS sensor (semiconductor sensor)

  • Measuring range: 0 … 1000 ppm
  • Minimum: 1 ppm
  • Accuracy: < ±10%
  • Resolution: 1 ppm
  • Temperature: 0 … +40 °C
  • Humidity: 10 … 90%

Test Instruments manufacturer
AQ-VP / VOC
US$ 795.00

ex. VAT, ex. delivery costs

(VOC)VP/GSSsensor/semiconductorsensor

  • Measuring range:0…500 ppm
Minimum:1ppm
- Accuracy:±10 %
  • Resolution:1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-VN / NMHC
US$ 735.00

ex. VAT, ex. delivery costs

AQ-VN/GSSsensor/semiconductorsensor/NMHC

  • Measuring range:0…25 ppm
Minimum:0.1ppm
- Accuracy:< ±10 % / 0.1 … 25 ppm
  • Resolution: 0.1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-VM / VOC
US$ 795.00

ex. VAT, ex. delivery costs

(VOC)VM/GSSsensor/semiconductorsensor

  • Measuring range:0…25 ppm
Minimum:0.1ppm
  • Accuracy:<± 10%
  • Resolution:0.1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
Temperature and humidity sensor AQ-TRH for the Ozone Tester
US$ 270.00

ex. VAT, ex. delivery costs

Optional sensorwhich, in additionto anothersensor, can beplugged in to the device assimpleplug and play.

  • Temperature range:-40 ° C …124° C
  • Humidity measuring range:0 … 100%RH
  • Data logger500Series:2706values
Test Instruments manufacturer
Carrying case for the ozone tester
US$ 226.00

ex. VAT, ex. delivery costs

This carrying case is ideal for protecting your Aeroqual 200/300/500 device during transport. Furthermore, there are recesses for a power supply incl. cable.
Test Instruments manufacturer
AQ-R36 replacement battery for the Ozone Tester
US$ 206.00

ex. VAT, ex. delivery costs

Replacement battery for the Ozone Tester
Test Instruments manufacturer
Wall mount for the Ozone Tester
US$ 96.00

ex. VAT, ex. delivery costs

A bracket to mount the Ozone Tester AQ Series 200/300/500 on a wall.
Test Instruments manufacturer
Cigarette lighter adapter for ozone tester
US$ 109.00

ex. VAT, ex. delivery costs

Adapter for the AQ Series 200/300/500 device to a 12V power source in a vehicle.
Test Instruments manufacturer
Remote Kit housing AQ-R13
US$ 896.00

ex. VAT, ex. delivery costs

Remote KithousingAQ-R13(IP41andNEMA2)
Test Instruments manufacturer
Sensor Remote Kit for ozone tester
US$ 459.00

ex. VAT, ex. delivery costs

TheAQ-R10Remote Kit(compatible withSeries 200/300/500)is usedto measuregasup to 14meters away in the environment.TheR13Remote Kitalso providesa housing protectedtoIP41andNEMA2standards.Furthermore, it isdesigned withasimpleplug and playsolutionso that the unit is as user friendly aspossible.
Test Instruments manufacturer
AQ-PE / perchlorethylene (C2CL4)
US$ 795.00

ex. VAT, ex. delivery costs

Perchloroethylene(C2CL4)PE/GSSsensor/semiconductorsensor

  • Measuring range:0…200 ppm
Minimum:1ppm
- Accuracy:< ±5 / 0 … 50 ppm
  • Resolution:1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-MT / methane (CH4)
US$ 735.00

ex. VAT, ex. delivery costs

Methane (CH4)MT/GSSsensor/semiconductorsensor

  • Measuring range:0… 10,000 ppm
Minimum:10ppm
  • Accuracy:<±15%
  • Resolution:1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-OZU / Ozone (O3)
US$ 795.00

ex. VAT, ex. delivery costs

Ozone (O3)OZU/GSSsensor/semiconductorsensor

  • Measuring range:0… 0.15 ppm
Minimum:0.001ppm
- Accuracy:< ±0.005 %
  • Resolution: 0.001ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-OZL / Ozone (O3)
US$ 735.00

ex. VAT, ex. delivery costs

Ozone (O3)OZL/GSSsensor/semiconductorsensor

  • Measuring range:0…0.5 ppm
Minimum:0.001ppm
- Accuracy:< ±0.008 / 0 … 0.1 ppm
  • Resolution: 0.001ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-HA / hydrogen (H2)
US$ 735.00

ex. VAT, ex. delivery costs

Hydrogen (H2)HA/GSSsensor/semiconductorsensor

  • Measuring range:0…5000 ppm
Minimum:5ppm
  • Accuracy:<±10%
  • Resolution:1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-EHT / hydrogen sulphide (H2S)
US$ 735.00

ex. VAT, ex. delivery costs

Hydrogen sulphide (H2S)EHT/GSEsensor(electrochemical sensor)

  • Measuring range:0…100 ppm
Minimum:0.2ppm
- Accuracy:< ±0.5 / 0 … 5 ppm
  • Resolution:0.1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-EHS / hydrogen sulphide (H2S)
US$ 735.00

ex. VAT, ex. delivery costs

Hydrogen sulphide (H2S)EHS/GSEsensor(electrochemical sensor)

  • Measuring range:0…10 ppm
Minimum:0.01ppm
- Accuracy:< ±0.05 / 0 …0.5 ppm
  • Resolution:0.01ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-EF / formaldehyde (CH2O)
US$ 1,201.00

ex. VAT, ex. delivery costs

Formaldehyde(CH2O)EF/GSEsensor(electrochemical sensor)

  • Measuring range:0… 10 ppm
Minimum:0.01ppm
- Accuracy:< ±0.05 / 0 … 0.5 ppm
  • Resolution:0.01ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-ECN / carbon monoxide (CO)
US$ 735.00

ex. VAT, ex. delivery costs

Carbon monoxide(CO)ECN /GSEsensor(electrochemical sensor)

  • Measuring range:0…100 ppm
Minimum: 0.1ppm
- Accuracy:< ±1 / 0… 10 ppm
  • Resolution:0.1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-ECM / carbon monoxide (CO)
US$ 735.00

ex. VAT, ex. delivery costs

Carbon monoxide(CO)ECM /GSEsensor(electrochemical sensor)

  • Measuring range:0…25 ppm
Minimum:0.02ppm
- Accuracy:< ±0.5 / 0 … 5 ppm
  • Resolution:0.01ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-ECL / chlorine (CL2)
US$ 1,201.00

ex. VAT, ex. delivery costs

Chlorine(CL2)ECL/GSEsensor/semiconductorsensor

  • Measuring range:0…10 ppm
Minimum:0.1ppm
  • Accuracy:<±10%
  • Resolution:0.01ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ ESP / sulfur dioxide (SO2)
US$ 735.00

ex. VAT, ex. delivery costs

Sulphur dioxide (SO2)ESP/GSEsensor(electrochemical sensor)

  • Measuring range:0…100 ppm
Minimum:0.2ppm
- Accuracy:< ±0.05 / 0 … 0.5 ppm
  • Resolution:0.1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-ESO / sulfur dioxide (SO2)
US$ 735.00

ex. VAT, ex. delivery costs

Sulphur dioxide (SO2)ESO/GSEsensor(electrochemical sensor)

  • Measuring range:0…10 ppm
Minimum:0.01ppm
- Accuracy:< ±0.05 / 0 … 0.5 ppm
  • Resolution:0.01ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ EOZ / ozone (O3)
US$ 735.00

ex. VAT, ex. delivery costs

Ozone (O3)EOZ/GSSsensor/semiconductorsensor

  • Measuring range:0…10 ppm
Minimum:0.01ppm
- Accuracy:< ±0.1 / 0…1 ppm
  • Resolution: 0.01ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-ENG / ammonia (NH3)
US$ 1,201.00

ex. VAT, ex. delivery costs

Ammonia(NH3)ENG/GSEsensor(electrochemical sensor)

  • Measuring range:0…100 ppm
Minimum:0.2ppm
  • Accuracy:<±10%
  • Resolution: 0.1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-CE / carbon dioxide (CO2)
US$ 1,382.00

ex. VAT, ex. delivery costs

Carbon dioxide (CO2)CE/NDIR sensor(infrared sensor)

  • Measuring range:0… 5000 ppm
Minimum:5ppm
  • Accuracy:<±5%/(the display)
  • Resolution:1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
AQ-CD / carbon dioxide (CO2)
US$ 1,382.00

ex. VAT, ex. delivery costs

Carbon dioxide (CO2)CD/NDIR sensor(infrared sensor)

  • Measuring range:0…2000 ppm
Minimum:2ppm
  • Accuracy:<±5%/(the display)
  • Resolution:1ppm
  • Temperature:0 … +40 °C
  • Humidity:10…90%
Test Instruments manufacturer
Gas Detector / Gas Detection Instrument
AQ-VOCH PID Sensor 0-2000 ppm
US$ 2,697.00

ex. VAT, ex. delivery costs

AQ-VOCH PID Sensor (Photoionization Detector Sensor)

  • Measuring range: 0 … 2000 ppm
  • Minimum: 0.1 ppm
  • Measurement accuracy: <±0.2 ppm + 10% of measured value.
  • Resolution: 0.1 ppm
  • Temperature: 0 … 40 °C / 32 … 104 °F
  • Humidity: 10 … 95%

Test Instruments manufacturer
Gas Detector / Gas Detection Instrument
AQ-VOC PID Sensor 0-30 ppm
US$ 2,697.00

ex. VAT, ex. delivery costs

AQ-VOC PID Sensor (Photoionization Detector Sensor)

  • Measuring range: 0 … 30 ppm
  • Minimum: 0.01 ppm
  • Measurement accuracy: <±0.02 ppm + 10% of measured value.
  • Resolution: 0.01 ppm
  • Temperature: 0 … 40 °C / 32 … 104 °F
  • Humidity: 0 … 95%

Test Instruments manufacturer
Gas Detector / Gas Detection Instrument
Fixed Gas Detector Base AQ-FM S900
US$ 492.00

ex. VAT, ex. delivery costs

The fixed gas detector base AQ-FM S900 for AQ-sensor heads can communicate with a variety of hardware systems. The transmitter can also be used as switching relays with user-set values, as 4-20 mA gas transmitter and it can communicate with a network via the RS485 interface. Changing sensor heads is quick and easy, no configuration changes required. Calibration certificate included. Wall mounting kit.


  • Analog Output: 4-20 mA (optional isolated), 10… 30V
  • External control signal: Min Max. Alarm, control and diagnostics
  • Power supply: 12V DC 1A power supply is required but not supplied
  • Interface: RS485


Attention! No AQ sensor head is included in the delivery, it must be ordered separately as an accessory!

Test Instruments manufacturer
