Force Gauge PCE-N50F

Order no.: PCE-N50F
GTIN (EAN): 4250348720078
US$ 913.00
ex. VAT, ex. delivery costs
:
4250348720078
PCE-N50F
Available in: 1-2 days
digital
external
no
yes

Description

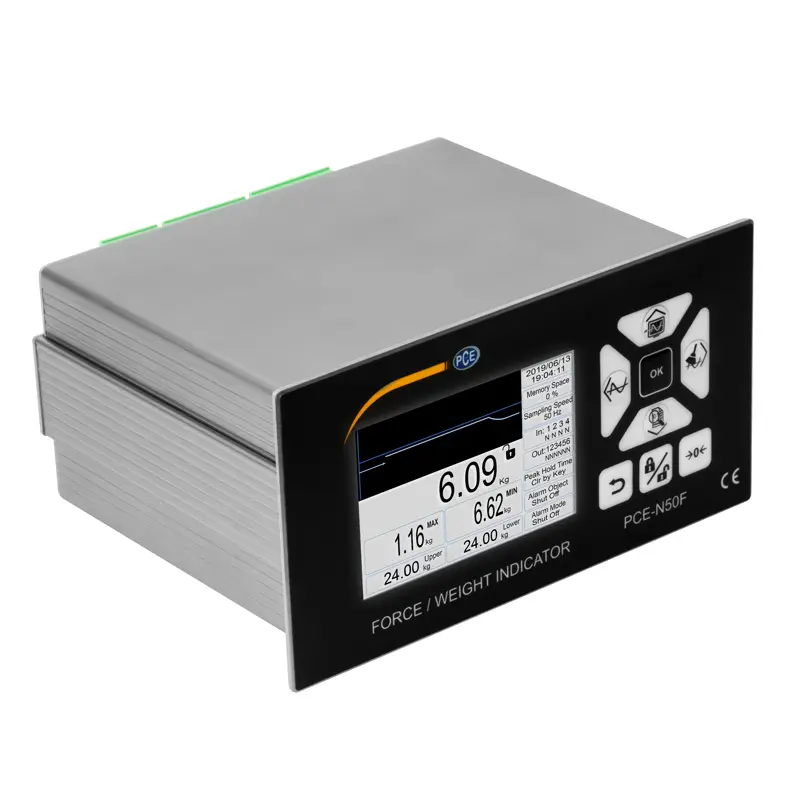

Force Gauge PCE-N50F
Weighing terminal for load cells, force sensors, etc. / LCD display / Max. 1600 Hz sampling rate / Serial Modbus interface / Digital inputs / Outputs / Different units

The force gauge is suitable for panel mounting. This force gauge can be used to show the weight, force or torque. The decisive factor here is the type of sensor that is connected to the force gauge. The calibration of the force gauge to the respective measuring cell is made via the menu with the aid of exact calibration weights. The force gauge  is used for stationary and individual weighing solutions. Often the force gauge  is used where the weight has to be determined continuously.

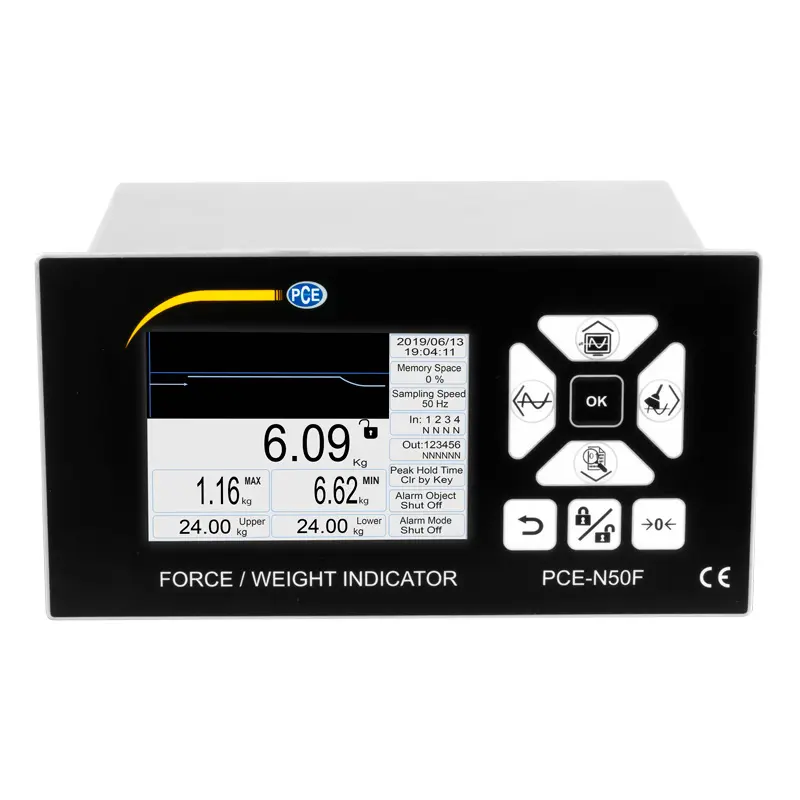

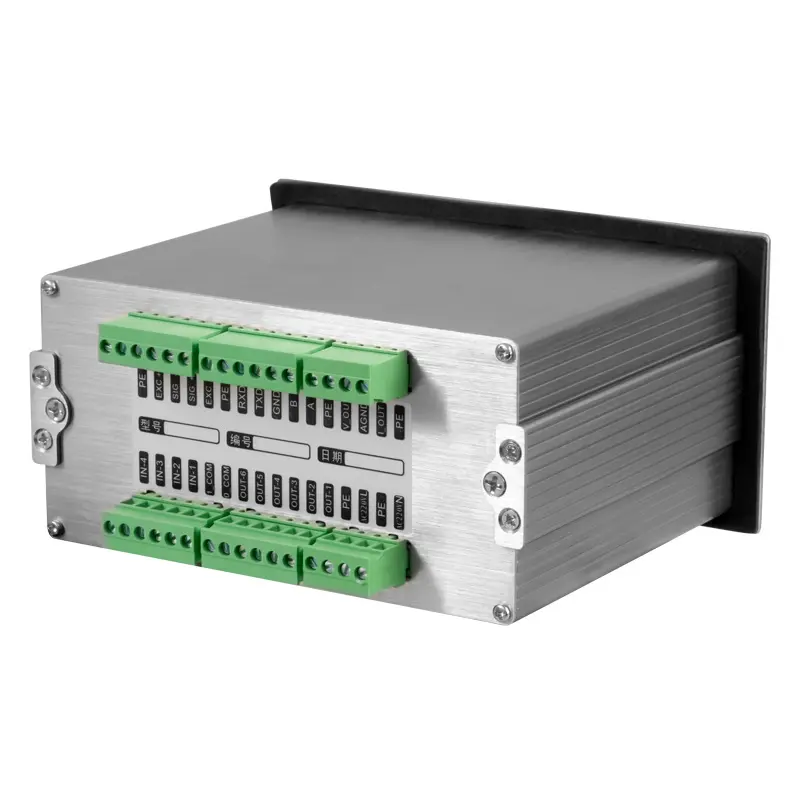

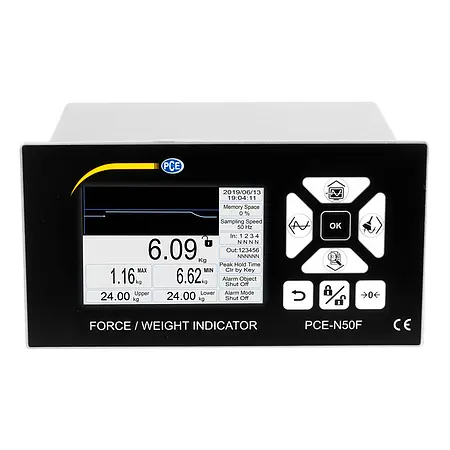

The display of the force gauge device is a graphic display, which shows not only the numerical measured value but also the course of the weighing process. The force gauge also displays the minimum and maximum weighing values. Using the keys, the force gauge can be tared or set to zero. In addition to the operation via the keys, the force gauge can be operated via the rear-side digital inputs. So external buttons can be connected, which tare the force display device etc.

Highlights

- Up to 1600 Hz sampling rate
- LC display
- Minimum and maximum value determination
- Tare and zero function
- For load cells, force sensors, etc.
- Digital inputs and outputs

Specification

Signal Input Range 0 ... 20 mV
Minimal sensitivity 0.1 μV / digit
Supply voltage of the measuring cell      5V / 100-mA
Number of measuring cells
1 ... 8x 350 Ohm measuring cell (s)
Display 3.5 "LCD
Units g, mN, mlb, Pa, kg, N, Ib, kPa, t, kN, klb, MPa
Measuring rate
6, 12, 25, 50, 100, 200, 400, 800, 1600 Hz
Electrical connections Screw
  1 ... 2.5 mm²
Power supply 220V AC / 50Hz
Input < 10W
Degree of protection Front: IP65
Assembly Panel cut
Size panel cutout 152 x 76 mm / 6 x 3 in
Dimensions 166 x 88 x 146 mm / 6.5 x 3.5 x 5.7 in
Weight About 1150 g / 2.5 lbs
Operating conditions -10 ... 40°C / 14 ... 104°F, max 85% RH
Storage conditions -20 ... 50°C / -4 ... 122°F, max 85% RH



Delivery Scope

1 x Force Gauge PCE-N50F
1 x User manual
