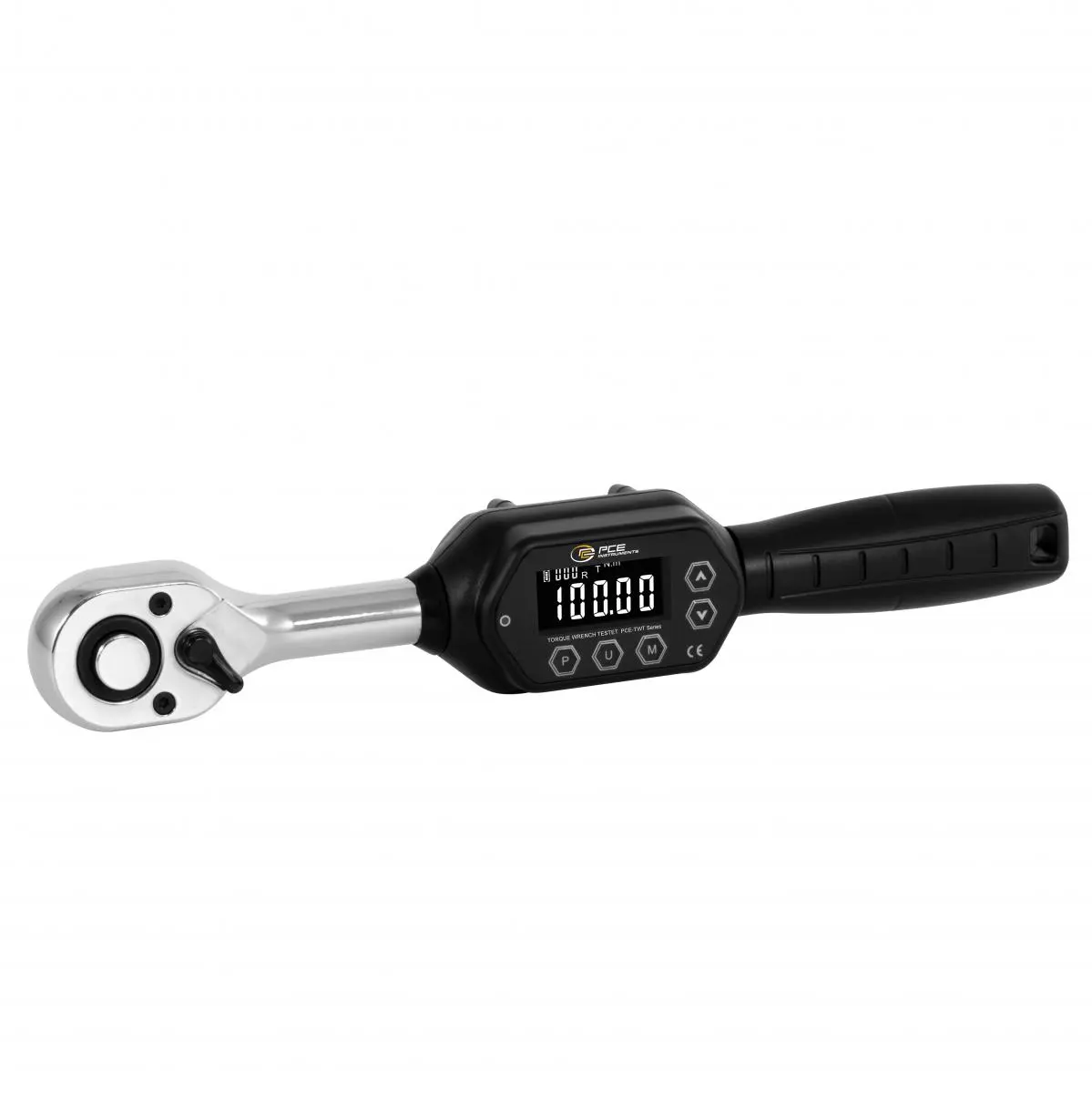

Force Gauge / Digital Force Gauge PCE-TWT 100N

Force Gauge / Digital Force Gauge PCE-TWT 100N

Order no.: PCE-TWT 100N
GTIN (EAN): 4250348735928
US$ 132.00
ex. VAT, ex. delivery costs
:
4250348735928
PCE-TWT 100N
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Force Gauge / Digital Force Gauge / 2-way ratchet head / Adjustable alarm / Internal memory / Battery status display / Peak value

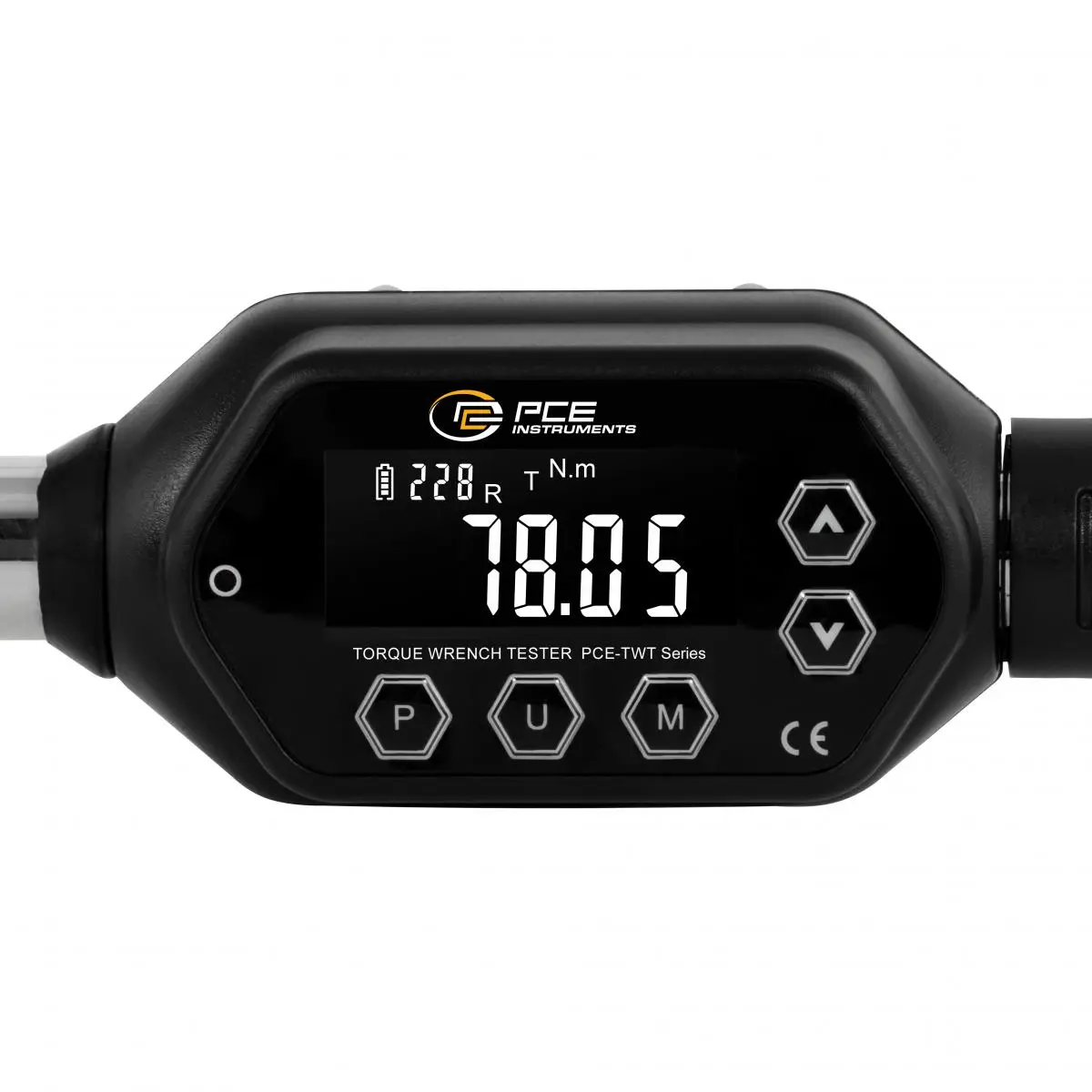

The Force Gauge / Digital Force Gauge is a compact, portable precision tool for applications where exact torque values are crucial. It has an easy-to-read backlit display that provides clear values even in poor lighting conditions.

To assist the user, the Force Gauge / Digital Force Gauge emits both an acoustic signal and an LED display as soon as the preset torque value is reached. Four different units of measurement (Nm, kgf-cm, lbf-ft, lbf-in) and three measuring modes - real time, peak value and preset - make it flexible to use. Automatic switch-off after a few minutes saves the batteries, and up to 999 measured values can be stored in the internal memory. The stored values can only be called up on the device.

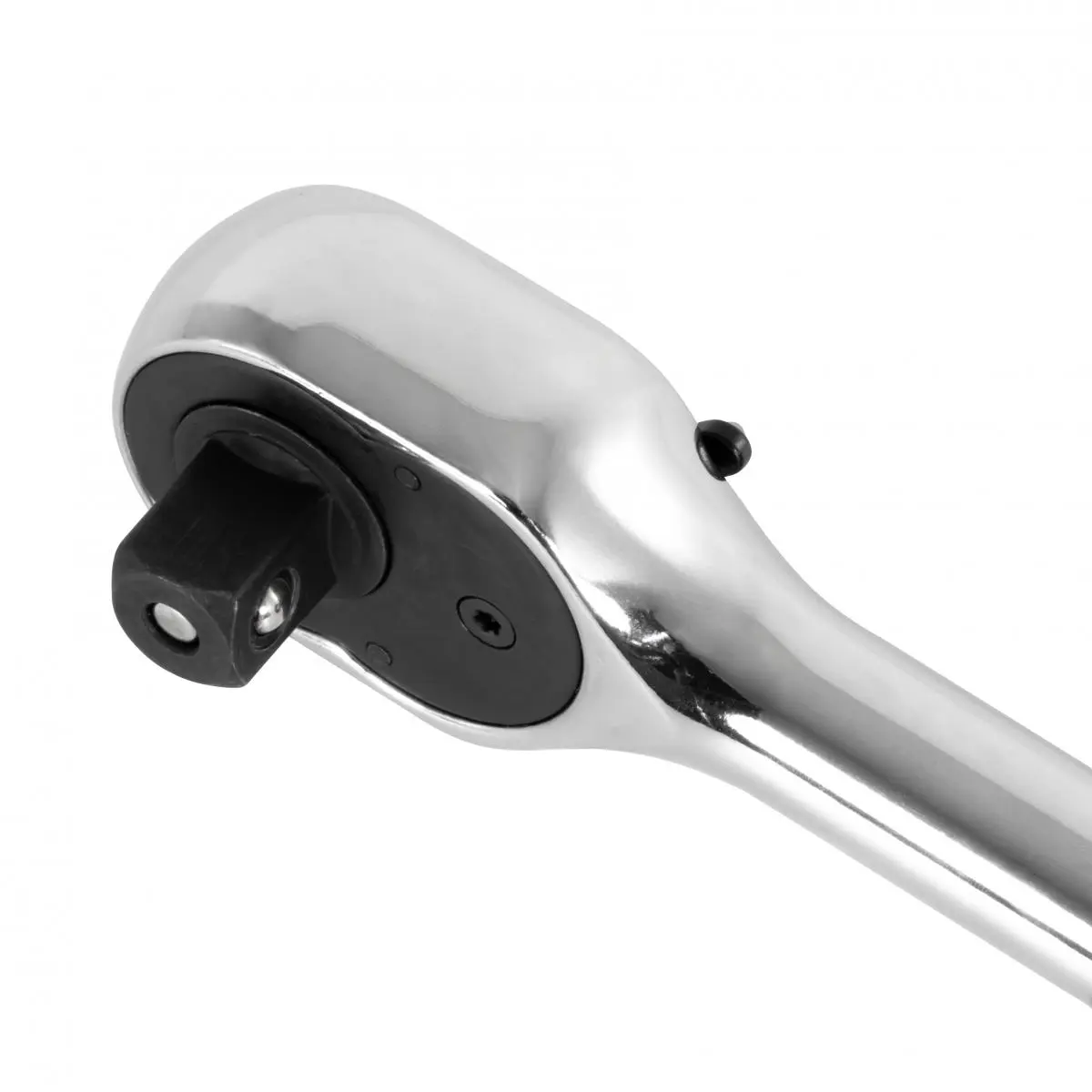

The Force Gauge / Digital Force Gauge is equipped with a fine-toothed ratchet head, which enables precise work even with a small radius of movement. Thanks to its robust construction made of metal and resistant plastic, it is durable and suitable for regular use. Our Force Gauge / Digital Force Gauges are primarily used in vehicle construction, mechanical engineering, bicycle assembly and in the electrical and electronics industry. They are used to tighten bolts and nuts to a precisely defined torque in order to connect components securely and function properly without damaging them. The Force Gauge / Digital Force Gauge is supplied in a plastic case with 2 AAA batteries.


Highlights

- 3 Measuring modes
- 4 Measuring units
- Large display
- Internal memory
- Adjustable alarm

Specification

Torque
Measurement range up to  0,01 ... 100 Nm
Resolution  0,01 Nm
Accuracy  clockwise: ±2% FS, anti-clockwise: ±2.5% FS

Torque
Measurement range up to  0,01 ... 73,8 lbf ft
Resolution  0,01 lbf ft
Accuracy  clockwise: ±2% FS, anti-clockwise: ±2.5% FS

Torque
Measurement range up to  0,01 ... 885 lbf-in
Resolution  0,01 lbf-in
Accuracy  clockwise: ±2% FS, anti-clockwise: ±2.5% FS

Torque
Measurement range up to  0,01 ... 1020 kgfcm
Resolution  0,01 kgfcm
Accuracy  clockwise: ±2% FS, anti-clockwise: ±2.5% FS

General technical data
Measuring functions  peak, Real-time value, Default value
Units  Nm, kgfcm, lbfft, lbf in
Connections  1/2 inch
Storage medium  Internal memory
Storage capacity  999 Values
Automatic power-off  3 min
Alarm  Acoustic, optical
Alarm settings  3 ... 100 Nm
Protection class (device)  IP52
Power supply  2x AAA batteries
(Rechargeable) battery  2 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  -10 ... 60 °C , 10 ... 90 % RH
Storage conditions  -20 ... 70 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  290 x 48 x 43 mm
Weight  701 g

Delivery Scope

1 x PCE-TWT 100N Force Gauge / Digital Force Gauge
2 x 1.5V AAA batteries
1 x Instruction manual

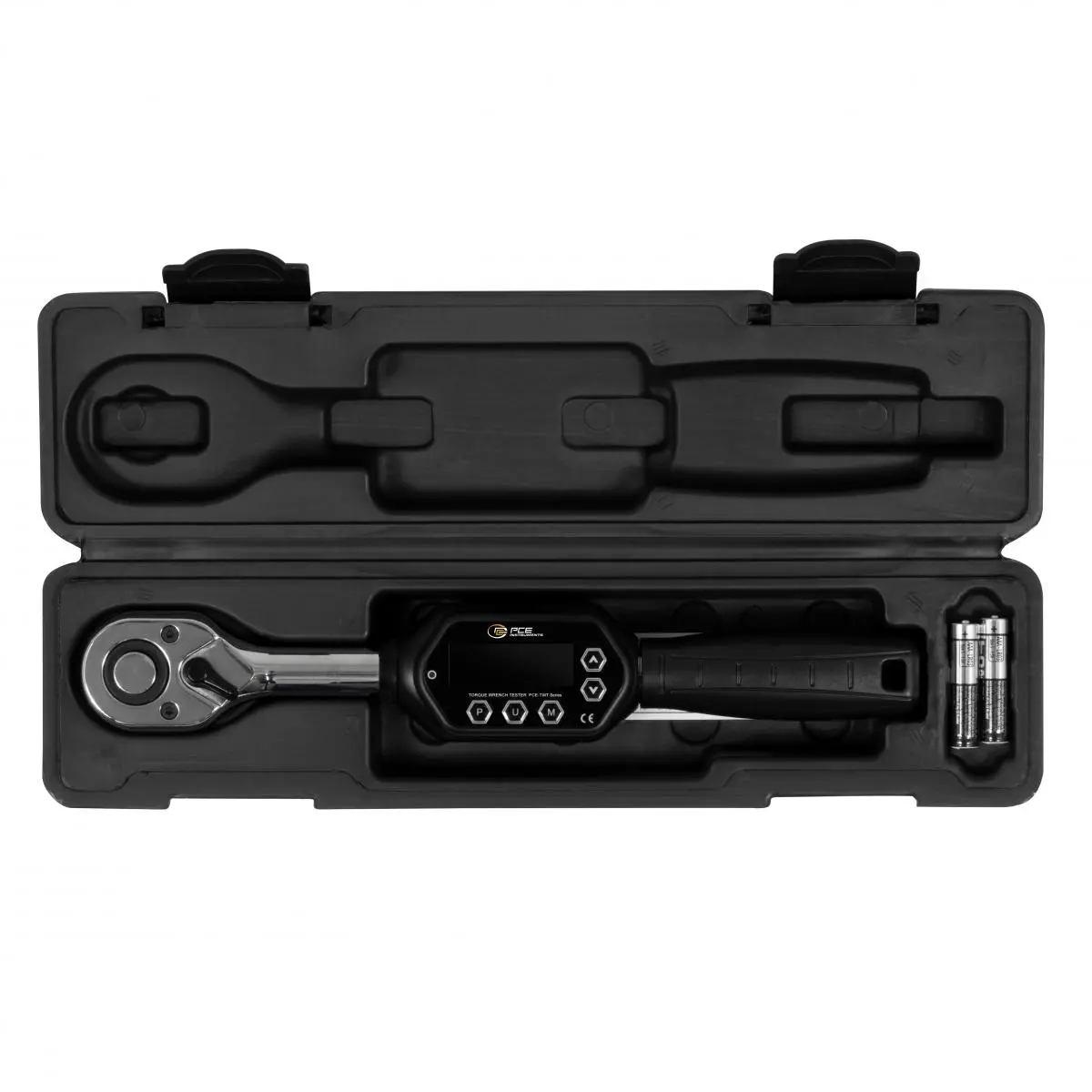

1 x Plastic case
