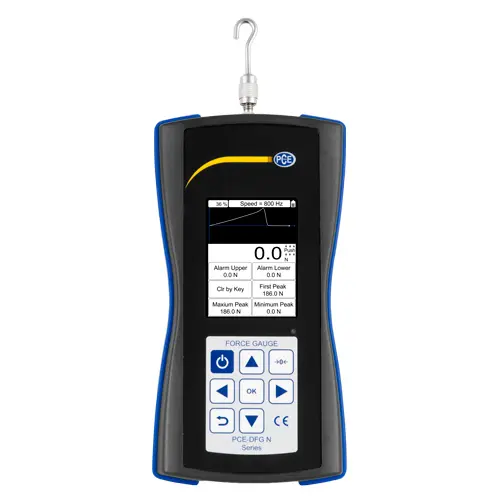

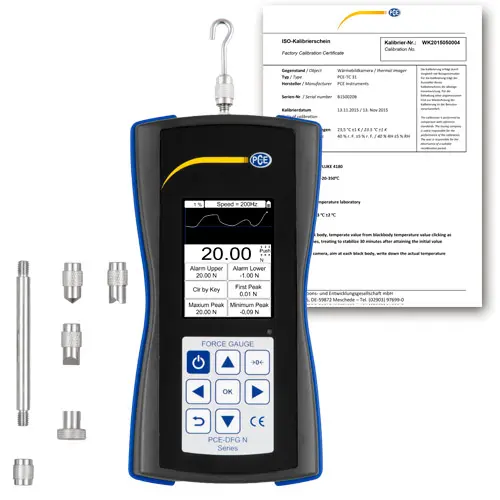

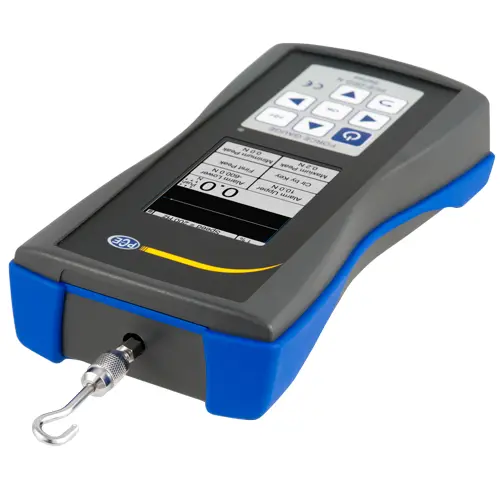

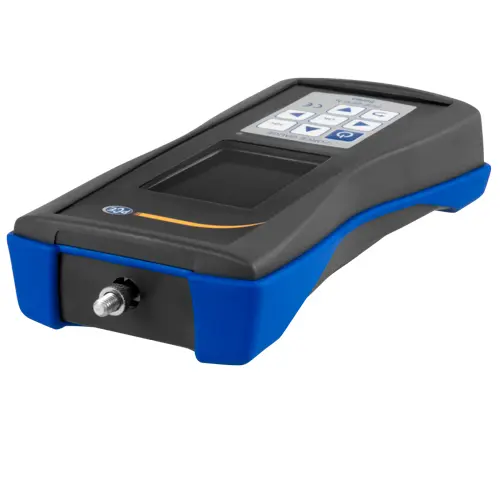

Force Gage PCE-DFG N 20-ICA incl. ISO Calibration Certificate

Our test stand for force gauge PCE-MTS500 can be coupled and operated in a wide variety of versions with our force gauges, the PCE series. The test stand for force gauge lets you carry out almost all of your compression and tensile force applications with repeatability. The use of the test stand for force gauge offers the operator the most precise equality of test bench and sample.

- Measuring range: max. 5000 N / 500 kg
- Feed speed: 30 mm/min ... 230 mm/min
- All PCE devices adaptable
- Robust steel design

*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***

Our test stand for force gauge PCE-MTS500 can be coupled and operated in a wide variety of versions with our force gauges, the PCE series. The test stand for force gauge lets you carry out almost all of your compression and tensile force applications with repeatability. The use of the test stand for force gauge offers the operator the most precise equality of test bench and sample.

- Measuring range: max. 5000 N / 500 kg
- Feed speed: 30 mm/min ... 230 mm/min
- All PCE devices adaptable
- Robust steel design

*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***

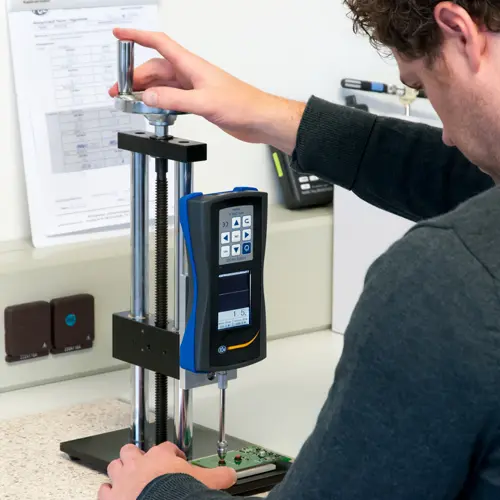

Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.

- with digital measuring distance display
- max. range of force 500 N
- maximum operating length of 236.36 mm / 9.30"
- the mounting plate ADP-UNI must be ordered at the same time!

ISO re-calibration incl. certificate for force gauge max. 50 kg / 500 N / 112 lbs. This is often required to comply with ISO/IEC 17025.

If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

Calibration certificates are issued specifically for the customer and are excluded from the right of return

Thread reducer for SJJ accessories and force gauges / test stands

- Thread connection: M10 to M6
- External thread: M10
- Internal thread: M6

Mounting plate for adapting the load cell of the PCE-FM1000 to the test stand LTS-20.

Hand grip as a wedge for the PCE-FM 50/200 device. The hand grip can be fixed at the top of the device. [more]

The force gauge test stand is used in various combinations with our force measuring devices. Manual force measuring test stand for tensile and compressive force measurement. Suitable for many devices from PCE force measurement technology with an internally built-in force measuring cell.

- Force range: max. 1000 N / 100 kg / 220 lbs
- Travel: max. 345 mm / 13.5"
- Spindle pitch: 2 mm / 0.07"
- Minimal maintenance
- the mounting plate ADP-UNI must be ordered at the same time!

Double handle for force measuring devices with internal force measuring cell up to 500N

N.B. Force gauge not included in delivery.

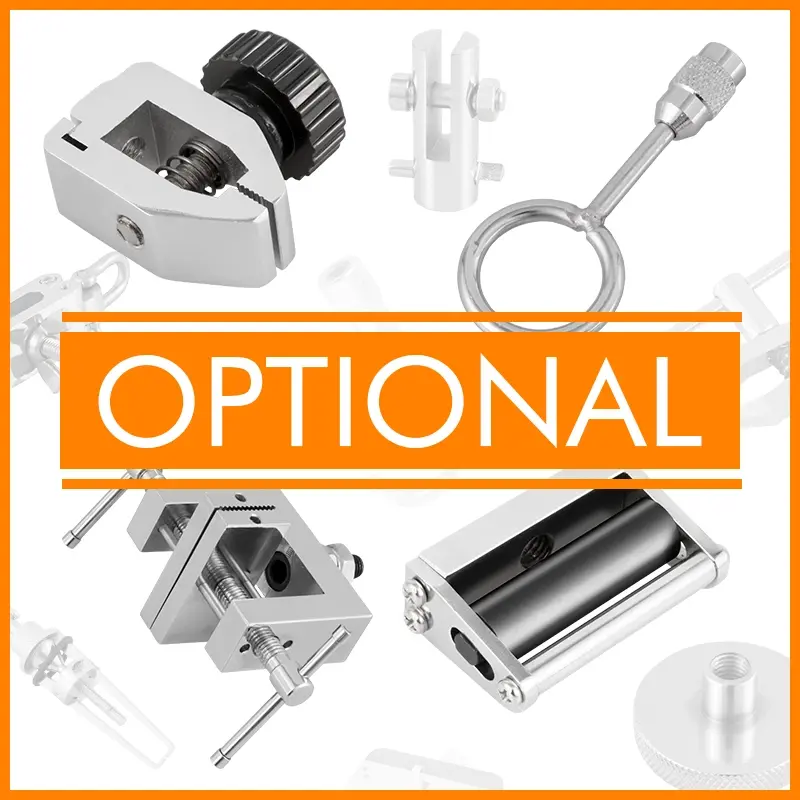

Adapter clamp for tensile tests.

- Max. Capacity: 500 N / 112 lbs
- Opening max: 8 mm

Use clamping device for tensile testing of electronic parts, wires, etc.

- Max. Capacity: 500 N / 112 lbs
- Opening max: 2.5 mm

Use clamping pliers for tensile tests of electronic components, wires, etc.

- Max. Capacity: 1000 N / 225 lbs
- Opening max: 20 mm

Clamping device for testing bristles.

- Max. Capacity: 500 N / 112 lbs

Clamping device for testing bristles.

- Max. Capacity: 500 N / 112 lbs

Holder for knob and rivet test.

- Max. Capacity: 500 N / 112 lbs

Pliers for trigger tests.

- Max. Capacity: 500 N / 112 lbs
- Opening max: 37 mm

Adapter for pressure force testing of sponge, foam glass, rock material, etc.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Diameter: 16 mm
- Threaded connection: M10

Adapter-stamp for pressure force test of spring and sponge etc.

- Max. Capacity: 3 kN / 3,000 N / 674 lbs
- Diameter: 50 mm
- Threaded connection: M10

Adapter clamps for tensile testing of wire and filaments.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Threaded connection: M10

Fork holder for tensile and pressure tests.

- Max. capacity: 5 kN / 5,000 N / 1124 lbs
- Threaded connection: M10

Tensioning device for tensile tests.

- Max. capacity: 0.2 kN / 200 N / 45 lbs
- Max. opening: 3 mm
- Threaded connection: M10

Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Opening max: 4 mm
- Threaded connection: M10

Adapter ring for tensile tests. Diameter is 20 mm and capacity is 0.5 kN / 500 N / 112.4 lbs.

- Useful for tension test of springs or wires
- M6 threaded connection

Clamping device for tensile tests of rubber, wires and cables, paper, plastic film, etc.

- Capacity 500 N / 112.4 lbs
- Max. opening size 3 mm

Clamping device with soft jaws for tension testing of paper, film etc.

- Capacity 500 N / 112.4 lbs
- Diameter: 6 mm
- Aluminum material

Clamping device with large opening width for peel test of block, glass and cardboard.

- Capacity 5000 N / 1,124 lbs
- Max. opening 33 mm / 1.29 in
- M10 threaded connection

Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.

- Capacity 5000 N / 1,124 lbs
- Material is iron
- Opening is 4 mm
- M10 threaded connection



- Capacity 5000 N / 1,124 lbs
- Material is iron

- Capacity 5000 N / 1,124 lbs
- Material is iron
- Opening is 5 mm
- M10 threaded connection

Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.

- with digital measuring distance display
- max. range of force 500 N
- maximum operating length of 236.36 mm / 9.30"
- the mounting plate ADP-UNI must be ordered at the same time!
