Order no.: PCE-T 318

Food Thermometer PCE-T 318

US$ 125.00
:
4250348717566
PCE-T 318
ex. VAT, ex. delivery costs
Available in: 1-2 working days

Description

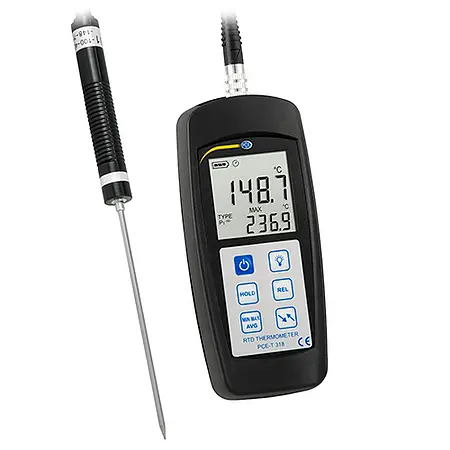

Food thermometer PCE-T 318
Accurate Pt100 digital thermometer / Min, max and mean value function / High accuracy

The precision food thermometer PCE-T 318 is a measuring device for connecting resistance sensors. All platinum resistance sensors according to IEC751 can be connected to this precision food thermometer. Pt100 sensors have a resistance of 100 Ohm at 0.0 °C. You can find an explanation of the measuring methods and the different PT-100 sensor elements here.

The measuring range extends from -100 ... 300 °C / -148 ... 572 °F. The temperature is resolved with 0.1 on the PCE-T 318. The platinum sensors are connected to the measuring device in 4-wire technology. In addition to continuous temperature measurement, the precision food thermometer has a manual hold function. Here the user can freeze the measured value in the display by pressing a button. The temperature measuring device is also equipped with an automatic min, max and mean value function.

Highlights

- High precision

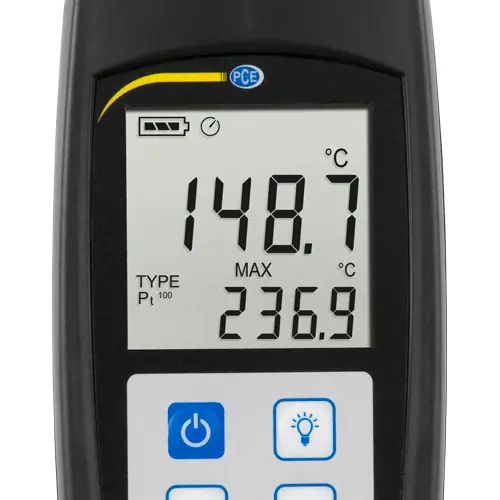

- Large LCD display
- Min, max and mean value function
- Hold function
- Backlight
- Different units can be selected
- Automatic shutdown to save the battery
- incl. Pt100 sensor

Specification

Measuring range

-100 ... 300 °C / -148 ... 572°F

Resolution 0.1 °C / 0.18°F
Accuracy (at 23°C / 73.4°F ± 5°C / 9°F)   ± 0.1 % of reading + 0.4 °C / 0.72°F

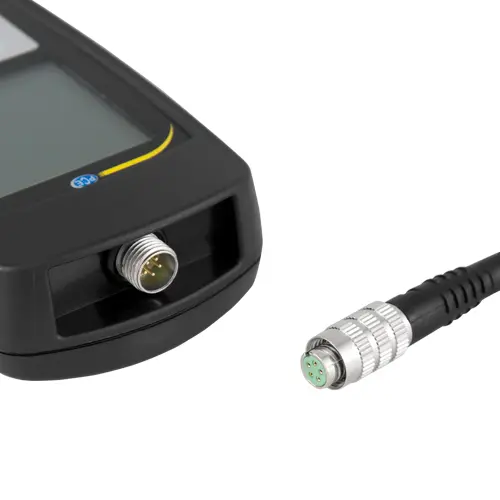

Sensor 4-wire PT100 class A sensor included,
Pt100, Pt500 & Pt1000 connectable
Measuring current ca. 0.53 mA
Inputs (for temperature sensors) 1
Measuring rate 0.5 s
Protection IP 67
Power supply 3 x 1.5 V AAA batteries
Battery life ca. 100 h
Operating conditions 0 ... 50 °C / 32 ... 122°F, 0 ... 80 % r.H.
Storage conditions -10 ... 60 °C / 14 ... 140°F, 0 ... 80 % r.H.
Dimensions Handset: 150 x 66 x 31 mm / 5.9 x 2.6 x 1.2 in

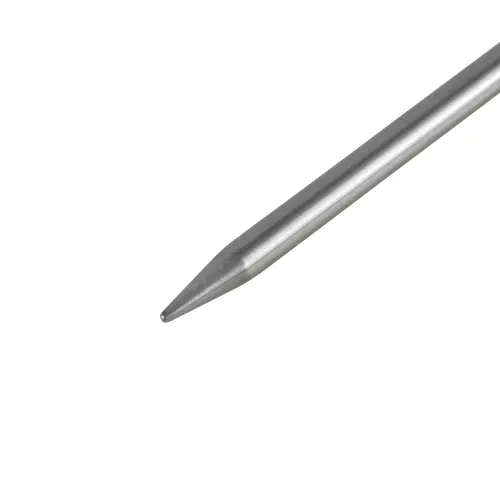

Sensor (stainless steel part): 124 x Ø 3,2 mm / 4.9 x Ø 0.13 in
Sensor (total): 240 mm x Ø 15 mm / 9.4 x Ø 0.6 in
Weight ca. 175 g / < 1 lb

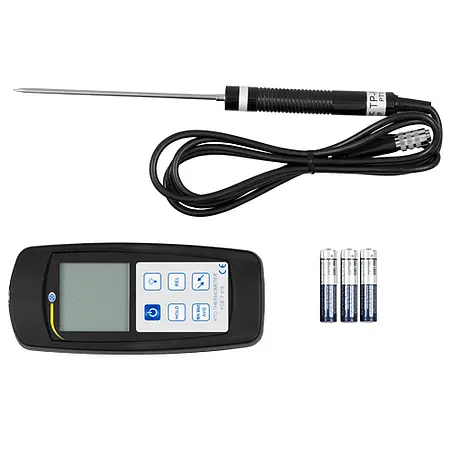

Delivery Scope

1 x PCE-T 318 Food thermometer

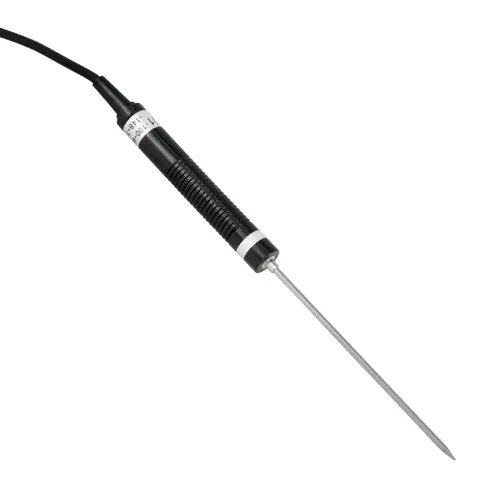

1 x PT100 sensor
3 x 1.5V AAA batteries
1 x User manual
